• Model NO.：HT200
• Feed Mode：Electric Manual
• Feed Volume：0.07-0.2 mm,R
• Working Stroke：400mm
• Spindle Speed：40 Rpm
• Motor Power：220V, 1.5kw
• Tapping Time：15-30 Min
• Transport Package：Wooden Case
• Specification：HT200
• Trademark：GREAT WALL
• Origin：China
• HS Code：8467210000

Basic Info.

Model NO. HT200 Feed Mode Electric Manual Feed Volume 0.07-0.2 mm/R Working Stroke 400mm Spindle Speed 40 Rpm Motor Power 220V, 1.5kw Tapping Time 15-30 Min Transport Package Wooden Case Specification HT200 Trademark GREAT WALL Origin China HS Code 8467210000

Product Description

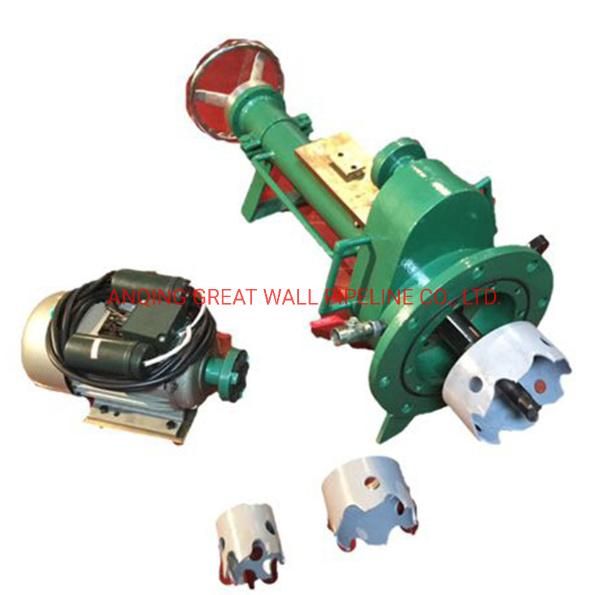

HT200 Model Electric Drive Hot Tapping Machine

Product Introduction :

This machine is designed for hot tapping on the pipeline under pressure for the branch pipeline connection .
It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe .
And it is widely applied in water supply, natural gas supply,  oil and chemical industry .

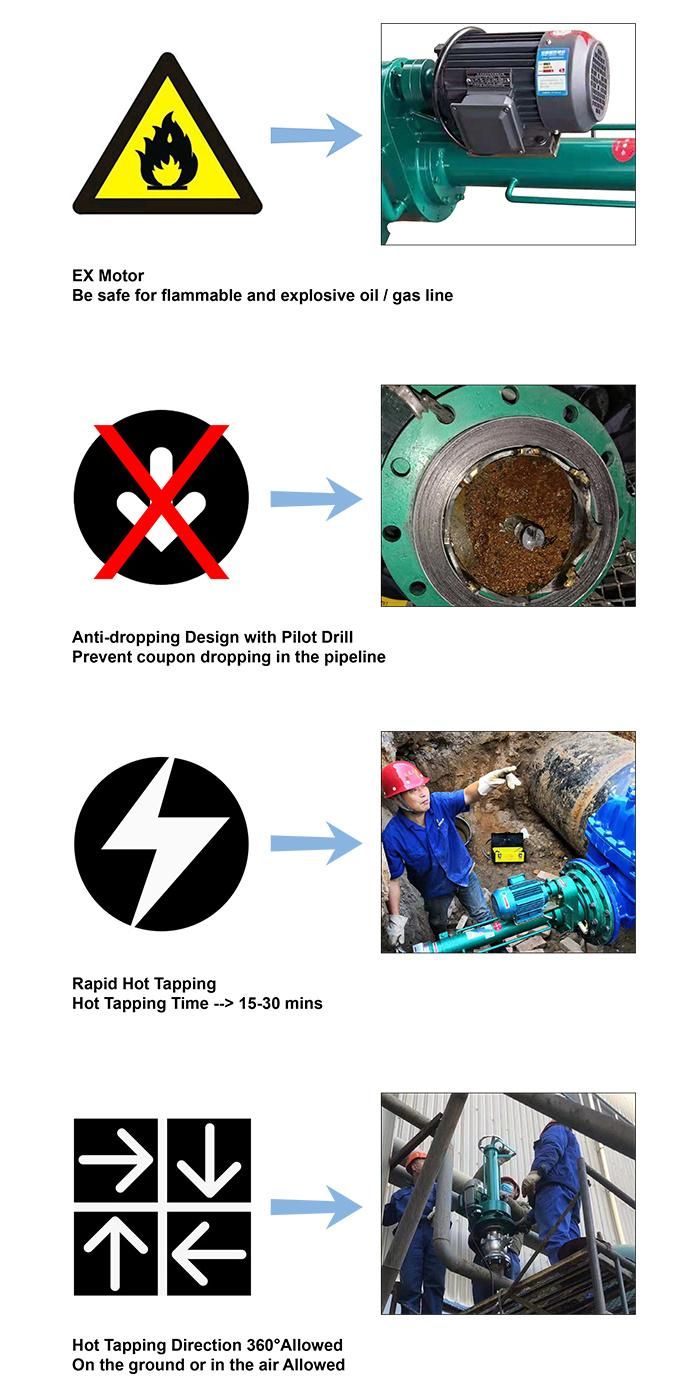

Product Features :

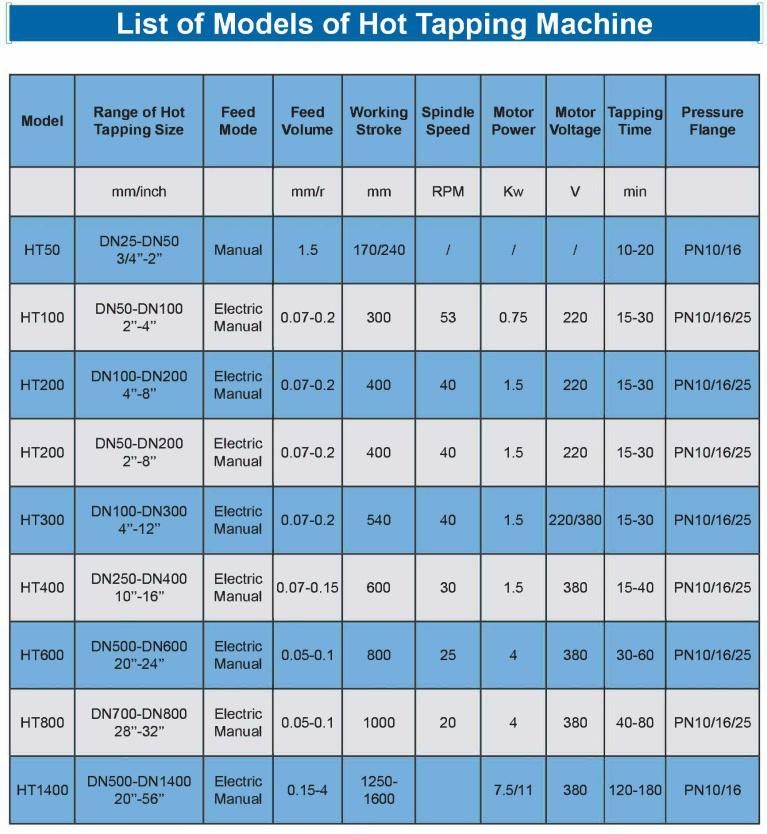

List of Models :


Note:  1 . Range of Hot Tapping Size :  2'' to 64''    2. Range of Working Pressure : PN10, PN16, PN25

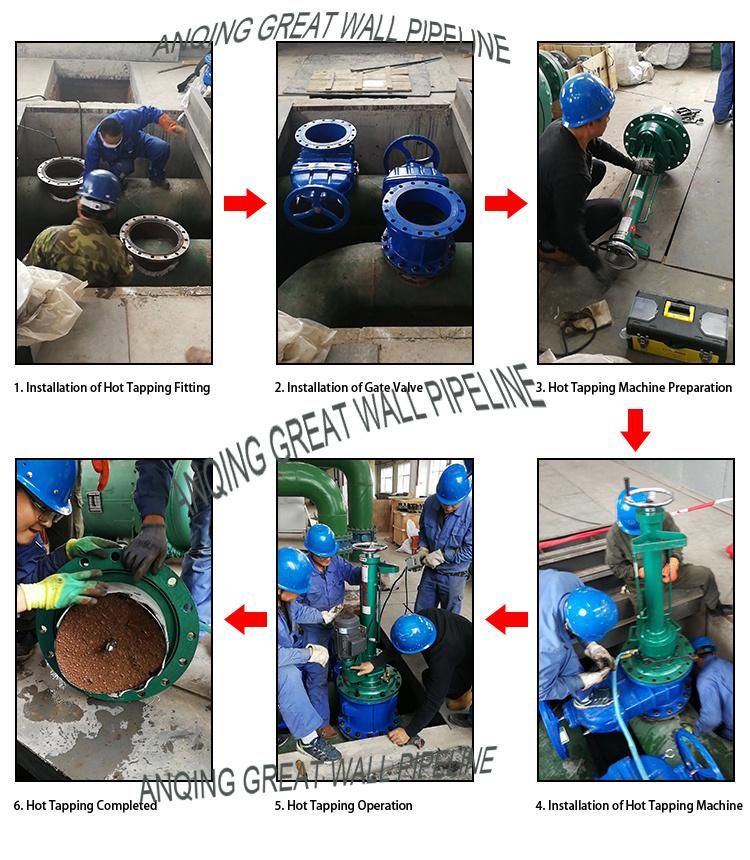

Hot Tapping Procedure :

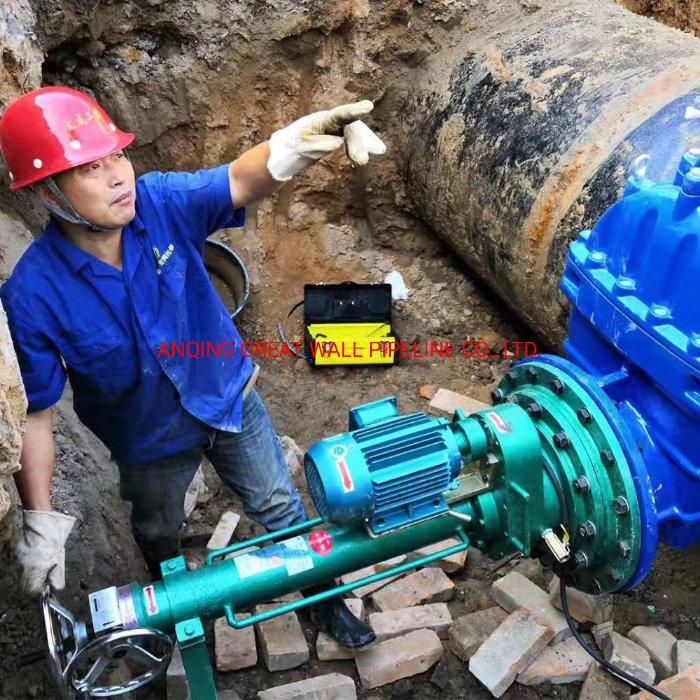

Hot Tapping Case :


Company Profile :


        Anqing Great Wall Pipeline Company have over 10 years experience of the production and development of
Electric and Manual Hot Tapping machine for water, oil and gas lines with the pressure rating of PN10, PN16 and PN25,
the range of hot tapping sizes from DN25mm up to DN1600mm.
      our hot tapping machine are exported to the countries and regions including Singapore, Malaysia, Indonesia,
Taiwan, UAE, Chile, Argentina, Brazil and etc.

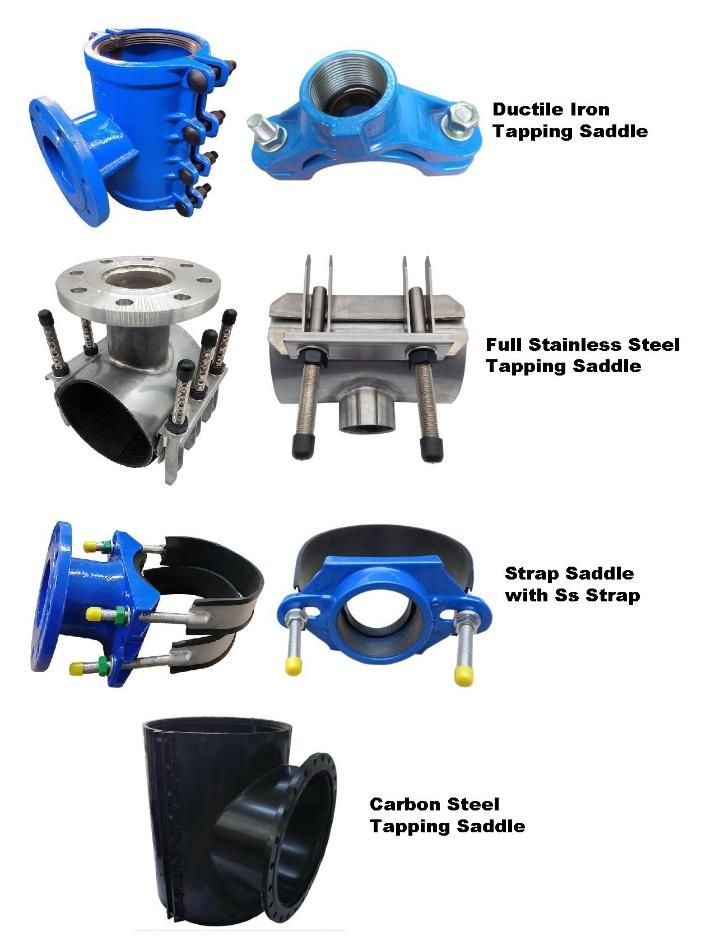

Hot Tapping Fitting :


Note: we supply the above hot tapping fitting as per specific dimension and pressure rating .
