• Model NO.：SOV-NC Series
• OEM：Yes
• Nuts on The Side：S10-S75mm
• Payment：T,T
• Factory Name：Fast Speed Hydraulic Nut Cutter
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001, SGS
• Trademark：SOV
• Origin：China
• HS Code：8467890000
• Production Capacity：600 Sets Per Month

Basic Info.

Model NO. SOV-NC Series OEM Yes Nuts on The Side S10-S75mm Payment T/T Factory Name Fast Speed Hydraulic Nut Cutter Transport Package Standard Export Wooden Case Specification CE, ISO9001, SGS Trademark SOV Origin China HS Code 8467890000 Production Capacity 600 Sets Per Month

Product Description

                                                           Fast Speed Hydraulic Nut Cutter

Instruction
The nuts widely used in the industrial manufacture are placed in the open-air and high temperature or corrosive environment. Some are fastened by rust and some screw threads are damaged by bumping, so the nut dismantling is very difficult. The usually method is to cut off the nut and bolt together with gas cutting. However, in some special environment, it is prohibited to use fire (electricity) welding, like underground coal mine, in pulverized coal bunker of power station, high pressure and high temperature places in oil pipeline, so that makes the people have no choice to change the nut and bolt. The hydraulic nut cutter can settle the dismantling of nut and bolt in a simple and convenient, fast, safe, high-efficient way without fire, electricity and damage to thread of bolt.
Features
Fast: It only needs 20 second in cutting off 90mm nut and weeding out traditional gas cutting thoroughly. The operation is simple and convenient and the efficient can be improved.
Safe: Hydraulic operation, shock-free, non-spark, most applicable for the use in the anti-explosion area.
Multipurpose: Applicable for the nuts with the across flats range S1 0 -S75mm. Each type can cut 6 to 8 sizes' nuts.
Efficient: It saves operation time and avoids the unnecessary waste caused by damaging the nut.
Strong: The special tool bit with sharp plane is used for it, which can cut both the soft object such as stainless steel and the hard object such as alloy steel.

Parameter

Model	Bolt Size(mm)	Nut Size(mm)	Capacity(T)	Oil Capacity(cm3)
SOV-NC-19	M6-M12	10-19	5	15
SOV-NC-24	M12-M16	19-24	10	20
SOV-NC-32	M16-M22	24-32	15	60
SOV-NC-41	M22-M27	32-41	20	80
SOV-NC-50	M27-M33	41-50	35	155
SOV-NC-60	M33-M39	50-60	50	240
SOV-NC-75	M39-M48	60-75	90	492

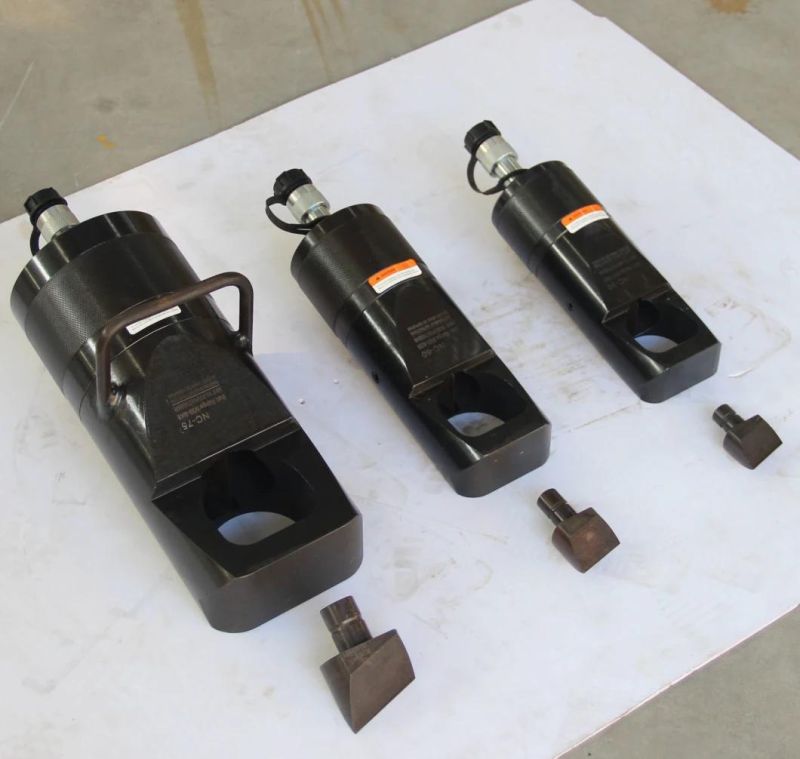

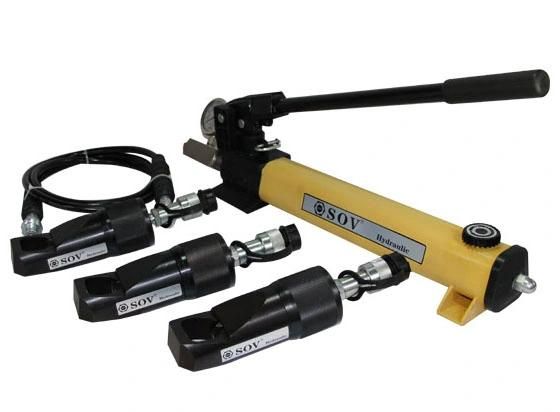

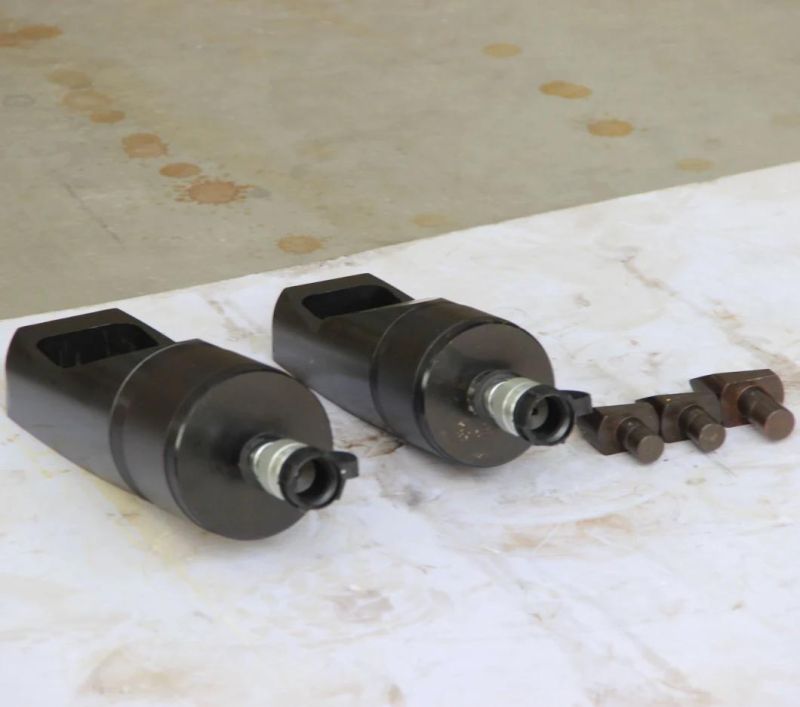

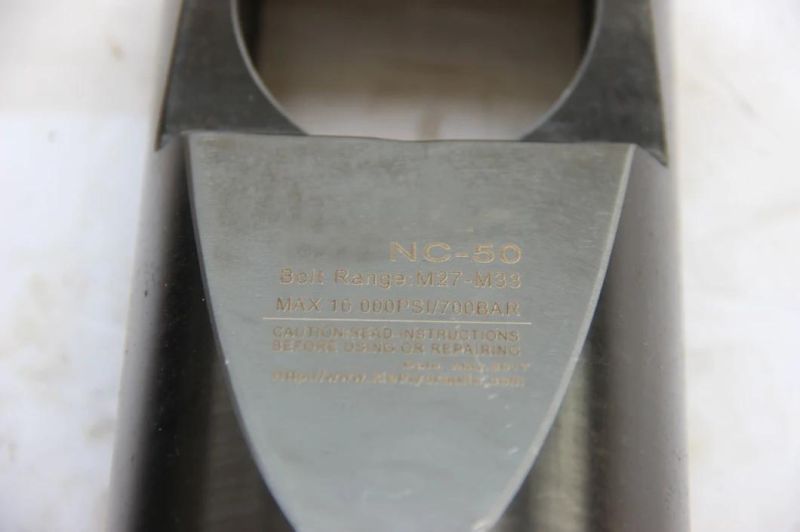

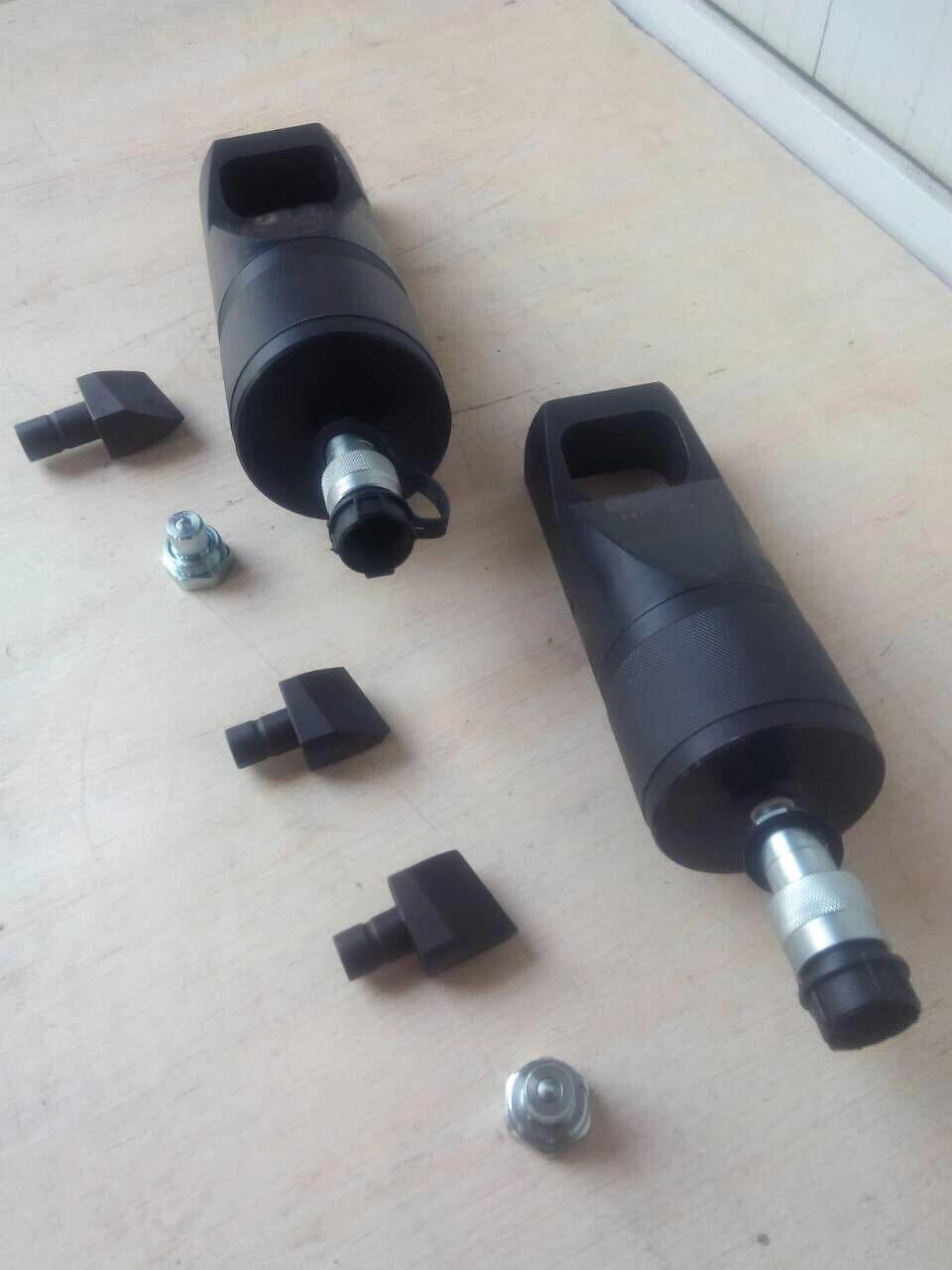

Photos

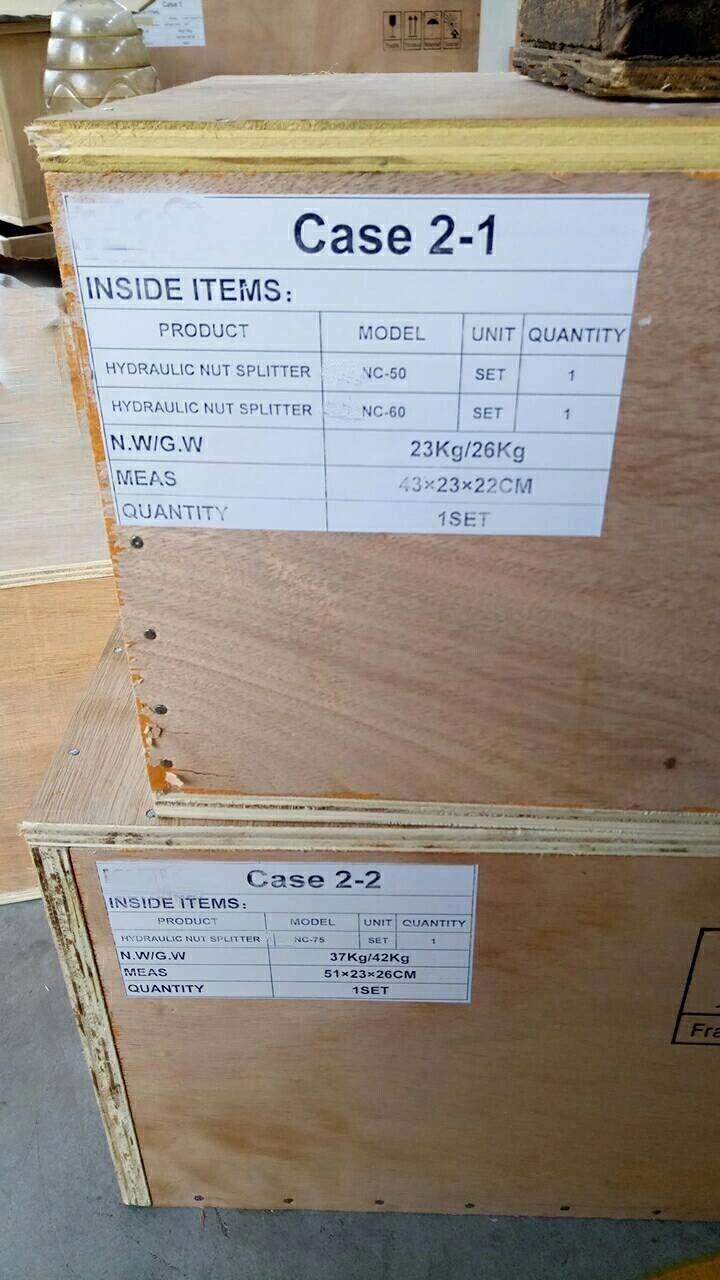

Packaging Details

1. Outside packaging: Standard export wooden packing;
2. Customized packaging acceptable.


Shipping

1. Small quantity: By international exress, such as DHL, TNT, FedEx, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Our Service

1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

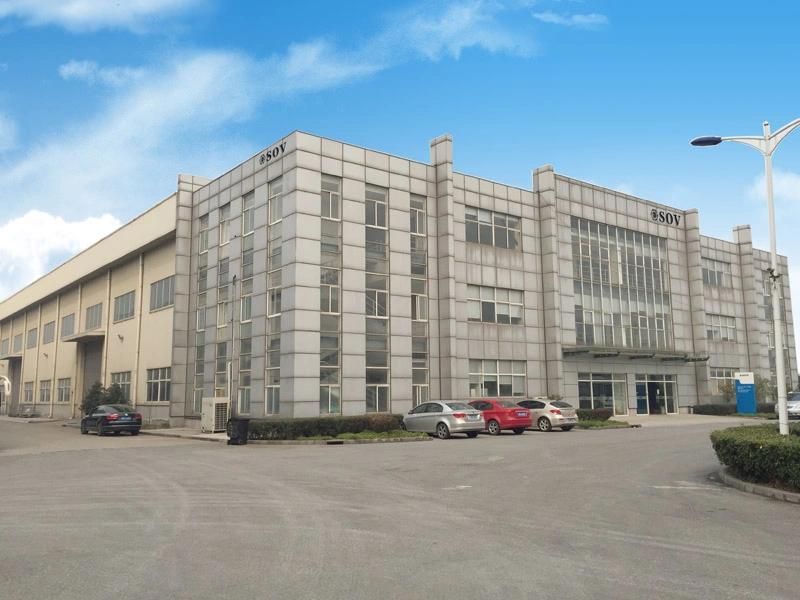

Company Information


SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.

Competitive Advantages

1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.

Teams
