M6-M30 Universal 360° Electric Touch Tapping Machine 220V
Henan Wadley CNC Machinery Co., Ltd.- Tapping Range：M6-M36
- Tapping Direction：Vertical or Horizontal
- Max. Drilling Dia：36mm
- Range of Spindle Speed：1 - 250 r.p.m
- Voltage：110V,220V,380V
- Power：1200W
Base Info
- Model NO.：M6-M30
- Weight：55 Kg
- Working Radius：1300mm
- Transport Package：Wooden Case
- Specification：900*750*320mm
- Trademark：wadley
- Origin：China
- HS Code：84597000
- Production Capacity：1000sets , Month
Description
2.Tapping can be positioned in many ways.
3.Quick, accurate and convenient positioning.
4.This machine is multi-purpose, suitable for tapping steel, aluminum, plastic and wood.

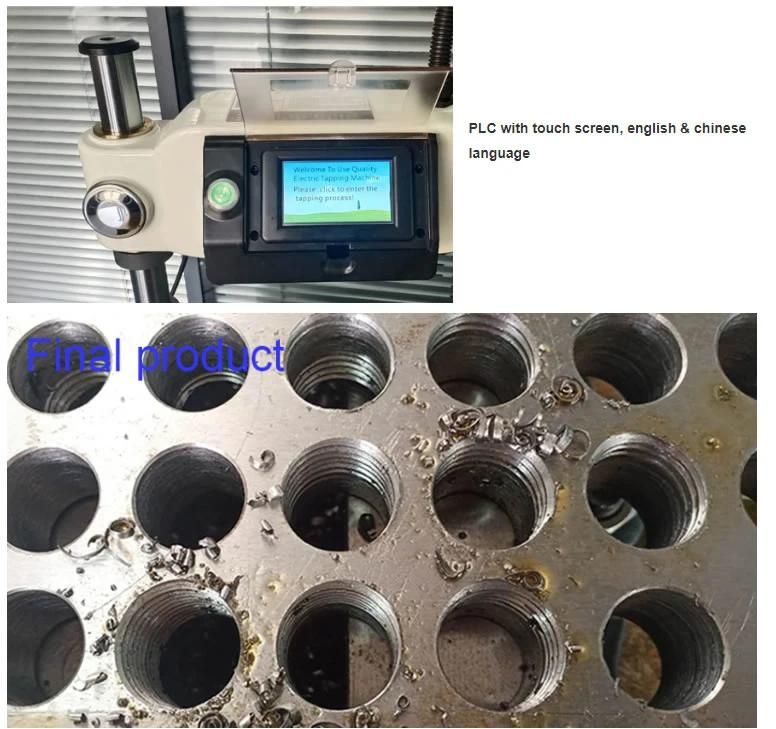

5.The machine is touch-screen panel with clear and intuitive interface and simple operation. There are three tapping modes, which can be switched between Chinese and English.
6.The machine has three tapping modes: manual tapping mode, automatic tapping mode and vibration tapping mode.
7.The machine has stepless speed regulation function.
8.Double torque protection.
Acquisition of a threading machine
The operation of a threading machine should be as simple as possible. In the case of a current shortage of skilled workers, it is not advisable to choose a highly technical machine for simple tasks which can then only be operated by 1-2 employees throughout the company. Separate forward and reverse flow and separate speed adjustment are important. The speed for threading depends on the thread size. In addition, a simple depth adjustment or a lubrication system may also be suitable.
Handling is one of the most important points. The tapping arm should be easy to move without great resistance. This is important for large threads, because it is ergonomic and energy-saving, but even more important for small threads, because there must be no lateral forces on the cutter, because otherwise it breaks very easily.
At Wadley you can buy hydraulic and electric threading machines. Mainly, however, the electric tapping machines from the manufacturer Wadley, since these convince by quality, operability and above all first-class handling.
Differentiation of threading machines
You want to buy a threading machine, but don't know exactly what you need yet. We will be happy to help you distinguish between the different species.
