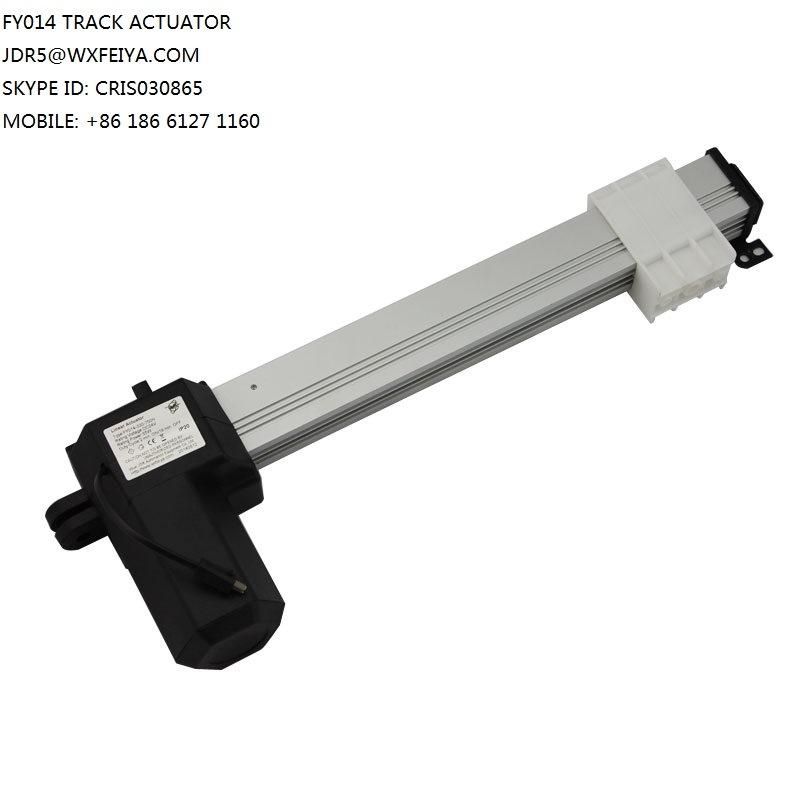

Feiya Brand Name Linear Actuator Slide System
Wuxi JDR Automation Equipment Co., Ltd.- Item No.：Fy014
- Input Voltage：24VDC,12VDC
- Load Capacity：4000n
- Max Speed：5mm,S
- Stroke：50-1000mm
- Type of Duty：S2-10min
Base Info
- Model NO.：FY014
- Limit Switch：Inner
- Operation Temperature：-26-65 Degree
- Color：Black or Gray
- Protection Class：IP20
- Transport Package：Standard Export Carton
- Specification：CE, ROHS, SGS
- Trademark：JDR
- Origin：China
- HS Code：940190900
- Production Capacity：5000 Sets , Month
Description

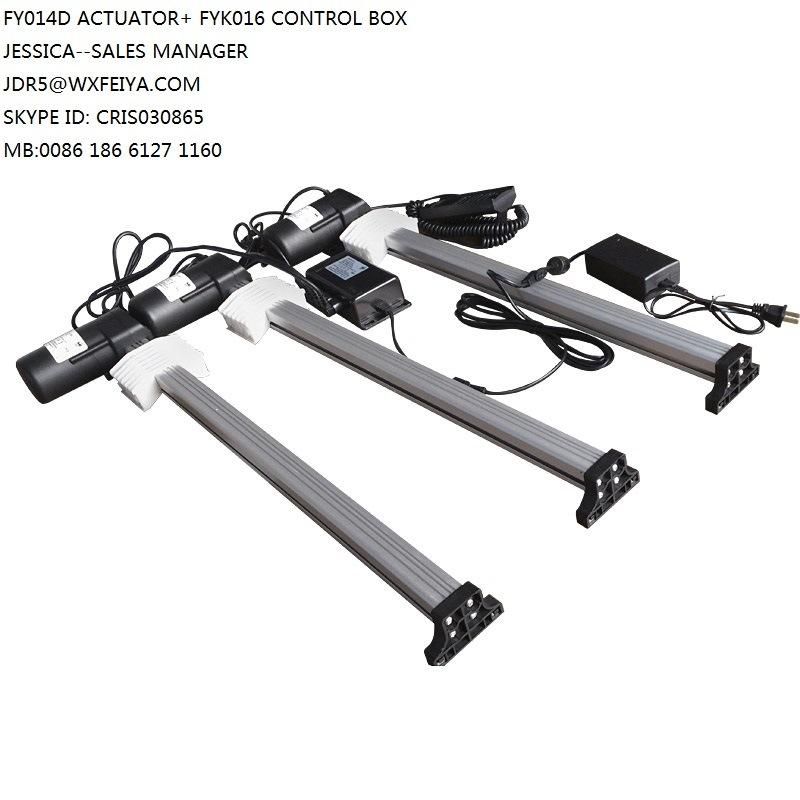

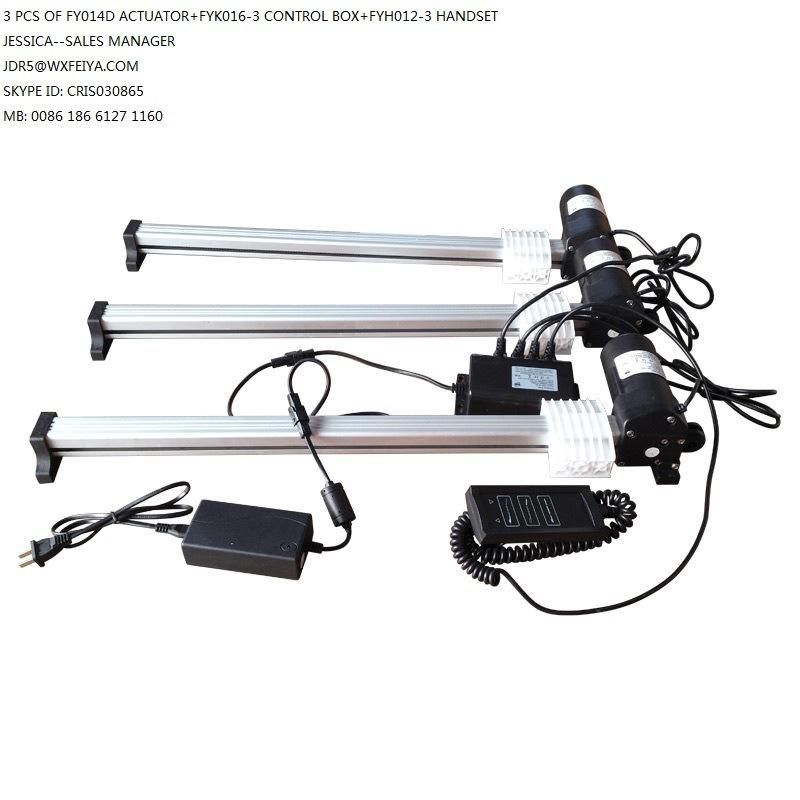

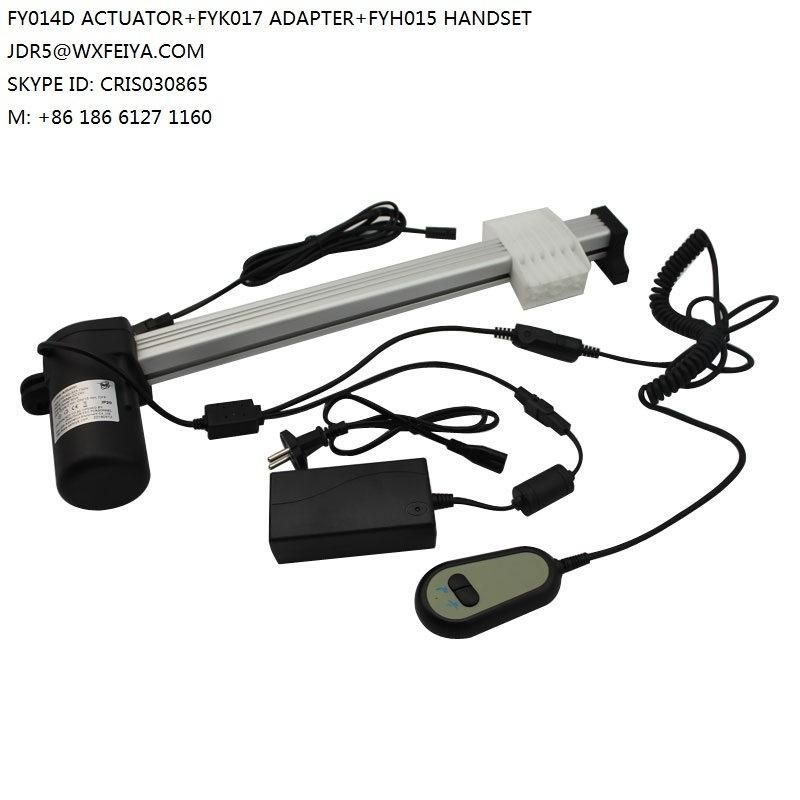

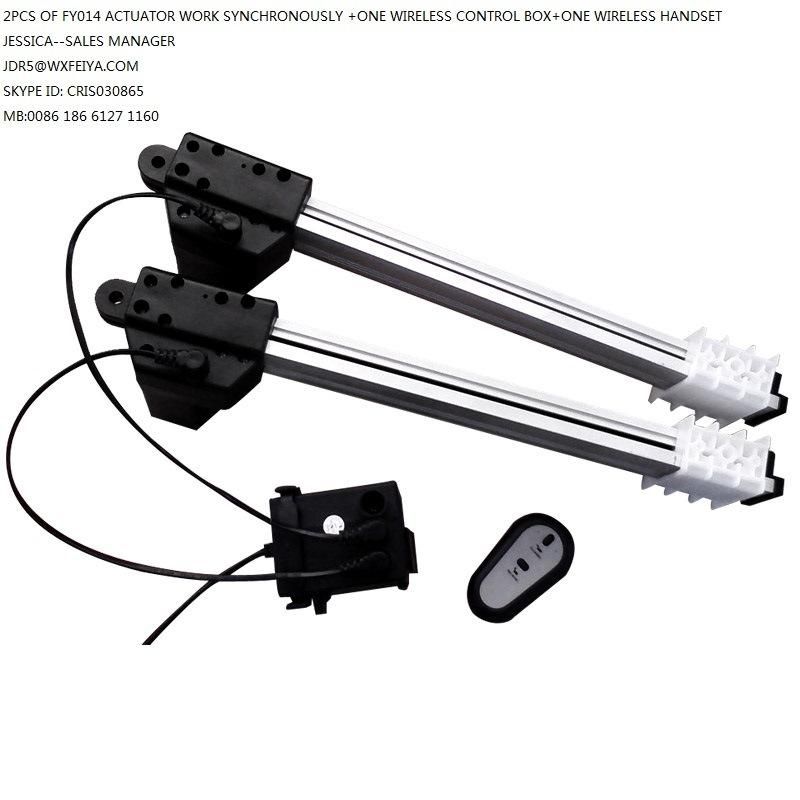

Control Box Used:Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2 Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3 Control 4 Linear Actuators: FYK012-4, FYK016-4 Control 5 Linear Actuators: FYK012-5, FYK016-5 Control 6 Linear Actuators: FYK016-6 Handset Used: All FYH Series Handset, Pls contact us for detail pictures.
Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.
Specification of OurElectric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage:24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.
Duty cycle:10%
Ambient temperature -26°C to +65°C
Standard protection class:IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Overload protection
CE Certificated
Availability in Black, White and Gray housing
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
