• Model NO.：TBS-SC-2
• Power Source：Electricity and Pneumatic
• Function：Professional
• Condition：New
• Customized：Customized
• Feeder Type：Blowing Type
• Screw-Feeding Speed：0.5s,PCS.
• Net Weight：15kg
• Air Pressure：0.4-0.8MPa
• Transport Package：Wooden Box
• Specification：350*400*220mm
• Trademark：Topbest
• Origin：China
• HS Code：8479909090
• Production Capacity：2000 Pieces,Year

Basic Info.

Model NO. TBS-SC-2 Power Source Electricity and Pneumatic Function Professional Condition New Customized Customized Feeder Type Blowing Type Screw-Feeding Speed 0.5s/PCS. Net Weight 15kg Air Pressure 0.4-0.8MPa Transport Package Wooden Box Specification 350*400*220mm Trademark Topbest Origin China HS Code 8479909090 Production Capacity 2000 Pieces/Year

Product Description

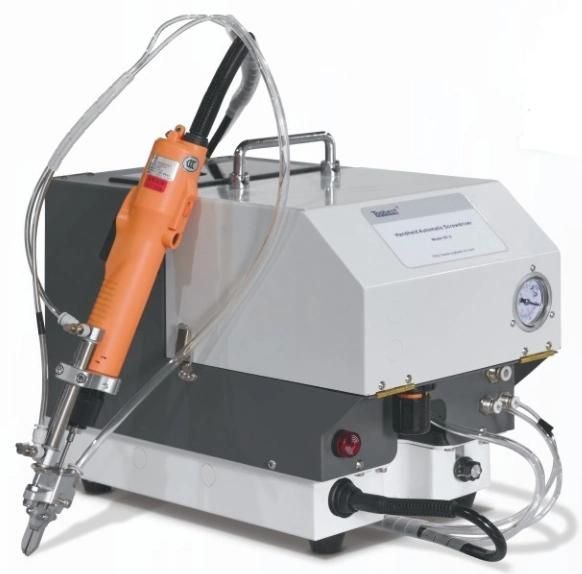

SC-2   Handheld Auto Blowing Type Feeder Torque Driver







Parameters

Model	SC-2
Dimension	365mmX225mmX260mm
Applicable screw size	M1-M4, total Length>1.2 times of diameter
Applicable products	No obstruction around 10mm, hole depth less than 30mm
Conveying distance	1-4m
Feeder volume	M2*6,5000pcs.
KILEWS screwdriver	Equipped base on torque
Versatility	0.5mm Allow 0.5mm tolerance between the different screw
Net weight	13kg
Power	60W
Input voltage	220V AC/50Hz(110V AC/60Hz)
Air pressure	0.4~0.8Mpa
Work environment	0~40ºC, Humidity 20%~95%

Advantage
1. For manual screw fastening continuously.
2. No need for programming.
3. Automatic screw feeding ( Pneumatic ).

Features
1. Faster, versatile, rugged and are "automatic feeder ready"
 2. Turbine feed, various shapes of screws automatically feed, sort and lock. One-handed operation. 3. High torque accuracy, convenient adjustment, ensure the quality of screw locking. 4. Small size, light weight, low noise, space saving, good mobility, easy maintenance. 5. Warning function (audible and visual alarm) when there is no screw. 6. High efficiency. You do not need to pick up the screws, just lock the screws at the screw holes. 7. Feed the sensors one by one to avoid repeated feeding. 8. The screws can be locked very quickly, locking about 60 screws per minute.

Conditions of Use
 The screws used must meet the requirements:

  (1) The total length (H) of the screw must be more than 1.2 times the diameter (D) of the screw head.

  (2) Be Suitable for the M1-M4 screw.

  (3) The total screw length(H)<=30mm and screw cap's diameter(D)>=2mm<=8mm.

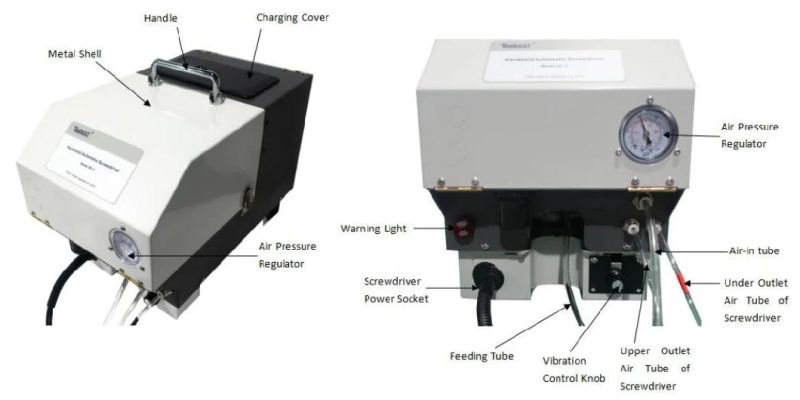

Structure

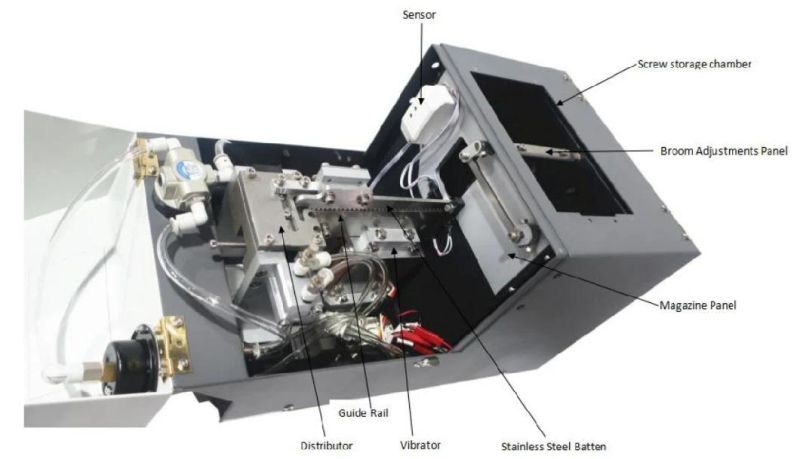

The structure of the blowing type feeder
