• Product Name：Butterfly Valve with Rubber Lined Disc
• Body：Cast Iron,Ductile Iron,Carbon Steelstainless Steel
• Disc：Rubber Lined
• Stem：Carbon Steel,Ss410,Ss416
• Seat：EPDM,NBR,Viton,PTFE
• Type：Wafer,Flange
• Coating：Epoxy Coated
• Operator：Lever,Gear,Bare Shaft,Electric,Worm Gear
• Sample：Available
• Transport Package：Wooden Case
• Specification：Dn50-2000; 2"-80"
• Trademark：Like
• Origin：China
• HS Code：8481804090
• Production Capacity：1000000

Working pressure

PN10, PN16, CL150, JIS 5K/10K

Testing pressure

Shell: 1.5 times rated pressure

Seat: 1.1 times rated pressure

Working temperature

-10 °C to 80°C (NBR)

-10 °C to 120°C (EPDM)

-10 °C to 150°C (PTFE)

Suitable media

water, oil and gas

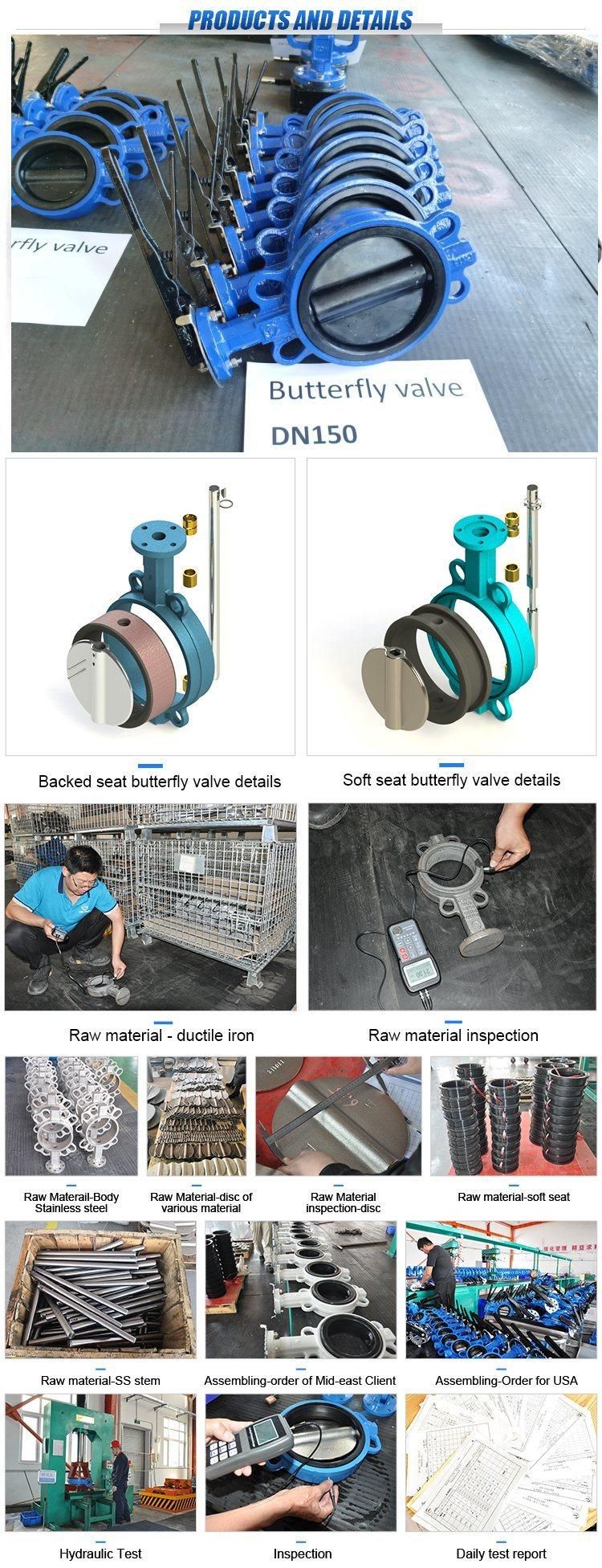

Product detail

Parts

Material

Body

Cast iron, Ductile iron, Carbon steel, Stainless steel.

Seat

EPDM, NBR, VITON, PTFE

Disc

Nickel ductile iron, AI bronze, Stainless steel, Carbon steel, Nylon

Stem

Carbon steel, Stainless steel

Bushing

PTFE

"O" ring

PTFE

Pin

Stainless steel

Key

Stainless steel

Standard

Design Standard

EN 593, MSS SP67, API 609, BS5155

Inspection & Test

API 598, ISO 5208, EN 12266

End Standard

ANSI: B16.1 CL 125LB; B16.5 CL 150LB; B16.47 150LB.

AS: 2129 Table D & E   BS 10 Table D & E

DIN: 2501: PN6, PN10 & PN16

EN: 1092: PN6, PN10 & PN16

ISO 2531: PN6, PN10 & PN16

ISO 7005: PN6, PN10 & PN16

KS: B 1511 / JIS B 2210 5K & 10K

MSS: SP44 CL. 150LB  AWWAC207

SABS: 1123 Table 1000/3 & Table 1600/3

Face to Face

ISO 5752, EN 558, MSS SP67, API 609 and DIN3202

Top Flange

ISO 5211

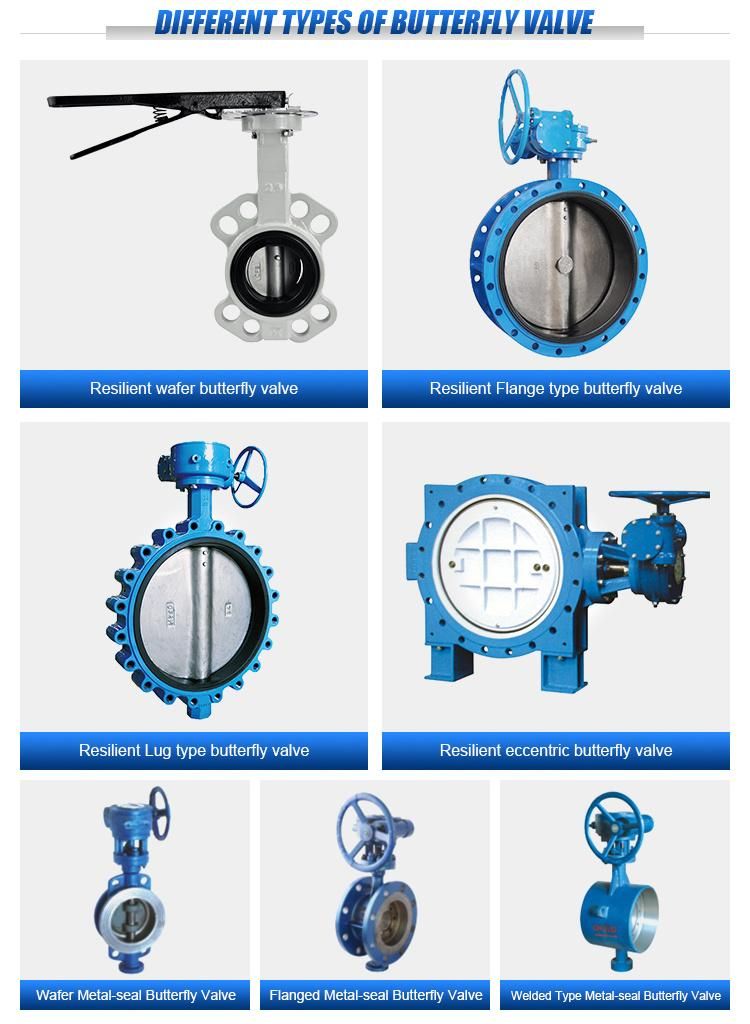

Different Types of Butterfly Valve


We can produce various types of butterfly valves according to your requirement and drawings.


Production Equipment

Packing & Delivery



Company Profile



LIKE VALVE (TIANJIN) Co., Ltd locates in Tianjin-next to the largest sea port in North -Tianjin seaport; with more than 20 years experienced managing, manufacturing and quality control team; make efforts to produce high level quality valves of China.

 Like valve has design research and development, manufacturing, marketing and aftersale services. We have the independent R&D center, advanced manufacturing technology and strictly implement the relevant international standards. With advanced engineering design approaches, well-developed manufacturing equipment, testing verification facilities and strict QC as per ISO9001 certificate system, we "Like Valve" ensure that each part in every product we supply is in high quality and performance. We specialize in in water valves: such as butterfly valve, gate valve, check valve, Hydraulic control valve, strainers, WRAS certified material avaiable; and oil and gas valves such as: gate valve, globe valve, ball valve, check valve, strainers etc, with API 6D certificate; also and other series products. We also customize valves in different materials, pressure, size and other products, according to customers requirement."Like Valve" products have exported to more than 18 countries: such as USA, Argentina, Brazil, Russia, Spain, UAE, Morroco, India, Bangladesh etc; widely used in water supply and drainage, construction, electricity, oil and gas pipe, petrochemical, metallurgical and other industries. Product ingenuity, high quality and reasonable price, trusted by the user.


Products Categories


FAQ
 Q1: What certificates can you offer?
A:ISO,CE,API 6D,WRAS

Q2: Do you accept OEM?
A:Yes

Q3: Can i get a sample?
A:Yes, of course.

Q4:What is your MOQ?
A:1 pcs acceptable, more discount for larger quantity.

Q5:If all products will do test?
A:Sure, our products is tested piece by piece before delivery, no sampling test.

Q6: What is the payment term.
A:T/T, L/C, Credit Card, or other by discussion

Q7: What is delivery time?
A:Common standard commonly material valves in 7-20 days according to quantity

Q8: What is the warranty?
A:Standard valves warranty: one year after delivery.
