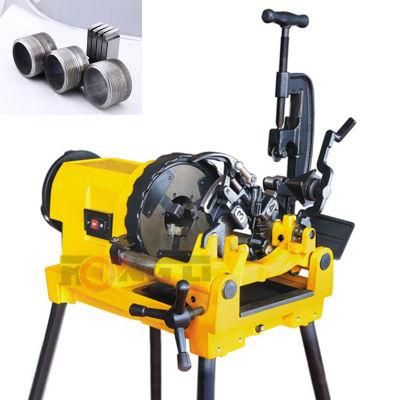

Hongli High Class Stainless Steel Pipe Threads Making Machine 1500W, Ce (SQ80C1)

Hangzhou Hongli Pipe Machinery Co., Ltd.
  • Bolt Die Type：NPT , BSPT
  • Bolt Die Material：Tool Steel
  • Bolt Die Size：1,4"-3"
  • Model：3 inch
  • Type：Heavy
  • Gear Housing：Die Cast Aluminum

Base Info

  • Model NO.：SQ80C1
  • Die Heads：Quick-Open
  • Product Name：Ratchet Pipe Threader
  • Categories：Threading Machines for 3" Pipes
  • Transport Package：Carton Case
  • Specification：79*63*49CM
  • Trademark：Hongli
  • Origin：Zhengjiang China
  • HS Code：8459700000
  • Production Capacity：1000

Description

Technical SpecificationsMotor:1500W induction,50/60 HzRear Centering Device:Cam actionSwitch:* ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optionalOiling System:Through die head, with integral oil reservoirCasting: AluminumThreading Capacity: 1/4"-3"Spindle Speed:32 RPMOil Pump:Self-priming constant flowFront Chuck:Hammer type with replaceable rocker action jaw insertsN.W.:80kg
Ordering Information:
Catalog.No.Model No.DescriptionSpindle Speed RPMPipe Threading CapacityRod Threading CapacityN.W.:(KG)
41002SQ80C1110V, 60Hz321/4"-3"(6mm-80mm)M12-M5290
41001SQ80C1220V, 50Hz321/4"-3"(6mm-80mm)M12-M5290

Accessories:

Cat no.Model No.DescriptionWeight
 425Die head, Quick-open (Optional), 1/4"-2"
 424Die head, Self-open (standard),1/4"-2"
 432Die head, Self-open, (standard),2 1/2"-3"
 532Reamer
 634cutter
 42Foot Pedal Switch  (Optional)
4581011819Nipple Chuck  (Optional)
38800651Pneumatic Folding Wheel Stand (Optional)

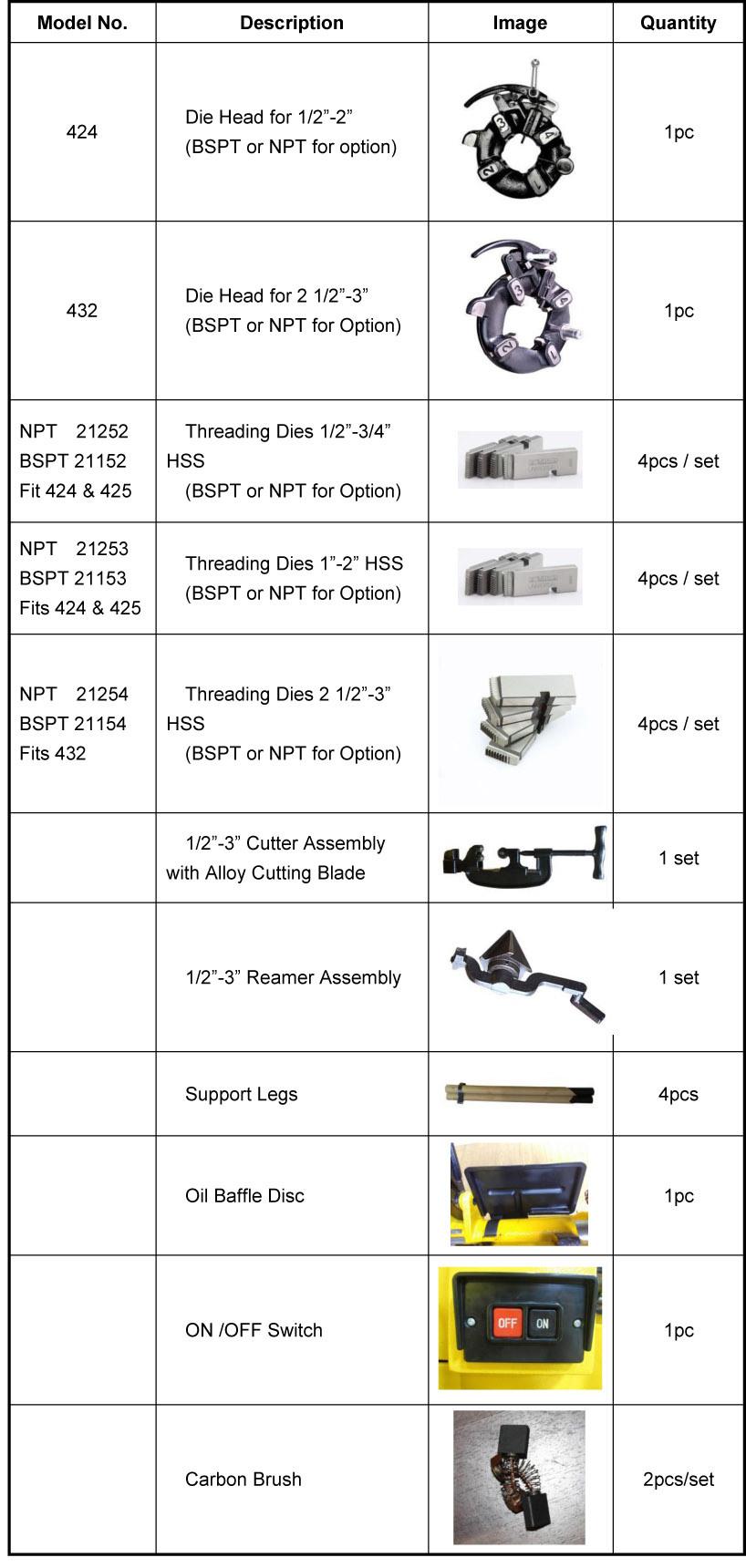

Standard Spare parts of SQ80C1 Pipe threader
Hongli High Class Stainless Steel Pipe Threads Making Machine 1500W, Ce (SQ80C1)

We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties
Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Hongli High Class Stainless Steel Pipe Threads Making Machine 1500W, Ce (SQ80C1)

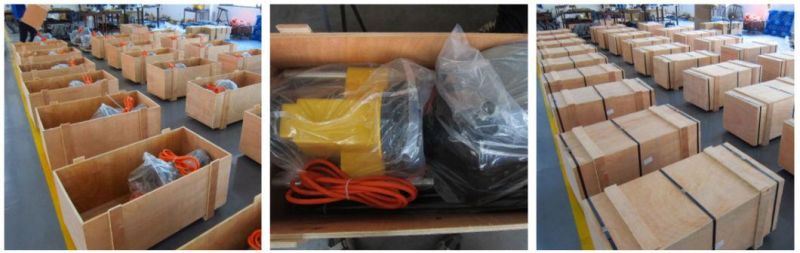

Packing & Delivery

Hongli High Class Stainless Steel Pipe Threads Making Machine 1500W, Ce (SQ80C1)

Model No.G.WN.W.Packing
SQ80C1 Threading MachineF81kgs67kgs76*50*55cm
