• Model NO.：Q1313
• Controlling Mode：Artificial
• Automatic Grade：Automatic
• Setting Mode：Floor-Type
• Precision：High Precision
• Transport Package：Wood Case
• Specification：CE ISO9001
• Trademark：WELLON
• Origin：China
• HS Code：8459700000
• Production Capacity：10 PCS,Month

Basic Info.

Model NO. Q1313 Controlling Mode Artificial Automatic Grade Automatic Setting Mode Floor-Type Precision High Precision Transport Package Wood Case Specification CE ISO9001 Trademark WELLON Origin China HS Code 8459700000 Production Capacity 10 PCS/Month

Product Description

Products Description:

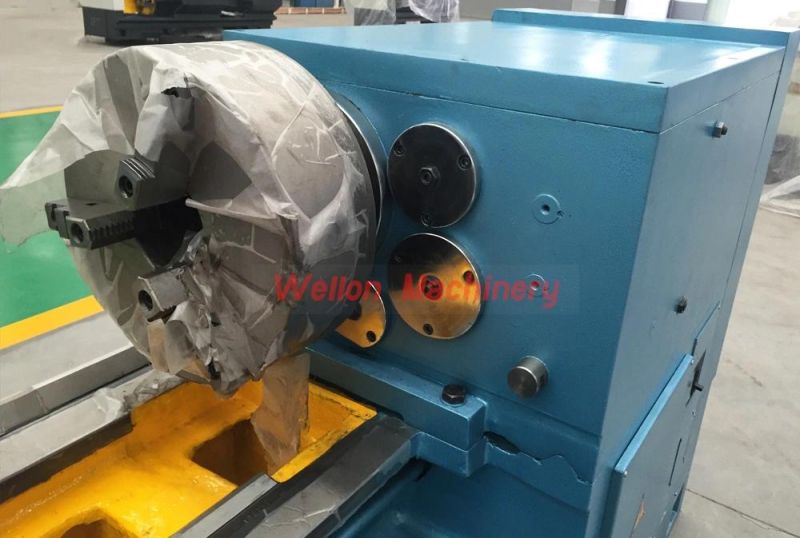

Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;

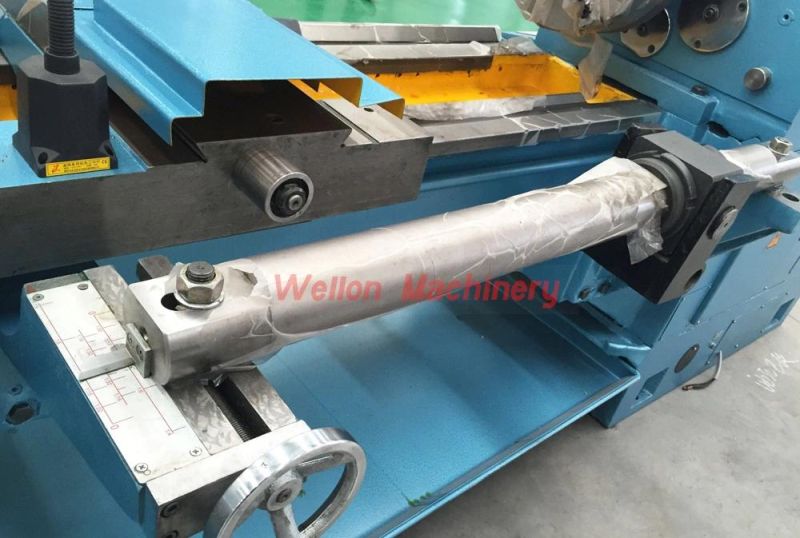

Equipped with taper guide bar device this enables the machine to process taper threads.
Application:

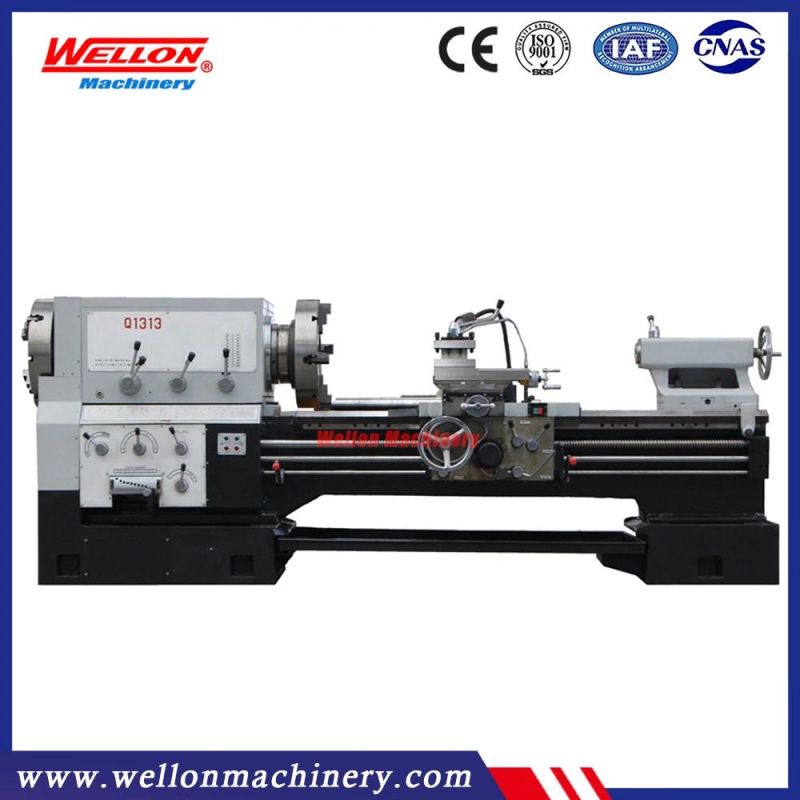

Q1313 horizontal pipe threading lathe machine is mainly used for turning the internal and external
threads including metric and inch thread,as well as having all the common functions of normal engine
lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped
with taper guide bar device which enables this series to process taper thread.

Technical Parameter:

Model	Q1313
Bed width	490mm
Turning diameter over bed (max.)	630 mm
Turning diameter over carriage (max.)	350mm
Max. diameter of pipe (manual chuck)	126 mm
Turning length (Max.)	1500mm
Spindle bore	130 mm
Spindle speed steps	18 steps
Range of spindle speed	12-640 r/min
Inch threads (T.P.I)	28~2/40
Metric threads(mm)	1~14/24
Main motor power	11kw
Machining length of taper scale	500 mm
Rapid travel of tool post	6000mm/min
