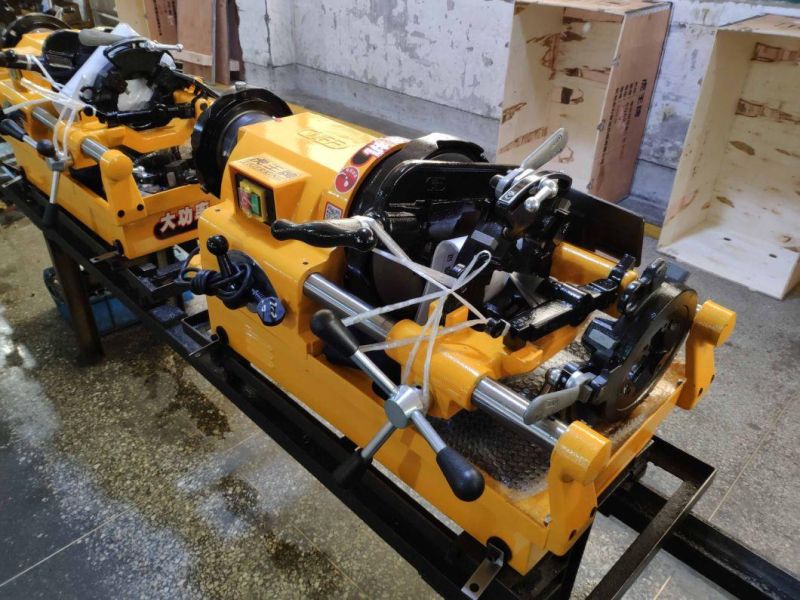

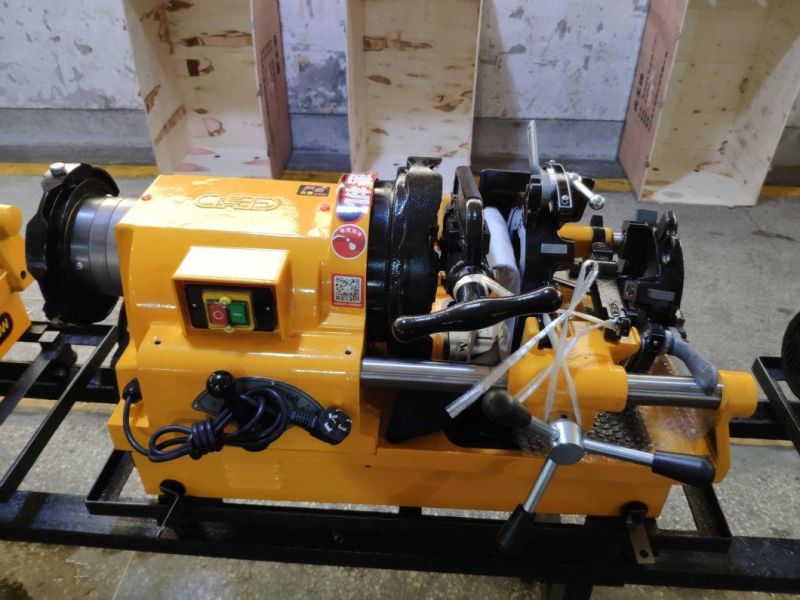

Power Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80A

Hangzhou Hongli Pipe Machinery Co., Ltd.
  • Bolt Die Type：NPT , BSPT
  • Bolt Die Material：Tool Steel
  • Bolt Die Size：1,2"-3"
  • Model：3 inch
  • Type：Heavy

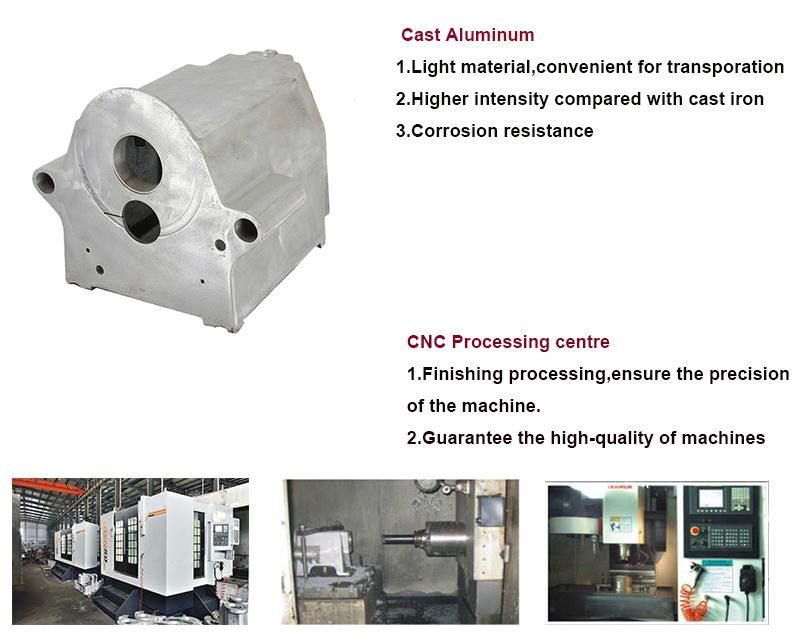

  • Gear Housing：Die Cast Aluminum

Base Info

  • Model NO.：SQ80A
  • Die Heads：Auto Tyoe
  • Product Name：Ratchet Pipe Threader
  • Categories：Threading Machines for 3" Pipes
  • Transport Package：Carton Case
  • Specification：94*60*62 cm
  • Trademark：Hongli
  • Origin：Zhengjiang China
  • HS Code：8459700000
  • Production Capacity：1000

Description

Technical SpecificationsMotor:1100W induction,50/60 HzRear Centering Device:Cam actionSwitch:* ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optionalOiling System:Through die head, with integral oil reservoir  Threading Capacity: 1/2"-3"Spindle Speed:28/14RPMOil Pump:Self-priming constant flowFront Chuck:Hammer type with replaceable rocker action jaw insertsN.W.:100kgPower Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80APower Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80APower Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80A

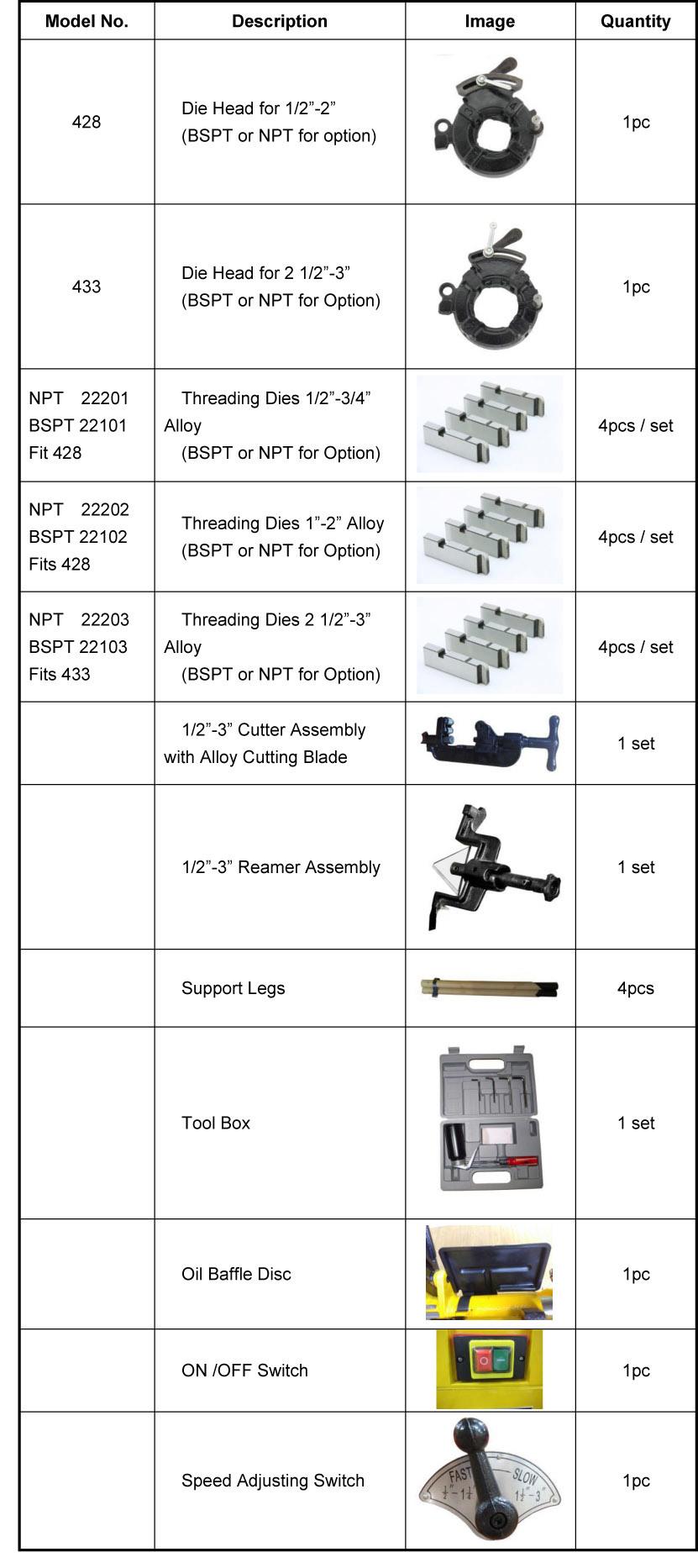

Standard Spare parts of SQ80A Pipe threader:

Power Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80A


We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties
Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Power Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80A
Ordering Information:
Catalog.No.Model No.DescriptionSpindle Speed RPMPipe Threading CapacityN.W.:(KG)
40014SQ80A110V, 60Hz28/141/2"-3"(12mm-80mm)100
40013SQ80A220V, 50Hz28/141/2"-3"(12mm-80mm)100

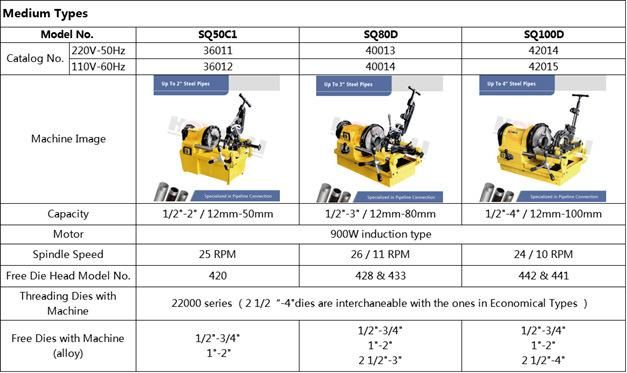

Related product:
Power Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80A
Packing & Delivery:

Power Pipe Threading Machine Tools with on/off Heavy Duty Switch Sq80A

Model No.G.WN.W.Packing
SQ80A Threading Machine121kgs100kgs94*60*62 cm.

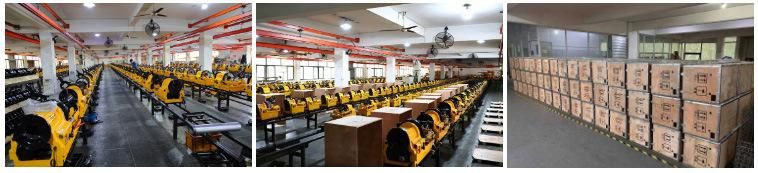

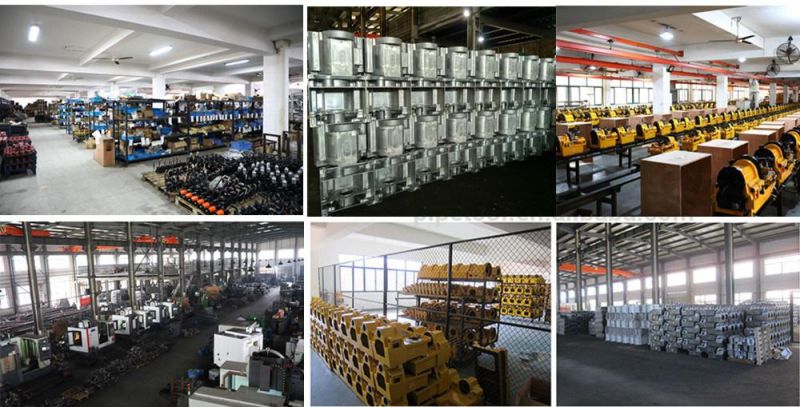

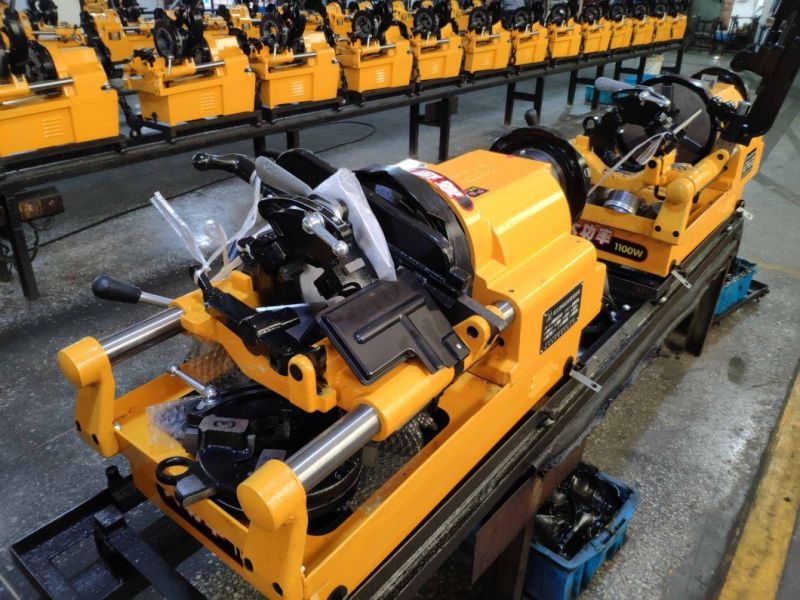

Work Shop:
Hongli High Class Super Quality 4 Inch Pipe Threading Machine Ridgid Type Pipe Threader Factory Price
Our Company:
Hangzhou Tigerking Pipe Machinery Import and Export Co., Ltd. is a subsidiary company of Hangzhou Hongli Group, specializing in designing and manufacturing pipe tools.
Hangzhou Hongli Group has three companies, Hangzhou Hongli Pipe Machinery Co., Ltd. and Hangzhou Huaxing Machinery Co., Ltd.,Hangzhou Tigerking Pipe Machinery Import and Export Co., Ltd.,covering a production area of 25,000 square meters with more than 250 staff members including 15 engineers.
Our company was established in 1986. After years of hard work, our company has been one of the leading manufacturers of pipe tools in China. Our main products include threading machines, core drills, roll groovers, pipe cutters, pipe benders, drain cleaning machines, pressure testing pumps and hole cutting tools. More than 40,000 sets of threaders are available.
Our company keeps developing new products and improving production technology to ensure quality products. The control of quality is the first mission for our company to ensure the best products and service.
In the spirit of "good service for clients", we source power tools, hand tools, and automotive tools from partner factories in China.
We hope to cooperate with all of our old and new clients.
