2" China Powerful Pipe Threading Machine Compact (SQ50)

Hangzhou Hongli Pipe Machinery Co., Ltd.

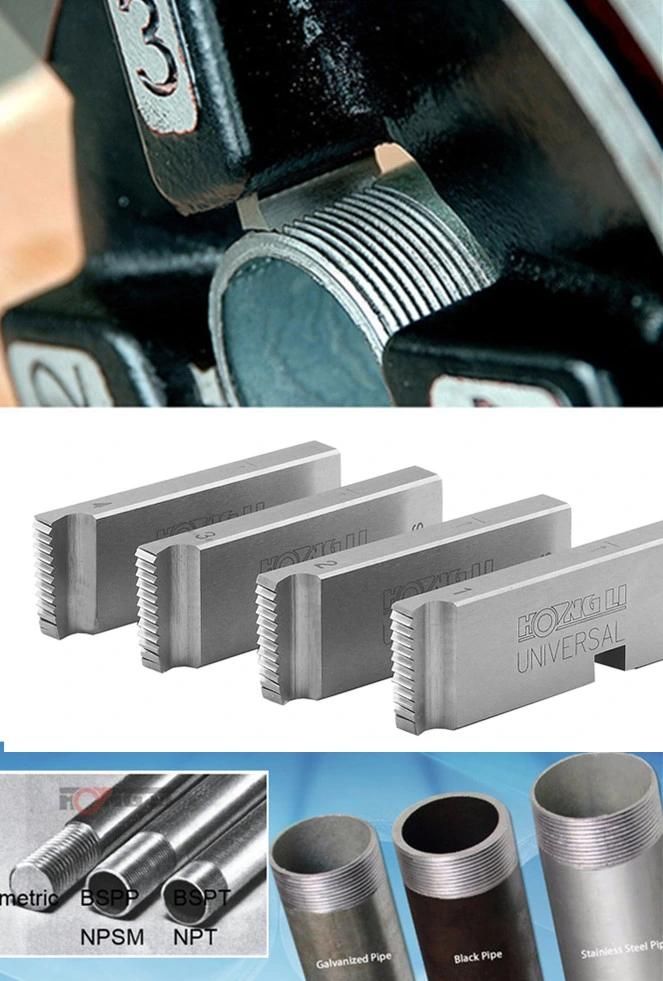

  • Bolt Die Type：NPT , BSPT
  • Bolt Die Material：Tool Steel
  • Bolt Die Size：1,4"-2"
  • Model：2 inch
  • Type：Heavy
  • Gear Housing：Die Cast Aluminum

Base Info

  • Model NO.：SQ50
  • Die Heads：Quick-Open
  • Product Name：Ratchet Pipe Threader
  • Categories：Threading Machines for 2" Pipes
  • Transport Package：Carton Case
  • Specification：76*50*55CM
  • Trademark：Hongli
  • Origin：Zhengjiang China
  • HS Code：8459700000
  • Production Capacity：1000

Description

Technical SpecificationsMotor:1500W induction,50/60 HzRear Centering Device:Cam actionSwitch:* ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optionalOiling System:Through die head, with integral oil reservoirSpindle Speed:38 RPMOil Pump:Self-priming constant flowFront Chuck:Hammer type with replaceable rocker action jaw insertsN.W.:67kg
Ordering Information:
Catalog.No.Model No.DescriptionSpindle Speed RPMPipe Threading CapacityRod Threading CapacityN.W.:(KG)
34002SQ50110V, 60Hz38½"-2"(12mm-50mm)M12-M5260
34001SQ50220V, 50Hz38½"-2"(12mm-50mm)M12-M5260

Accessories:
Cat no.Model No.DescriptionWeight
 425Die head, Quick-open (standard)
 424Die head, Self-open (Optional)
  Reamer
  cutter
  Foot Pedal Switch  (Optional)
4581011819Nipple Chuck  (Optional)

Detailed images
2" China Powerful Pipe Threading Machine Compact (SQ50)

We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties
Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

2" China Powerful Pipe Threading Machine Compact (SQ50)

Packing & Delivery

2" China Powerful Pipe Threading Machine Compact (SQ50)

Model No.G.WN.W.Packing
SQ50 Threading Machine81kgs67kgs76*50*55cm.
