• Model NO.：JBL series
• Center Adjustment Range：310-915 mm to 800-2134 mm
• Motor Power：0.75-2.2 Kw
• Voltage：220 V,380 V
• Frequency：50 Hz
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO9001
• Trademark：SOV
• Origin：China
• HS Code：8479819000
• Production Capacity：450 Sets Per Month

Basic Info.

Model NO. JBL series Center Adjustment Range 310-915 mm to 800-2134 mm Motor Power 0.75-2.2 Kw Voltage 220 V/380 V Frequency 50 Hz Transport Package Standard Export Wooden Case Specification CE, ISO9001 Trademark SOV Origin China HS Code 8479819000 Production Capacity 450 Sets Per Month

Product Description

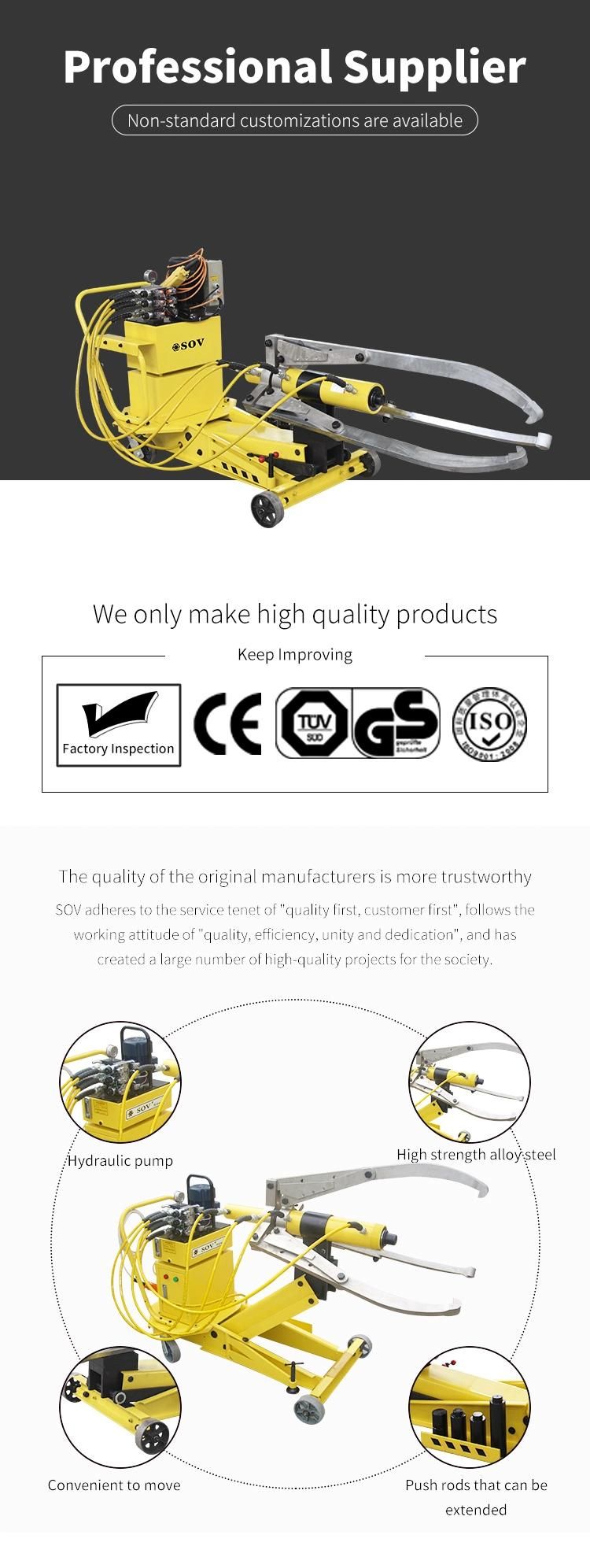

                                           Pedal Automatic Motorized Hydraulic Bearing Puller

Feature

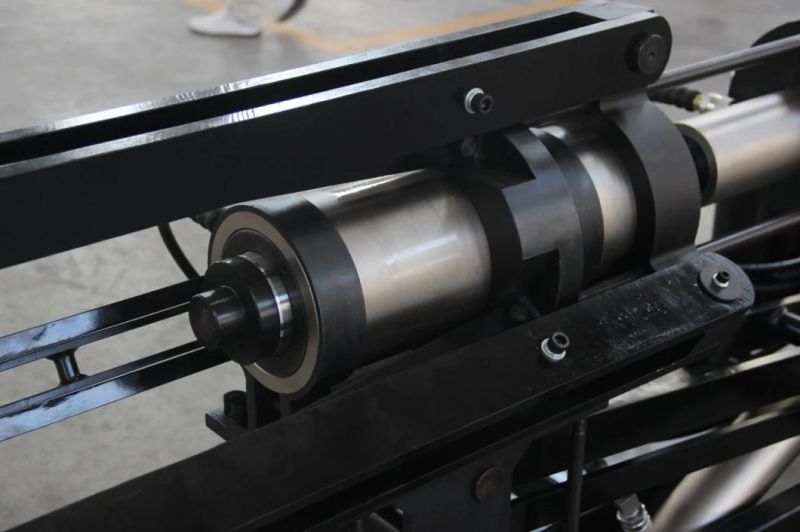

1. Automatic vehicle-mounted hydraulic gear puller adopts double acting hydraulic cylinder parts, with high efficiency in dismantling the work-piece
2. Solenoid valve makes the operation more convenient
3. Mainly used to dismantle the large shaft type or hole type work-piece

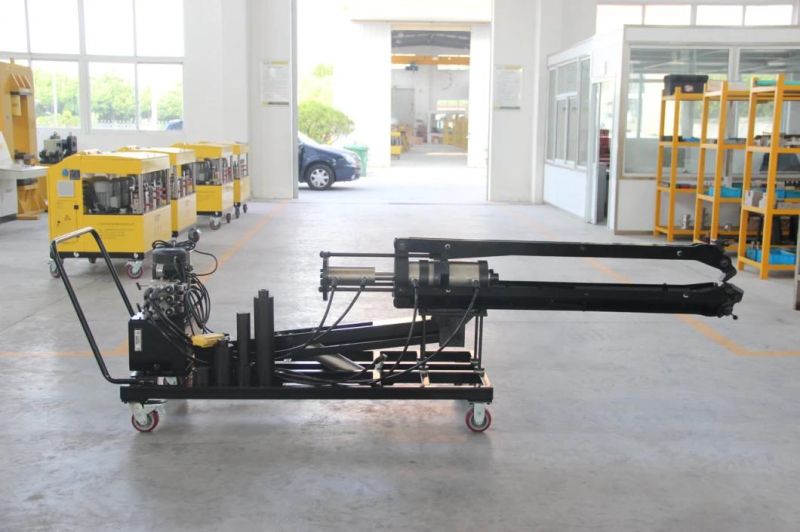

4. Move conveniently with the wheels, which also can be locked

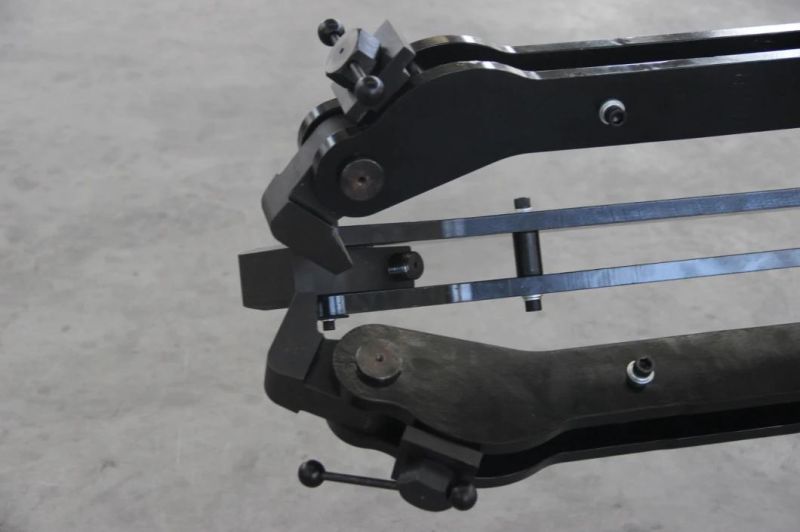

5. High strength alloy steel jaws are anti-skid, 50 T type with 3 jaws, 100T can be two or three jaws, 200 Ton with two jaws, equipped with chains to improve safety.

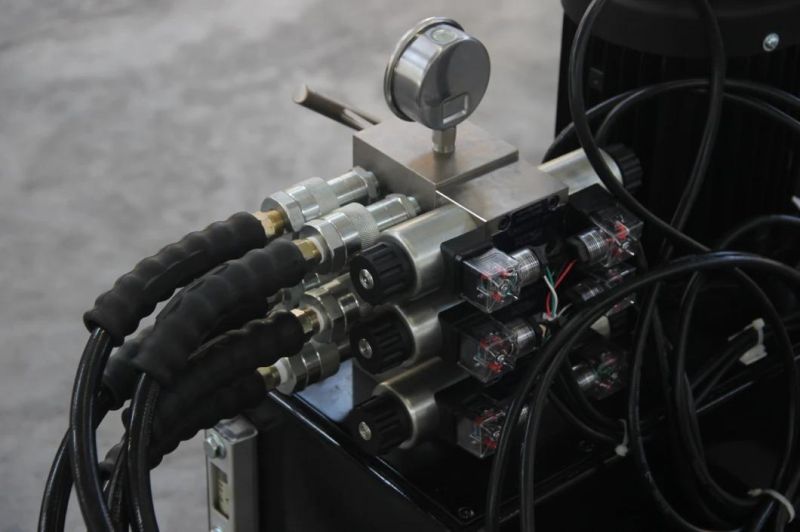

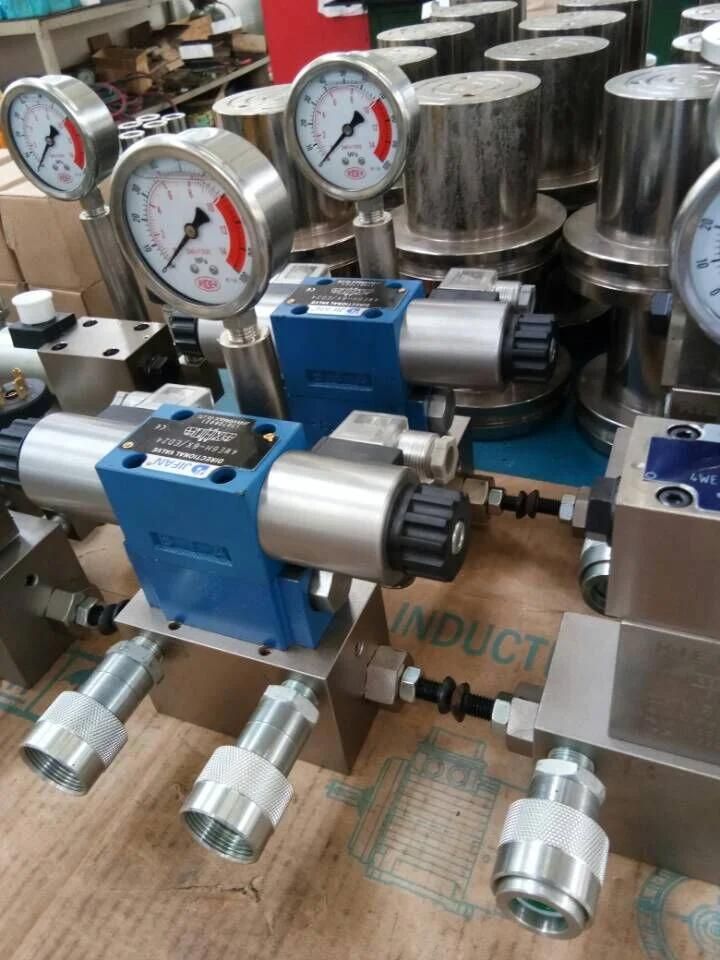

6. Solenoid valve was used to control opening and closing of the jaws. Just need operating one button box to finish the pulling works.(the lifting of the cylinder, the height adjustment of the puller, the opening and closing of the jaws)
7. Anti-skid grabbers design to avoid the work-piece slide away
8. Two locking wheels on the vehicle to fix the puller at job site

Product Parameter

Model	Capacity(T)	Jaw Number	Working Pressure (MPa)	Working Stroke (mm)	Spread (mm)	Reach (mm)	Center Adjustment Range(mm)	Motor Power (KW)	Voltage (V)
SOV-PH-50T	50	3	70	300	100- 1250	120- 300	545-1100	0.75	380
SOV-PH-100T(1)	100	3	70	250	160- 1780	Max. 1215	700-1600	1.1	220
SOV-PH-100T(2)	100	2	70	250	380- 1220	860- 1060	310-915	2.2	380
SOV-PH-200T	200	2	70	330	203- 1334	1100- 1219	800-2134	2.2	380

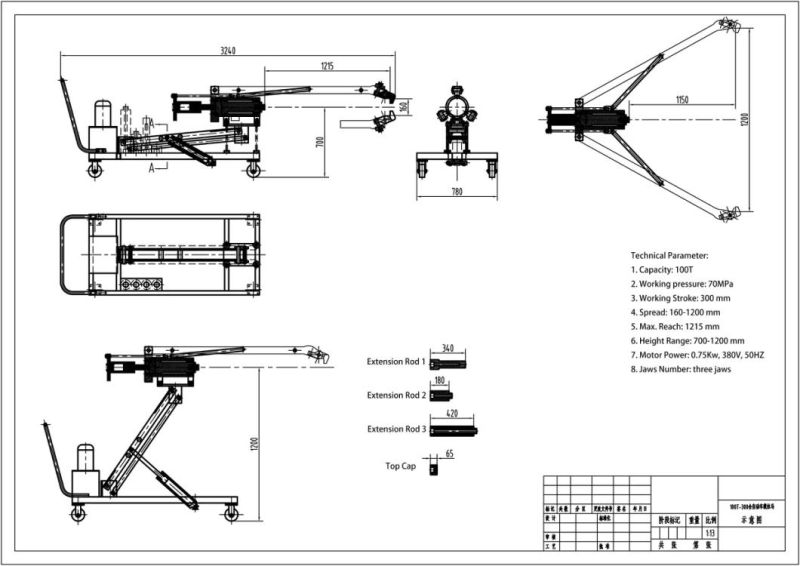

Drawings

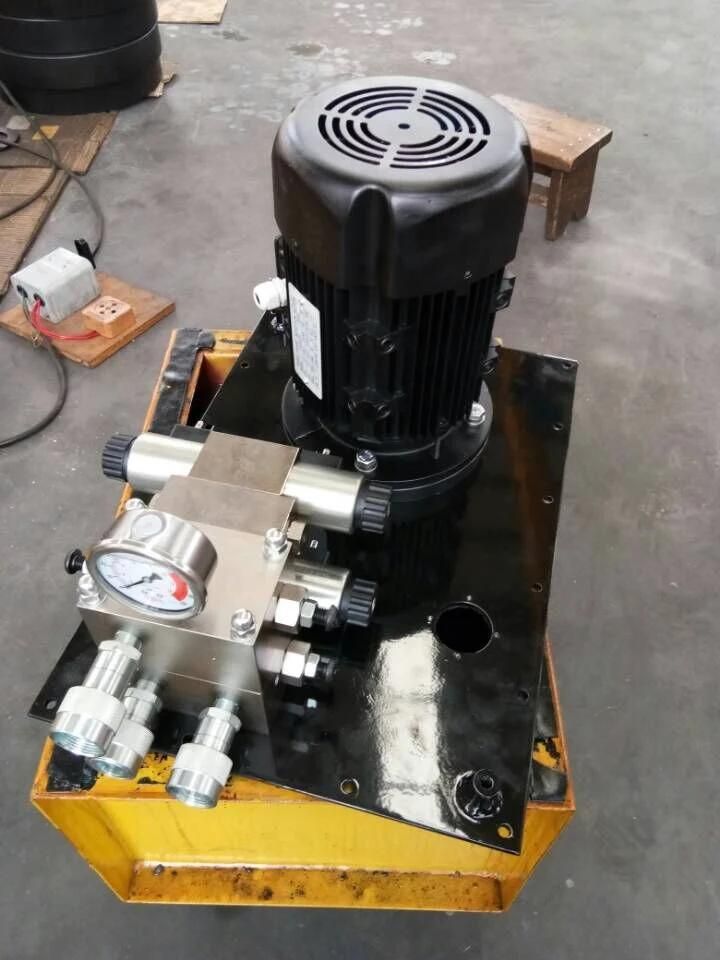

Photos

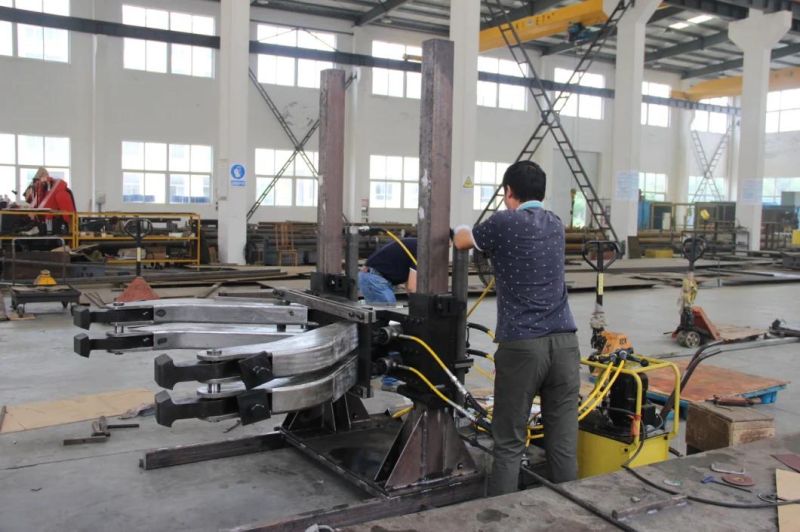

100 ton three jaws

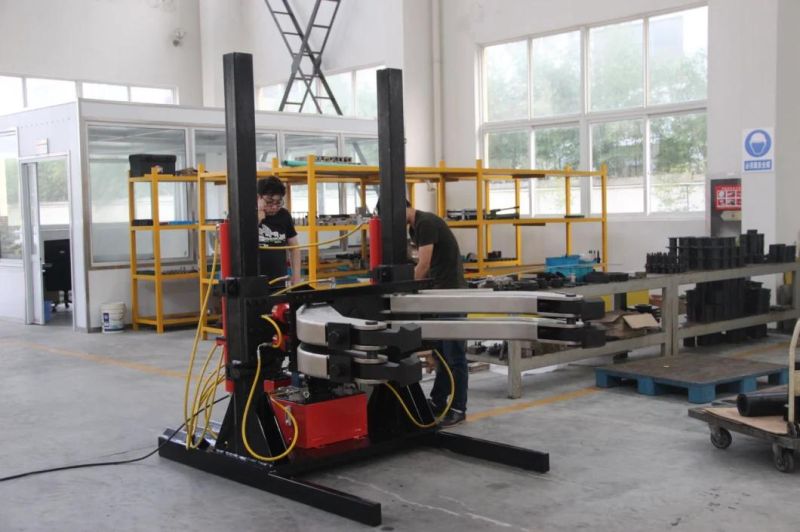

200 ton with four jaws






Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Customized packaging acceptable.


Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
