• Model NO.：SQ50D
• Die Heads：811A
• Product Name：Ratchet Pipe Threader
• Categories：Threading Machines for 2" Pipes
• Accessories：Adapter, Support Arm
• Transport Package：Carton Case
• Specification：100*52*47CM
• Trademark：Hongli
• Origin：Zhengjiang China
• HS Code：8459700000
• Production Capacity：1000

Basic Info.

Model NO. SQ50D Die Heads 811A Product Name Ratchet Pipe Threader Categories Threading Machines for 2" Pipes Accessories Adapter, Support Arm Transport Package Carton Case Specification 100*52*47CM Trademark Hongli Origin Zhengjiang China HS Code 8459700000 Production Capacity 1000

Product Description

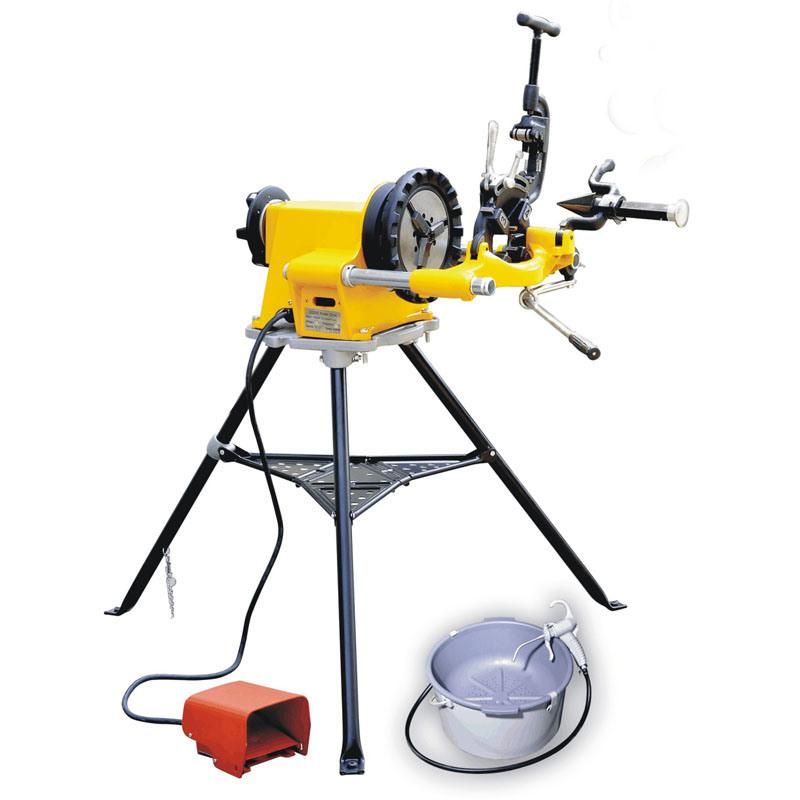

Sq50d Pipe Threading Machine Includes 811A Die Head








Product Application
Model SQ50D Electric Pipe Threading Machine For BSPT or NPT Threader Compatible With Ridgid 300 Threading Machine

Capacity: 1/8"-2" (6mm-50 mm) pipe.
Motor: 1500w universal type
Speed: 38 RPM

Chuck: Hammer type with replaceable, rocker-action jaw inserts
Rear centering device: Cam action
N.W.: 80KG (including accessories)
CE & CSA certified

Standard equipment:
1- Die head (1/2"-2"): quick-open type, 811A
1- 1/2"-3/4" universal HSS dies set
1- 1"-2" universal HSS dies set
1- Cutter:Capacity:1/8"-2"(6mm-50mm) pipe
1- Reamer: Positive-locking, 5-flute cone, right-hand 1/8"-2"(6mm-50mm)
1- 1206 tri-stand
1- 418 oiler
1- 42 foot switch

HS Code of SQ50D Electric Pipe Threading Machine: 8459700000

Ordering Information:


Catalog.No.	Model No.	Description	Spindle Speed RPM	Pipe Threading Capacity	Rod Threading Capacity
37012	SQ50D complete	110 V, 50/60 Hz	38	1/4-2In. (6-50mm)	M12-M52
37014	SQ50D complete	110 V, 50/60 Hz	57	1/4-2In. (6-50mm)	M12-M52
37011	SQ50D complete	220 V, 50/60 Hz	38	1/4-2In. (6-50mm)	M12-M52

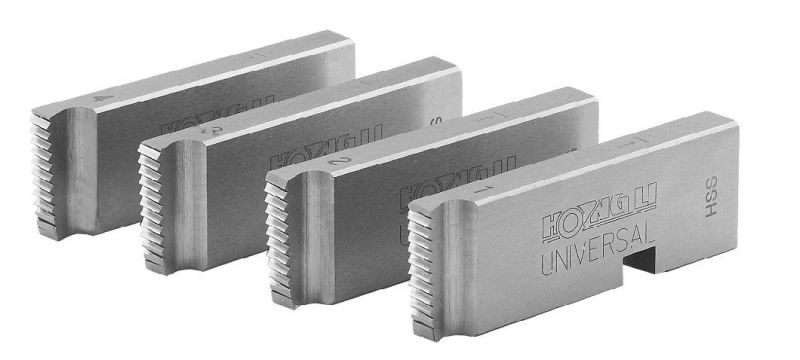

Dies sets:

Cat no.	Size	Material	Weight
	1/4-3/8 BSPT(optional)	HSS	0.75KG
24051	1/2-3/4 BSPT	HSS	0.75KG
24053	1-2 BSPT	HSS	0.75KG
	1/4-3/8 NPT(optional)	HSS	0.75KG
21051	1/2-3/4 NPT	HSS	0.75KG
21053	1-2 NPT	HSS	0.75KG
	1-2BSPP	HSS	0.75KG

We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties

Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Standard equipment:

Power drive 1 pc
Carriage assembly 1 pc

Die head 811A (NPT or BSPT) 1 pc
Dies 1/2"-3/4" (NPT or BSPT, HSS) 1 set
Dies 1"-2" (NPT or BSPT, HSS) 1 set
Pipe cutter assembly 1 pc
Pipe reamer assembly 1 pc
Tripod stand 1 pc
Foot switch pedal 1 pc
Oil bucket 1 pc
Detailed images

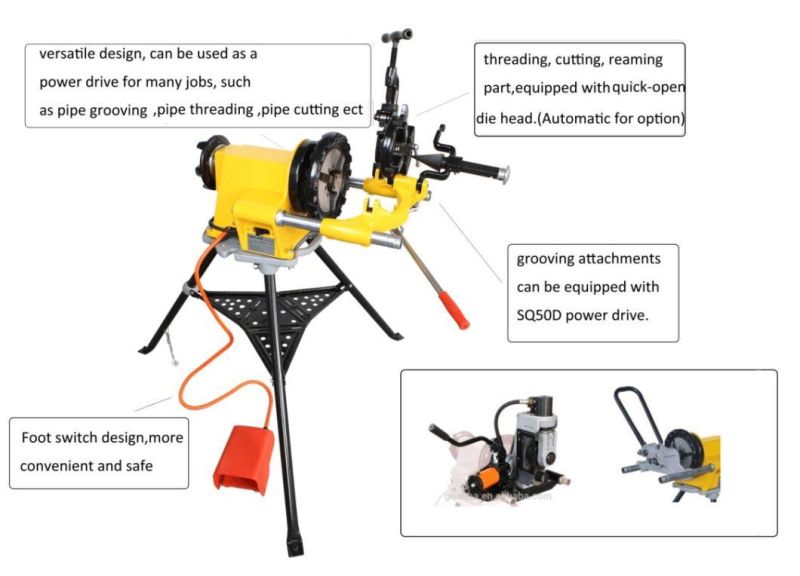

Standard Parts of SQ50D Electric Pipe Threading Machine:

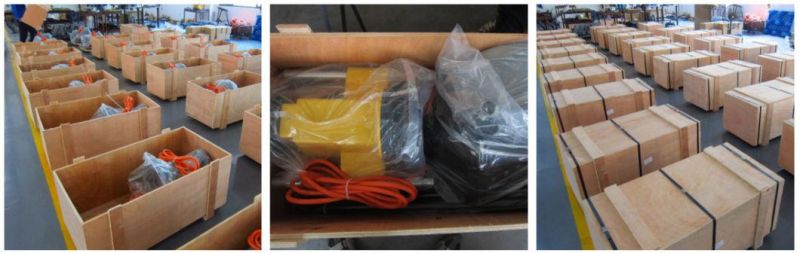

Packing & Delivery



Model No.	G.W	N.W.	Packing
SQ50D Threading Machine	121kgs	105kgs	100*52*47cm.
