• Model NO.：YTJ-1200C
• Condition：New
• Name：Wood Jig Saw Machine
• Max.Radius of Gyration：1200
• Size of Working Table：800*1200
• Total Power(W)：1500
• Thickness of Aw Chucking：0.3-2
• Stroke of Saw Chucking：25
• Max.Speed(T/Min)：1300
• Voltage(V)：220,380
• Form of Chucking Saw Blade：Automatic
• From of Clearance Saw Powder：Absorb Dust
• Transport Package：Wood Box
• Specification：800*1200
• Trademark：YT
• Origin：Jiangsu
• Production Capacity：50paces,Week

Basic Info.

Model NO. YTJ-1200C Condition New Name Wood Jig Saw Machine Max.Radius of Gyration 1200 Size of Working Table 800*1200 Total Power(W) 1500 Thickness of Aw Chucking 0.3-2 Stroke of Saw Chucking 25 Max.Speed(T/Min) 1300 Voltage(V) 220/380 Form of Chucking Saw Blade Automatic From of Clearance Saw Powder Absorb Dust Transport Package Wood Box Specification 800*1200 Trademark YT Origin Jiangsu Production Capacity 50paces/Week

Product Description

Table Dieboard MDF Wood Saw Cutting Machine for Die Making

SpecificationsModel	YTJ-800B	YTJ-1000B	YTJ-1200B	YTJ-1200C	YTJ-1500C
MAx.radius of gyration	800	1000	1200	1200	1500
Size of working table	600*900	700*1000	800*1200	800*1200	1000*1200
Stroke of saw chucking	25	25	25	25	25
Thickness of aw chucking	0.3-2	0.3-2	0.3-2	0.3-2	0.3-2
Max.thickness of die Cutting	30	30	30	30	30
Materials of working plate	Wooden Plates.Plastic Plates
Max.speed(T/min)	1300	1300	1300	1300	1300
Total power(w)	1200	1200	1200	1500	1500
Voltage(V)	220/380	220/380	220/380	220/380	220/380
Form of chucking saw blade	Pedal	Pedal	Pedal	Automatic	Automatic
From of clearance saw powder	Absorb Dust	Absorb Dust	Absorb Dust	Absorb Dust	Absorb Dust

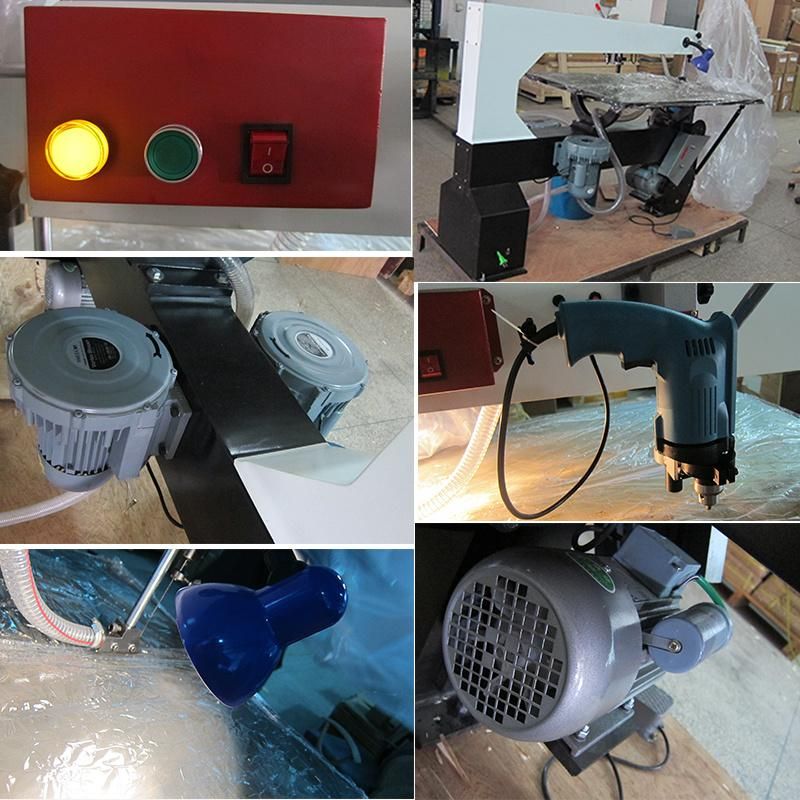

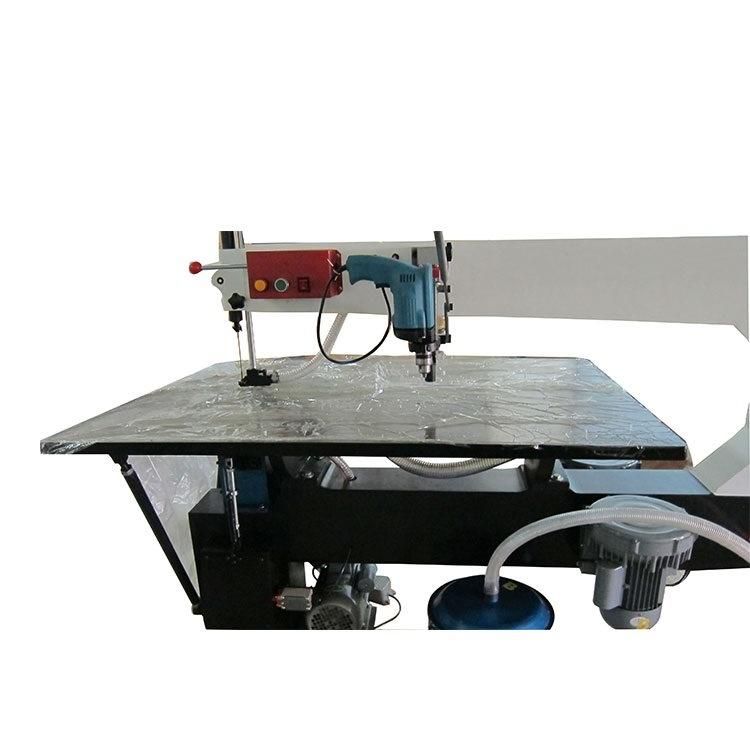

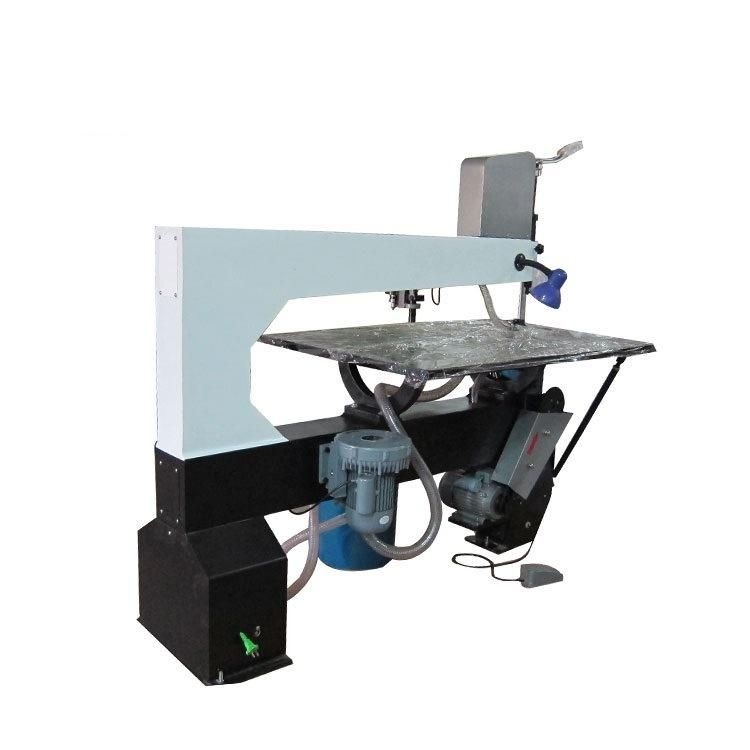

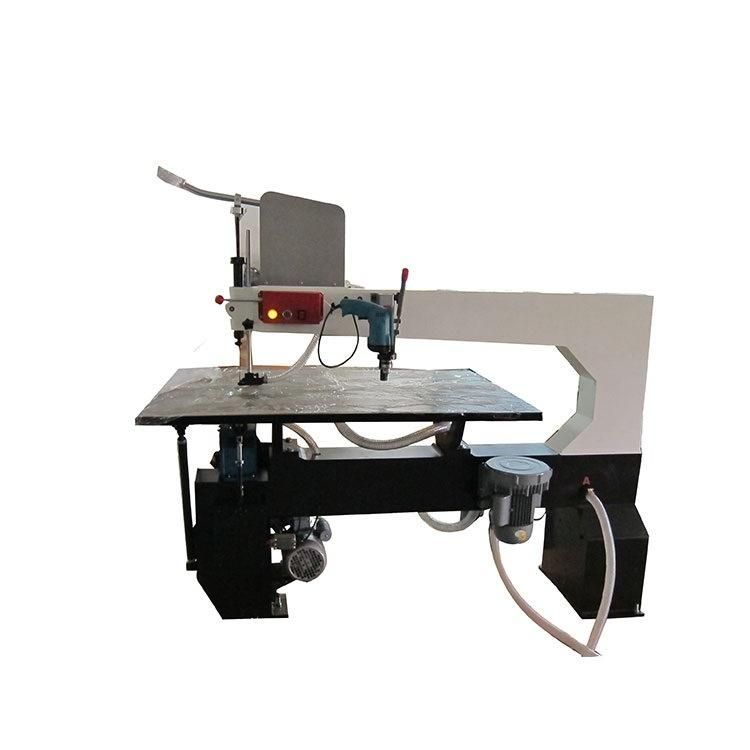

YTJ-1200C type jig sawing machine adopts electric chucking saw blade, automatic dust absorption system, integrated sawdust collection device and air flotation die-cutting plate, etc. Thus performance indexes are improved and the machine can be used with facility.

nced electronic chucking saw blade

2.Two High-end air pumps for good dust absorption effect

3.Air flotation die-cutting plate, max. radius of gyration can be 1200mm

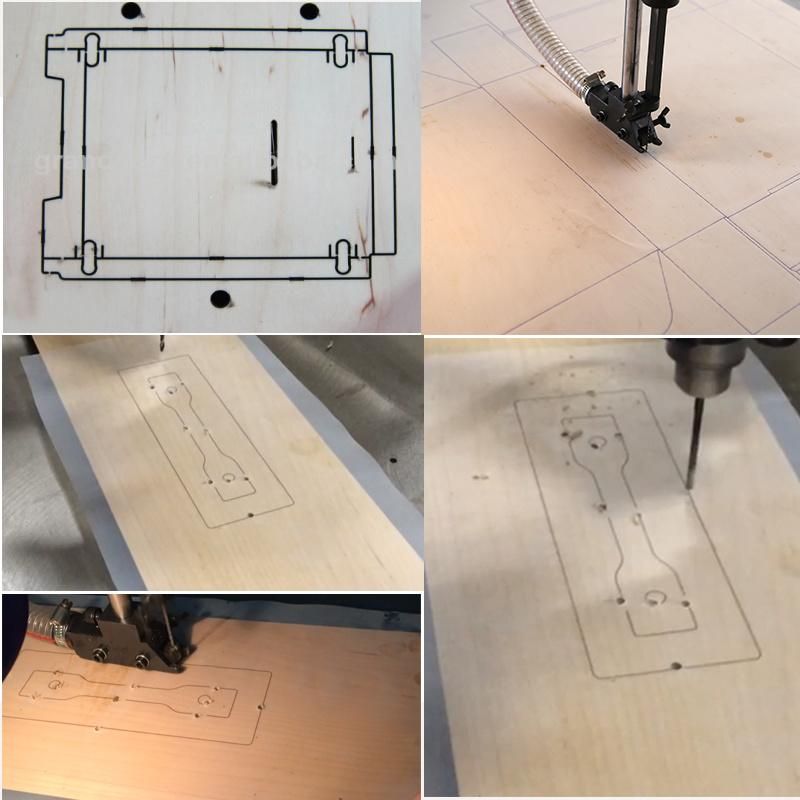

4.High precision sawing sample

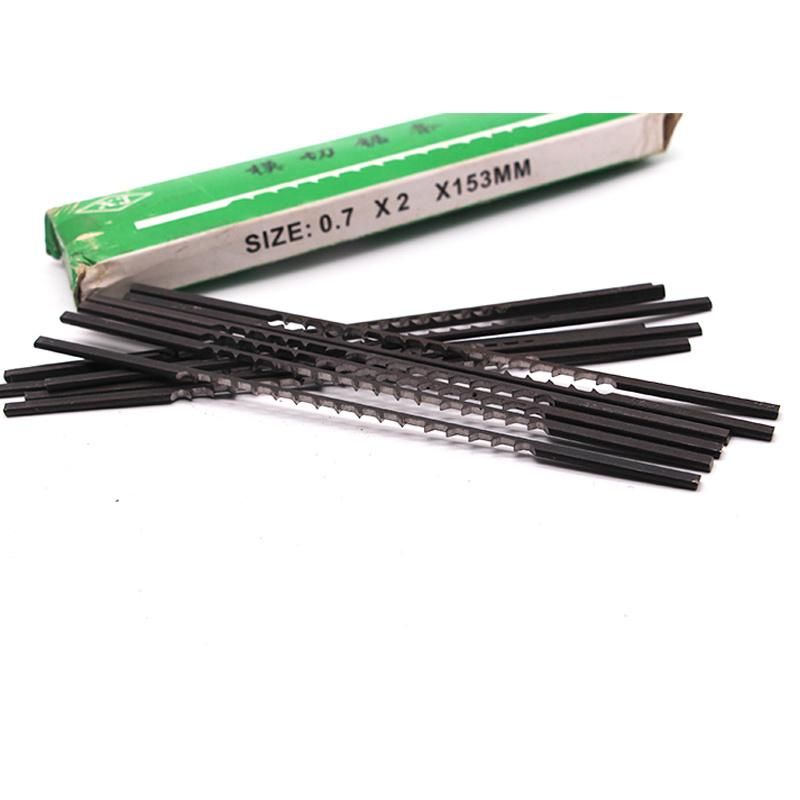

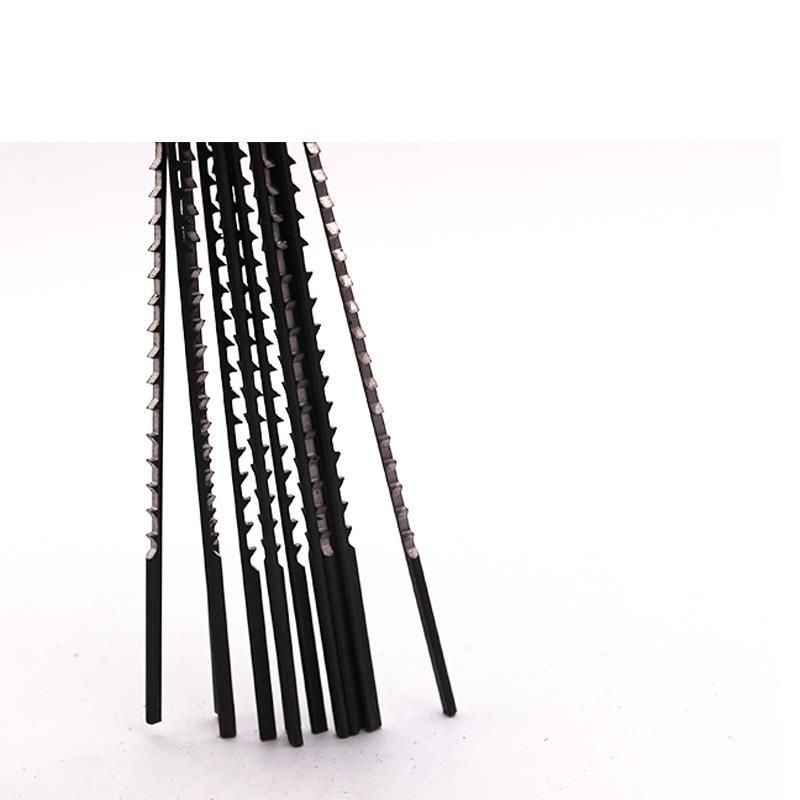

5.We also supply assorted jig saw blade,different spec for your choice

Maintenance

1. The screws of every part should be checked often. Once there are loose ones, fasten them in

     time.

2. Clear dust reservoir periodically to prevent the too much dust from having bad effect on air

    floating.

3. Add lubricant oil periodically to avoid being lack of oil to work.

3.The square guide of upper clip needs lubricating with grease once half an month .

4. Ensure that the surface level of lubrication oil in gearbox of down clip is higher than the oil

    window line.
