• Model NO.：PN-85
• Power Source：Electricity
• Transport Package：Carton
• Specification：26kg
• Trademark：Hanpu
• Origin：China
• HS Code：8467299000

Basic Info.

Model NO. PN-85 Power Source Electricity Transport Package Carton Specification 26kg Trademark Hanpu Origin China HS Code 8467299000

Product Description

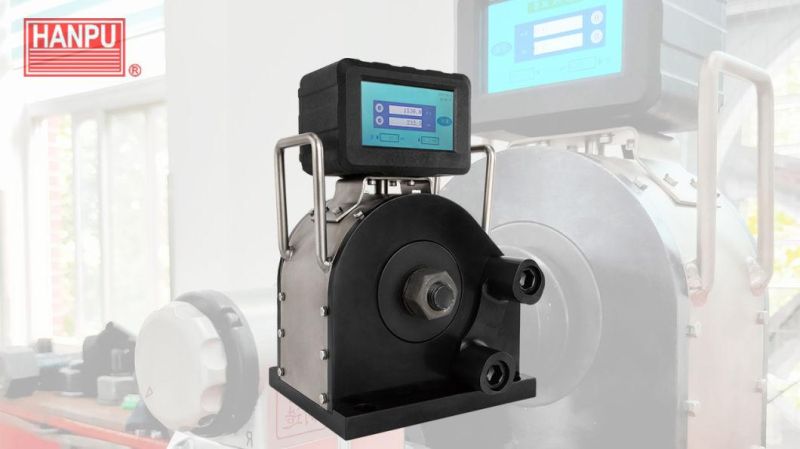

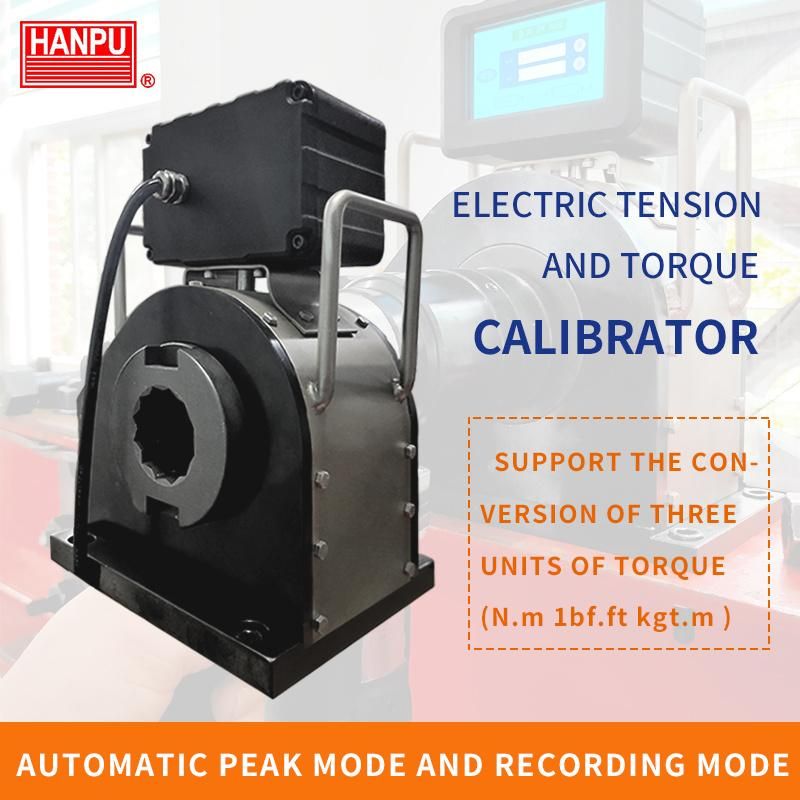

Hanpu Torque Wrench Calibrator is used as a quality control device to test or calibrate torque controlled tools. It can show tension and torque two parameter.
Torque testing is essential on torque wrenches. Torque testing is accomplished by inserting a torque transducer between the tool applying the force and the item against which the force is being applied.


Torque is a rotating force. (Rotation could refer to either turning or twisting.) Torque tools, which produce turning or twisting force, are utilized in a great number of applications. Torque Wrench Calibrator determines the effectiveness of the force being applied by a torque tool. During torque calibration, the HANPU Torque Wrench Calibrator confirms that the amount of force being indicated by a torque tool is the actual amount of force being produced by the tool to ensure that users don't under-torque or over-torque during use.


A torque transducer, similar to a load cell, is an electronic device used to convert torque into an electrical signal. This conversion is indirect and happens in two stages. Through a mechanical arrangement, the torque being sensed deforms a strain gauge. The strain gauge converts the deformation (strain) to electrical signals. A torque transducer usually consists of four strain gauges in a bridge configuration.

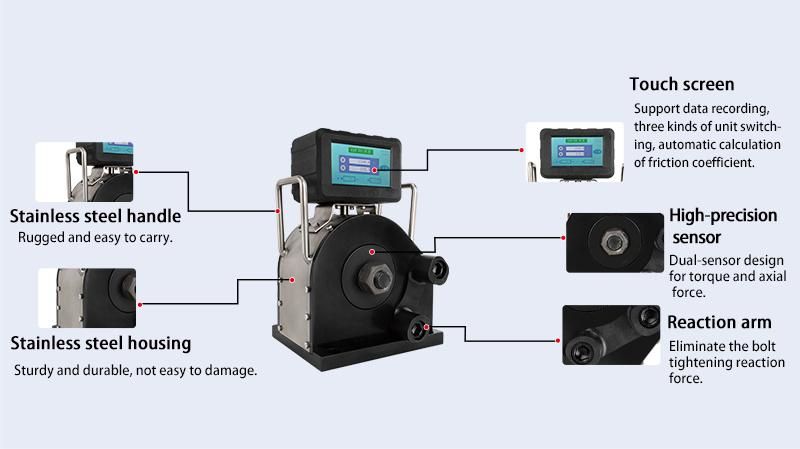

A key component of digital torque testers is the digital display. A digital display is used to measure the output signal from the transducer and calculates that reading into a torque value that is displayed on screen.


Available models of  Hanpu Torque Wrench Calibrators :


Model	Torque Range	Tension Range	Accuracy	Weight               (Main Body)	Adapatble Bolts
PN-53	50-3000N.M	0-500KN	±2%	26.0kg	M16(5/8'')                             M20(3/4'')        M22(7/8'')          M24(1'')                        M27(1-1/8'')        M30(1-1/4'')
PN-85	50-5000N.M	0-800KN	±2%	28.0kg	M16(5/8'')                             M20(3/4'')        M22(7/8'')          M24(1'')                        M27(1-1/8'')        M30(1-1/4'')                  M33(1-3/8'')                  M36(1-1/2'')

Hanpu Strength :

1.The company has a dedicated after-sales customer service that is available to you 24 hours a day.

2.The company has a complete inventory system, and all spare parts of all sold models are guaranteed supply for 7 years on the markets to ensure the continuity of after-sales service. All models and spare parts currently sold are available from stock throughout the year. Small and medium-sized orders can be shipped at any time an large orders are guaranteed timely supply of spare parts

3. For orders exceeding the spare stock, the minimum delivery time is 15 days for less than 50 units, 25 days for 50-150 units, and 7-14 days for normal orders.

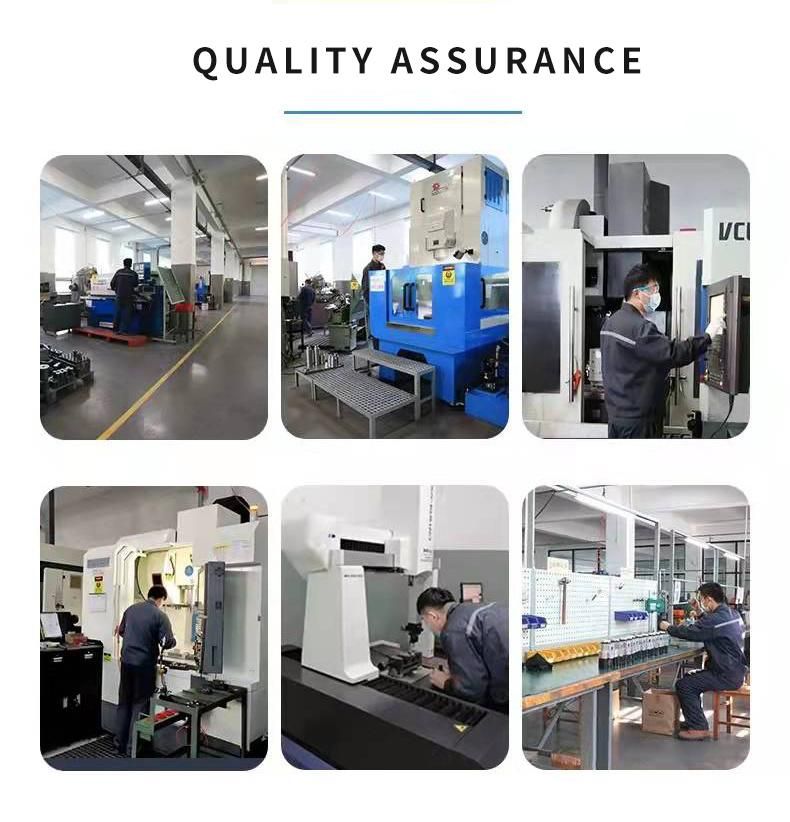

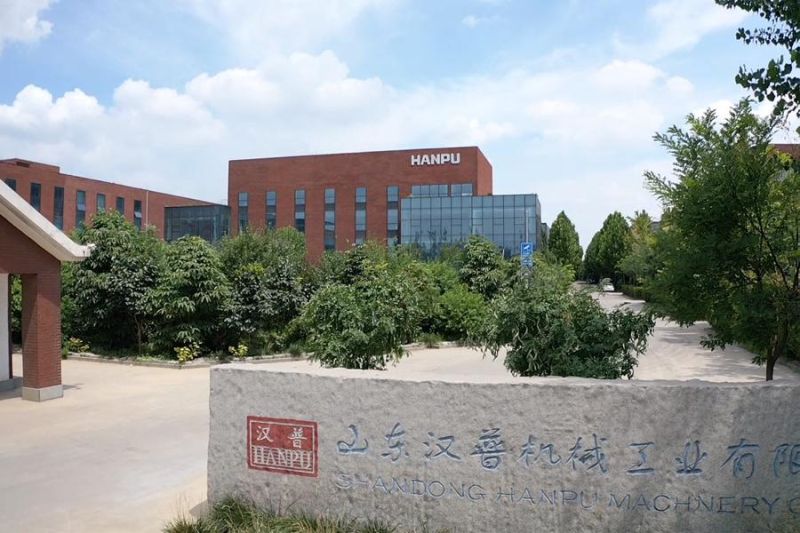

Shandong Hanpu Machinery Industrial Co., Ltd. is located in Qihe Economic Development Zone, Dezhou City,Shandong Province,China. After 20 years of innovation and development, we have laid a good market foundation. The company now has 62 acres of industrial park and 30,000 square meters of production and research and development workshops. It has introduced a large number of high-end processing equipment made in Switzerland, Germany and Japan, and has become a large-scale production base of high-end electric wrenches in China.

Company Honors and Qualifications :


Electric torque wrenches are ideal for almost every situation, Just need electricity.

Hanpu Torque adjustable wrenches have the highest power-to-weight ratio compared to any other brand torque wrenches. Hanpu wrenches are manufactured from high-quality components which make these electric torque wrenches lightweight but still very robust.
