• Model NO.：SOV-NC Series
• Product Name：60-75 mm Nut Size Hydraulic Nut Splitter
• Color：Black, Yellow, or Customize
• Warranty：One Year
• Place of Origin：Jiangsu Province, China
• Transport Package：Standard Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8467890000
• Production Capacity：800 PCS,Month

Basic Info.

Model NO. SOV-NC Series Product Name 60-75 mm Nut Size Hydraulic Nut Splitter Color Black, Yellow, or Customize Warranty One Year Place of Origin Jiangsu Province, China Transport Package Standard Wooden Case Specification CE, ISO Trademark SOV Origin China HS Code 8467890000 Production Capacity 800 PCS/Month

Product Description

                                                                   60-75 mm Nut Size Hydraulic Nut Splitter


Product Description

SOV-NC series hydraulic nut splitter is extremely suitable for use at high temperature outdoors or in highly corrosive environments. It is a safe, efficient and convenient tool that can solve the problem of disassembling or assembling bolts and nuts. This product can be applied in the coal mine, power plant and the high pressure, high temperature pipelines etc.


Features
1. Quick
It takes only 20 seconds to split the nut with the width across flats of 90mm. It is efficient and convenient enought to completely replace the traditional gas cutting method.

2. Safe
Hydraulic operation; without impact or sparks; most suitable for use in anti-explosive areas.

3. Multi Purposes
This cutter splitter is suitable for the nut width across flats from S10 to S75mm. Each model can split 6 to 8 types of nuts.

4. Economical
Save much operating time; Avoid unnecessary waste resulting from damaged bolts.

5. Powerful
Specially designed blades can split both stainless steel and alloy steel.



Specifications


Model	Bolt Size(mm)	Nut Size(mm)	Capacity(T)	Oil Capacity(cm3)
SOV-NC-19	M6-M12	10-19	5	15
SOV-NC-24	M12-M16	19-24	10	20
SOV-NC-32	M16-M22	24-32	15	60
SOV-NC-41	M22-M27	32-41	20	80

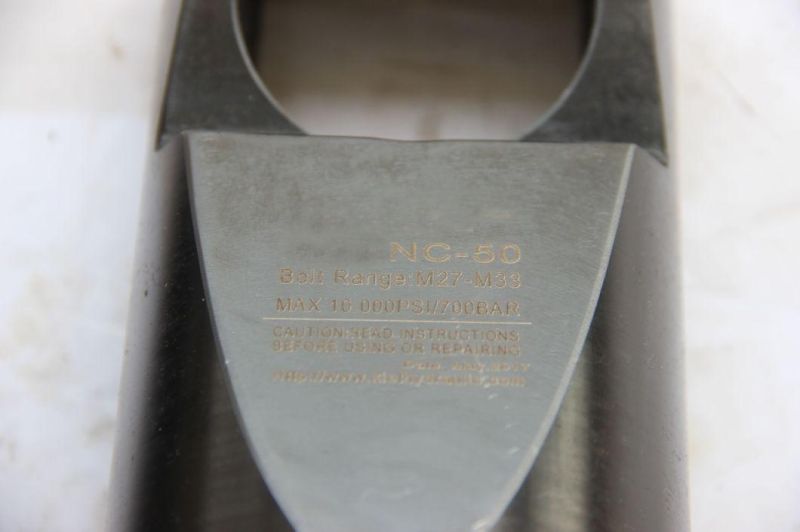

SOV-NC-50	M27-M33	41-50	35	155
SOV-NC-60	M33-M39	50-60	50	240
SOV-NC-75	M39-M48	60-75	90	492

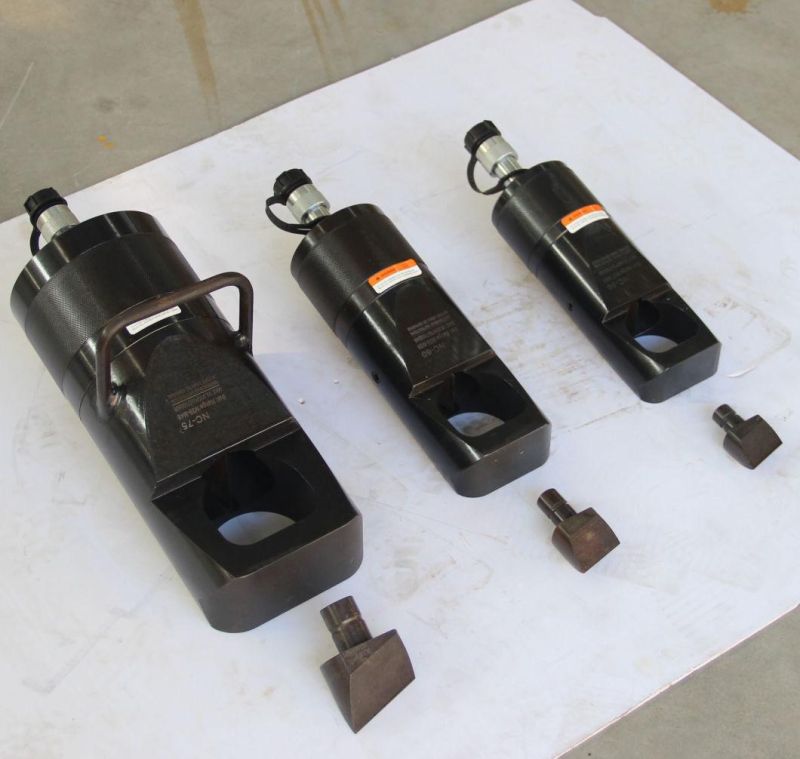

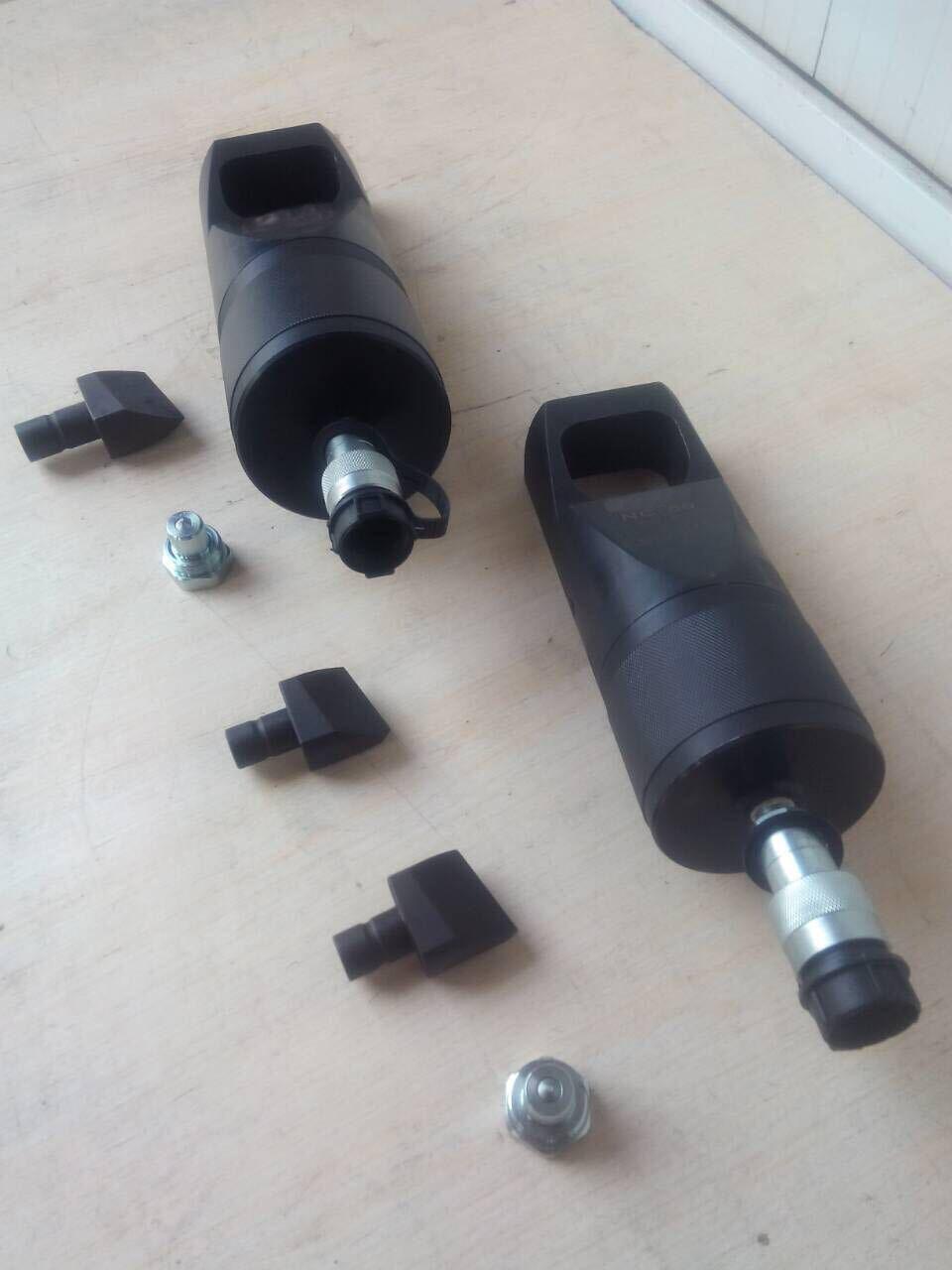

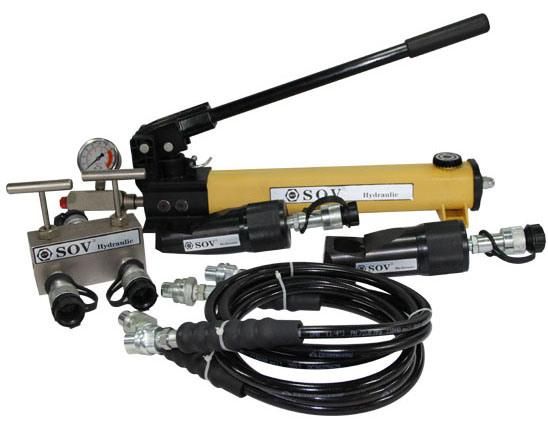

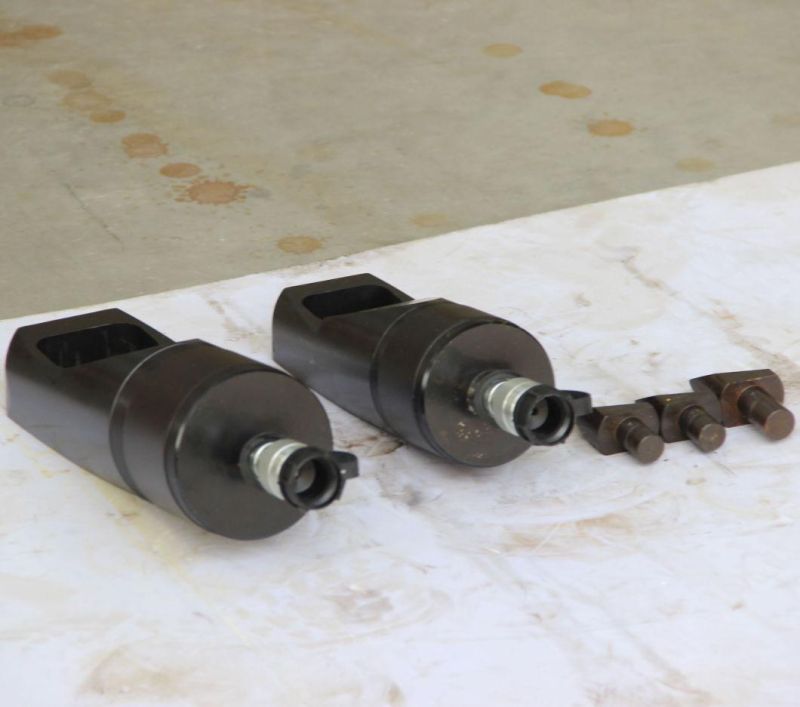

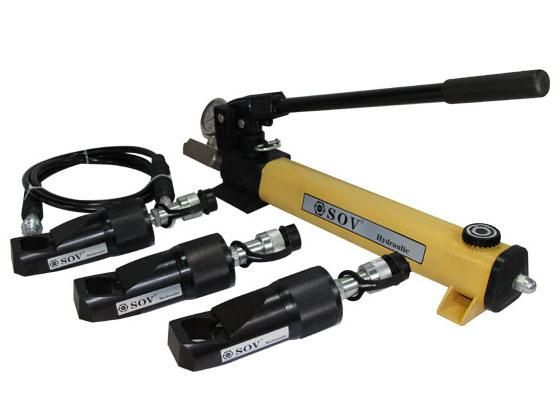

Photos

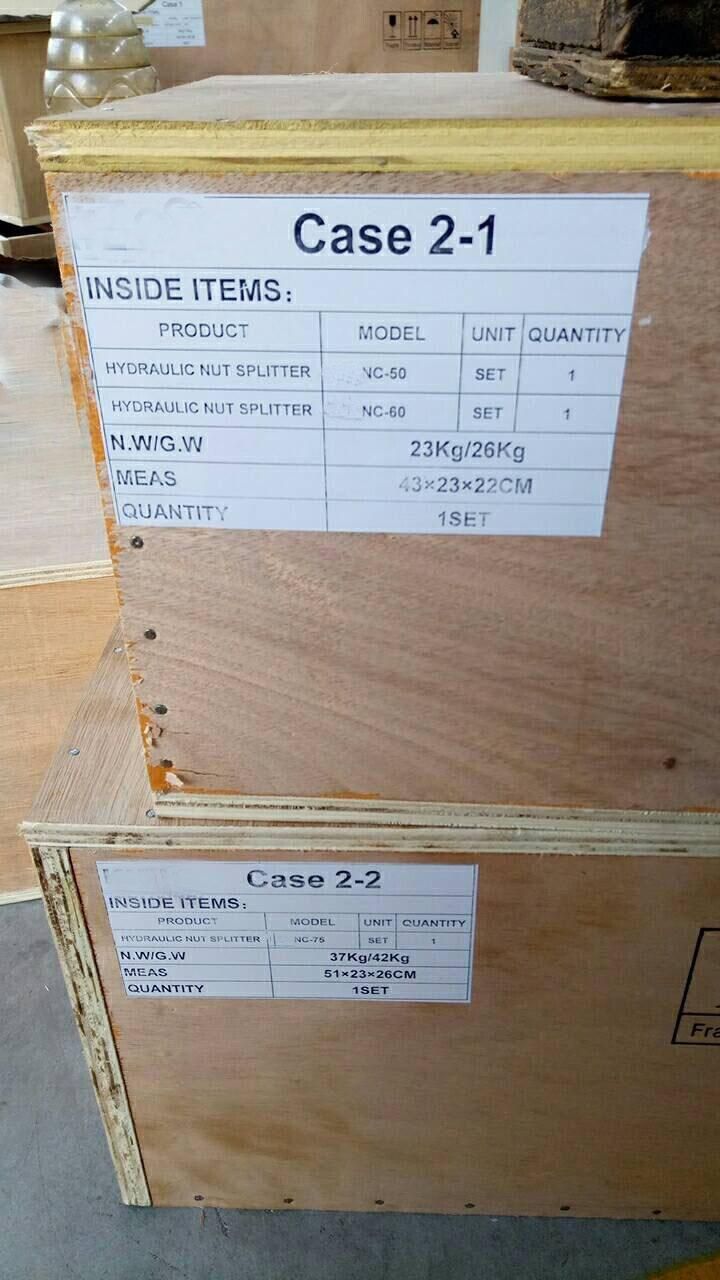

Packaging & Shipping
1. Wooden case
2. Shipping is designated by customer.



Our Services
1. One Year Warranty
2. Endless free maintenance service
3. Quick response
4. OEM service available

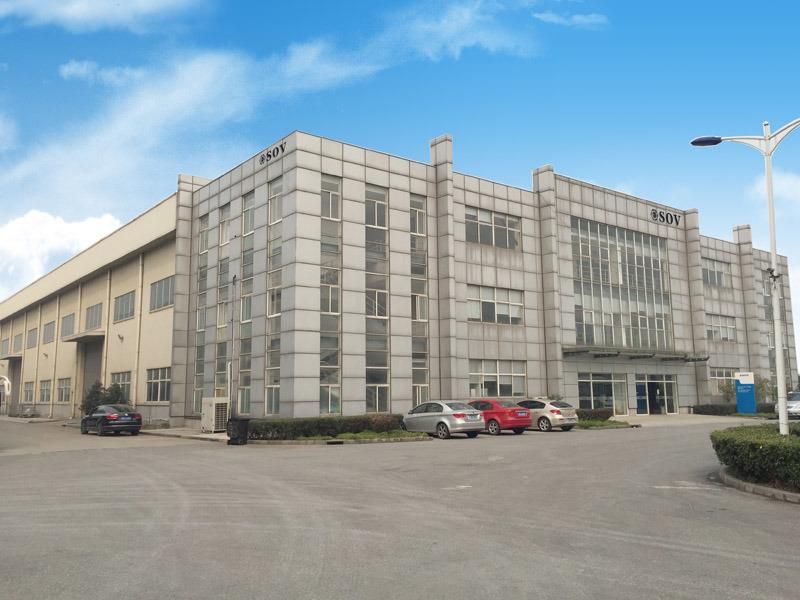

Company Information


SOV Hydraulic Technology(Shanghai) Co., Ltd is a professional manufacturer engaged in design and production of hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, electric torque wrenches, hydraulic nut splitters and hydraulic components.

Teams



Certificates
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Project Case
Our customer base includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Also, our products can be exported worldwide to many countries such as the Europe, Asia, North America, Latin America, Australia, New Zealand, the Middle East and Africa.


Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.



Main Products
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-1000 ton)
Hydraulic pumps, manual and electric type (max. up to 4000bar);
Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
