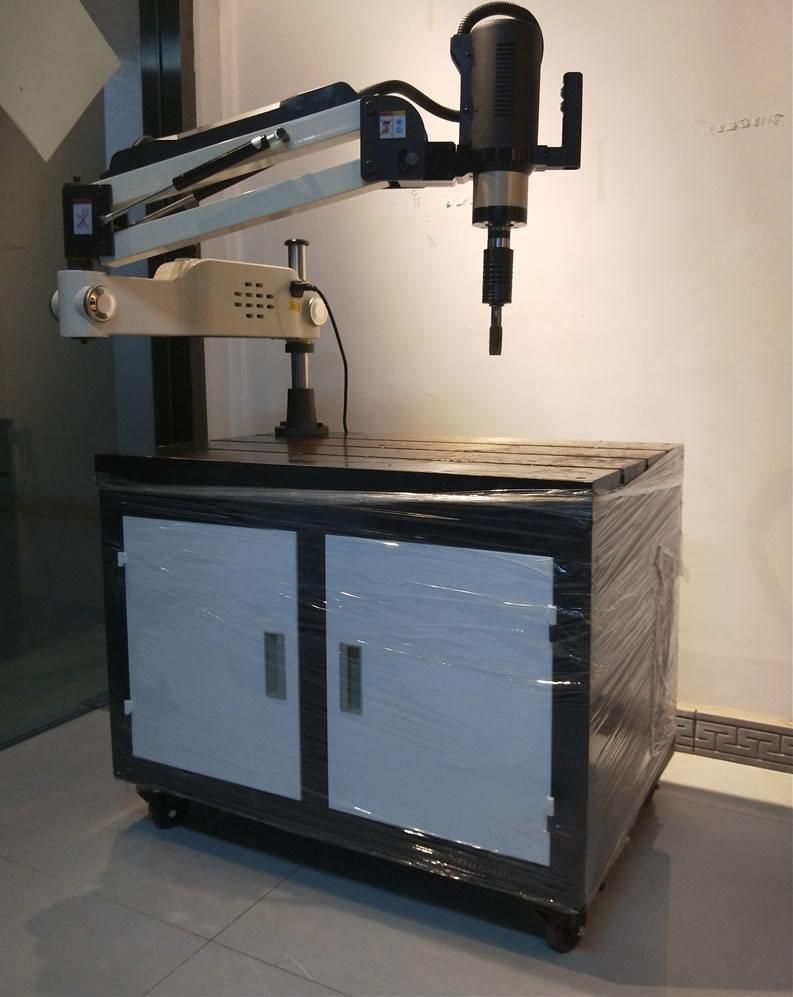

M36 Automatic Tapping Machine Internal Thread Processing Machine
Henan Wadley CNC Machinery Co., Ltd.- Tapping Range:M6-M36
- Tapping Direction:Vertical or Horizontal
- Max. Drilling Dia:36mm
- Range of Spindle Speed:1 - 250 r.p.m
- Voltage:110V,220V,380V
- Power:1200W
Base Info
- Model NO.:M36
- Weight:55 Kg
- Working Radius:1300mm
- Transport Package:Wooden Case
- Specification:900*750*320mm
- Trademark:wadley
- Origin:China
- HS Code:84597000
- Production Capacity:1000sets , Month
Description

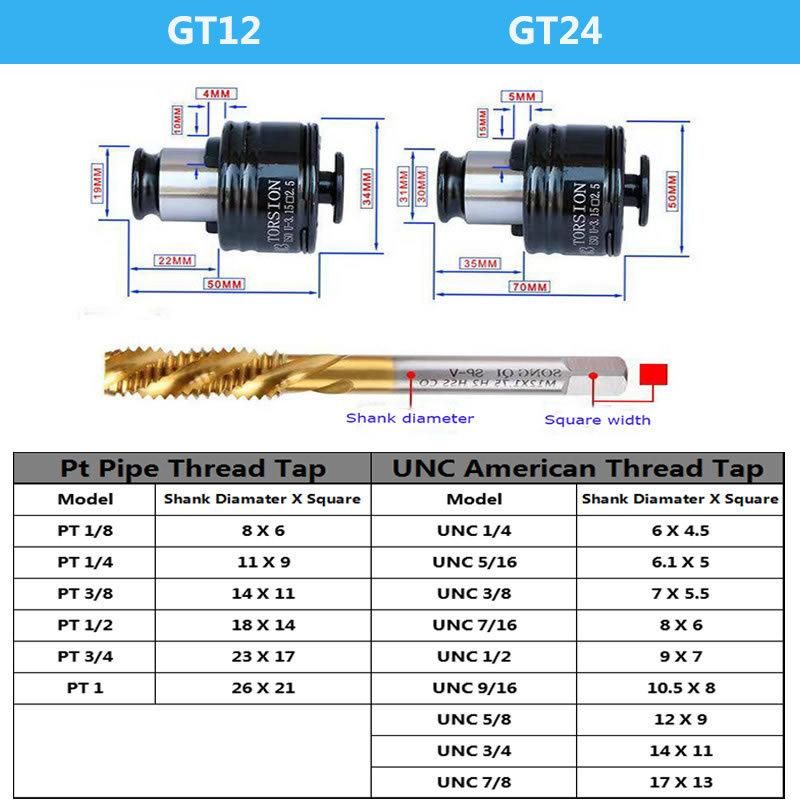

200r/minThe maximum radius 1200MM Heavy volume 50KG Tapping chuck GT24,M6-M36 Lubrication time 0.1-25 seconds Blowing time limitless brass, cast iron, aluminum, steel, stainless steel, plastic and wood
The tapping machine is a kind of machine that processes internal threads, screws or tooth buckles on the inner surface of the holes of various parts with different specifications of through holes or blind holes, such as machine parts, equipment end faces, nuts, flanges, etc. Mechanical processing equipment. Tapping machine is also called tapping machine, thread tapping machine, thread tapping machine, automatic tapping machine, etc.
