Pipe Threading Machine China Manufactures 2 Inch Pipe Threader

Hangzhou Hongli Pipe Machinery Co., Ltd.
  • Bolt Die Type：NPT , BSPT
  • Bolt Die Material：Tool Steel
  • Bolt Die Size：1,2"-2"
  • Model：2 inch
  • Type：Heavy

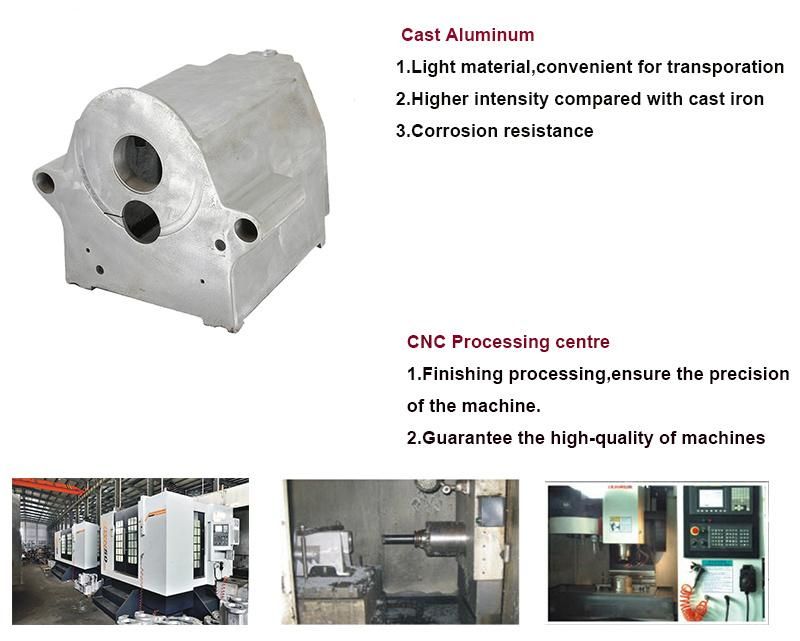

  • Gear Housing：Die Cast Aluminum

Base Info

  • Model NO.：SQ50B
  • Die Heads：Auto Tyoe
  • Product Name：Ratchet Pipe Threader
  • Categories：Threading Machines for 2" Pipes
  • Transport Package：Carton Case
  • Specification：76*47*55 cm
  • Trademark：Hongli
  • Origin：Zhengjiang China
  • HS Code：8459700000
  • Production Capacity：1000

Description

Technical SpecificationsMotor:750W induction,50/60 HzRear Centering Device:Cam actionSwitch:* ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optionalOiling System:Through die head, with integral oil reservoir  Threading Capacity: 1/2"-2"Spindle Speed:24 RPMOil Pump:Self-priming constant flowFront Chuck:Hammer type with replaceable rocker action jaw insertsN.W.:60kg

Ordering Information:
Catalog.No.Model No.DescriptionSpindle Speed RPMPipe Threading CapacityN.W.:(KG)
35012SQ50B1110V, 60Hz241/2"-2"(12mm-50mm)60
35011SQ50B1220V, 50Hz241/2"-2"(12mm-50mm)60

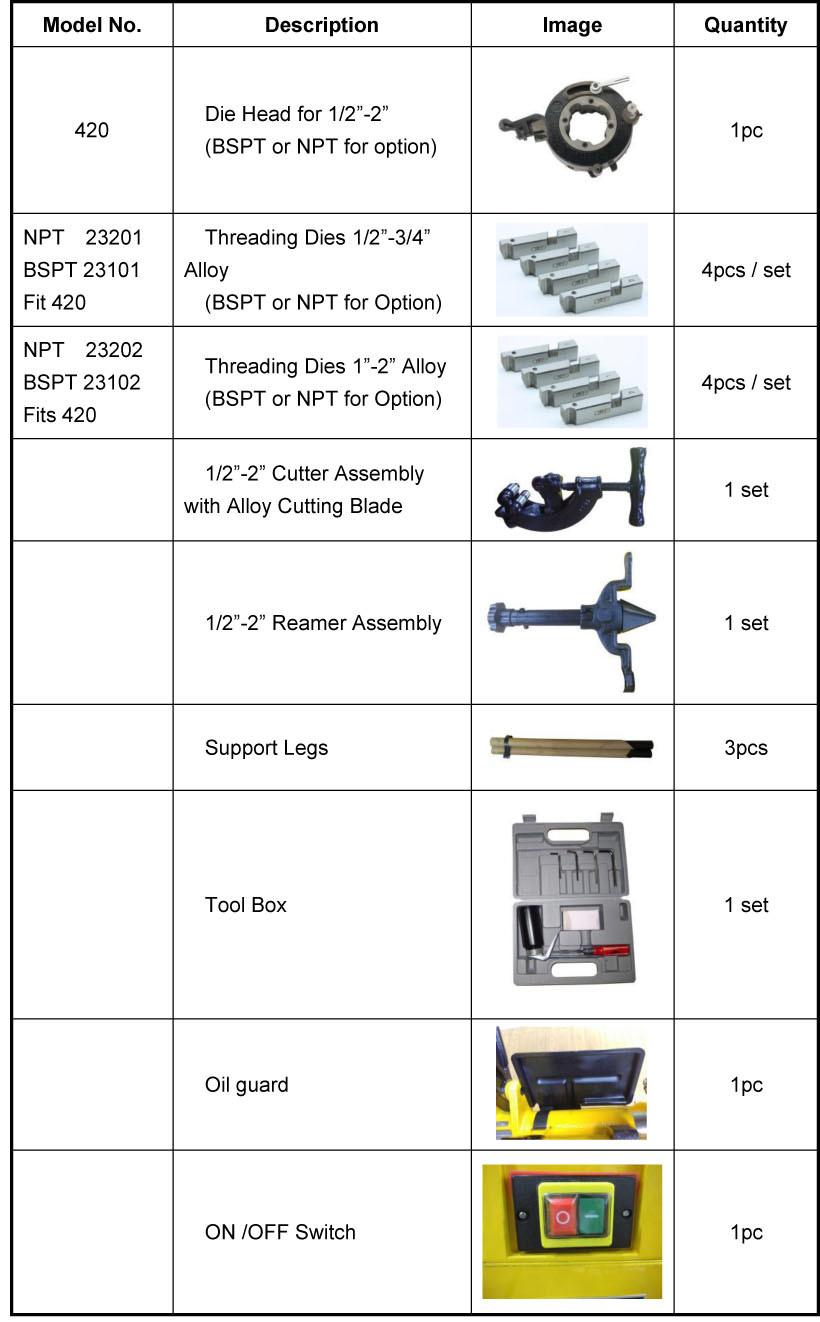

Standard Spare parts of SQ50B1 Pipe threader
Pipe Threading Machine China Manufactures 2 Inch Pipe Threader

We are developing all kinds of threading machine .In order to  make our machines meet the requirements from different  counties
Some spare parts of our machine can interchange with that of     RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.

Pipe Threading Machine China Manufactures 2 Inch Pipe Threader
Related products:
Pipe Threading Machine China Manufactures 2 Inch Pipe Threader

Packing & Delivery

Pipe Threading Machine China Manufactures 2 Inch Pipe Threader

Model No.G.WN.W.Packing
SQ50B1 Threading Machine74kgs60kgs76*47*55 cm.
