• Model NO.：D100XD24.5XT2.0XT30XV30
• Condition：New
• Name：Carbide Saw Blades
• Cer：ISO9001
• Performance：Excellent Wear Resistance
• Usage：General High Speed Cutting
• Material：100% Raw Material
• Business Type：Manufacturer
• Advantage：Over 20 Years Experience in This Line
• Size：Customized
• Transport Package：Standard or Customized
• Specification：ISO9001
• Trademark：LIHUA
• Origin：Zhuzhou, China (Mainland)
• HS Code：8207909000
• Production Capacity：5000kg,Mon

Basic Info.

Model NO. D100XD24.5XT2.0XT30XV30 Condition New Name Carbide Saw Blades Cer ISO9001 Performance Excellent Wear Resistance Usage General High Speed Cutting Material 100% Raw Material Business Type Manufacturer Advantage Over 20 Years Experience in This Line Size Customized Transport Package Standard or Customized Specification ISO9001 Trademark LIHUA Origin Zhuzhou, China (Mainland) HS Code 8207909000 Production Capacity 5000kg/Mon

Product Description

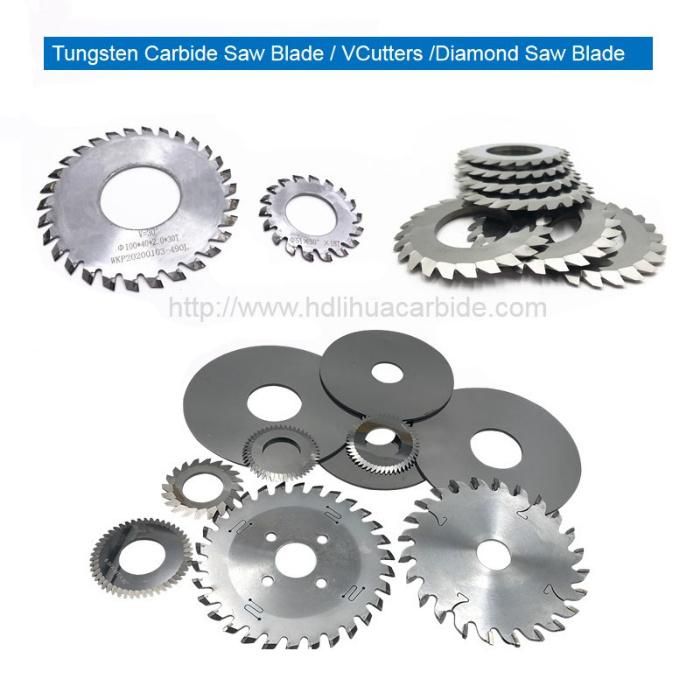

 Solid Carbide Cutter Circular Saw Blade  for Metalworking and wood Cutting

 Applications:

It is suitable for scoring the surface of PCB, yielding a stabilized burr-free V-like groove(30°45°60°90°etc) and for cutting wood, metal, aluminum & plastic composites, MDF,non-ferrous metals, PVC, PCB, graphite, brass rod, cast iron, granite, marble and grass etc

Advantage: A high hardness, high corrosion resistance, high wear resistance, long service life and improve production efficiency. Precision machining, high surface finish, high processing V groove surface finish, no burr, greatly improved the quantity of products.





Dimensions of Tungsten Carbide Saw Blade



Inch	Diameter	Central hole	Segment thickness	Teeth
4"	105	20	1.8	30/40
7"	180	25.4	2.2	40/60/80
8"	200	25.4	2.6	40/60/80
9"	230	25.4	2.8	40/60/80
10"	250	30	3	40/60/80/100/120
12"	300	30	3.2	40/60/80/100/120
14"	350	30	3.4	60/80/100/120
16"	400	30	3.6	60/80/100/120



Grade Information



Grade	Density g/cm3	T.R.S MPa	Hardness HRA	Performance & Application recommended
YL10.2	14.50	3400	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG11C	14.40	2260	87.5	Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc.
YG6X	14.90	1560	91.0	Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron.
YS2T	14.45	2800	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG15	14.10	2400	86.5	Used for punch dies,stamping dies and wear resistance parts.

Company Informations

About Lihua Cemented Carbide


Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city  which is the hometown of tungsten carbide in China .
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .



Main Products

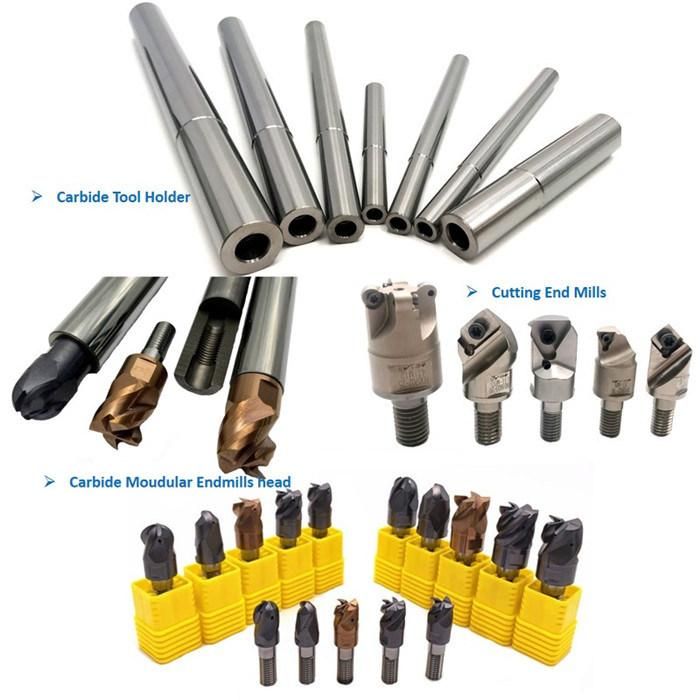

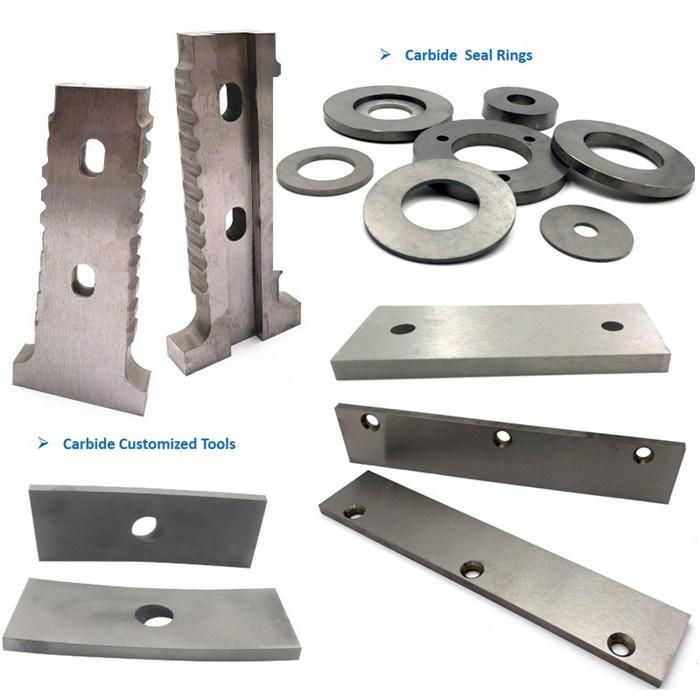

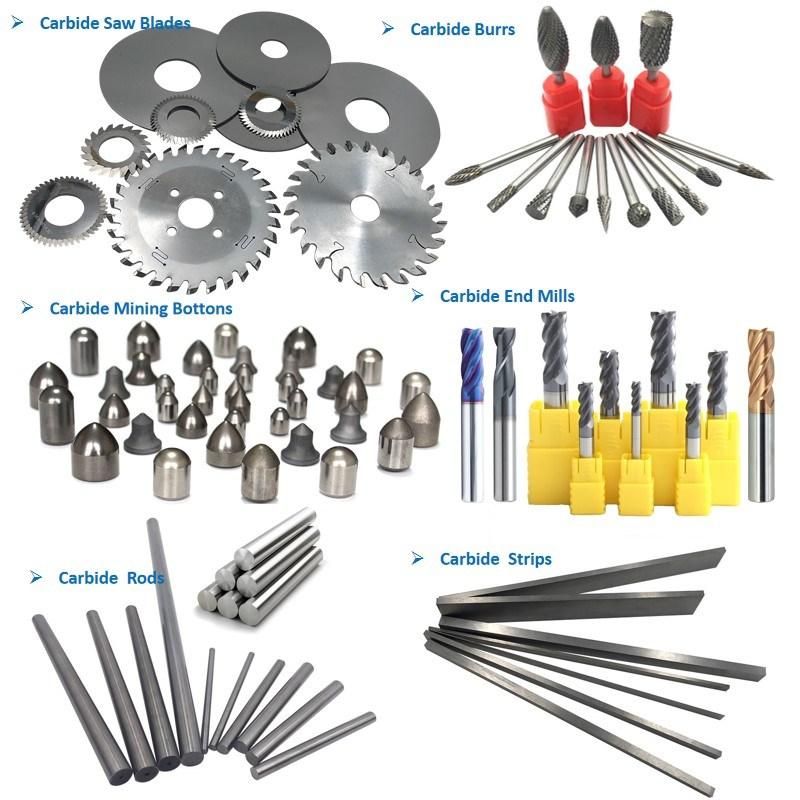

Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter:woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .

Monthly Capacity of 15Ton

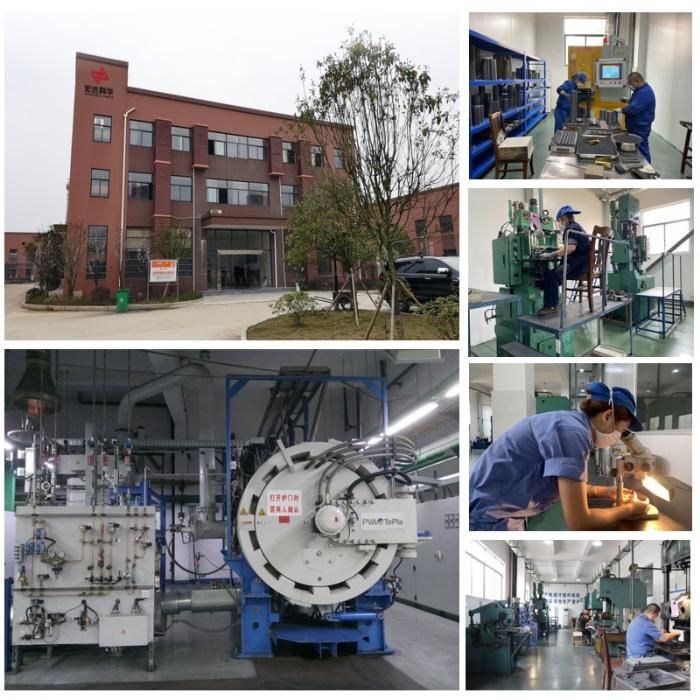

We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.

Our Exhibitions & Qualifications



Contact:
Foreign Sales Manager : Coco
Factory Add: Building B-11,E-commerce Industrial Park ,Xinma South Road ,Tianyuan Zone ,Zhuzhou City ,Hunan Provice ,China 412000
