• Model NO.：HHYD-1532
• Transport Package：Plastic Case + Outer Carton Box
• Specification：70*30*11cm
• Trademark：TLP
• Origin：Zhejiang, China
• HS Code：846789
• Production Capacity：1000 PCS,Month

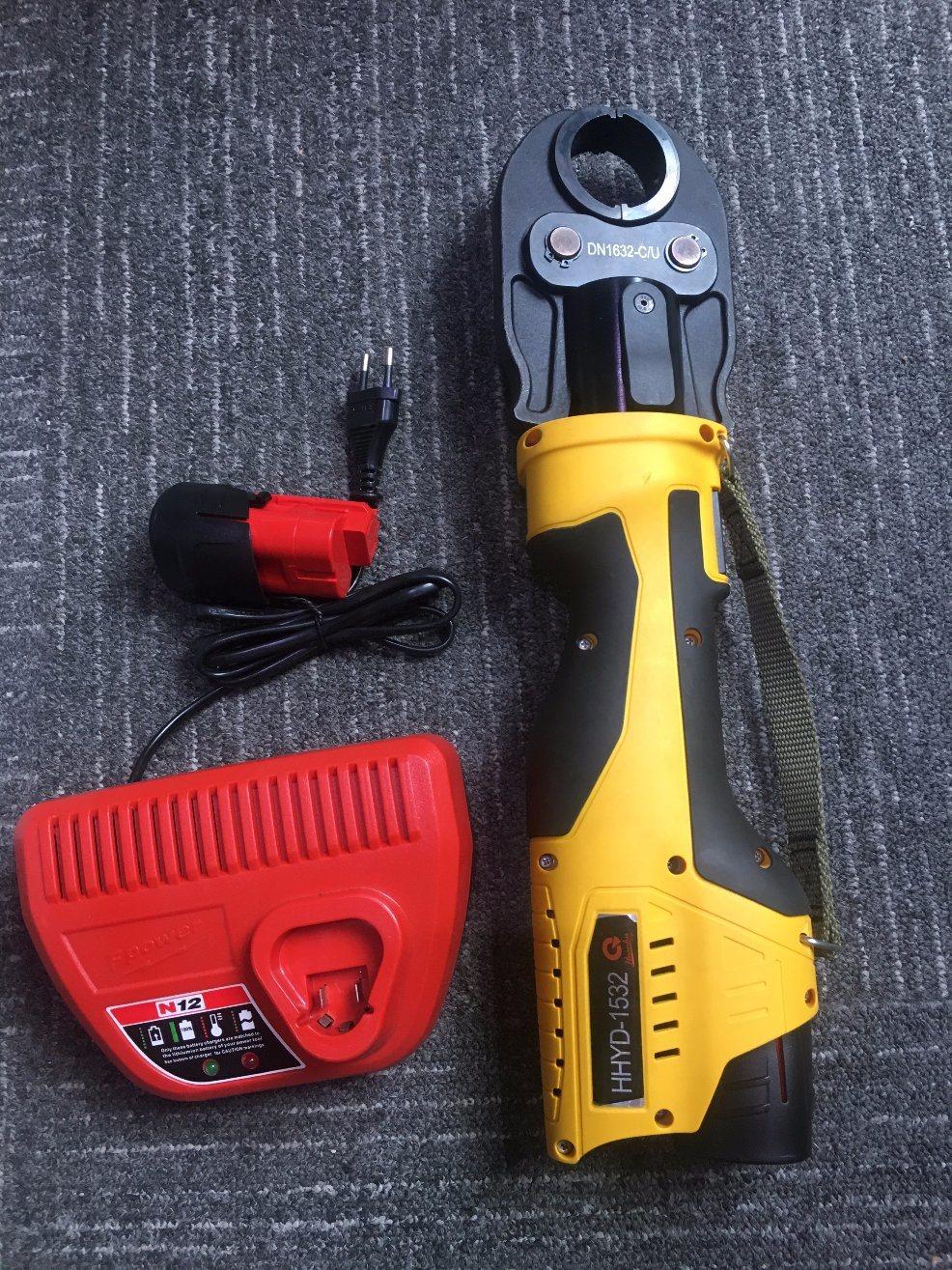

ModelHHYD-1532Hydraulic Ram Output1.9 TonRam Stroke30 mmBattery capacity120 pressing cyclesPressing jawsV type Jaw : 15, 18, 22, 28, 35 (other type available on request)Crimping times5s-8s(Depend on the size of pipe)Battery18V/1.5Ah Li-ionQty of battery 2 pcsCharger 1 pcsSpare seals  1 setSeals for the safety valve 1 set

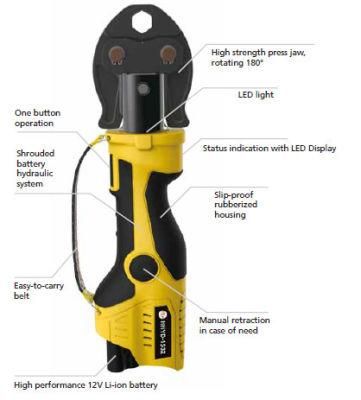

Characteristics
Easy and simple operation, high efficiency and safety.
Pressing jaws confirm to standard GB/T 19228.
Pressing stainless steel fittings up to 35 mm.
Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
10000+ cycle service life.
Ram retracts to original position automatically when operation is complete.
Manual retraction in case of need.
LED Display indicates operation temperature and times.
Quick motor stop for higher user safety.
Powerful 12V Li-ion battery with low battery warning.
Ergonomic design, extremely light and easy to hold.


Package
