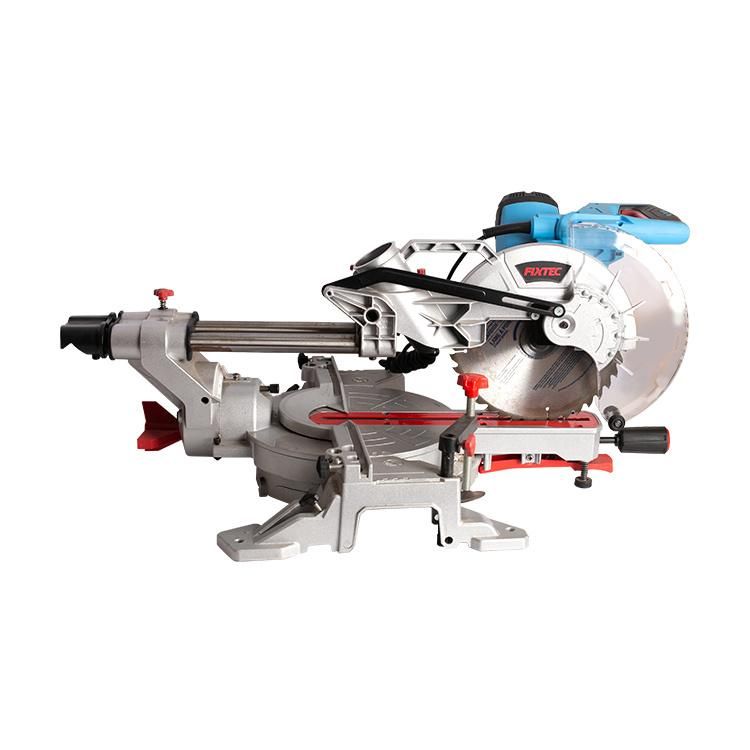

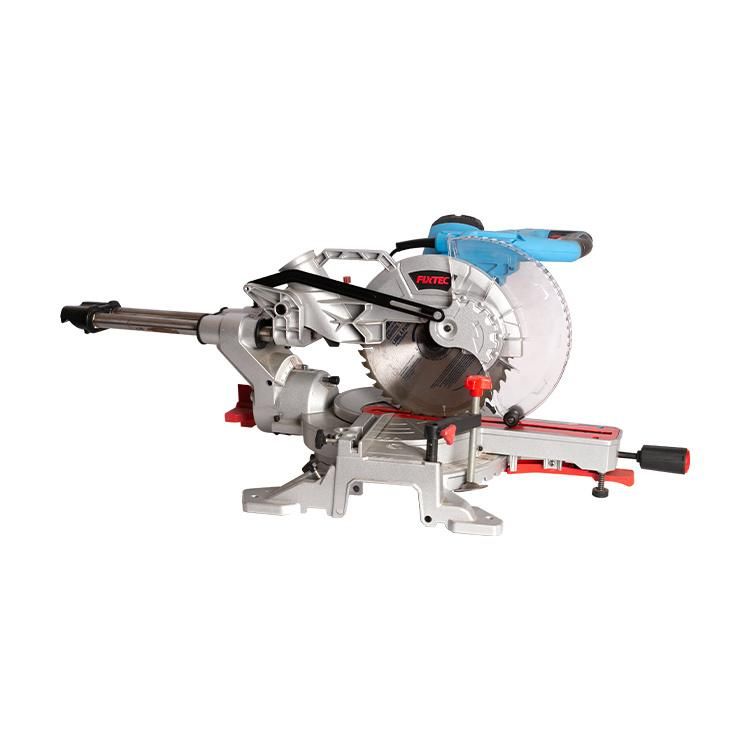

Fixtec Power Tools 1600W 255mm Industrial Mitre Saw (FMS25501)
EBIC Tools Co., Ltd.- Saw Type：Miter Saw
- Application：Wood Saw, Metal Saw, Stone Saw, Tile,Brick Saw
- Brand：Fixtec
- Type：Fixed
- Power Source：Electricity
- Customized：Customized
Base Info
- Model NO.：FMS25501
- Condition：New
- Voltage/Frequency：220-240V,50-60Hz
- Input Power：1600W
- Blade Size：225mm
- No Load Speed：5000rpm
- Mitre Table Angles：-45deg -- +45deg
- Bevel Angles：0-45
- Cutting Capacity：65X140mm,65X90mm,38X140mm,38X90mm
- Base：Aluminum Base
- Weight：10.0kg
- Transport Package：Color Box
- Specification：CE, RoHs, GS, EMC, ETL, UL
- Trademark：FIXTEC
- Origin：Jiangsu
- Production Capacity：300000PCS,Month
Description
Basic Info.
Model NO. FMS25501 Condition New Voltage/Frequency 220-240V/50-60Hz Input Power 1600W Blade Size 225mm No Load Speed 5000rpm Mitre Table Angles -45deg -- +45deg Bevel Angles 0-45 Cutting Capacity 65X140mm/65X90mm/38X140mm/38X90mm Base Aluminum Base Weight 10.0kg Transport Package Color Box Specification CE, RoHs, GS, EMC, ETL, UL Trademark FIXTEC Origin Jiangsu Production Capacity 300000PCS/MonthProduct Description
Product Description| Model Number | FMS25501 |
| Voltage | 220-240V ~ 50-60Hz |
| Rated power | 1600W |
| No load speed | 5000rpm |
| Dimension of saw blade | 255mm |
| Mitre table angles | -50 0 /-31.6 0 /-22.5 0 /-15 0 0 0 /15 0 /22.5 0 /31.6 0 /50 0 |
| Bevel angles | 0-45 0 |
| Cutting capacity, | |
| cross cut at 0° mitre, 0° bevel | 65 x 140mm |
| mitre cut at 45° mitre, 0° bevel | 65 x90mm |
| compound cut at 45° mitre, 45° bevel | 38 x90mm |
| bevel at 45° bevel | 38 x 140mm |
| Weight | 10.0Kg |
| Protection class | /II |
