220V 1600W Manual Welders Heat Gun Kits Hot Air Welder
ZENG GONG FU WELDING EQUIPMENT (WU HAN) CO., LTD.- Rated Voltage：220V
- Rated Output Power：1600W
- Feature：Cool , Hot Air
- Color：Green
- Certification：CE, RoHS
- Transport Package：Box
Base Info
- Model NO.：ZGF-1600
- Trademark：ZGF
- Origin：China
Description
Remarks: For the ZGF-1600D (after finish job,you don't need to adjust the potentionmeter to "o" position. You can turn off the power switch directly,now the welder stops heating but the air blower still blow for 3.5 miuntes to cool down the welder and then power off automatically. )
Remarks: For the DG-1600 (after finish job,you don't need to adjust the potentionmeter to "o" position. You can turn off the power switch directly,now the welder stops heating but the air blower still blow untill the temperature drop to 70 degress and then it will power off automatically)

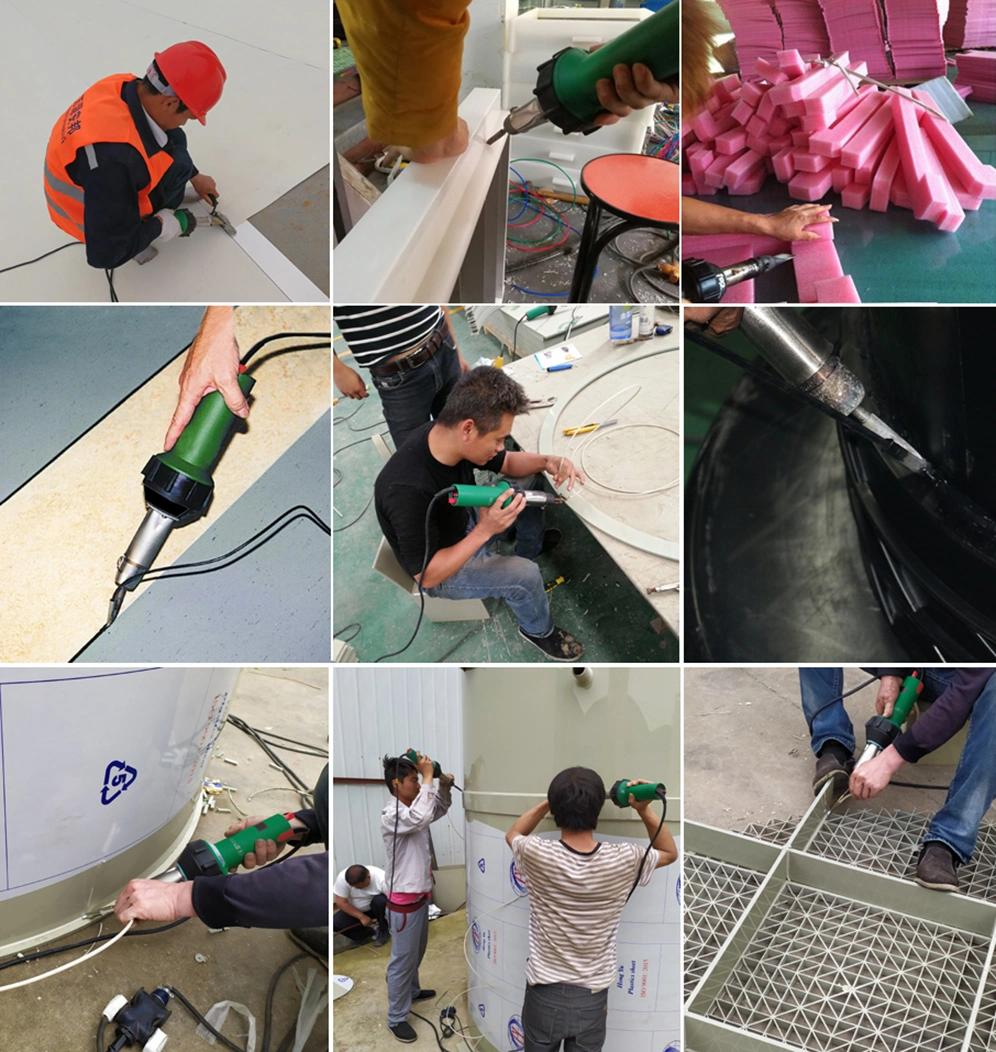

Product feature and applicationIt is handy,cost effective,reliable for weding all different types of thermaplastic material, for rooifng,flooring ,tarps,plastic fabrication,etc.Especially good for long time continous working site
- Hot air tool for welding PVC, PE, PP, PA, EPDM, PS, TPO, EVA materials
- hot air tool for drying and activating
- hot air gun for shrinking plastic caps
- hot air tool for welding Plastic Tanks, Plastic Pipe and Plastic Sheets

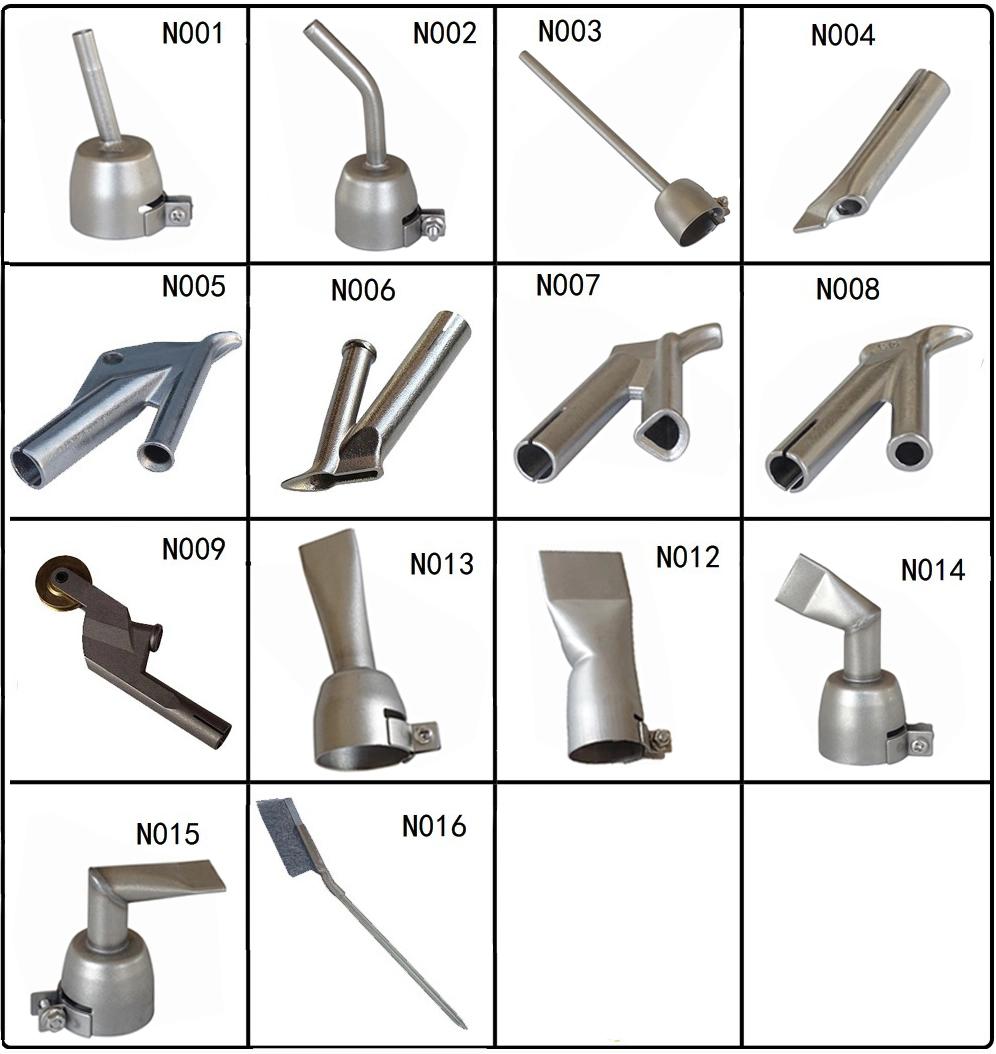

Welding nozzles for choose
N001 -5mm round nozzle N008 -5mm round speed welding nozzle N015-90 degree flat nozzle
N002 -5mm 45 degree bend round nozzle N009 -Brass roller floor speed nozzle N016- brush
N003 -5*150mm round nozzle N010 -Multi-fuction triangualr speed nozzle
N004 -tacking nozzle N011 -Multi-fuction round speed nozzle
N005 -4mm round speed welding nozzle N012 -40mm flat welding nozzle
N006 -4mm round vinyl floor nozzle N013 -20mm flat welding nozzle
N007 - triangualr speed welding nozzle N014 - 60 degree 20mm flat welding nozzle

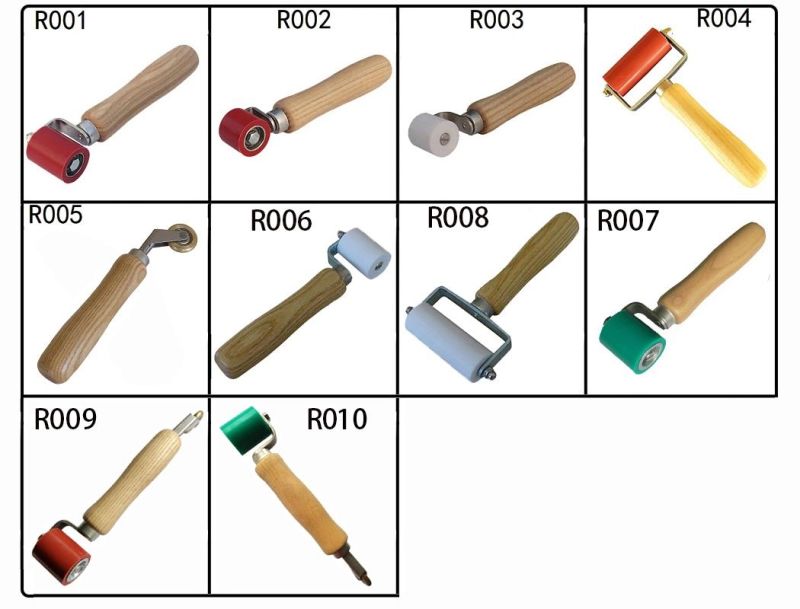

Hand pressure rollers for choose
R001 - 40mm silicone hand pressure roller R002 - 28mm silicone hand pressure roller R003 - 28mm telflon hand pressure roller
R004 - 80mm silicone hand pressure roller R005 - 6mm brass penny roller R006 - 40mm telflon hand pressure roller
R008 - 80mm telflon hand pressure roller R007- 40mm silicone hand pressure roller R009 - R001+R005
R010- R007+R005

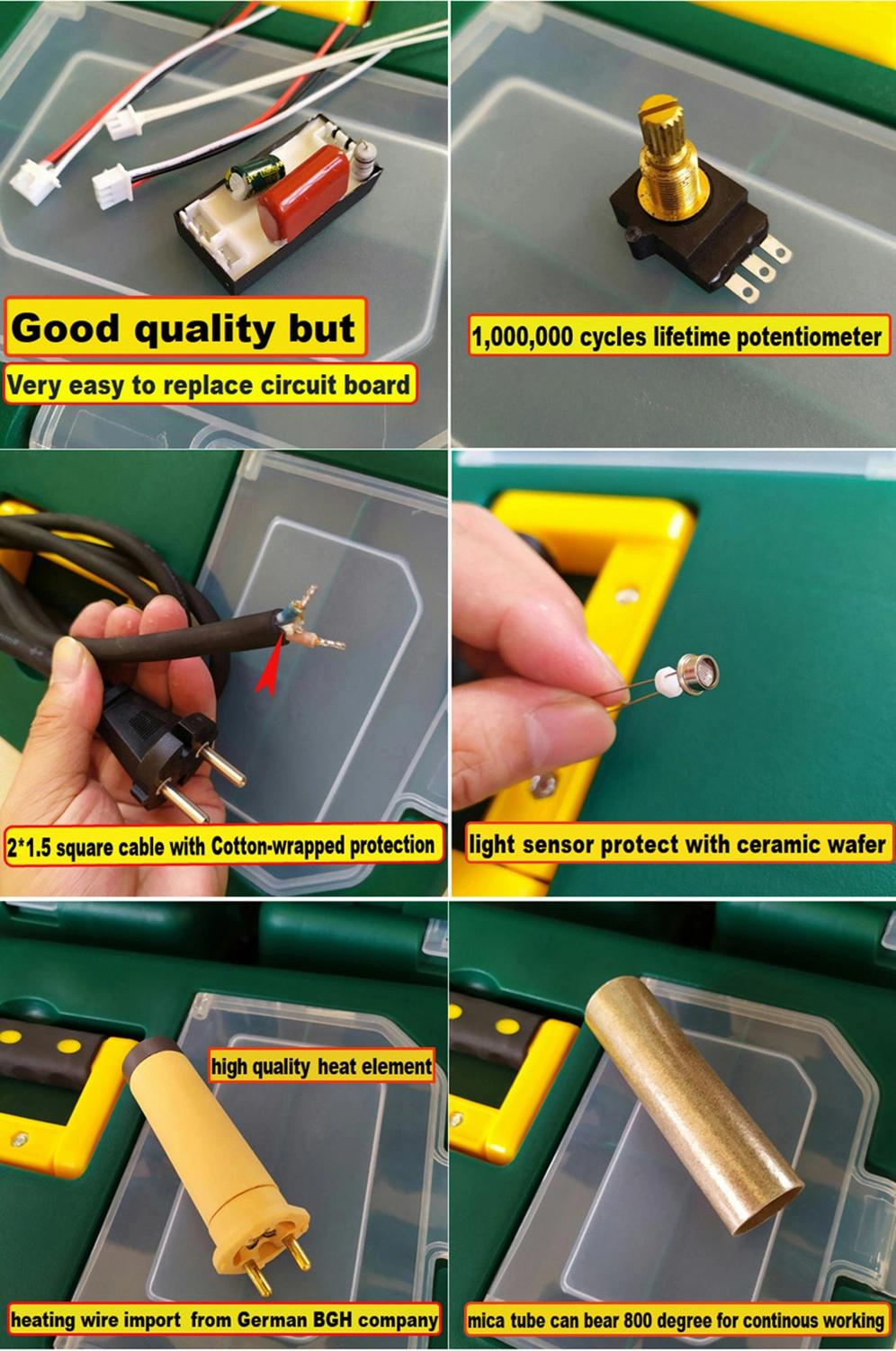

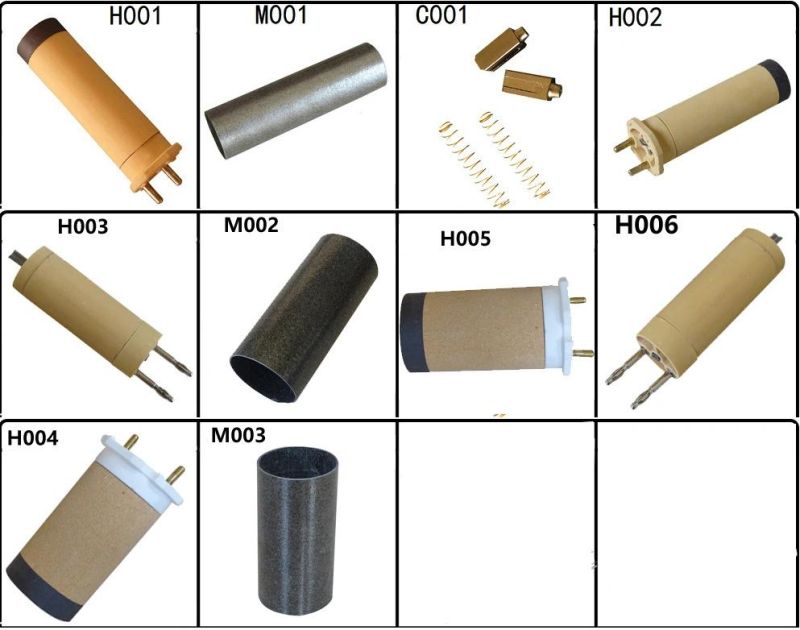

Wearing part and Consumables
H001 - 1600W heat element fit to ZGF-1600 and ZGF-1600D,ZGF-1600S,ZGF-1600SD,ZGF-1600SQ,ZGF-1600SQD,ZGF-Sm
H002 - 1600W heat element fit to DG-1600,DG-2000,DG-1600S,ZGF-1800DGS,ZGF-DGsm
H003 - 2000W heat element fit to ZGF-2000,ZGF-2000D H006-2000W heat elemet fit to DG-2000
H004- 3400W heat element fit to ZGF-3400,ZGF-3400D H005-3400W heat element fit to DG3400
M001 - mica tube fit to all ZGFplasticweld brand 1600W handheld hot air welders
M002-mica tube fit to all ZGFplasticweld brand 2000W handheld hot air welders
M003-mica tube fit to all ZGFplasticweld brand 3400W handheld hot air welders
C001- carbon brush fit to all ZGFplasticweld brand handheld hot air welders
Product features
Product qualification
FAQ:
Q: what's plastic welding?
A:Plastic welding also know as hot air welding, we use a hot air hand tool to produce a jet of hot air that softens both the parts to be joined and a plastic filler rod, all of which must be of the same or a very similar plastic. Welding PVC to acrylic is an exception to this rule.Hot air/gas welding is a common fabrication technique for manufacturing smaller items such as chemical tanks, water tanks, heat exchangers, and plumbing fittings.In the case of webs and films a filler rod may not be used. Two sheets of plastic are heated via a hot gas (or a heating element) and then rolled together. This is a quick welding process and can be performed continuously.
What can we do for you?
The goal of our Enterprise
We will devote all our life to plastic welding tools ! Our goal is that " Good quality ! Good service ! Good design! The most important thing is "Cheap price"! ZGFplasticweld hot air tools will weld "a strong freindship" between you and us!
Our factory name is ZENG GONG FU WELDING EQUIPMENT (WU HAN) CO., LTD.
Our brand name is :ZGFplasticweld
Remarks: For the DG-1600 (after finish job,you don't need to adjust the potentionmeter to "o" position. You can turn off the power switch directly,now the welder stops heating but the air blower still blow untill the temperature drop to 70 degress and then it will power off automatically)
Product feature and applicationIt is handy,cost effective,reliable for weding all different types of thermaplastic material, for rooifng,flooring ,tarps,plastic fabrication,etc.Especially good for long time continous working site
- Hot air tool for welding PVC, PE, PP, PA, EPDM, PS, TPO, EVA materials
- hot air tool for drying and activating
- hot air gun for shrinking plastic caps
- hot air tool for welding Plastic Tanks, Plastic Pipe and Plastic Sheets
Welding nozzles for choose
N001 -5mm round nozzle N008 -5mm round speed welding nozzle N015-90 degree flat nozzleN002 -5mm 45 degree bend round nozzle N009 -Brass roller floor speed nozzle N016- brush
N003 -5*150mm round nozzle N010 -Multi-fuction triangualr speed nozzle
N004 -tacking nozzle N011 -Multi-fuction round speed nozzle
N005 -4mm round speed welding nozzle N012 -40mm flat welding nozzle
N006 -4mm round vinyl floor nozzle N013 -20mm flat welding nozzle
N007 - triangualr speed welding nozzle N014 - 60 degree 20mm flat welding nozzle
Hand pressure rollers for choose
R001 - 40mm silicone hand pressure roller R002 - 28mm silicone hand pressure roller R003 - 28mm telflon hand pressure roller
R004 - 80mm silicone hand pressure roller R005 - 6mm brass penny roller R006 - 40mm telflon hand pressure roller
R008 - 80mm telflon hand pressure roller R007- 40mm silicone hand pressure roller R009 - R001+R005
R010- R007+R005
Wearing part and Consumables
H001 - 1600W heat element fit to ZGF-1600 and ZGF-1600D,ZGF-1600S,ZGF-1600SD,ZGF-1600SQ,ZGF-1600SQD,ZGF-SmH002 - 1600W heat element fit to DG-1600,DG-2000,DG-1600S,ZGF-1800DGS,ZGF-DGsm
H003 - 2000W heat element fit to ZGF-2000,ZGF-2000D H006-2000W heat elemet fit to DG-2000
H004- 3400W heat element fit to ZGF-3400,ZGF-3400D H005-3400W heat element fit to DG3400
M001 - mica tube fit to all ZGFplasticweld brand 1600W handheld hot air welders
M002-mica tube fit to all ZGFplasticweld brand 2000W handheld hot air welders
M003-mica tube fit to all ZGFplasticweld brand 3400W handheld hot air welders
C001- carbon brush fit to all ZGFplasticweld brand handheld hot air welders
Product features
Product qualification
FAQ:
Q: what's plastic welding?
A:Plastic welding also know as hot air welding, we use a hot air hand tool to produce a jet of hot air that softens both the parts to be joined and a plastic filler rod, all of which must be of the same or a very similar plastic. Welding PVC to acrylic is an exception to this rule.Hot air/gas welding is a common fabrication technique for manufacturing smaller items such as chemical tanks, water tanks, heat exchangers, and plumbing fittings.In the case of webs and films a filler rod may not be used. Two sheets of plastic are heated via a hot gas (or a heating element) and then rolled together. This is a quick welding process and can be performed continuously.
What can we do for you?
1. OEM or ODM is available.
2. Some extra spare parts accessories can be supplied.
3.The larger quantity you order,the more competitive prices and service you'll get.
4. Necessary Certificates can be supplied.
The goal of our Enterprise
We will devote all our life to plastic welding tools ! Our goal is that " Good quality ! Good service ! Good design! The most important thing is "Cheap price"! ZGFplasticweld hot air tools will weld "a strong freindship" between you and us!
Our factory name is ZENG GONG FU WELDING EQUIPMENT (WU HAN) CO., LTD.
Our brand name is :ZGFplasticweld
