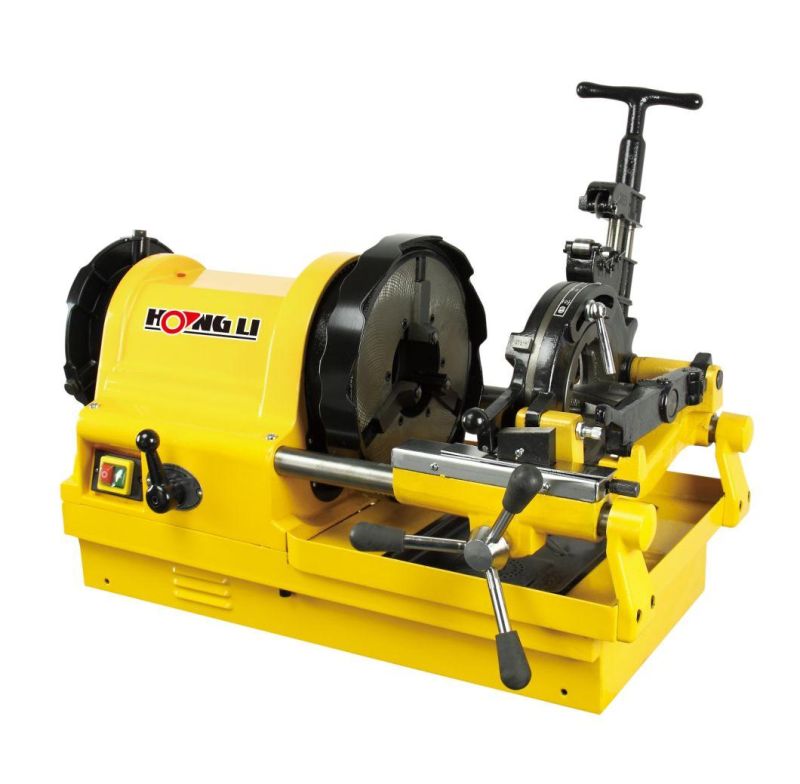

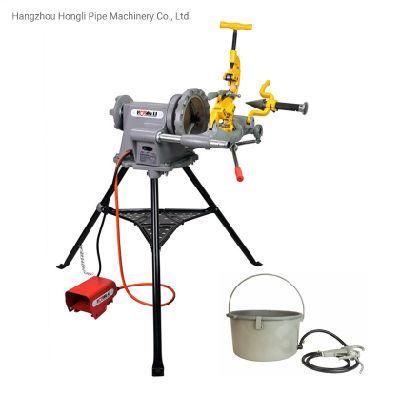

Economic 4 Inch Pipe Threading Machine for Middle East Market 750W
Hangzhou Hongli Pipe Machinery Co., Ltd.- Bolt Die Type：NPT , BSPT
- Bolt Die Material：Tool Steel
- Bolt Die Size：1,2"-4"
- Model：4 inch
- Type：Heavy

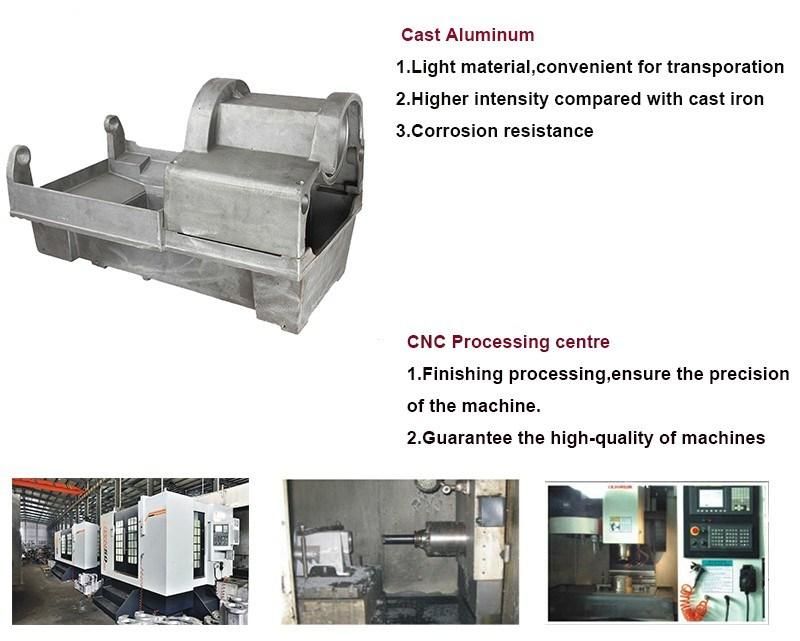

- Gear Housing：Die Cast Aluminum
Base Info
- Model NO.：SQ100D1
- Die Heads：Quick-Open
- Product Name：Ratchet Pipe Threader
- Categories：Threading Machines for 4" Pipes
- Transport Package：Carton Case
- Specification：100*70*63 cm
- Trademark：Hongli
- Origin：Zhengjiang China
- HS Code：8459700000
- Production Capacity：1000
Description
Technical SpecificationsMotor: 750W induction,50/60 Hz Rear Centering Device: Cam action Switch: * ON/OFF heavy duty switch,
* Foot switch and FOR/OFF/REV switch is optional Oiling System: Through die head, with integral oil reservoir Casting: Aluminum Threading Capacity: 1/2"-4" Spindle Speed: 24/10 RPM Oil Pump: Self-priming constant flow Front Chuck: Hammer type with replaceable rocker action jaw inserts N.W.: 140kg
Ordering Information:
Standard Spare parts of SQ100D1 Pipe threader:
Related products:
Packing & Delivery:
* Foot switch and FOR/OFF/REV switch is optional
HS Code of SQ100D1 Electric Pipe Threading Machine: 8459700000

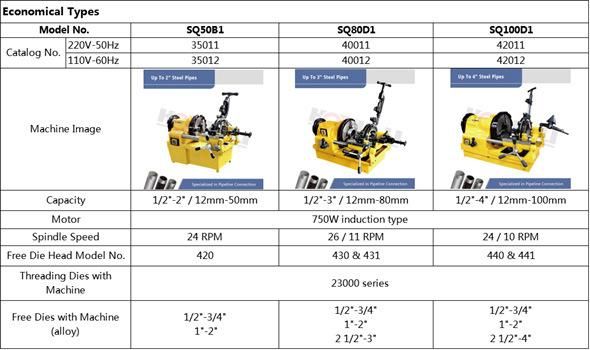

Ordering Information:
| Catalog.No. | Model No. | Description | Spindle Speed RPM | Pipe Threading Capacity | N.W.:(KG) |
| 42012 | SQ100D1 | 110V, 50/60Hz | 24/10 | 1/2"-4"(12mm-100mm) | 140 |
| 42011 | SQ100D1 | 220V, 50/60Hz | 24/10 | 1/2"-4"(12mm-100mm) | 140 |

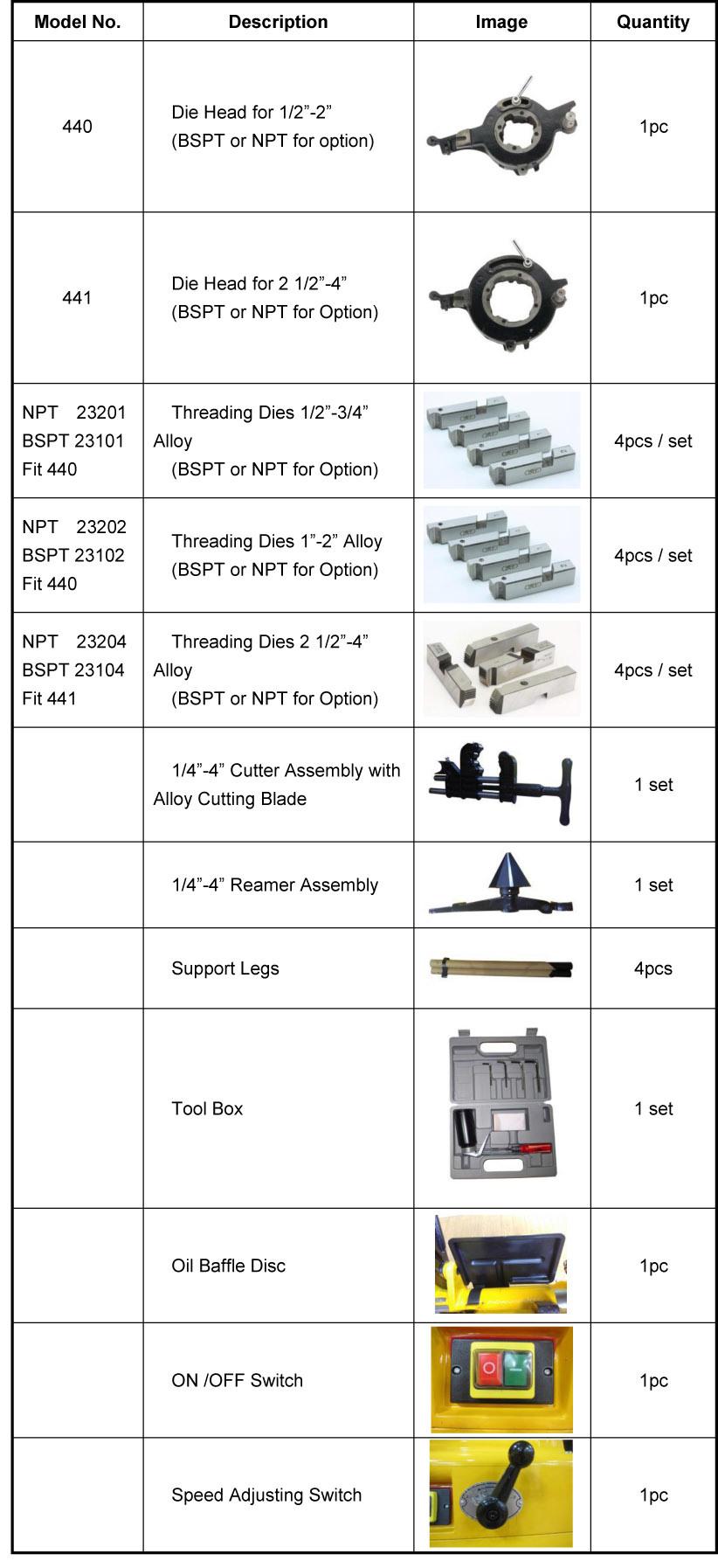

Standard Spare parts of SQ100D1 Pipe threader:

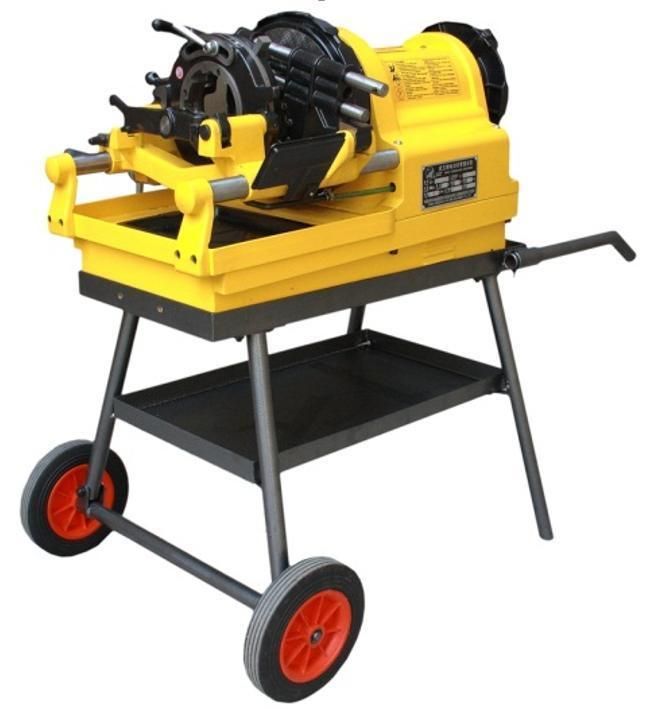

Wheel Stand: Ridgid type Folding wheel stand is optional:
We are developing all kinds of threading machine .In order to make our machines meet the requirements from different counties
Some spare parts of our machine can interchange with that of RIDGID, ROTHENBERGER, REX, ASADA , REMS, EGAMASTER tools.
Related products:

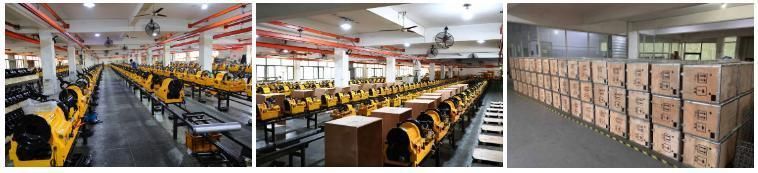

Packing & Delivery:
| Model No. | G.W | N.W. | Packing |
| SQ100D1 Threading Machine | 166kgs | 140kgs | 94*60*62cm |
