• Model NO.：PZ-1240
• HS Code：8467890000
• Production Capacity：399999

Clamping Force     20KN     Stroke     40mm     Clamping range     16-32mm     Connecting/ charge     320 times     Working cycle     3s-10s     Battery voltage     18V     Battery capacity     3.0 Ah     Charging time     2hours     Package     Plastic case     Accessories     Dies     16-20mm, 25-32mm     Battery     2pcs     Charger     1pc     Sealing ring of cylinder     1set     Sealing ring safety valve     1set

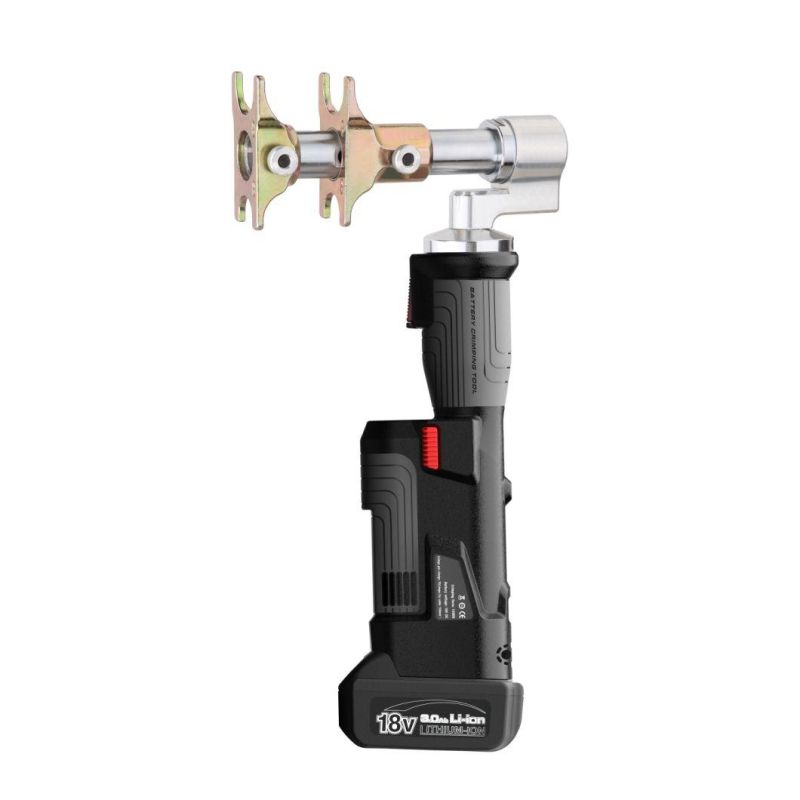

Axial Pressing Tool EZ-1240 for rehau system with clamping range 16mm,20mm,25mm,32mm


 Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.

 Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.

 The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

 The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

 If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.

 One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.

 Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

 A Temperature sensor makes the tool stop working automatically when the temperature over 60ºC under long time working, the fault signal sounds, it means the tool can't continue work until the temperature reduced to the normal.
