- Model NO.:100-800
- Product:Tct Saw Blade for Wood
- Material of Blade:50 Steel, 65mn, and Carbide Tip
- Usage:Cutting Wood
- Delivery:Fast Delivery
- Transport Package:Colour Box, Double Blister, Blister Card and So on
- Specification:100-800
- Trademark:Customer requirements
- Origin:China
- HS Code:82029990
- Production Capacity:25000PCS,Day
|
Material | Body: 50# carbon Steel, 65Mn |
| Carbide Tip : YG8, YG6, YG6X |
Teeth | ATB Teeth |
Weld wormanship | Silver brased |
Arbor size: | 22.23/30mm |
Application: | Wood, Ply wood, chipboard, softwood |
T2. TCT Saw Blade For Laminated Panel
Material: | Body: 65Mn, SK-5, 75Cr1 |
| Carbide Tip: YG8, YG6X |
Teeth: | TCG ( triple chip grind, triple chip tooth alternating with flat teeth. |
Arbor size: | 22.23 / 30mm |
Body hardness: | HRC 40~45 |
Application: | Laminated panel, Ply board, chipboard. |
T3. TCT Saw Blade For Hard Wood
Material | Body: 65Mn, JIS: SK5, SKS51, |
| Carbide Tip: YG8, YG6X |
Teeth Type: | TCG teeth |
Arbor Size: | 22.23/30mm |
Body hardness: | HRC 45~48 |
Application: | Suitable for High density board, fire board. |
T4. TCT Saw Blade For Cutting Non-Ferrous Metal
Material | Body: 65Mn, SK5, SKS51 |
| Carbide Tip : YG8, YG8X |
Teeth: | TCG ( triple chip grind, triple chip tooth alternating with flat tooth) |
ISO | ISO quanlity certificate. |
Application | for cutting aluminum sheet and other non-ferrous metal, such as copper, brass and magnesium |
T1. Industrial TCT saw Blade For Cross and universal Use.
|
Material | Body: 50# carbon Steel, 65Mn |
| Carbide Tip : YG8, YG6, YG6X |
Teeth | ATB Teeth |
Weld wormanship | Silver brased |
Arbor size: | 22.23/30mm |
Application: | Wood, Ply wood, chipboard, softwood |
| | |
T2. TCT Saw Blade For Laminated Panel
Material: | Body: 65Mn, SK-5, 75Cr1 |
| Carbide Tip: YG8, YG6X |
Teeth: | TCG ( triple chip grind, triple chip tooth alternating with flat teeth. |
Arbor size: | 22.23 / 30mm |
Body hardness: | HRC 40~45 |
Application: | Laminated panel, Ply board, chipboard. |
T3. TCT Saw Blade For Hard Wood
Material | Body: 65Mn, JIS: SK5, SKS51, |
| Carbide Tip: YG8, YG6X |
Teeth Type: | TCG teeth |
Arbor Size: | 22.23/30mm |
Body hardness: | HRC 45~48 |
Application: | Suitable for High density board, fire board. |
T4. TCT Saw Blade For Cutting Non-Ferrous Metal
Material | Body: 65Mn, SK5, SKS51 |
| Carbide Tip : YG8, YG8X |
Teeth: | TCG ( triple chip grind, triple chip tooth alternating with flat tooth) |
ISO | ISO quanlity certificate. |
Application | for cutting aluminum sheet and other non-ferrous metal, such as copper, brass and magnesium |

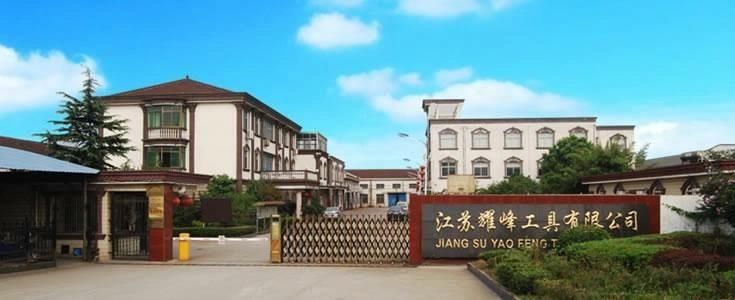

Factory Picture
