• Model NO.：1MM~20MM
• Drill shape：Round
• Condition：New
• Customized：Customized
• Manufacturing Process：Milled Fully Ground
• Material：HSS or HSS Co
• Sizes：0.2mm~20mm
• Point Angle：118 & 135 Split Point
• Transport Package：as Requested
• Trademark：INGLAU
• Origin：Crafted by Inglau Tools
• HS Code：82975090
• Production Capacity：50, 000, 000PCS,Month

Basic Info.

Model NO. 1MM~20MM Drill shape Round Condition New Customized Customized Manufacturing Process Milled Fully Ground Material HSS or HSS Co Sizes 0.2mm~20mm Point Angle 118 & 135 Split Point Transport Package as Requested Trademark INGLAU Origin Crafted by Inglau Tools HS Code 82975090 Production Capacity 50, 000, 000PCS/Month

Product Description

HSS Straight Shank Twist Drill -DIN340

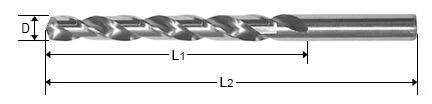

D Diameter

L1 Overall Length

L2 Flute Length




D	L1	L2		D	L1	L2		D	L1	L2
1.00	56	33		6.30	148	97		11.60	195	128
1.10	60	37		6.40	148	97		11.70	195	128
1.20	65	41		6.50	148	97		11.80	195	128
1.30	65	41		6.60	148	97		11.90	205	134
1.40	70	45		6.70	148	97		12.00	205	134
1.50	70	45		6.80	156	102		12.10	205	134
1.60	76	50		6.90	156	102		12.20	205	134
1.70	76	50		7.00	156	102		12.30	205	134
1.80	80	53		7.10	156	102		12.40	205	134
1.90	80	53		7.20	156	102		12.50	205	134
2.00	85	56		7.30	156	102		12.60	205	134
2.10	85	56		7.40	156	102		12.70	205	134
2.20	90	56		7.50	156	102		12.80	205	134
2.30	90	56		7.60	165	109		12.90	205	134
2.40	95	62		7.70	165	109		13.00	205	134
2.50	95	62		7.80	165	109		13.10	205	134
2.60	95	62		7.90	165	109		13.20	205	134
2.70	100	66		8.00	165	109		13.30	214	140
2.80	100	66		8.10	165	109		13.40	214	140
2.90	100	66		8.20	165	109		13.50	214	140
3.00	100	66		8.30	165	109		13.60	214	140
3.10	106	69		8.40	165	109		13.70	214	140
3.20	106	69		8.50	165	109		13.80	214	140
3.30	106	69		8.60	175	115		13.90	214	140
3.40	110	73		8.70	175	115		14.00	214	140
3.50	110	73		8.80	175	115		14.50	220	144
3.60	110	73		8.90	175	115		15.00	220	144
3.70	110	73		9.00	175	115		15.50	227	149
3.80	119	78		9.10	175	115		16.00	227	149
3.90	119	78		9.20	175	115		16.50	235	154
4.00	119	78		9.30	175	115		17.00	235	154
4.10	119	78		9.40	175	115		17.50	241	158
4.20	119	78		9.50	175	115		18.00	241	158
4.30	126	82		9.60	184	121		18.50	247	162
4.40	126	82		9.70	184	121		19.00	247	162
4.50	126	82		9.80	184	121		19.50	254	166
4.60	126	82		9.90	184	121		20.00	254	166
4.70	126	82		10.00	184	121
4.80	132	87		10.10	184	121
4.90	132	87		10.20	184	121
5.00	132	87		10.30	184	121
5.10	132	87		10.40	184	121
5.20	132	87		10.50	184	121
5.30	132	87		10.60	184	121
5.40	139	91		10.70	195	128
5.50	139	91		10.80	195	128
5.60	139	91		10.90	195	128
5.70	139	91		11.00	195	128
5.80	139	91		11.10	195	128
5.90	139	91		11.20	195	128
6.00	139	91		11.30	195	128
6.10	148	97		11.40	195	128
6.20	148	97		11.50	195	128
