• Model NO.：HUAZUAN121A
• Condition：New
• Usage：Wire Saw for Cutting Granite Marble Concrete
• Hardness：Soft, Middle, Hard
• Cutting Speed：10-40
• Wire Speed(M/S)：30-40
• Technology：Sintered, Electroplated, Vacuum Brazed
• Certification：ISO9001:2000, SGS
• Beads Diameter：7.2-11.5mm
• Connection：Plastic, Rubber, Spring
• Beads/Meter：40,37,33,28,26PCS
• Production Processes：More Than 70 Processes, 100% Quality Testing
• Transport Package：Paper Carton Wooden Case
• Specification：7.2-11.5mm
• Trademark：Huazuan
• Origin：Fujian, China
• Production Capacity：5000 Meters,Month

Basic Info.

Model NO. HUAZUAN121A Condition New Usage Wire Saw for Cutting Granite Marble Concrete Hardness Soft, Middle, Hard Cutting Speed 10-40 Wire Speed(M/S) 30-40 Technology Sintered, Electroplated, Vacuum Brazed Certification ISO9001:2000, SGS Beads Diameter 7.2-11.5mm Connection Plastic, Rubber, Spring Beads/Meter 40/37/33/28/26PCS Production Processes More Than 70 Processes, 100% Quality Testing Transport Package Paper Carton Wooden Case Specification 7.2-11.5mm Trademark Huazuan Origin Fujian, China Production Capacity 5000 Meters/Month

Product Description

 New Arrival High Precision Diamond Wire Saw For Granite Marble



Application	1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting 2.For Cutting Reinforce Concrete
Diameter Of Wire Saw	7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm
Technology	Sintered,Electroplated,Vaccum Brazed
Coating Fix Injection	Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring
Beads/Meter	40/37/33/28/26pcs
Attention	l. Checking the saw regularly and adjust timely. 2.Checking the pearl abrade regularly,Avoid the eccentric wear 3. Checking the joint regularly and adjust timely. 4. The tension of ropes is 250-300kg(Φ4-5mm ropes) 5.Water supply is around 15-25L/min
Feature	1.Very less breakage ratio when using therefore increase working lifetime. 2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting.

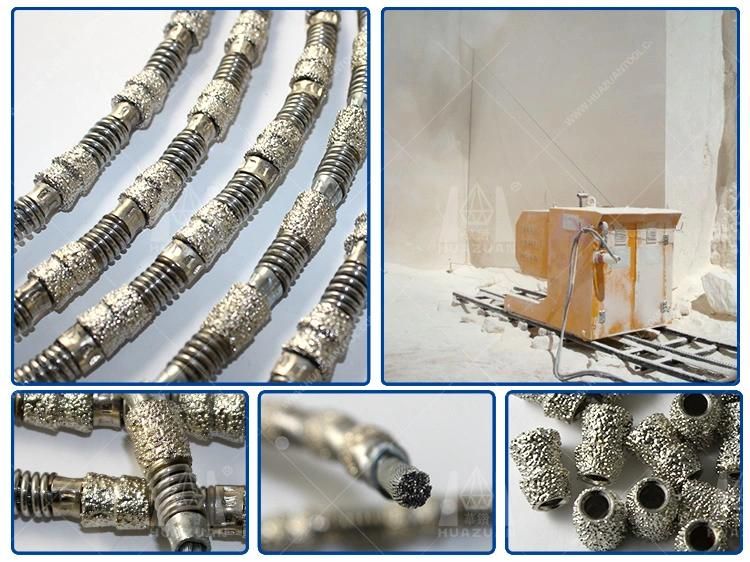

Product photo:

Our Advantage:

Diameter(mm)	Applications	Coating	Bead/m	Cutting Speed(m2/h)	Wire Life(m2/m)
11.5/10.5	Reinforced concrete	rubber+spring	40	0.5-5	0.5-8
11.5/11.0	Granite/mine/quarry	rubber/rubber+spring	40	2-12	7-22
11.5/11.0/10.5	Marble/mine/quarry	spring/spring+plastic	28-40	4-20	15-50
11.0/10.5	Granite&marble block	plastic/rubber	37/40	6-30	7-50
8.8/8.5	Granite&marble profiling	plastic/rubber	33/37/40	7-30	7-40
7.2/8.5	Granite slab	plastic	37	0.5-1.6	6-15

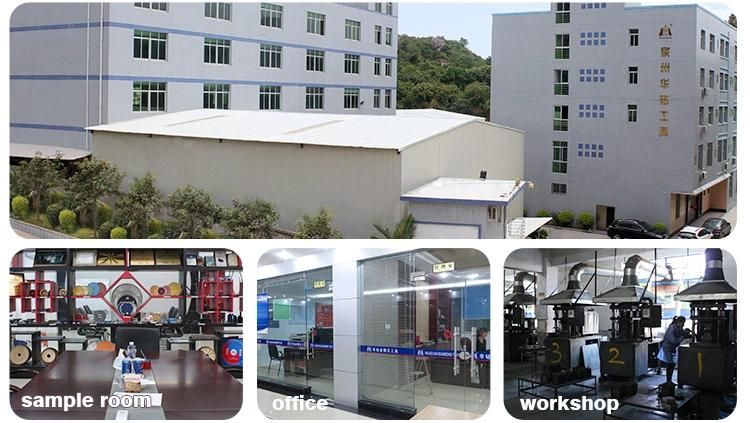

 Company Introduction:

Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.
