Af Vertical Foam Pump Froth Pump End Suction Lime Mud Sump Pumps Centrifugal Slurry Pump
Hebei Guonai Electromechanical Device Co., Ltd.- Transport Package:Standard Export Packing Wooden Case
- Trademark:Guonai
- Origin:China
Base Info
- Model NO.:AF
- HS Code:8413502090
- Production Capacity:10000 Sets Per Year
Description
Basic Info.
Model NO. AF HS Code 8413502090 Production Capacity 10000 Sets Per YearProduct Description
AF Series Froth pumpModel: 2QV-AF
Brand: Guonai
Material: High chromium alloy
Application: metallurgy, mining, coal, chemical industry, etc
Layout: vertical
Transmission type: CV vertical belt transmission.

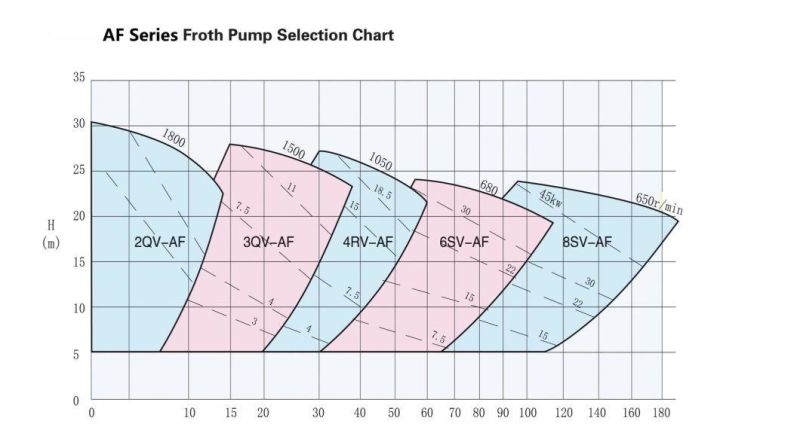

Flow: 7.6-42.8m 3/ H lift: 6-29.5m speed: 800-1800r / min

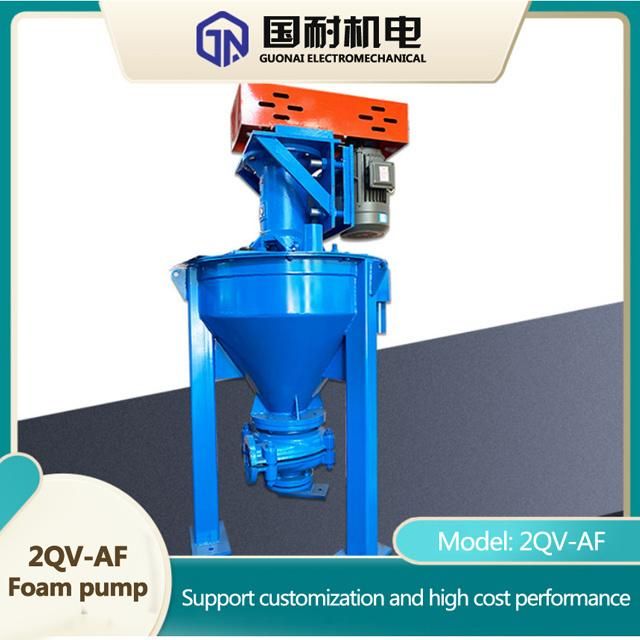

2QV-AF froth pump
It is suitable for conveying abrasive slurry containing froth.The series of pumps can eliminate froth in the slurry during operation. It can still work normally in case of insufficient incoming materials
It is suitable for all kinds of flotation process and is an ideal product for conveying froth slurry.
Product features:

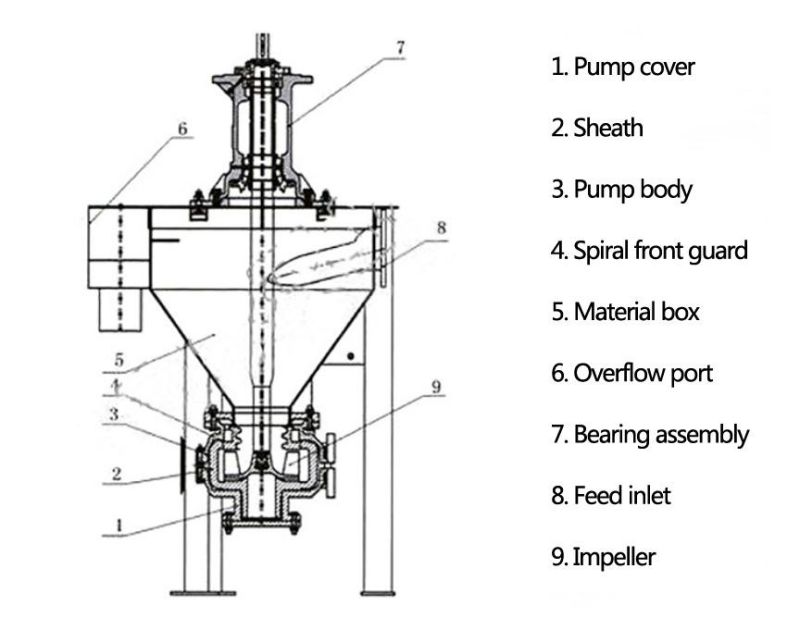

1. This type of pump is used in SP type bearing assembly. The bearing body is installed with motor base or motor frame, which can adopt direct transmission or indirect transmission, which can be convenient
Replace the pulley to change the speed of the pump to meet the change of working conditions.
2. The material box adopts steel structure or stainless steel, steel lined rubber, etc., and is equipped with tangential feed inlet and overflow box. The overflow box can easily reuse the excess incoming materials
Return to the tank and cut into the inlet will allow the material to enter the pump quickly and eliminate some froth.

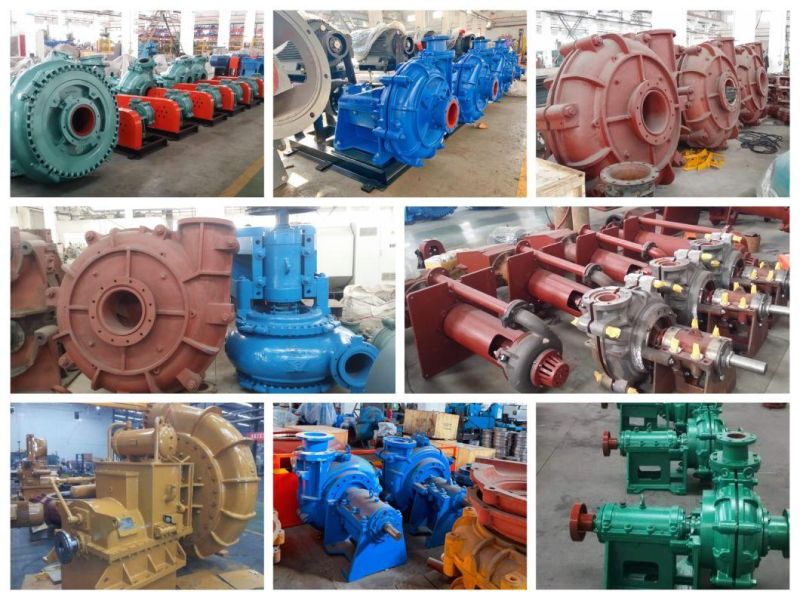

OUR PRODUCTS

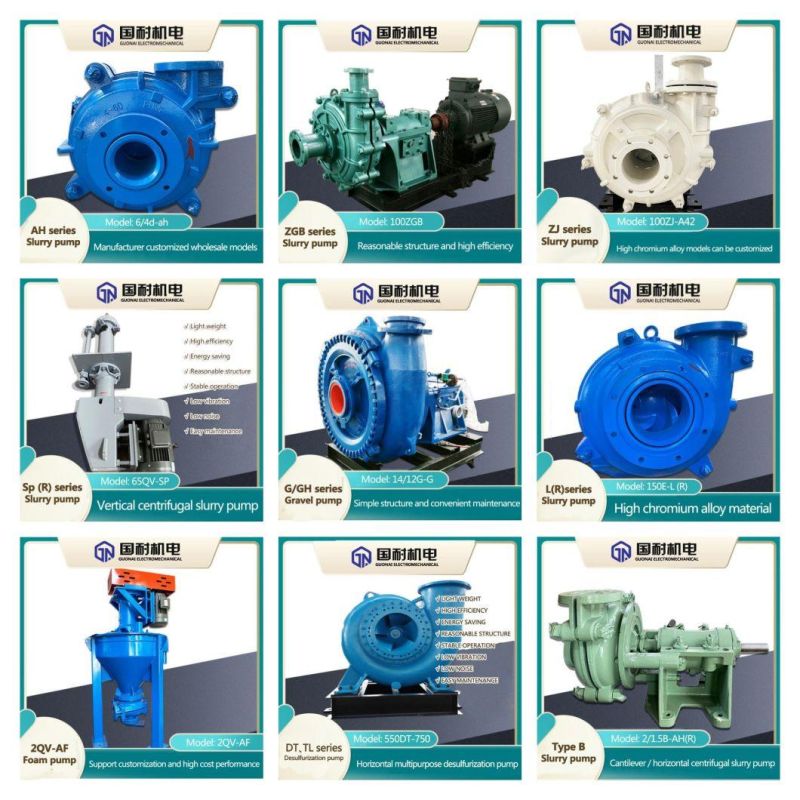

Hebei Guonai Electromechanical Device Co., Ltd. has mature experiences for many years on research & manufacture and application of slurry pump.Meanwhile based on technology intruduction,the perfect product series has been developed which covers full rage for application.Among them,series AH, ZJ, ZGB, GH,SP series, etc. has wider usage especially.Through the apply in the industry such as mentallurgy,mine,electric factory and chemical industry etc,it has been proved that these products have advantages of reasonable construction,reliable operation and long service life etc which are welcome in consumers.
