• Model NO.：TL-25G
• Power Supply Voltage：230V
• Battery Voltage：0
• Unloaded Speed：9.5 Rpm
• Power Source：Electricity
• Protect：Double Insulatin
• Transport Package：Carton and Plastic Tool Cabinet
• Specification：1000-2500Nm torque range
• Trademark：HANPU
• Origin：China
• HS Code：8467299000

Basic Info.

Model NO. TL-25G Power Supply Voltage 230V Battery Voltage 0 Unloaded Speed 9.5 Rpm Power Source Electricity Protect Double Insulatin Transport Package Carton and Plastic Tool Cabinet Specification 1000-2500Nm torque range Trademark HANPU Origin China HS Code 8467299000

Product Description

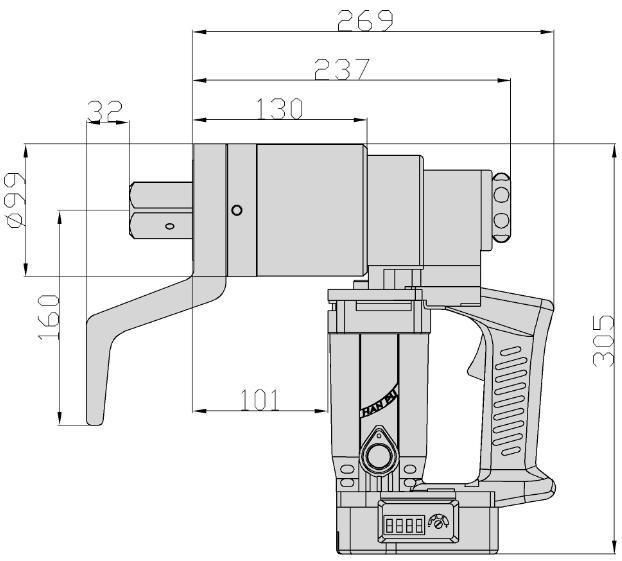

Model and Technical details:


Model:TL-25G

Frequency:50-60Hz

Voltage:230V 115V

Max Current:12A 24A
Square Drive: 1" , 25.4mm or 1-1/2" , 38mm

Max Power Consumption:2800W

Torque Range : 1000-2500N.m

Rotation Speed : 5rpm

Weight (Main Body) : 8.5KG

Protect Class : Double Insulation

Adaptable Bolts Diameter : M20 (3/4") M22(7/8")M24(1")




Acturally, we have TN and TL 2 series.
Here is the difference between TN and TL:

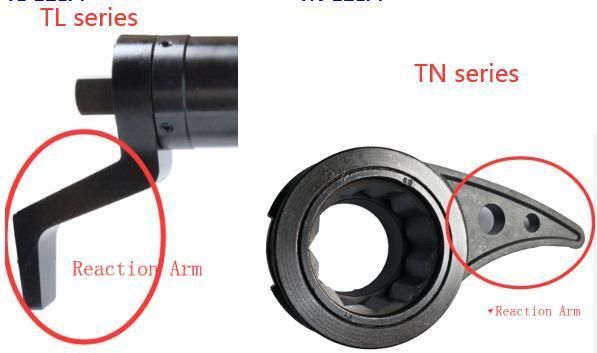

* Compared with TL series Torque Wrench, TN series are only the reaction arm part difference. As the follow picture show:

*TL type suits better when distance among bolts are long.
  Like: Large sale equipment assemble work, Pipeline project, etc.

*TN type reaction arm center distance is short. As picture show, the reaction arm is also part of the outer socket. This type socket can only buy from HANPU.
  TN type suits better to dense bolts.
  Like: High-level steel structure building project, Huge steel bridge project,etc.



Welcome contact for more models and more details !!!
