Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)

TAIZHOU YINDU TOOLS CO., LTD.
  • Transport Package：Wooden Pallet
  • Specification：European design
  • Trademark：yindu
  • Origin：China

Base Info

  • Model NO.：VHB-401
  • HS Code：84678900
  • Production Capacity：100 Per Month

Description

Basic Info.

Model NO. VHB-401 HS Code 84678900 Production Capacity 100 Per Month

Product Description

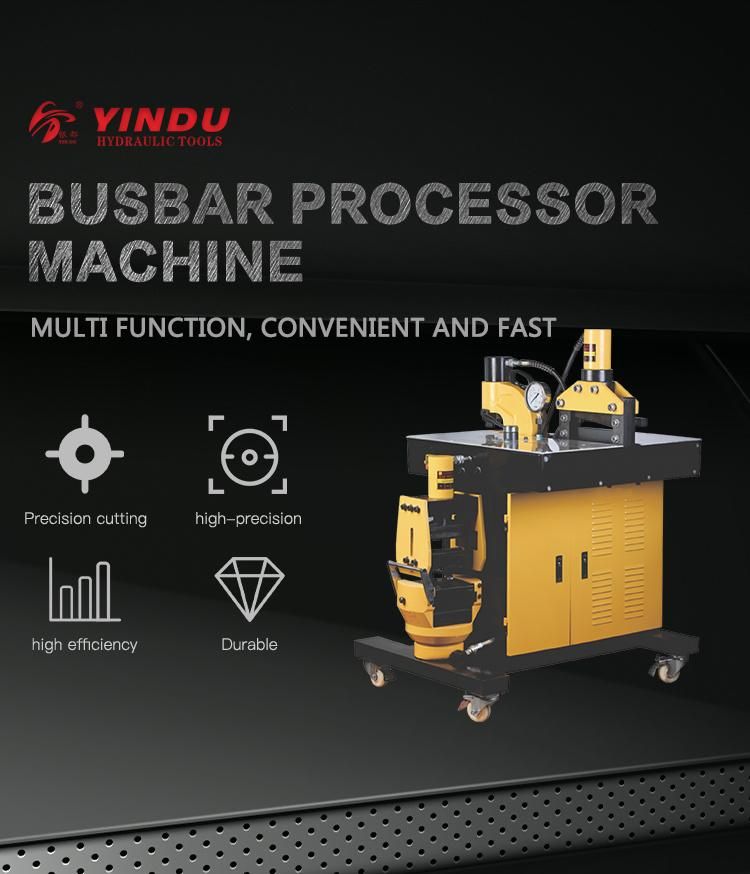

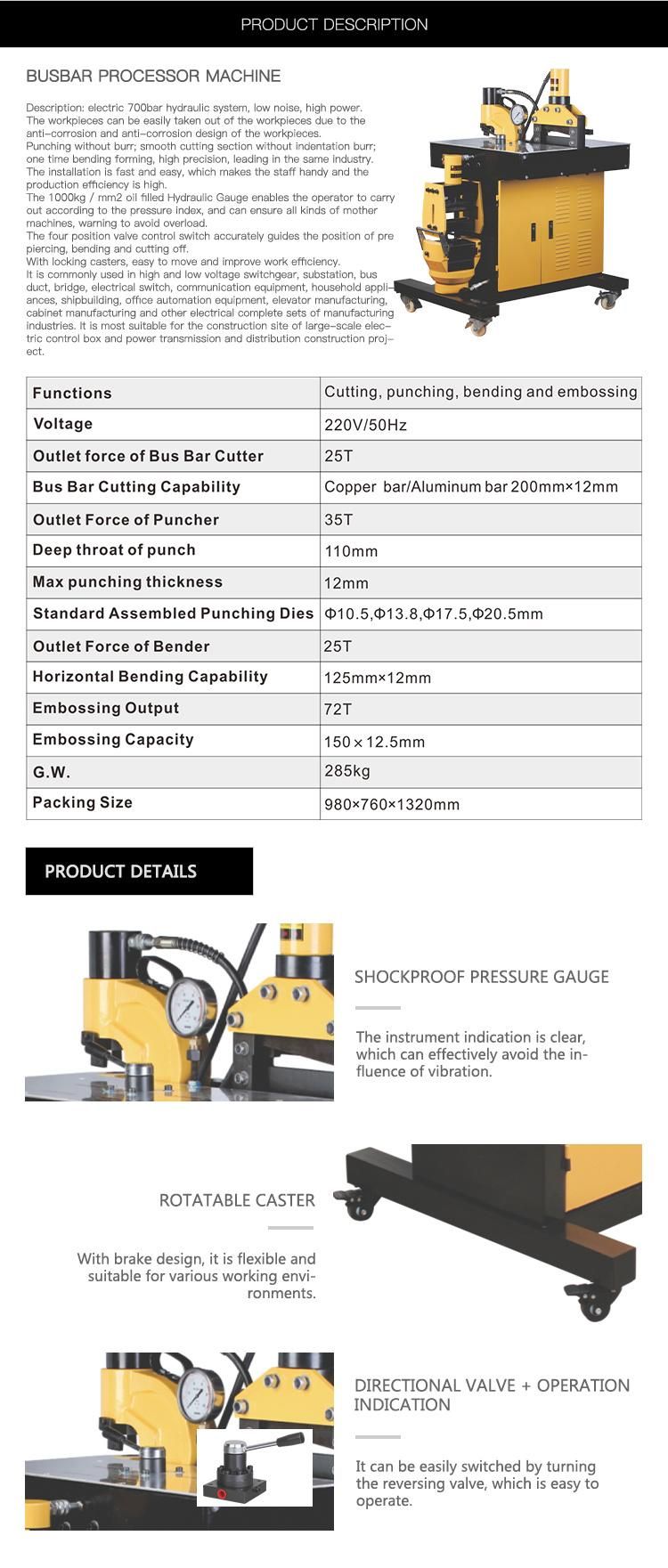

VHB-401 Copper plate 4 in 1 busbar processor machine

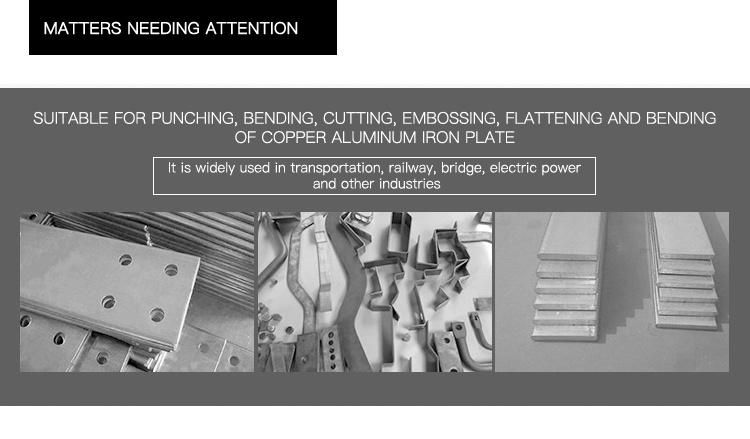

Functionsused for cutting,punching,bending
( level and vertical bending ),embossing
Input voltageSingle phase 50HZ,220V
Rating work oil pressure700kgf/cm²(over pressure safety valve set)
Outlet force of busbar cutter25Ton
Busbar cutting capabilitycopper/aluminum bar 150mm*12mm
Outlet force of punch35 Ton
Distance between hole center and busbar edge110mm
Punching capability-copper bar/aluminum barΦ6mm-Φ22mm,Max thickness:12mm
Standard assembled punching diesΦ10.5mm,Φ13.8mm,Φ17.5mm,Φ20.5mm
Output force of bender25Ton
Horizontal bending capability200mm*12mm
Embossing output72T
Embossing capacity150mm*12.5mm
Weight285kg
Machine dimension1050mm*750mm*1300mm
Dimension of moveable workbench700mm*700mm*820mm
Features&functions:
1. This machine is the light of foreign advanced products, combined with the actual situation in China.
2. It is designed and manufcatured in order to improve work efficiency, save working hours.
3. It is suitable for transmission and distribution in a large workshop and site work construction, and power distribution cabinets and switch cabinets, ect. The usage of electrical appliances factory too.

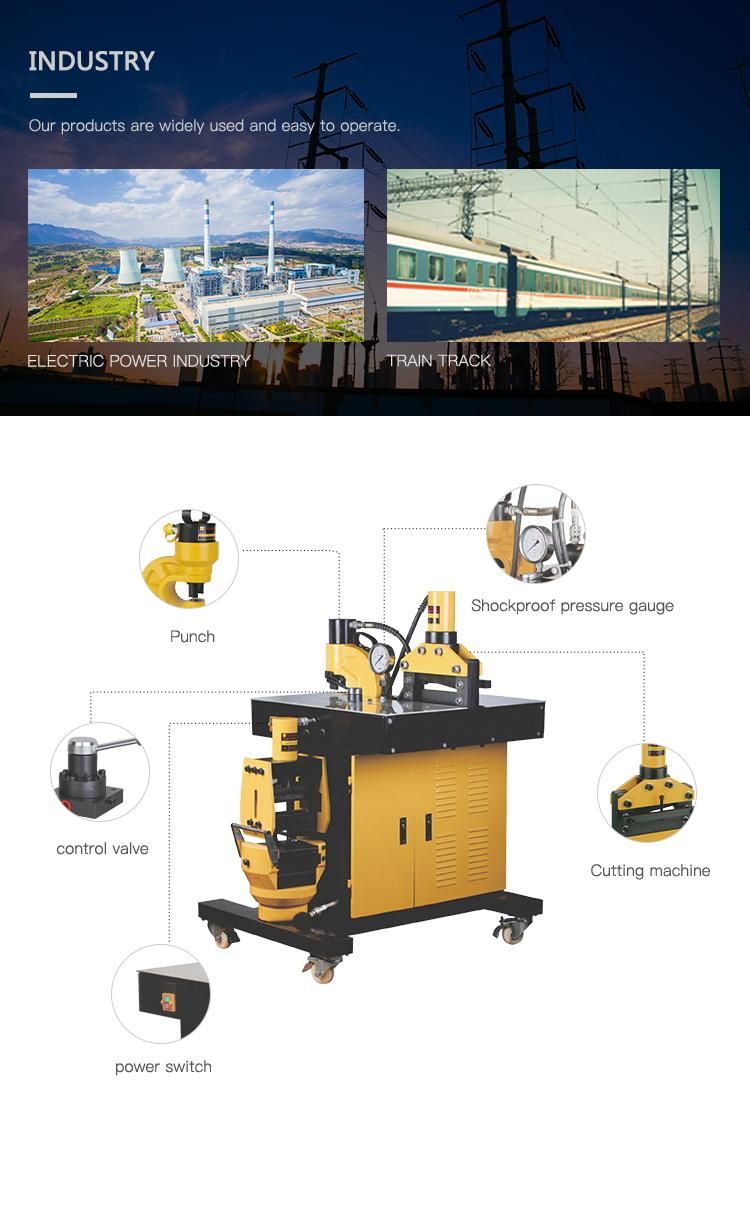

4. The machine is equipped with bending, cutting, punching and embossing functions.
5. Optional foot switch or wire switch, easy to operate.


Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)

Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)Copper Plate 4 in 1 Busbar Processor Machine (VHB-401)
