• Model NO.：150ZGB
• HS Code：8413502090
• Production Capacity：1200 Set,Sets Per Year

Basic Info.

Model NO. 150ZGB HS Code 8413502090 Production Capacity 1200 Set/Sets Per Year

Product Description

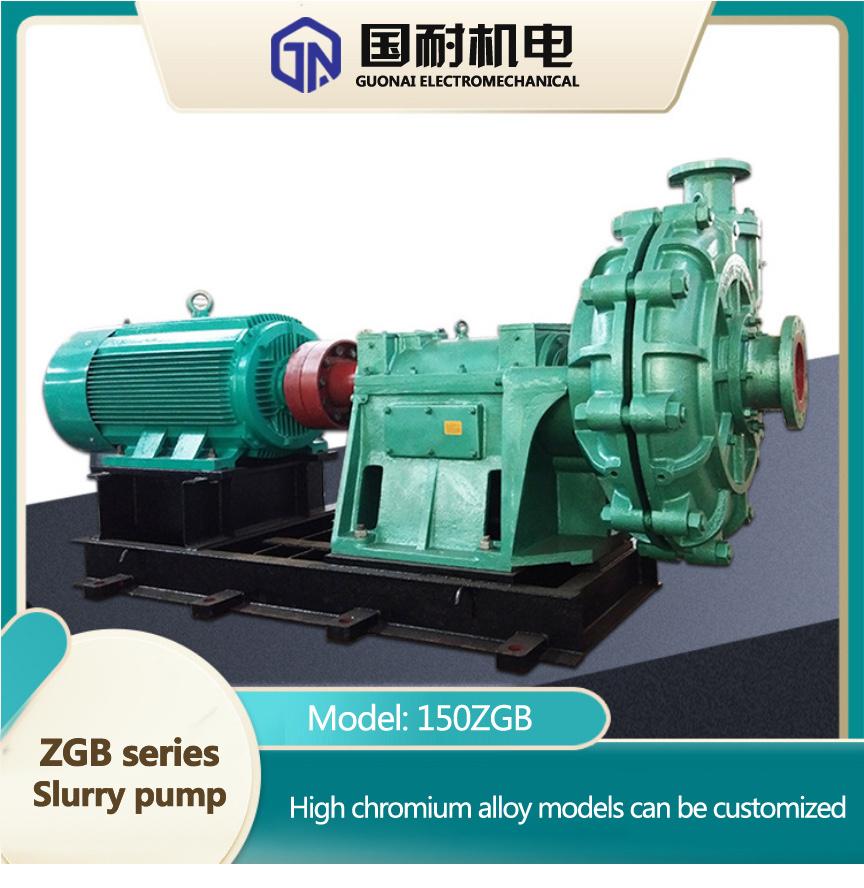

ZGB series slurry pump

Model: 150ZGB

Brand: Guonai

Material: high chromium alloy

Application: suitable for conveying high concentration slurry with strong abrasion or slurry with low concentration and high lift

Layout: Horizontal

Transmission type: DC Direct drive, Cr parallel belt drive, zvz upper and lower belt drive, CV vertical belt drive, etc.

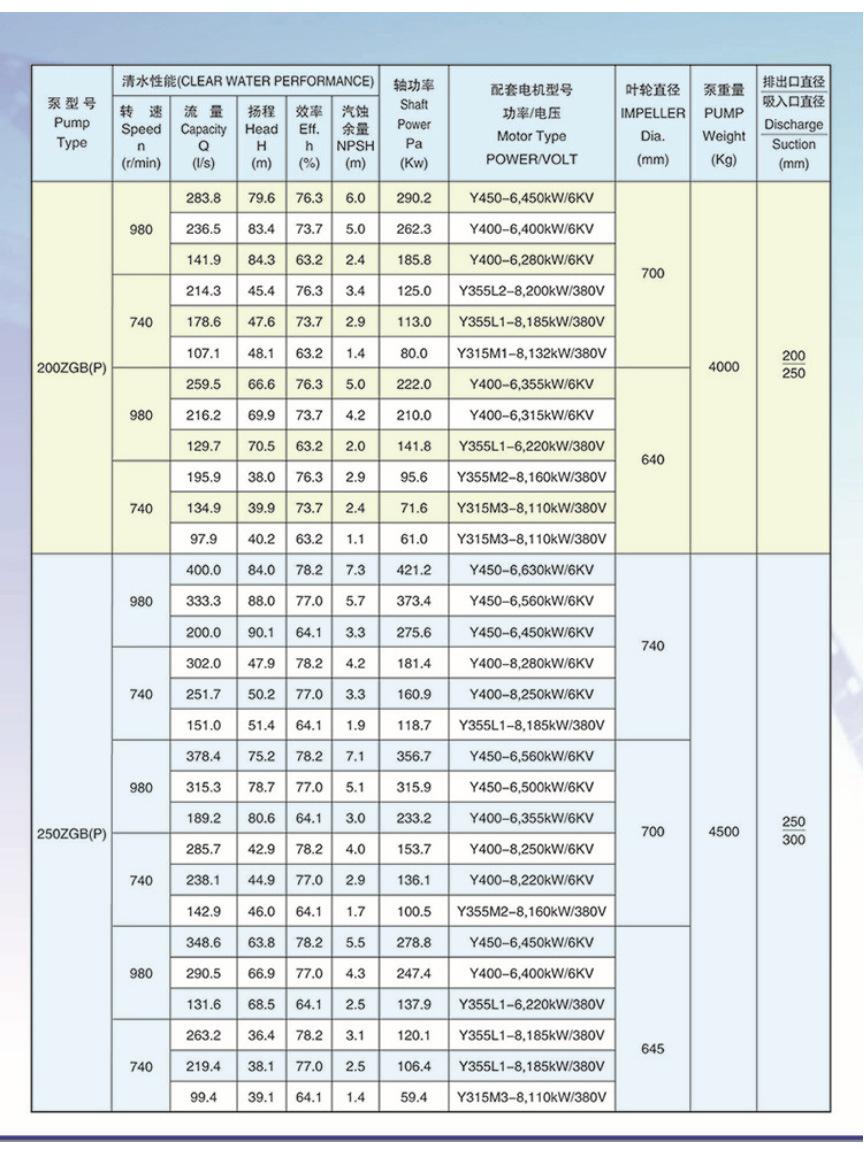

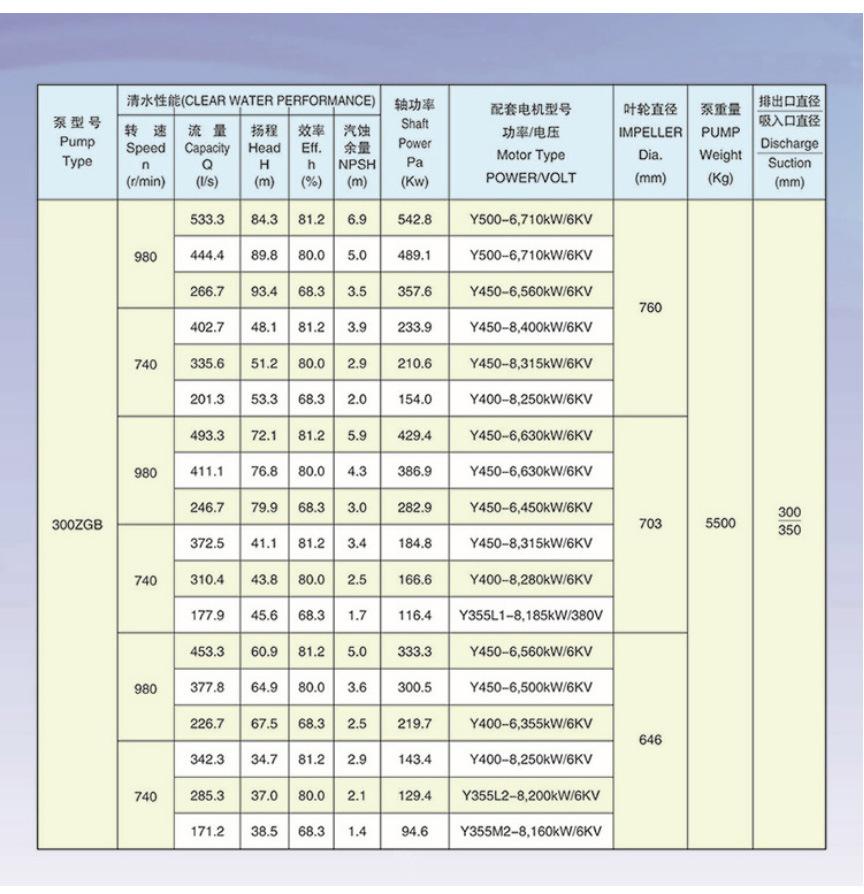

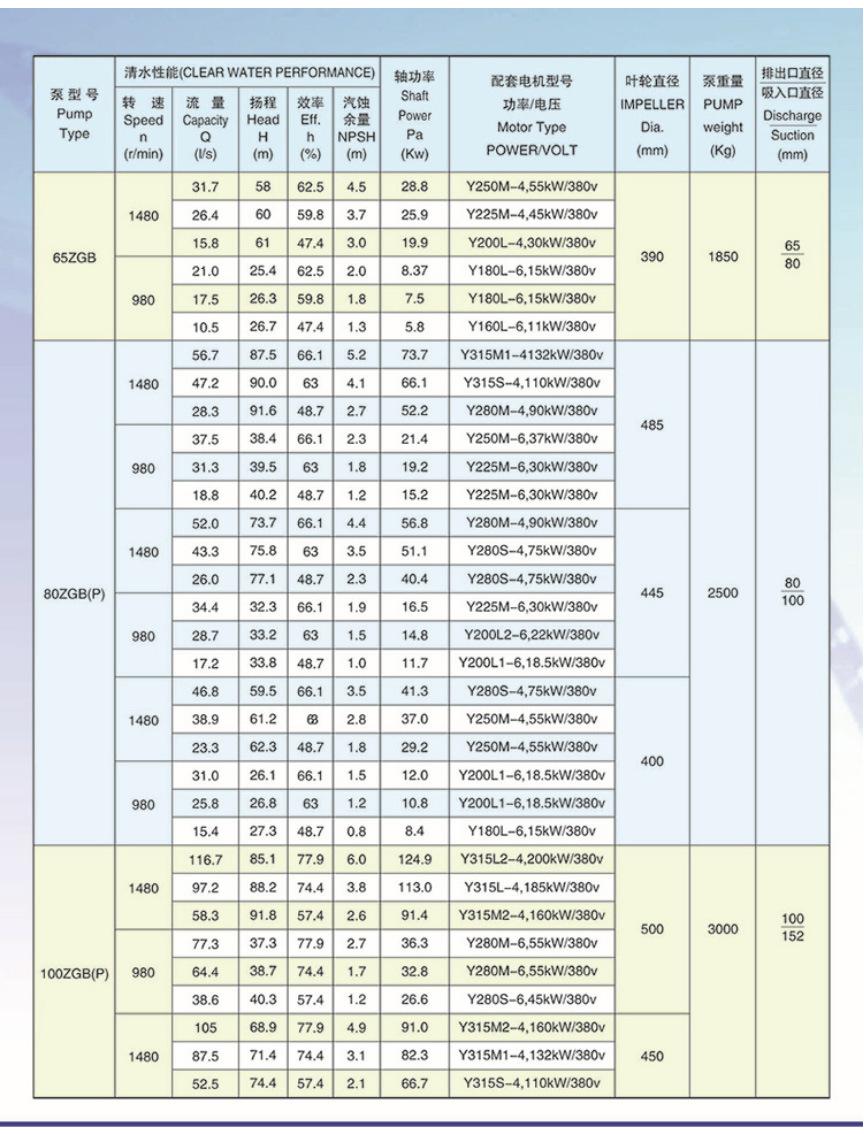

Flow: 64.8-200m 3/ H lift: 35.2-90.0m speed: 740-980r / min

Product features:

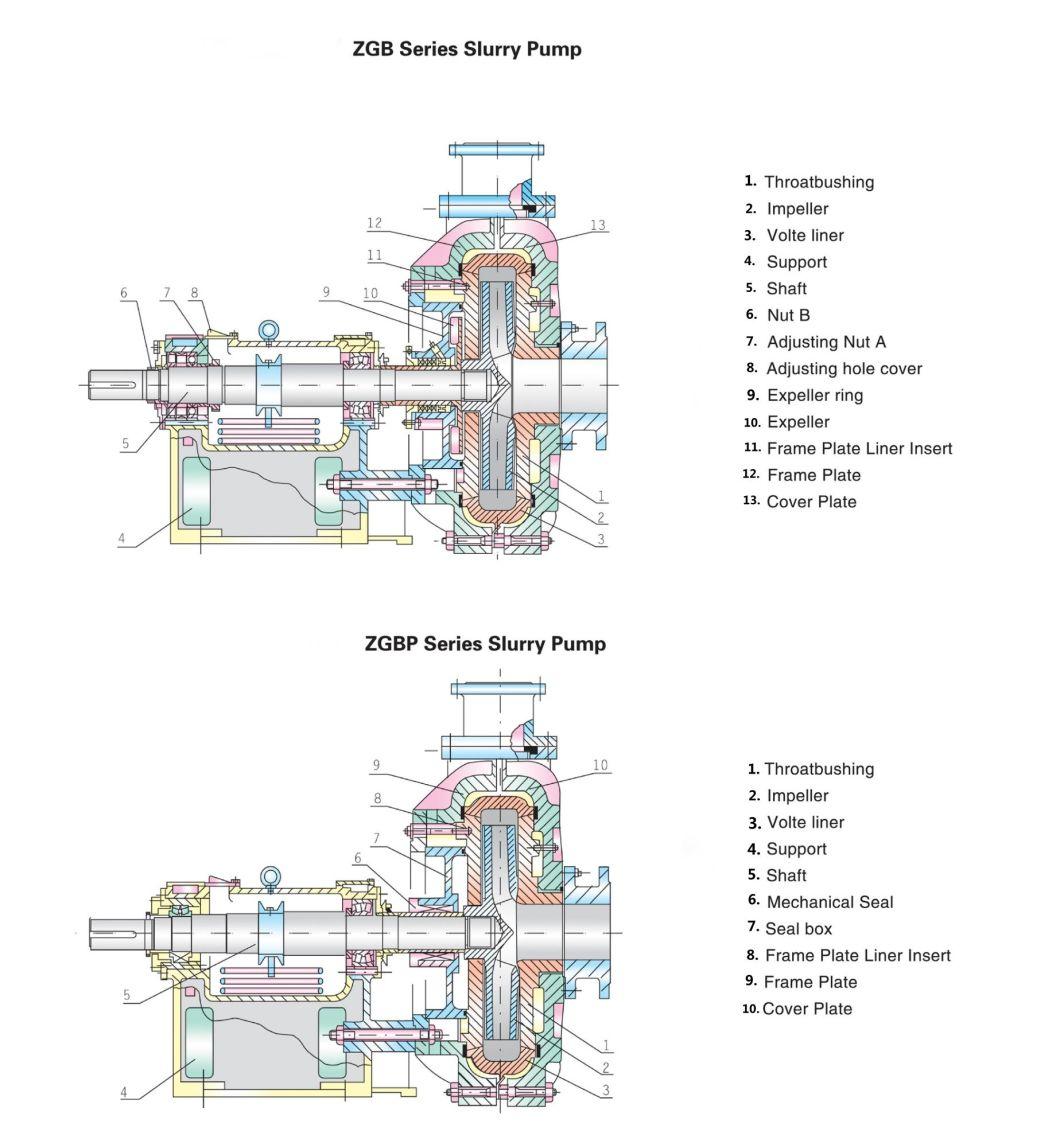

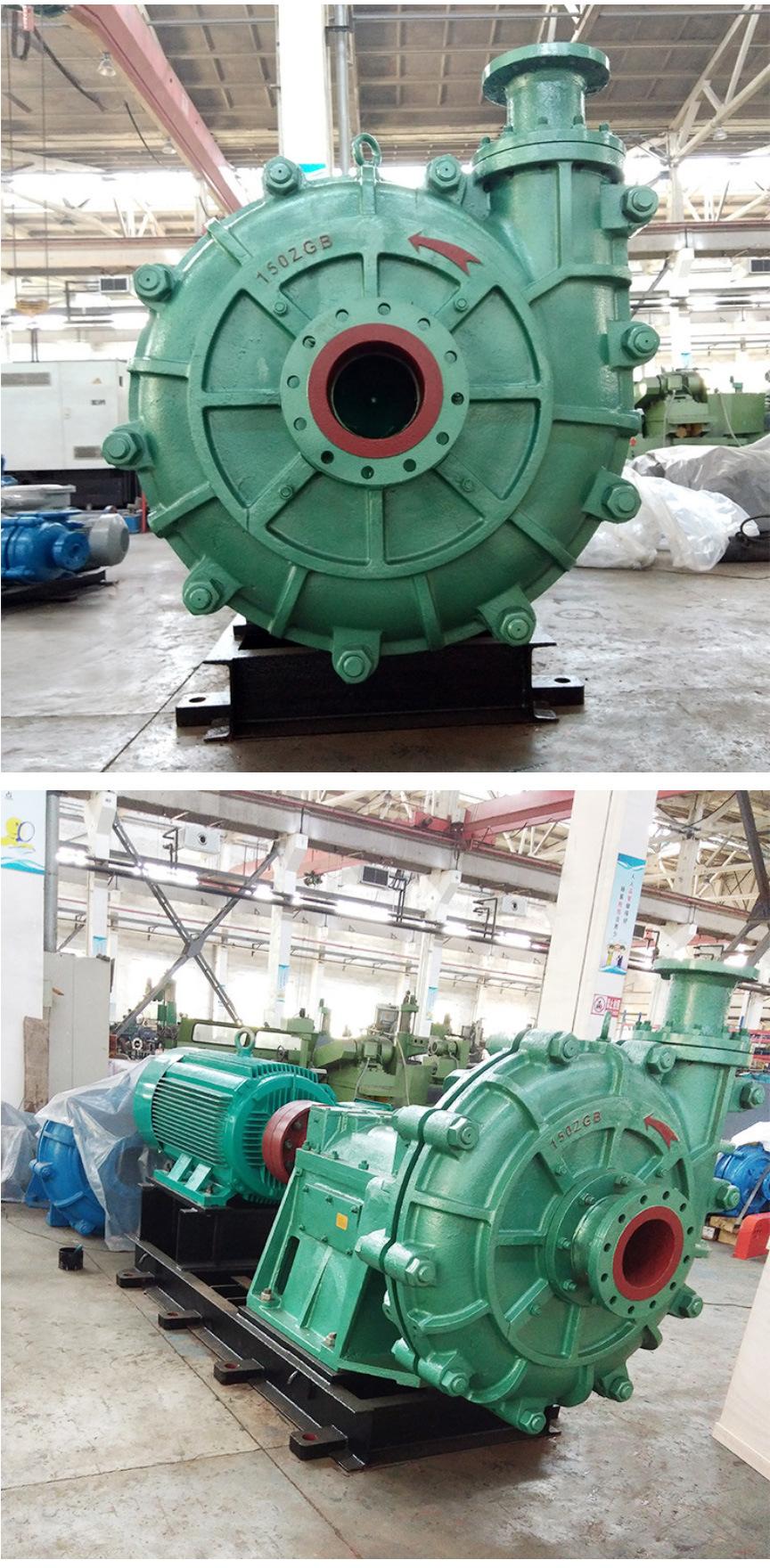

ZGB (P) series slurry pumps are horizontal, single-stage, single suction, cantilever, Double Shell pumps and centrifugal slurry pumps. The pump is mostly used for the development needs of electric power, metallurgy, coal and other industries. It is designed as a slurry pump with large flow, high head and multi-stage series connection.
The main technical features of this series of products are as follows:
Using modern CAD design method, it has excellent hydraulic performance, high efficiency and low wear rate; Wide flow channel, good anti blocking performance and superior cavitation performance; Auxiliary impeller and packing combined seal and mechanical seal are adopted to ensure no leakage of slag slurry; Reliability design, and the average trouble free working time of the whole machine is greatly improved; The metric bearing is lubricated with thin oil, and the lubrication and cooling system is reasonably set to ensure that the bearing operates at low temperature; The flow passage parts are made of special materials with good wear and corrosion resistance; After special treatment, it is used for seawater ash removal and electrochemical corrosion of seawater and salt spray; It can be used in series at multiple levels within the allowable pressure range, and the allowable working pressure (upper limit) is 3.6mpa.
This series of slurry pump products have the advantages of reasonable structure, high efficiency, stable operation and convenient maintenance. They are suitable for electric power, metallurgy, mining
Coal, building materials, chemical industry and other industrial departments transport abrasive or corrosive slag slurry, which is characterized by power plant ash.



Hebei Guonai Electromechanical Device Co.,Ltd.is a high-tech industrial pump manufacturer specializing in the research and development, production, sales and OEM processing of slurry pumps, sewage pumps, diesel pumps, solar submersible pumps and other products.

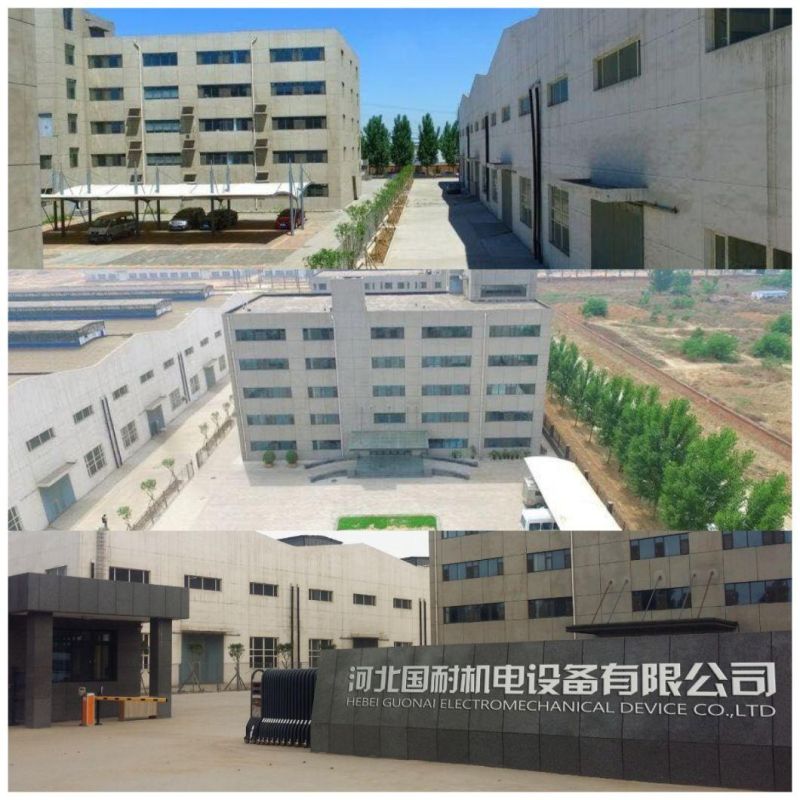

The company covers an area of more than 40,000 square meters. Over the years, with strong strength and people-oriented concept, a large number of high-quality management and technical personnel have been gathered. The company has been awarded the provincial advanced famous brand enterprise, advanced technology innovation enterprise, ISO 9001:2008 standard quality management system certification enterprise, and won the title of Hebei Province Energy Conservation and Environmental Protection Unit. With the continuous expansion of the scale, the company has now become the largest slurry pump supply base in the Shijiazhuang industry.

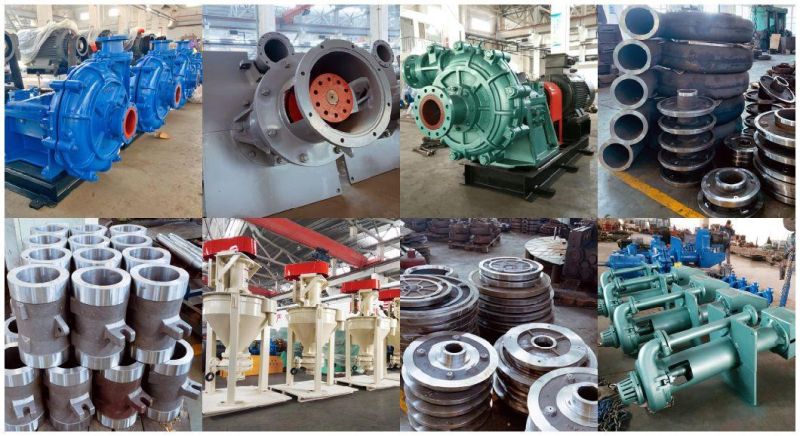

The company has many years of practical experience in product development and application. On the basis of introducing and absorbing foreign advanced technology, a series of products with better performance coverage have been formed. At present, the main products are mud pump, sewage pump, dredging pump, chemical pump, clean water pump, diesel engine water pump, solar water pump, self-priming jet water pump, etc. more than ten varieties. Hundreds of models are widely used in mining, metallurgy, coal,electric power, flue gas desulfurization, dredging, irrigation, water conservancy, petroleum, chemical, municipal, environmental protection and sewage treatment industries.
