• Model NO.：TL-7LP
• Power Source：Electricity
• Max Power Consumption：1650W
• Weinght (Main Body)：4.7kg
• Adaptable Bolts Dia：1-1,4" 1-3,8" 1-1,2"(M30 M33 M36)
• Transport Package：Box
• Trademark：hanpu
• Origin：Shandong China

Basic Info.

Model NO. TL-7LP Power Source Electricity Max Power Consumption 1650W Weinght (Main Body) 4.7kg Adaptable Bolts Dia 1-1/4" 1-3/8" 1-1/2"(M30 M33 M36) Transport Package Box Trademark hanpu Origin Shandong China

Product Description

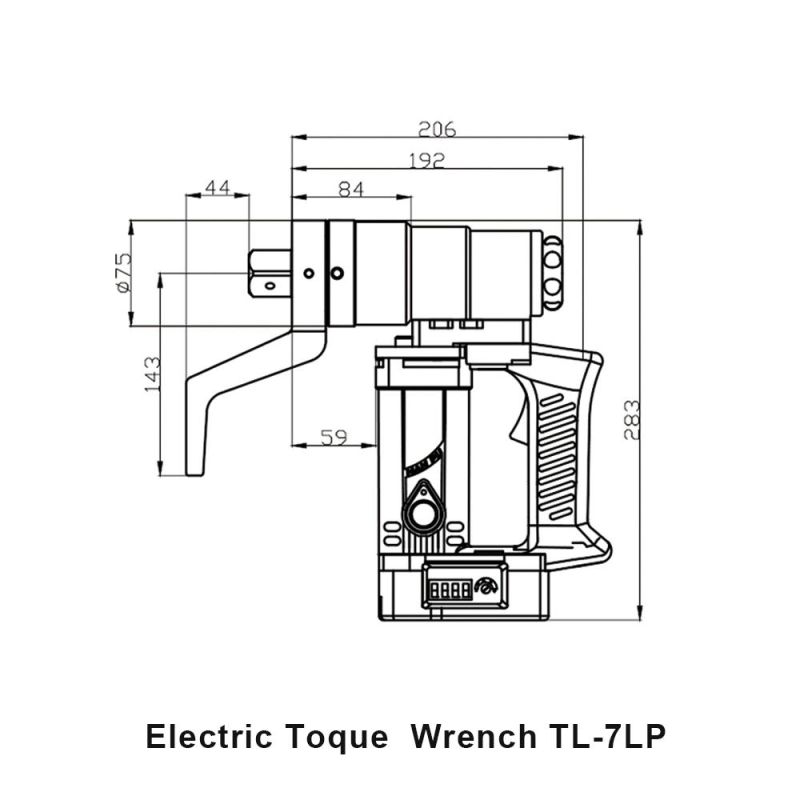

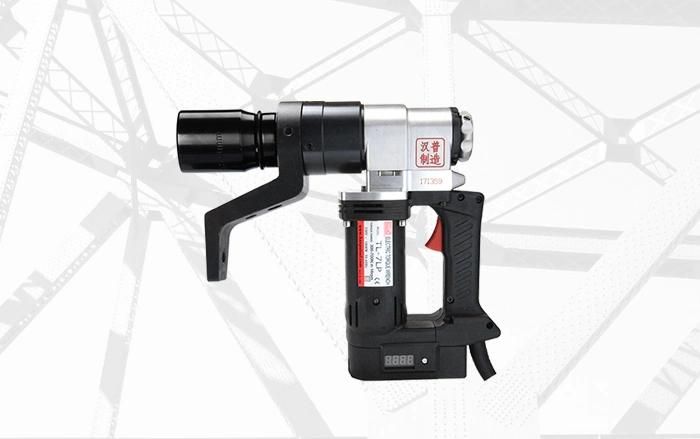

With the continuous improvement of the industrial level, people have higher and higher requirements for construction tools. As a type of mechanical tool, wrenches are also classified into various categories. Divided by the types of bolts it is suitable for, there are two types of torque wrenches and torque wrenches. Today let us know about an Electric Torque Wrench L series TL-7LP. It is one of L series Electric Torque Wrench made in Hanpu company and it is also called "Digital electric torque wrench TL -7LP ". This wrench is a torque wrench with a digital display. The torque value can be set in advance according to the actual engineering needs. This wrench uses the reaction force of the reaction rod to tighten the bolt.
 Model : TN-7LP
Frequency : 50-60HZ
Voltage : 230V / 115V AC
Max Current : 7A/12A
Max Power Consumption : 1650W
Torque Range : 350-700N.M
Rotation Speed : 15rpm
Weight (Main Body) : 4.7KG
AQUARE DRIVE:25.4MMX25.4MM(1"X1")
Protect Class : Double Insulation
Applicable Bolt : S-10T (M20,M22) ; A325 (3/4''7/8'') ; A490 (3/4'')

1. It can output a super large torque value of 350-700N.M ;
2. Its rotation speed is very low so that its lifetime is very long ;
3. It has a displayer which can show the real-time torque value. And we can certainly preset the torque value when working if needed ;
4. This wrench is adopt the principle of reaction force. It has a L-shape reaction arm. When working , the operator have to find a support point to prevent the reaction arm turn around.

      5. The torque of this wrench has two directions of R and L, which can tighten and loosen the bolts respectively.
      6. The accuracy of the repeated torque value of this wrench can be controlled within ± 3%.


*About Packing : Adopting the high quality plastic cases with damping sponge and bubble inside to pack wrenches and the external package is high quality cartons.The toolbox is coated with heat-shrinkable film which is made of PVC plastic, it can protect the toolbox from wear and tear, moisture and rain during transportation.

*About Delivery : Hanpu company has a complete inventory system.  All models and spare parts currently sold are available from stock throughout the year. Generally , the delivery time is 7~15 days.
*About Shipment : We can ship out the goods by Air, by Sea, by Rail and by Express. LCL shipment and FCL shipment.

*About Maintenance : This wrench requires a thorough repair and maintenance every 3 months from the first use or after tightening the bolts 20,000 times; The warranty period is 6 months after delivery.
*After Sale : All spare parts of all sold models of Hanpu company are guaranteed supply for 7 years on the markets to ensure the continuity of after-sales service.
