Portable Pipe Threading Machine of 1/4"-1 1/2" Easy Moving (SQ40)
Hangzhou Hongli Pipe Machinery Co., Ltd.- Bolt Die Type：BSPT
- Bolt Die Material：Alloy
- Bolt Die Size：1,2"-3,4"
- Model：1 1,2"
- Type：Light
- Transport Package：Plywood Case
Base Info
- Model NO.：SQ40
- Specification：72*48*54cm
- Trademark：Hongli
- Origin：Zhengjiang China
- HS Code：8459700000
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. SQ40 Specification 72*48*54cm Trademark Hongli Origin Zhengjiang China HS Code 8459700000 Production Capacity 5000PCS/YearProduct Description

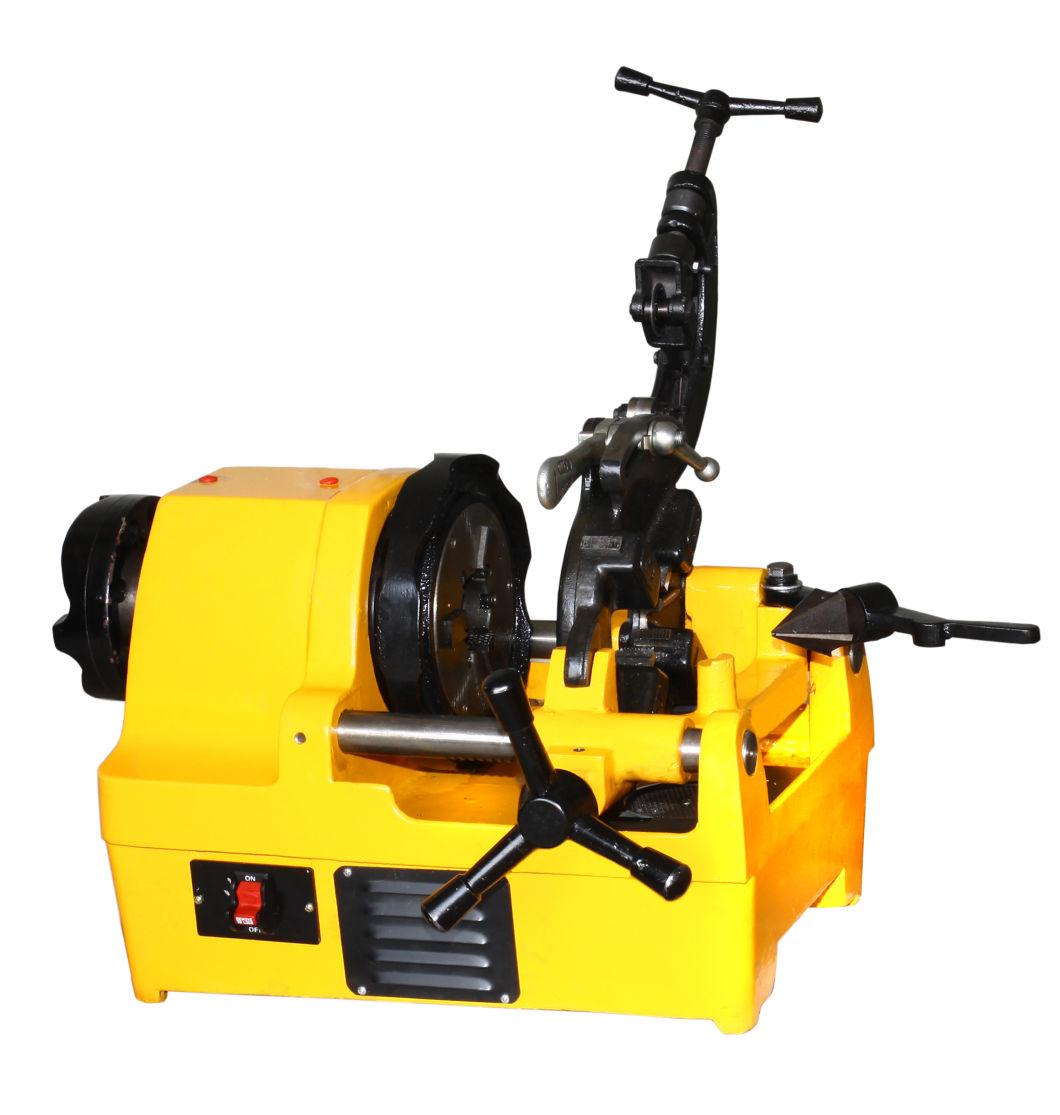

SQ40 Electric Portable Pipe Threading Machine of 1/4"-1 1/2"
Featuring
1. Portable with table set pipe threading machine with only 38 KG net weight.
2. Powerful motor for table set threading machines of 1050 W for pipes of 1/4"-1 1/2" pipes.
3. Compact design recover both table set threading machines and portable threaders.
Specifications
Threading machine 1/4"-1 1/2"
Motor: 1500 W universal type
Speed: 56 RPM
die head quick open type, 811 A
Chuck: Hammer type with replaceable, rocker-action jaw inserts
Rear centering device: Cam action
Oiling system: through the head, with an integral oil reservoir, self-primming, constant-flow
Net Weight: 38 KG
standard alloy dies
