• Model NO.：BF250-3500
• Power Supply Voltage：220V
• Battery Voltage：16V
• Unloaded Speed：2800ipm
• Power Source：Electricity
• Transport Package：Wooden Box
• Trademark：Bafang
• Origin：China
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. BF250-3500 Power Supply Voltage 220V Battery Voltage 16V Unloaded Speed 2800ipm Power Source Electricity Transport Package Wooden Box Trademark Bafang Origin China Production Capacity 2000PCS/Month

Product Description

220V 50Hz Electric Portable Torque Multiplying Wrench

This series of electric torque wrench products are equipped with threaded parts and bolts mechanized construction tools, with automatic control torque function. Electric torque wrench is widely used in the construction of bridge bolt structure, plant, tower and chemical, metallurgical, power generation equipment installation. Large machinery, lifting equipment and vehicle assembly operations, as well as the torque of the threaded fasteners and axial tension have strict requirements of the occasion.

This series of electric torque wrench products by the host and the controller two parts. Host with double insulated single-phase string motor and slowdown mechanism, novel structure, small size, light weight, safe and reliable. As a result of the use of static structure, smooth operation, no vibration, no impact, low noise, the operator is not affected by the anti-torque, and thus labor intensity is low.



Technical paramter

specification     item	BF-230	BF-600	BF-1000	BF-1500	BF-2000	BF-3500
Rated torque N.m	230	600	1000	1500	2000	3500
Adjust range N.M	50-230	200-600	300-1000	500-1500	600-2000	1500-3500
Control precision	+3%	+5%	+5%	+5%	+5%	+5%
Speed        r/min	50	10	8	8	6	3
Rated voltage V	220	220	220	220	220	220
Rated current A	3	3.2	3.2	4	4	4
Side moments	50	50	53	58	63	66
Dimension (Length×Dia.)	336×69	256×90	260×90	515×106	520×115	640×125
Square head size	19×19	19×19	25×25	25×25	32×32	38×38
Socket model	24#  27#	32#  36#	32#  36#	36#  41#	41#  46#	70#
N.W  Kg	3.1	7.5	7.5	10	13	19
Director  Size  mm	180×98×75	180×98×75	180×98×75	180×98×75	180×98×75	180×98×75
Director  weight  Kg	1	1	1	1	1	1

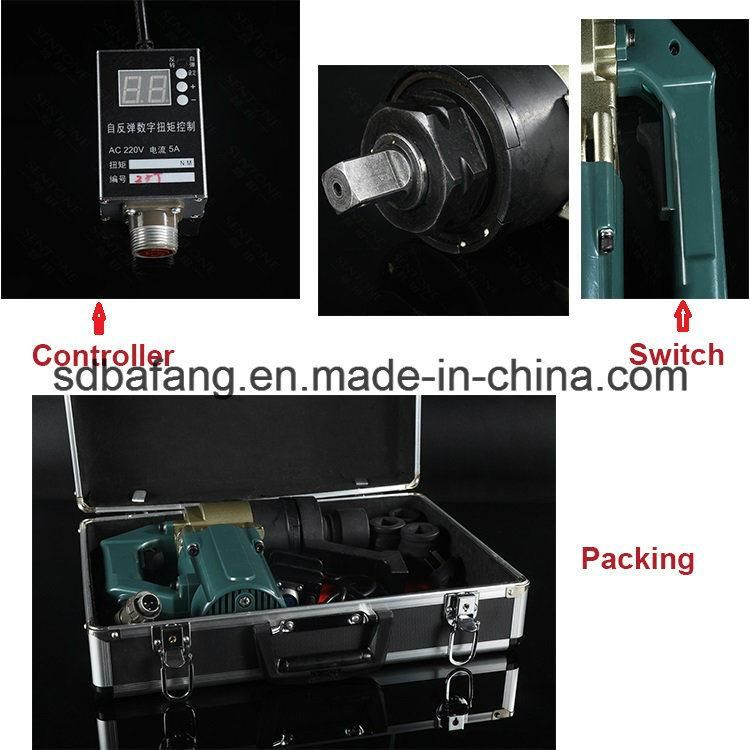

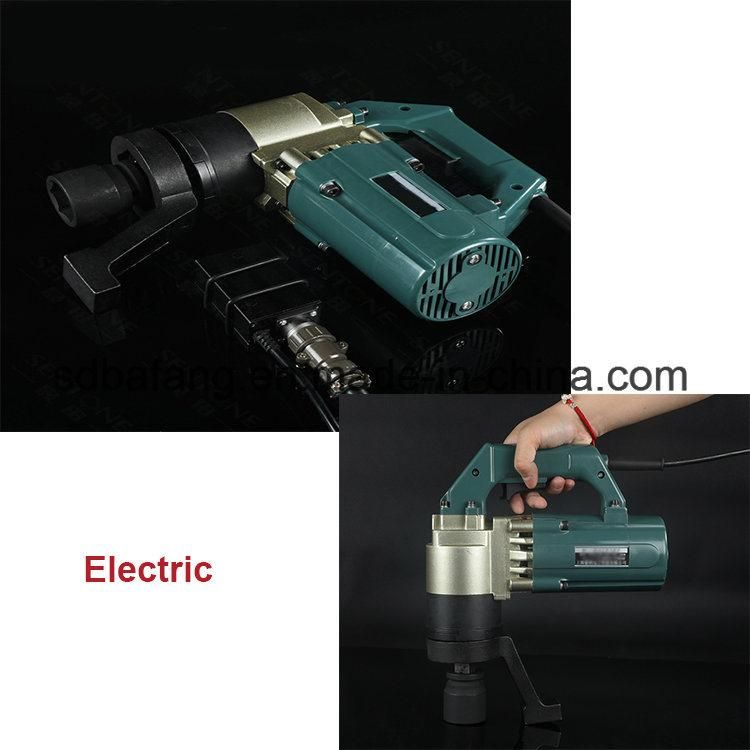

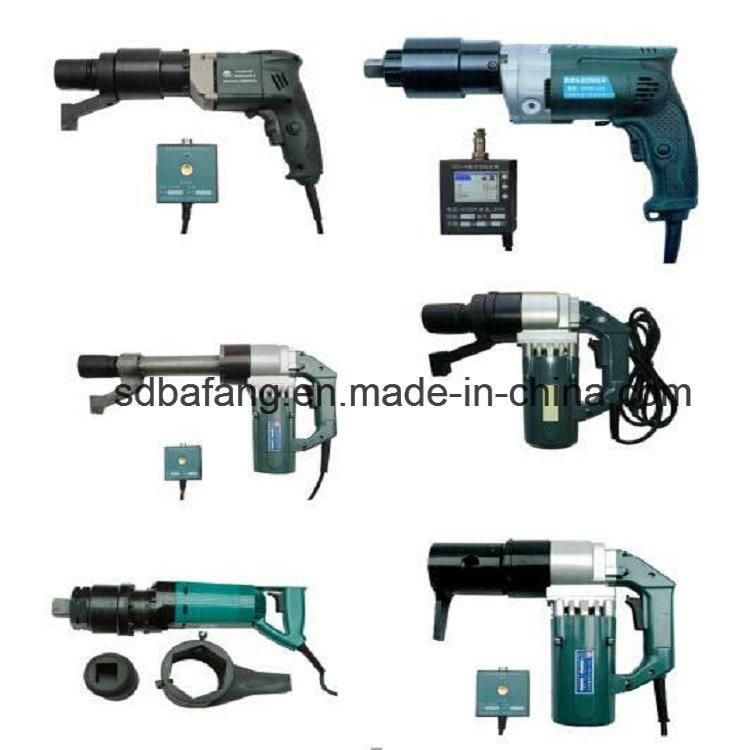

Product pictures



Company information

For more detailed specifications please feel free to contact with us
