Enamel Wire Stripping Machine SS-SM06
SanShine Electronics (Xiamen) Technology Co., Ltd.- Certification：ISO, Internal
- Color：Green
Base Info
- Model NO.：SS-SM06
- Variable Speed Mode：Stepless Speed Change
- Voltage：100~250
- Type：Blade Sander
- Wire Diameter Range：0.3~2.5mm
- Stripping Wire Length：5.0 ~ 50mm
- Power Source：220V,50Hz.
- Power：25W
- Rotation Speed：0 ~ 10000r,Min
- Transport Package：Carton Packaging
- Specification：SS-SM06
- Trademark：SANSHINE
- Origin：Xiamen China
- Production Capacity：5000000PCS,Year
- Package size per unit product：30.00cm * 10.00cm * 10.00cm
- Gross weight per unit product：1.000kg
Description
Overview
Product Description
The SS-SM06 portable rotary blade wire stripping machine is one handset wire stripper. It is constructed from motor, rotary stripping blade, speed knob, blade cover, hand switch. Is very convenient to use, Which can strip a lot of surface insulated film wires(like as: Magnet wire, enamel wire, varnished wire, etc. )quickly, and do not break wire core. It is used for motor manufacture, transformer manufacture, inductor manufacture, coils manufacture, wires processing, cable manufacture, and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
Specification:
Wire diameter range: Φ 0.3~2.5mm
Stripping wire length: 5.0 ~ 50mm
Power source: 220V/50Hz.
Power: 25W
Rotation speed: 0 ~ 10000r/min
Weight: 1Kg

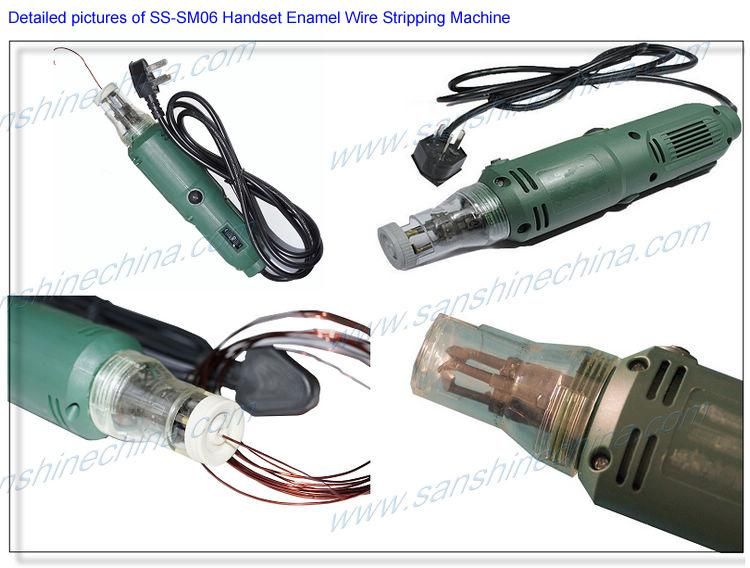

Detailed Photos
After Sales Service
The SS-SM06 portable rotary blade wire stripping machine is one handset wire stripper. It is constructed from motor, rotary stripping blade, speed knob, blade cover, hand switch. Is very convenient to use, Which can strip a lot of surface insulated film wires(like as: Magnet wire, enamel wire, varnished wire, etc. )quickly, and do not break wire core. It is used for motor manufacture, transformer manufacture, inductor manufacture, coils manufacture, wires processing, cable manufacture, and so on. It is superior to knife, grinding wheel and chemical of stripping ways. It increases the processing efficiency and improve the soldering quality.
Specification:
Wire diameter range: Φ 0.3~2.5mm
Stripping wire length: 5.0 ~ 50mm
Power source: 220V/50Hz.
Power: 25W
Rotation speed: 0 ~ 10000r/min
Weight: 1Kg
Detailed Photos
After Sales Service
Packaging & Shipping
Our customers
Cantact us
