• Model NO.：TN-9B
• Power Source：Electricity
• Max Power Consumption：1650W
• Weinght (Main Body)：5.3kg
• Adaptable Bolts Dia：3,4" 7,8" 1"
• Transport Package：Box
• Trademark：hanpu
• Origin：Shandong China

Basic Info.

Model NO. TN-9B Power Source Electricity Max Power Consumption 1650W Weinght (Main Body) 5.3kg Adaptable Bolts Dia 3/4" 7/8" 1" Transport Package Box Trademark hanpu Origin Shandong China

Product Description

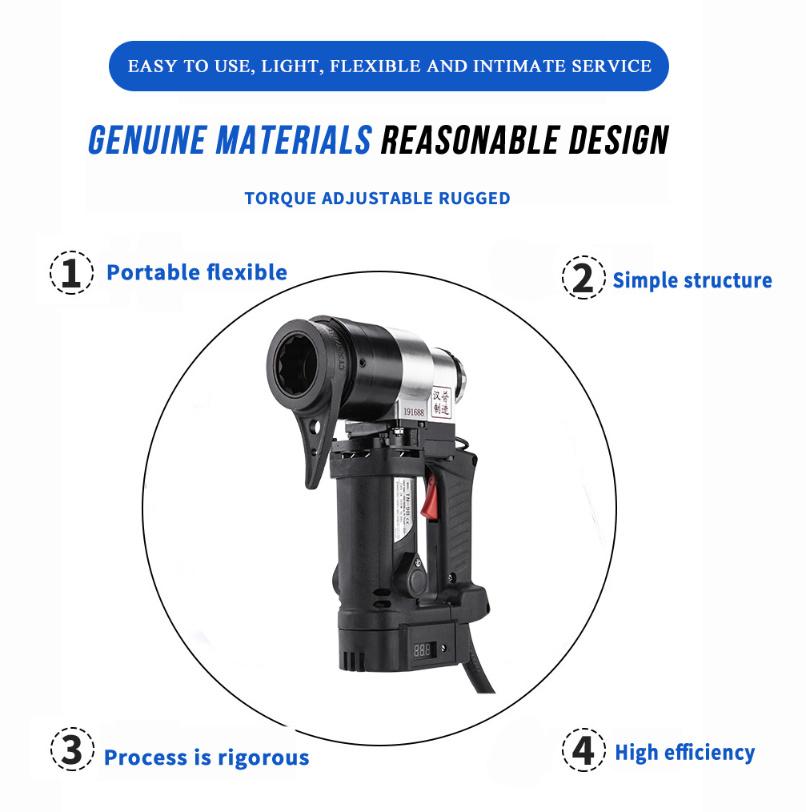

Electric torque control wrench TN-9B is generally used to tighten large hexagonal high strength bolts. Hanpu electric torque wrench is more commonly used in a model, in bridge construction, power construction and large project steel structure installation industry is very commonly used, with digital display controller, torque can be adjusted, with mechanical commutator can be positive and negative, can tighten or remove screws. Torque range is 400-900N. M, applicable bolt model is M20/M22/M24.




Model:TN-9B
Frequency:50-60Hz
Voltage:230V 115V
Max Current:7A 14A
Max Power Consumption:1650W
Torque Range : 400-900N.m
Rotation Speed : 9.5rpm
Weight (Main Body) : 5.3KG
Protect Class : Double Insulation
Adaptable Bolts Diameter : M20 (3/4") M22(7/8")M24(1")



The electric torque wrench TN-9B has strong torque in practical operation applications, and the overall body is sturdy and durable, so it can stand out among a variety of Electric Torque Control wrenches..
The outstanding features of electric torque wrench TN-9B :
1. This electric torque wrench is smaller in size, lighter in weight and easier to carry compared with the Electric Torque Control in the same configuration on the market.
2. In terms of power, Hanpu electric torque wrench TN-9B has a power of 1650W and a torque range of 400-900N / M. It has strong power and can easily complete the bolt operation with high work efficiency;

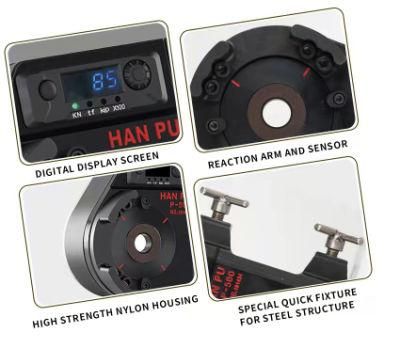

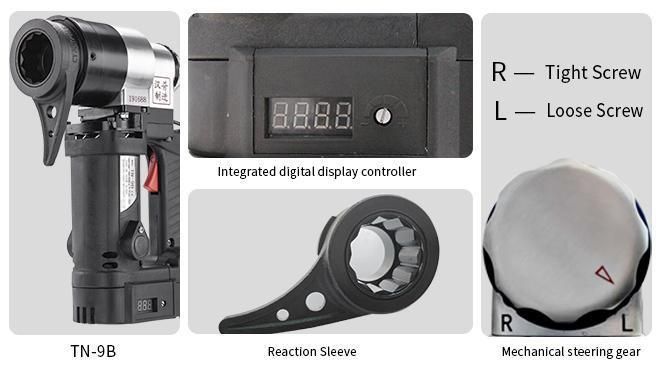

3. It has an integrated digital display controller, the torque can be adjusted, the control accuracy is high, and the repeat accuracy is up to ± 3%;
4. Set the required torque in advance during operation, and the machine will automatically stop rotating after reaching the set torque.
5. The forward and reverse rotation can be adjusted through the mechanical steering gear to tighten and loosen the screws.

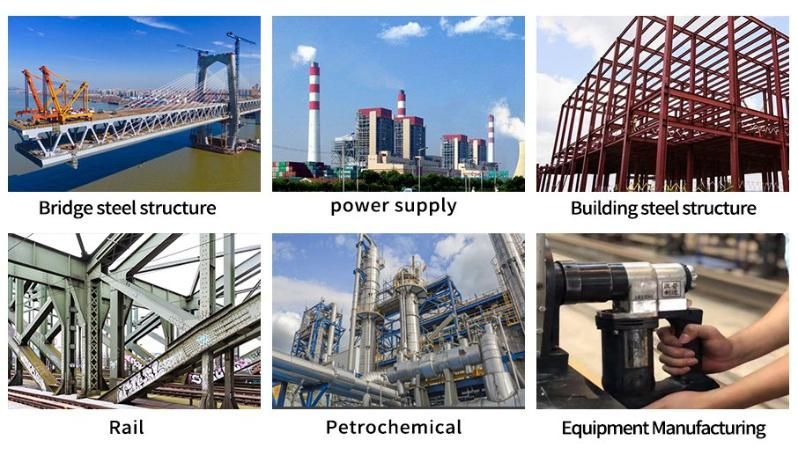

Electric torque control wrench is widely used in many industries:

1. lIn the construction of bridges. The large hexagon bolts connected to the steel structure generally have certain requirements for torque, and it is very suitable to use this wrench to fix the type;
2. lIn the construction and installation of power plants, bolts can be easily tightened.



Precautions :
1. The opening size of the selected torque wrench must be consistent with the size of the bolt or nut. If the opening of the wrench is too large, it may slip off and damage the screw;
2. To prevent damage and slippage of the wrench, the pulling force should be applied to the thicker side of the opening;
3. When using a torque wrench, it should be balanced and slowly loaded, and must not be violently pulled or pressed, so as to avoid overloading and inaccurate output torque.

FAQ:

Q: What's the MOQ ?
A: One set per model ;
Q:What's the delivery time?
A: Generally in 7~15days ;
Q: What's the payment terms?
A: T/T 30% deposit and the balance paid before loading ;
Q: Are you factory or trading company?
A: We're factory and can do exporting ourselves.
