Ht300 Model Electric Hot Tapping Machine
ANQING GREAT WALL PIPELINE CO., LTD.- Usage：Drilling Under Pressure
- Suit for：Steel, Di , Ci , Plastic Pipe
- Application：Water, Gas, Oil, Steam
- Tapping Range：4′′- 12′′
- Motor Power：220V,1.5kw or 380V,2.2kw
- Motor Type：Ex Motor
Base Info
- Model NO.：HT300
- Pressure Rating：Pn10, Pn16, Pn25
- Feeding Mode：Electric Drive
- Feeding Volume：0.07-0.2 mm,R
- Operation Mode：Manual
- Working Stroke：540 mm
- Spindle Speed：40 Rpm
- Flange：Pn10, Pn16, Pn25
- Warranty：1 Year
- Transport Package：Wooden Case
- Specification：HT300
- Trademark：GREAT WALL
- Origin：China
- HS Code：8467210000
Description
Basic Info.
Model NO. HT300 Pressure Rating Pn10, Pn16, Pn25 Feeding Mode Electric Drive Feeding Volume 0.07-0.2 mm/R Operation Mode Manual Working Stroke 540 mm Spindle Speed 40 Rpm Flange Pn10, Pn16, Pn25 Warranty 1 Year Transport Package Wooden Case Specification HT300 Trademark GREAT WALL Origin China HS Code 8467210000Product Description

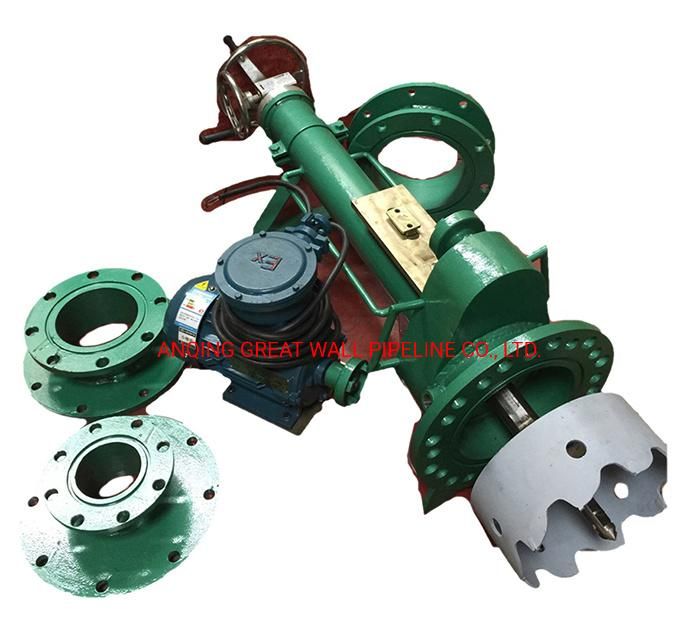

HT300 Model Electric Hot Tapping Machine with EX Motor
HT Series HT Electric Hot Tapping Machine is designed to do hot tapping on the pipeline under pressure for the branch connection .
It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe .
And it is widely applied in water supply, natural gas supply, oil and chemical industry .

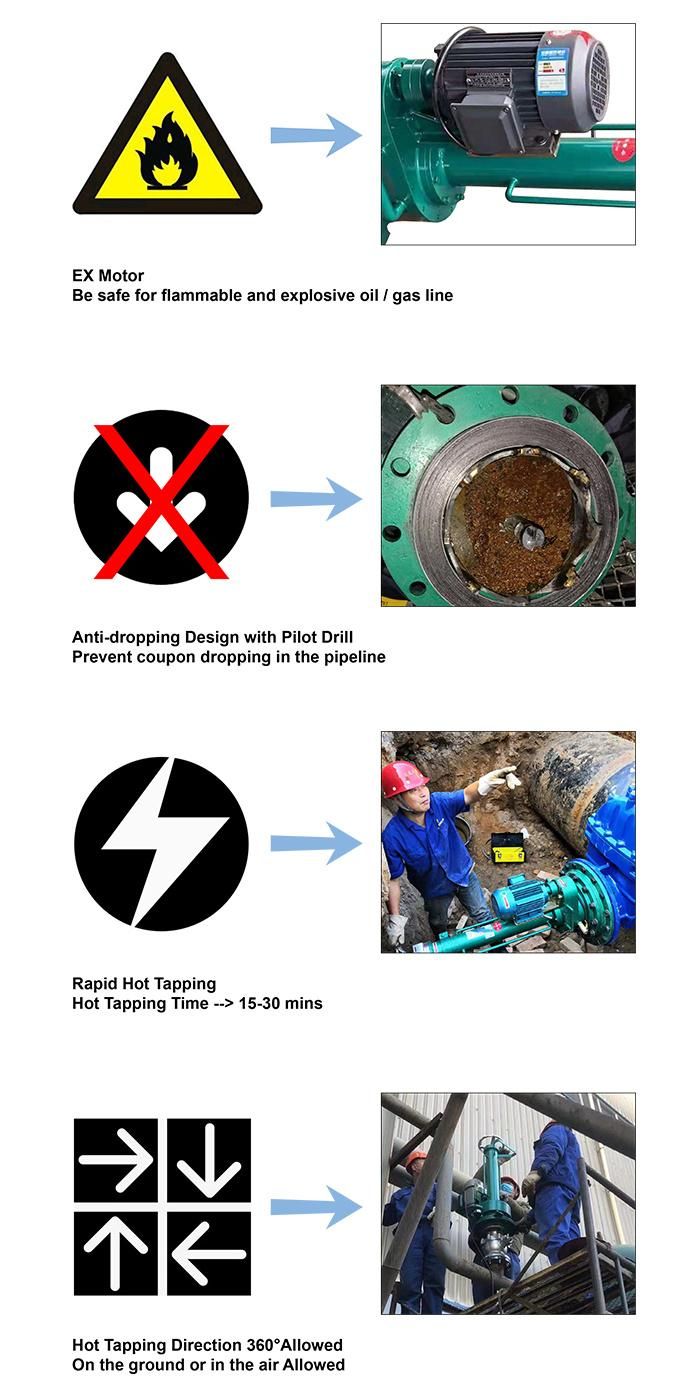

Product Features :

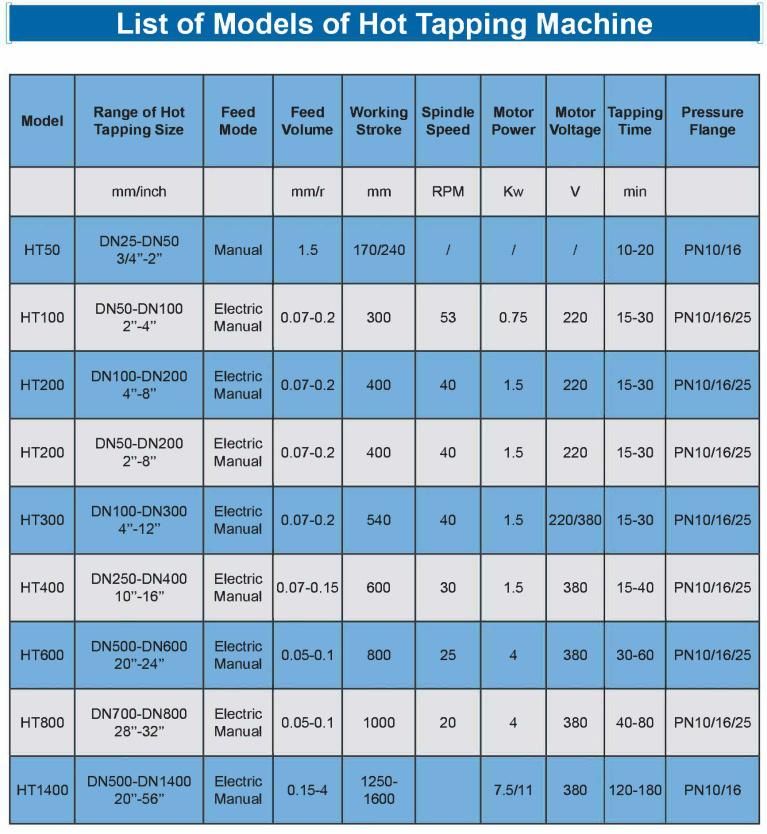

List of Models :

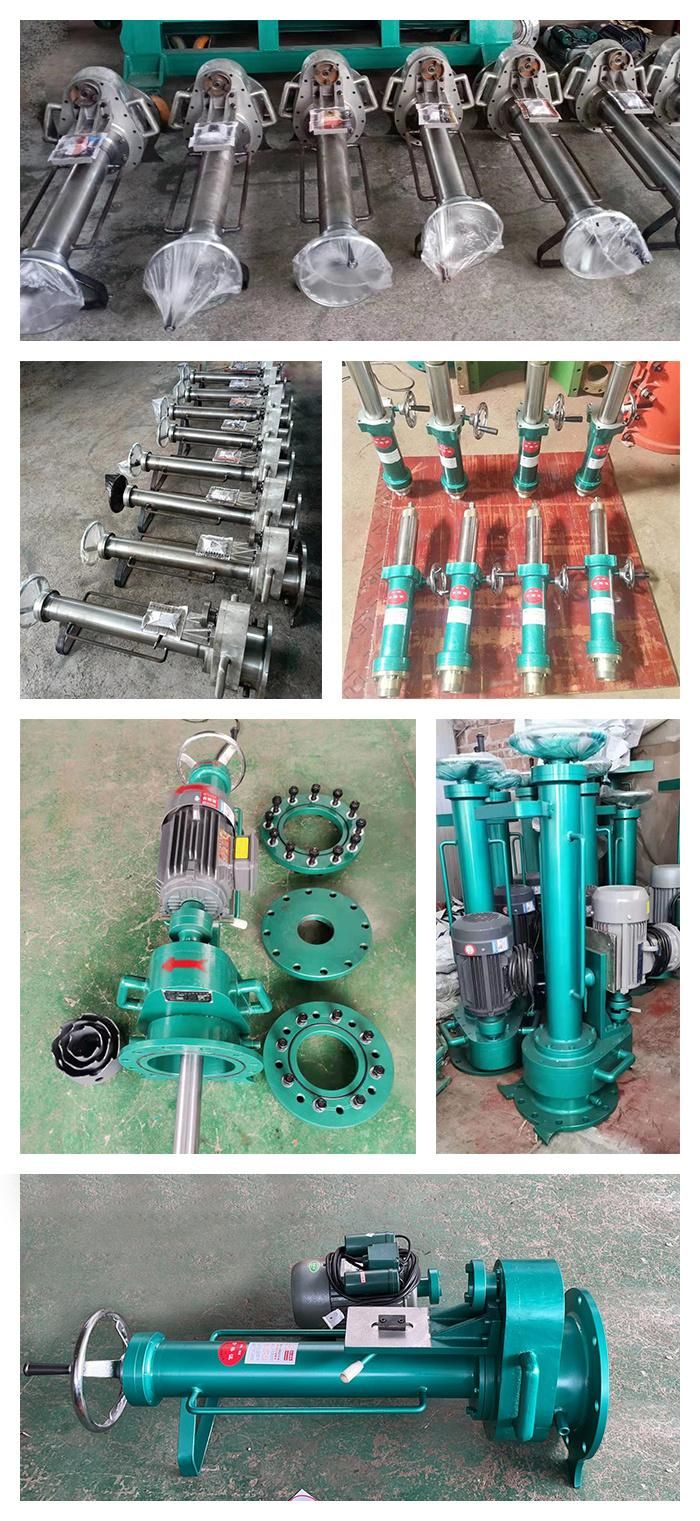

About our factory

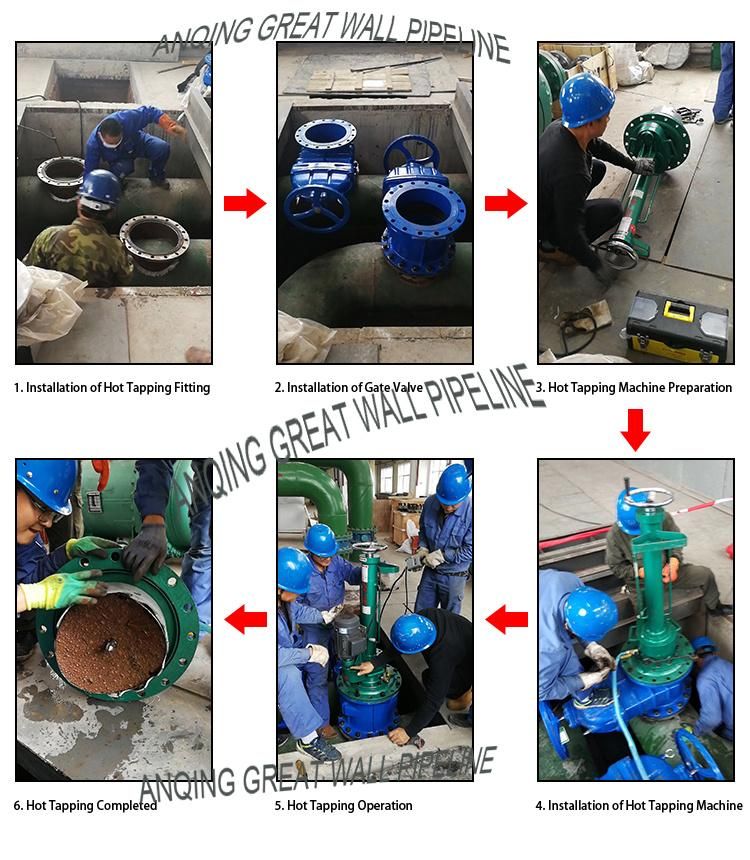

Hot Tapping Operation Procedure :

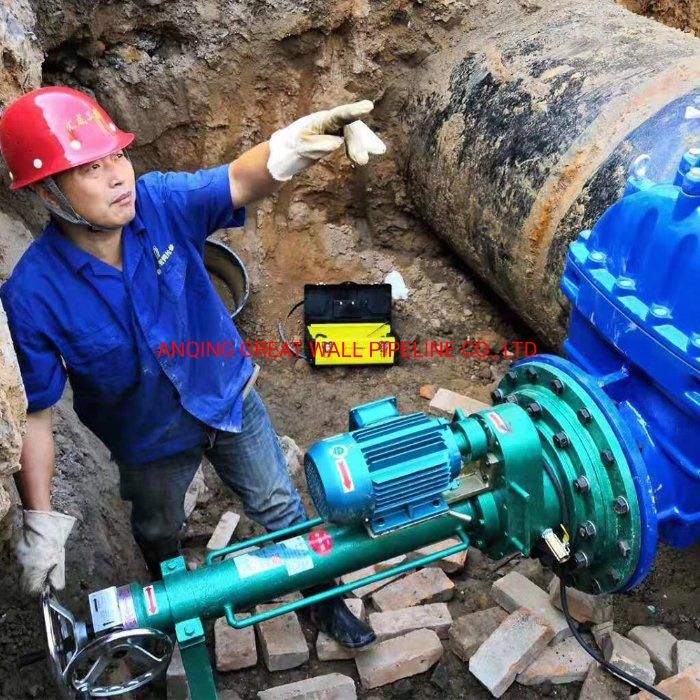

Hot Tapping Project Cases :

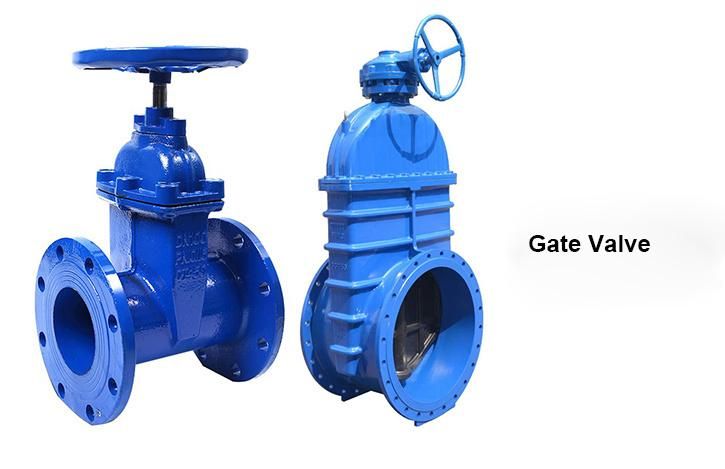

Hot Tapping Fitting :
Note: we can supply the above hot tapping fitting as per your specific dimension and pressure rating requirement.
