Power Tools

Tester Torque and Tension, Test Hex Bolts Calibrator

Shandong Hanpu Machinery Industrial Co., Ltd.
  • Type:Torque Wrench
  • Power:Battery
  • Torque:5000n.M
  • Brand:Hanpu
  • Power Supply Type:Charging Power
  • Power Supply Voltage:230V

Base Info

    Description

    HANPU ADVANTAGES
    1. Almost all spare parts are manufacturered by ourselves, we could control each step quality; we have stricktly quality controll and inspection systerm.

    2. All our production equipement are imported from Germany, Swiss & Japan. High quality equipemtn could keep our products quality.

    3.
    The company has a dedicated after-sales customer service that is available to you 24 hours a day.


     SPECIFICATION

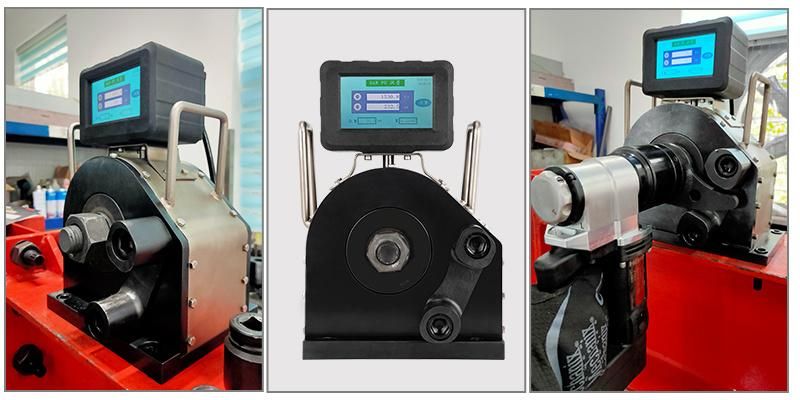

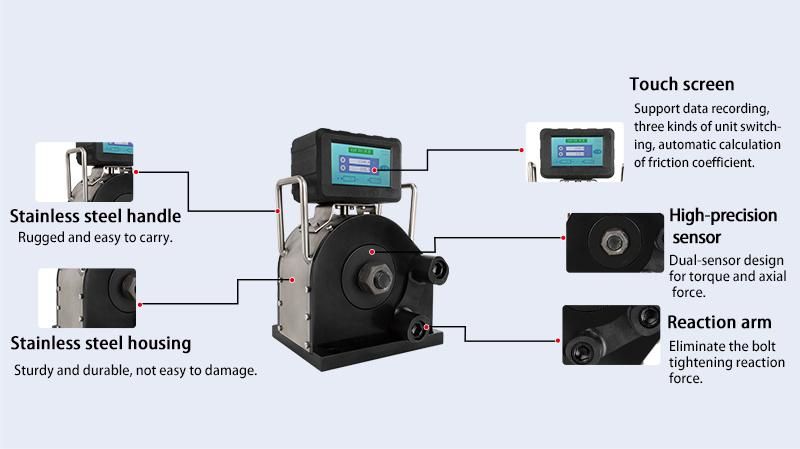

    *ELELCTRIC TENSION & TORQUE CALIBRATOR PN-53/PN-85 :

    *
    A digital torque tester is used as a quality control device to test or calibrate torque controlled tools.

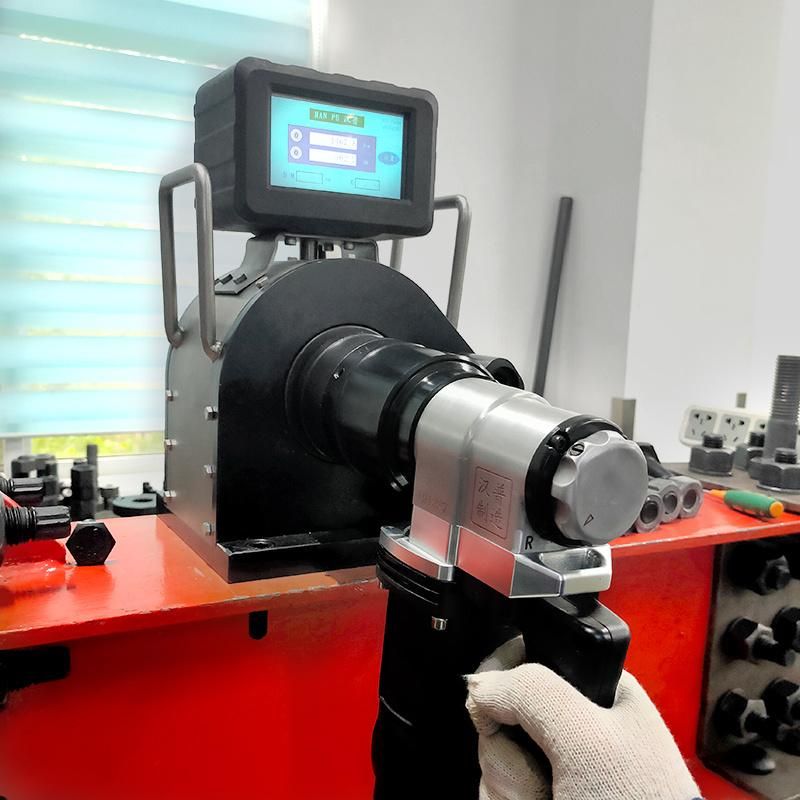

    Torque testing is essential on torque wrenches. Torque testing is accomplished by inserting a torque transducer between the tool applying the force and the item against which the force is being



    *A torque transducer, similar to a load cell, is an electronic device used to convert torque into an electrical signal. This conversion is indirect and happens in two stages. Through a mechanical arrangement, the torque being sensed deforms a strain gauge. The strain gauge converts the deformation (strain) to electrical signals. A torque transducer usually consists of four strain gauges in a bridge configuration.

    *
    A key component of digital torque testers is the digital display. A digital display is used to measure the output signal from the transducer and calculates that reading into a torque value that is displayed on screen.

        Tester Torque and Tension, Test Hex Bolts CalibratorTester Torque and Tension, Test Hex Bolts CalibratorTester Torque and Tension, Test Hex Bolts CalibratorTester Torque and Tension, Test Hex Bolts CalibratorTester Torque and Tension, Test Hex Bolts CalibratorTester Torque and Tension, Test Hex Bolts CalibratorTERMS * Payment : 100% bank payment
    * Delivery :  Usually we have enough stock, could ship it asap; If do not have stock, we need about 5~15 work days to prepare.
    * Warranty : 6 months ( not including stator, armature, crbon brush, inner socket, ejector pin & spring ).


    If you have any question or need, please contact me at any time:

    Welcome to your inquiry !
