Ht100 Model Pn10, Pn16, Pn25 Electric Hot Tapping Machine
ANQING GREAT WALL PIPELINE CO., LTD.- Usage:Drilling Under Pressure
- Suit Pipe Material:Steel , Ductile Iron , Cast Iron , Plastic Pipe
- Suit Pipe Medium:Water, Gas, Oil, Steam
- Tapping Range:2′′-4′′
- Feed Mode:Manual
- Working Stroke:400mm
Base Info
- Model NO.:HT100
- Spindle Speed:40 Rpm
- Motor Power:22V 1.5kw
- Motor Type:Ex Motor
- Tapping Time:15-30 Mins
- Pressure Rating:Pn10,Pn16, Pn25
- Transport Package:Wooden Case
- Specification:HT100
- Trademark:GREAT WALL
- Origin:China
- HS Code:8467210000
Description
Basic Info.
Model NO. HT100 Spindle Speed 40 Rpm Motor Power 22V 1.5kw Motor Type Ex Motor Tapping Time 15-30 Mins Pressure Rating Pn10,Pn16, Pn25 Transport Package Wooden Case Specification HT100 Trademark GREAT WALL Origin China HS Code 8467210000Product Description

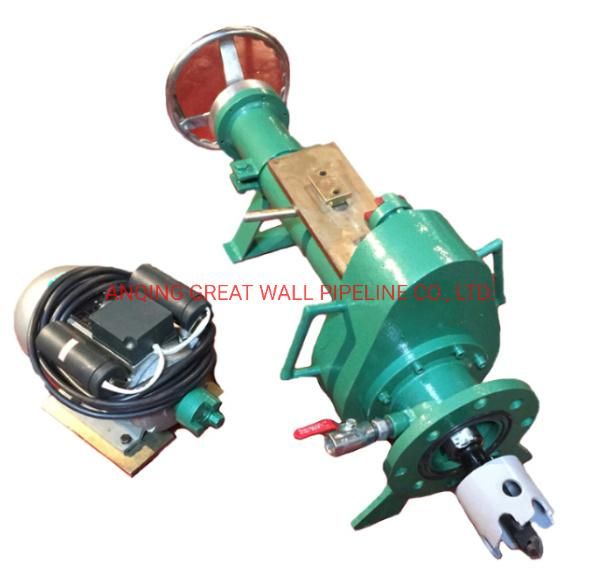

HT100 Model Electric Hot Tapping MachineProduct Introduction :
This machine is designed to do hot tapping on the pipeline under pressure for the branch pipeline connection .
It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe .
And it is widely applied in water supply, natural gas supply, oil and chemical industry .

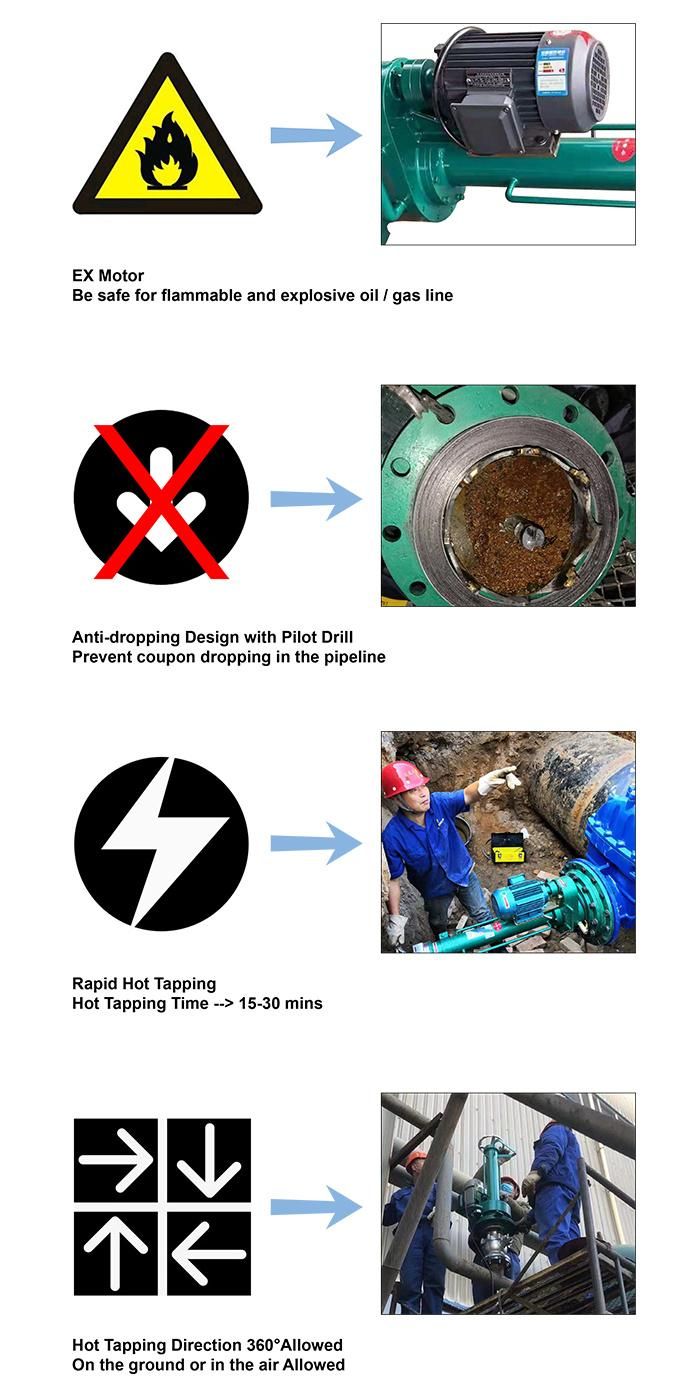

Product Feature :

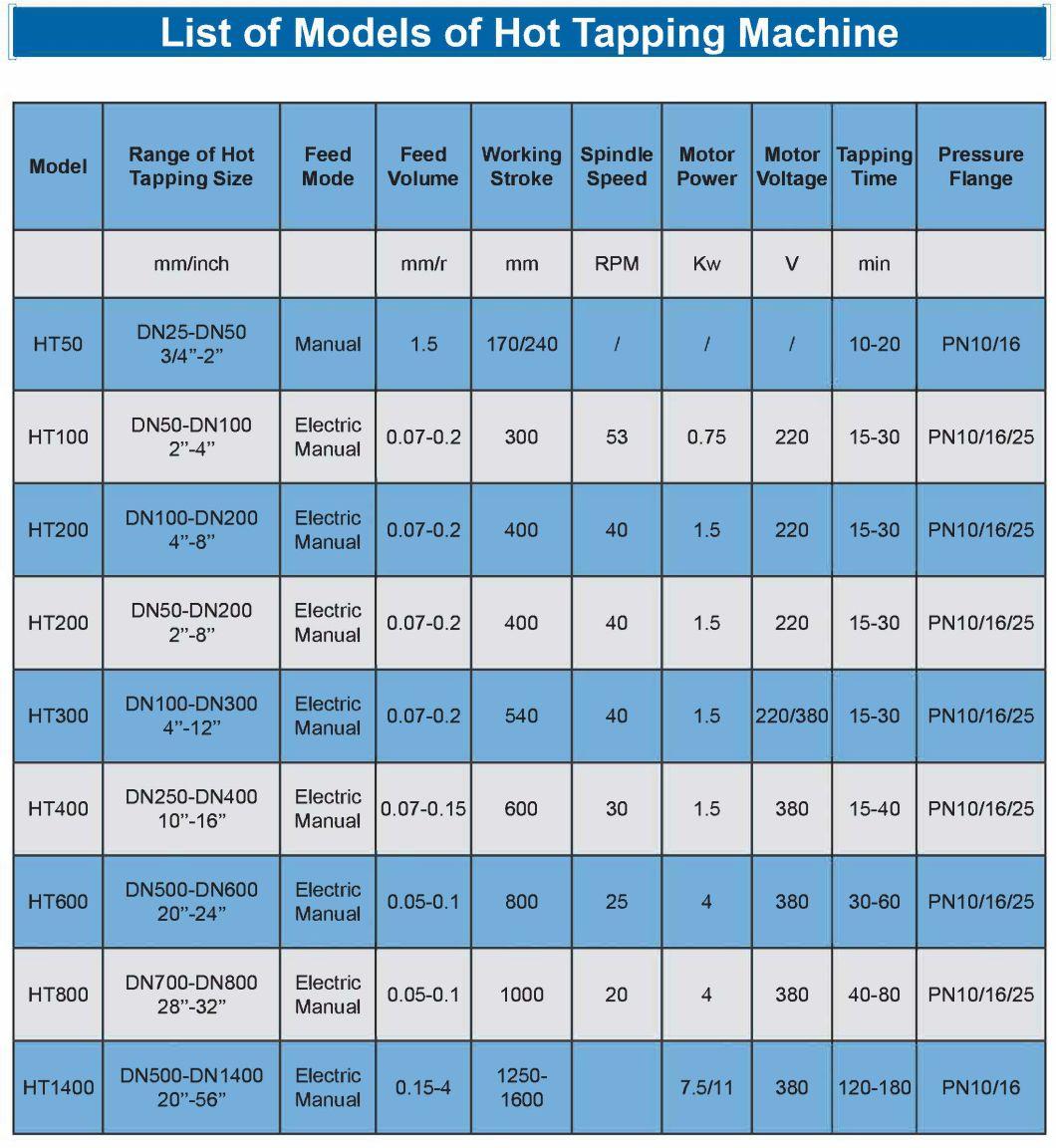

List of Models :
Note: 1. Range of Hot Tapping Size : 2'' to 64'' 2. Range of Working Pressure : PN10, PN16, PN25

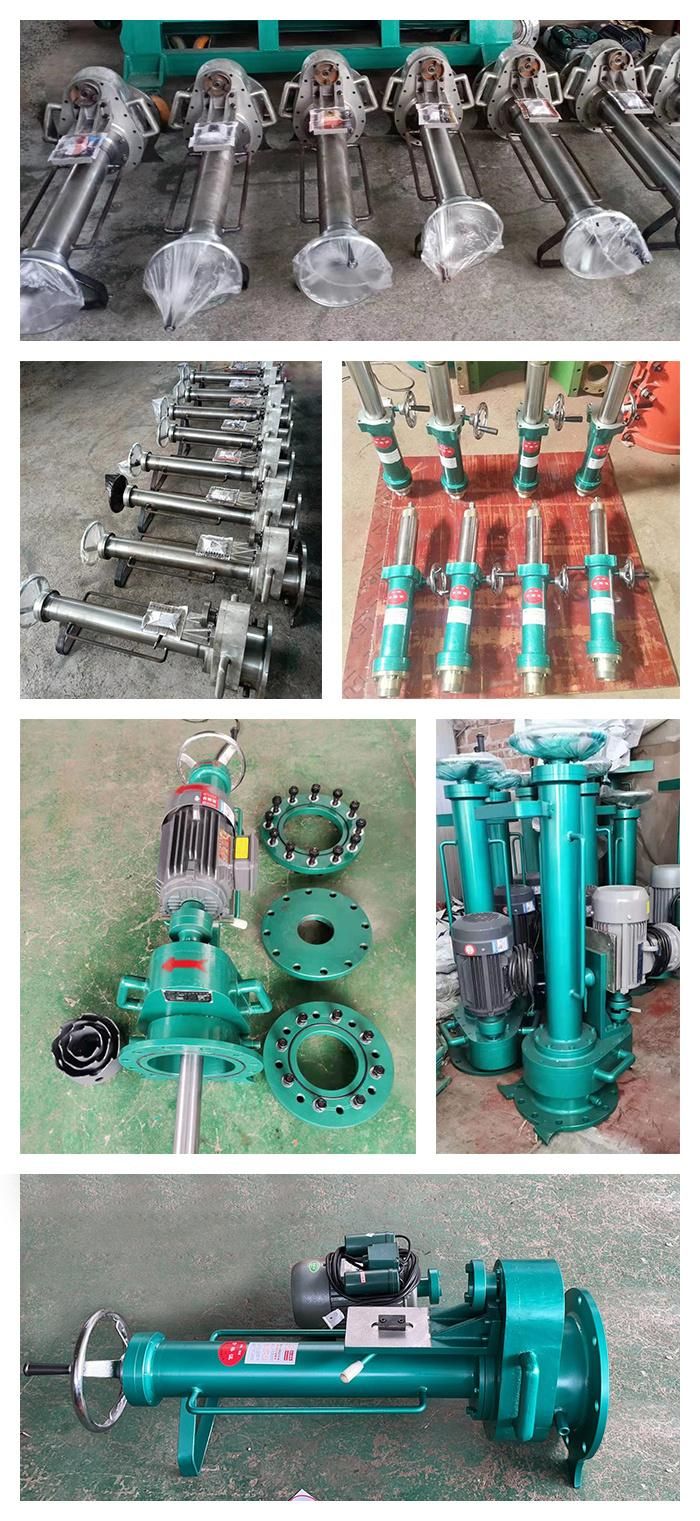

Our factory :
Anqing Great Wall Pipeline Company have over 10 years experience of the production and development of
Electric and Manual Hot Tapping machine for water, oil and gas lines with the pressure rating of PN10, PN16 and PN25,
the range of hot tapping sizes from DN25mm up to DN1600mm.
our hot tapping machine are exported to the countries and regions including Singapore, Malaysia, Indonesia,
Taiwan, UAE, Chile, Argentina, Brazil and etc.

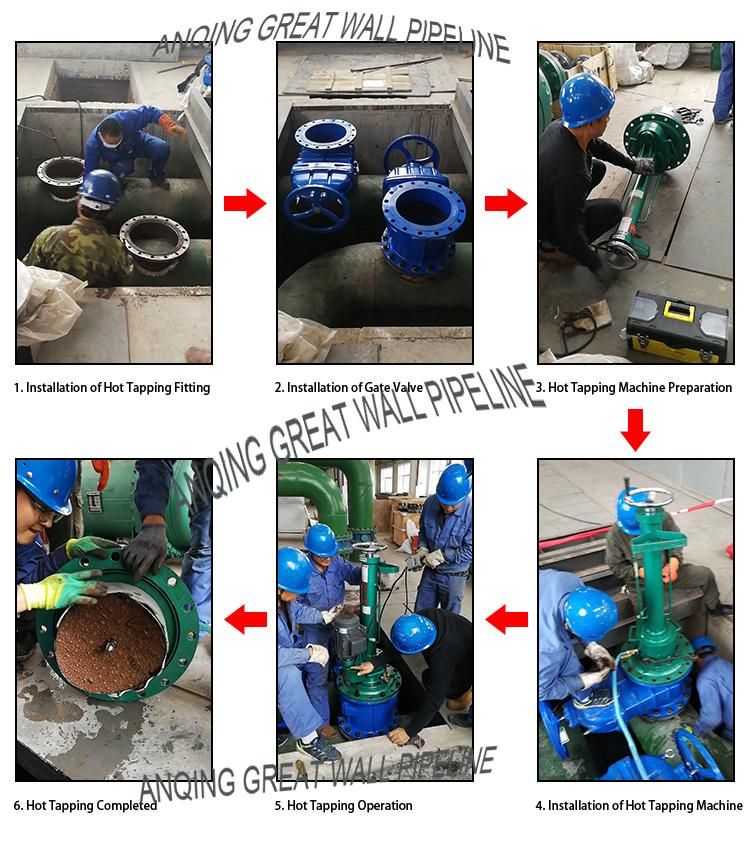

Hot Tapping Procedure :

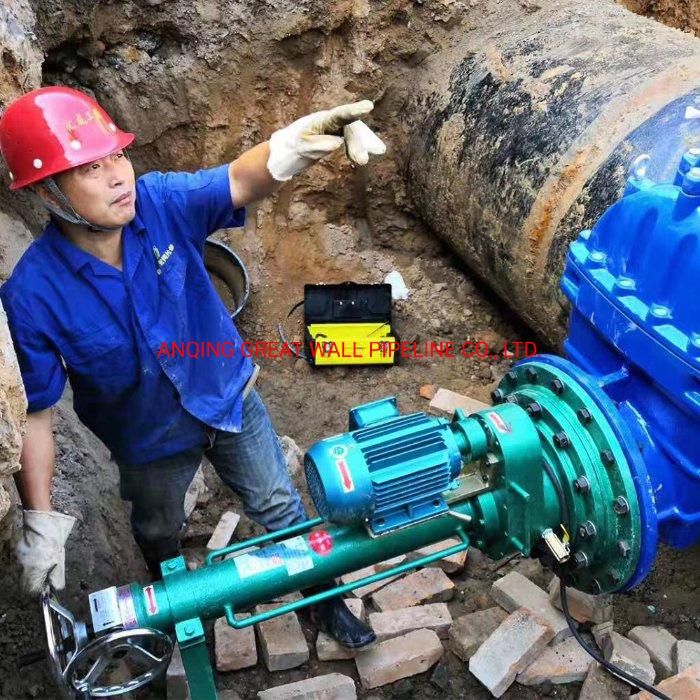

Project Cases :

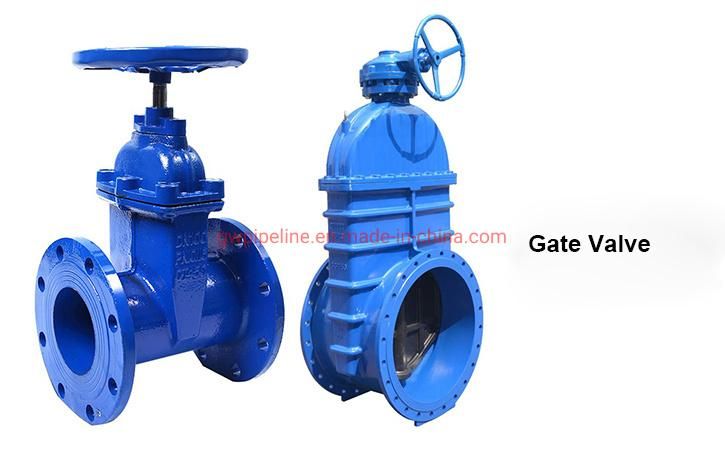

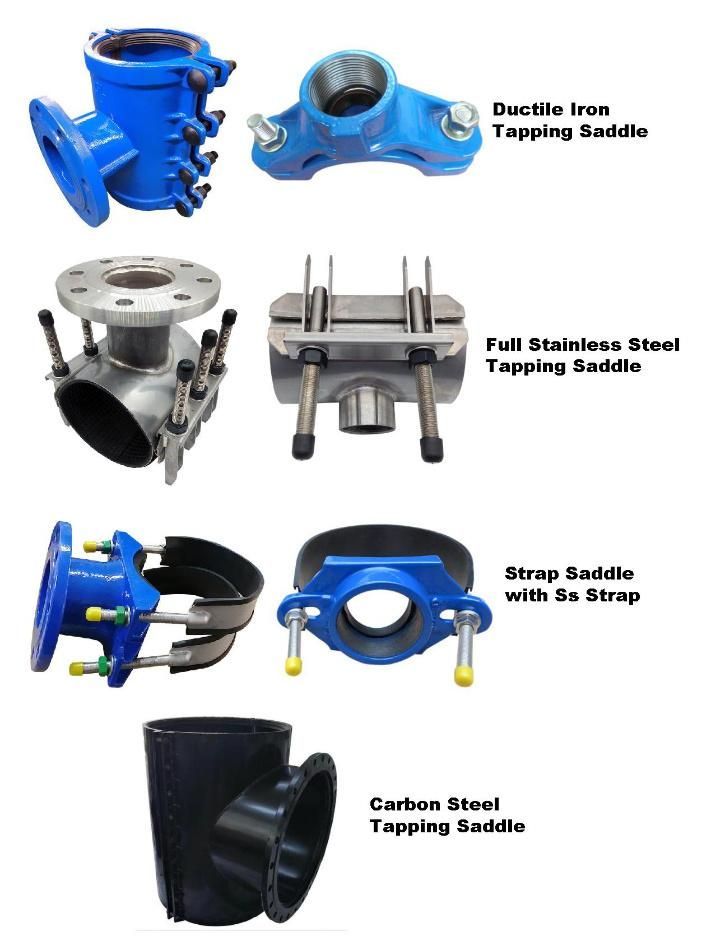

Hot Tapping Fitting :
Note: we can supply the above hot tapping fitting as per your specific dimension and pressure rating requirement .
