10 Ton 50mm Multi Steps Hydraulic Cylinder (RMC-101L)
TAIZHOU YINDU TOOLS CO., LTD.- Transport Package：Wooden Box
- Specification：CE
- Trademark：yindu
- Origin：China
Base Info
- Model NO.：RMC-101L
- HS Code：84122100
- Production Capacity：1000 Sets Per Month
Description

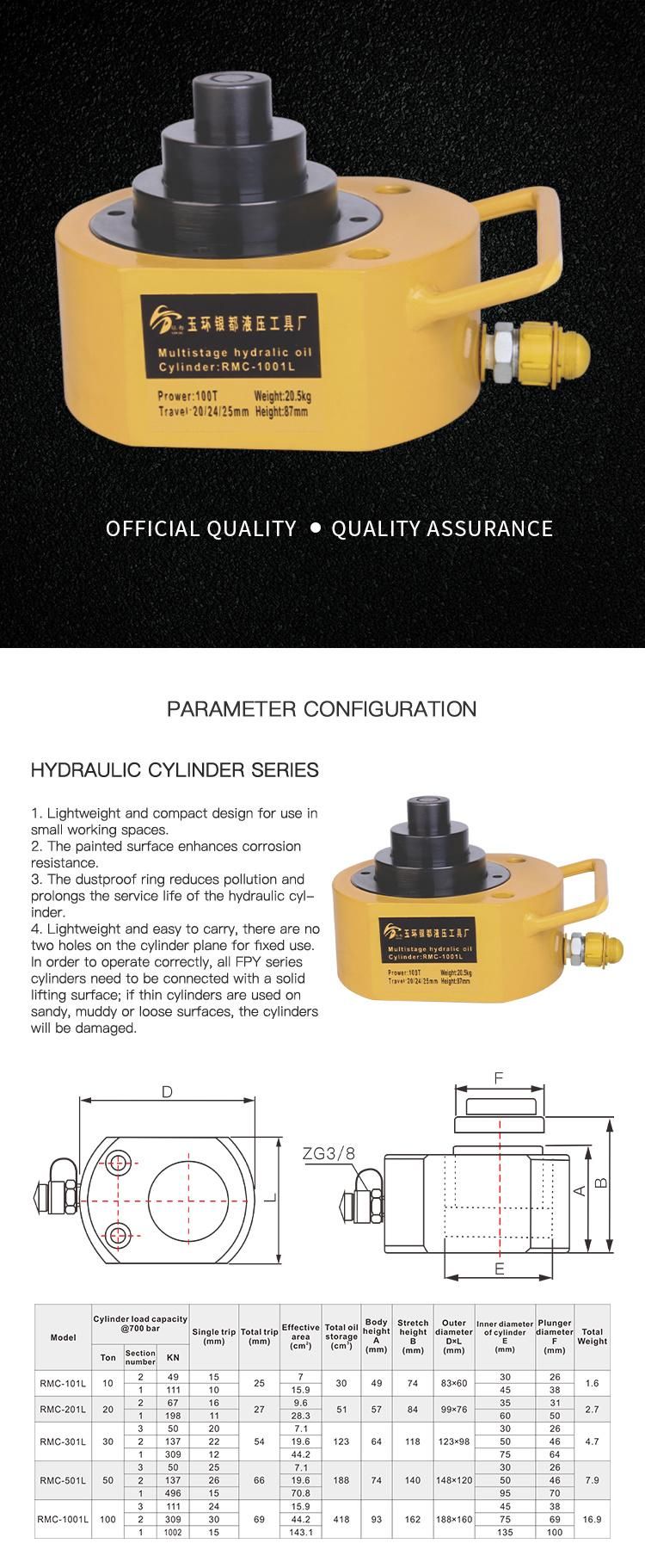

Multi steps Hydraulic Cylinder RMC-101LItem No. RMC-101L RMC-201L RMC-301L RMC-501L RMC-1001L Output(T) 10 20 30 50 100 Stoke(mm) 25 26 53 64 75 Effective area(cm2) 11.3 19.6 33.1 56.7 95 Oil Capacity(L) 0.022 0.041 0.058 0.113 0.225 Height of products(mm) 47 52 63 69 86 Extended height(mm) 74 80 118 135 163 Outside(mm) 81X56 100X77 115X95 138X115 185X160 Bore die(mm) 43 60 75 95 130 Principal Dia(mm) 38 53 63 85 110 Weight(kg) 1.5 2.4 4.5 7 15

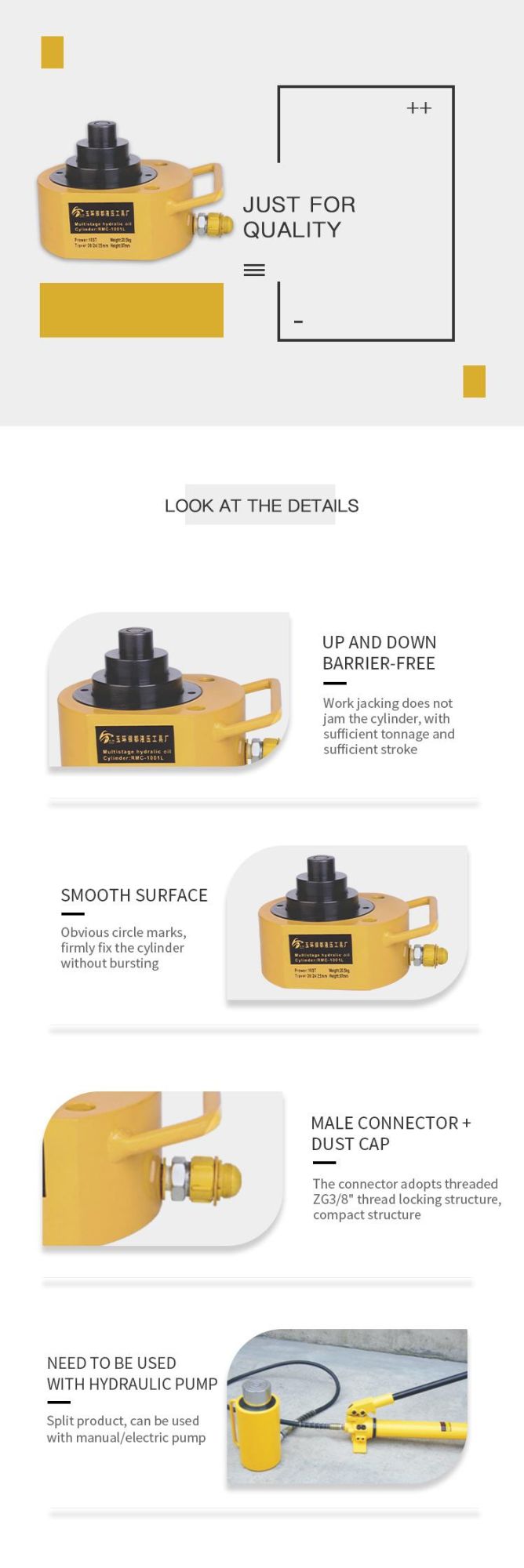

1 Low height is suit for working in nallowness; Short stroke can broke up times and times.
2 The surface of plunger is finished with chrome plate to protect the using of longevity of the product.
3 Plunger has the function of retracting automatically.
Attention:
1. Before using, probably weight of the object should be taken, selecting the jack of proper specifications, overloading to use must be avoided.
2. Before using, the jack should be inspected, and filled with lubricating oil.
3. Before using, origin of forces should be inspected to avoid danger.
4. While using, jack must be placed steady.
5. While jacking up, rising altitude of the sleeve should below the red warn line which shows the Max altitude to avoid danger.
