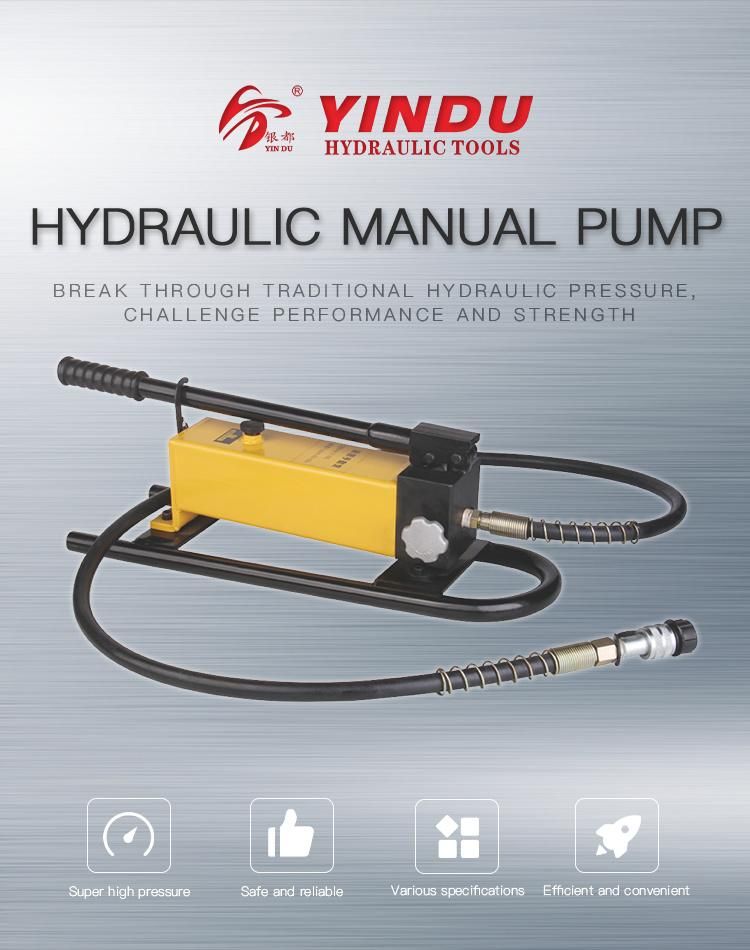

Heavy Duty Manual Hydraulic Pump (CP-800)
TAIZHOU YINDU TOOLS CO., LTD.- Transport Package：Wooden Box
- Specification：CE
- Trademark：yindu
- Origin：China
Base Info
- Model NO.：CP-800
- HS Code：84678900
- Production Capacity：1000 Sets Per Month
Description

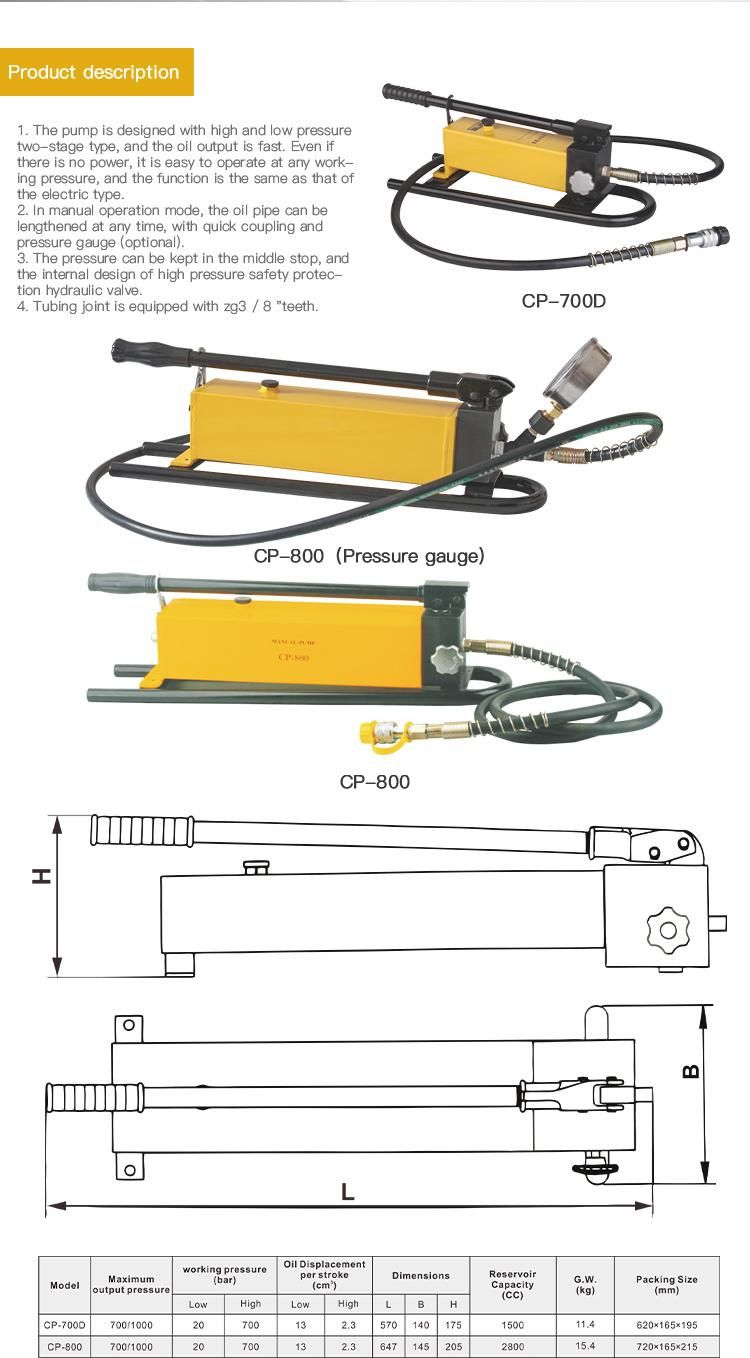

Heavy duty Manual Hydraulic pump CP-800 Type Manual hydraulic pump Max output pressure low pressure 20kg/cm 2
high pressure 700kg/cm 2 Output of oil low pressure 13cc
high pressure 2.3cc Oil capacity 2800cc Weight 18.5kg Package wooden box Package size 550*150*200mm

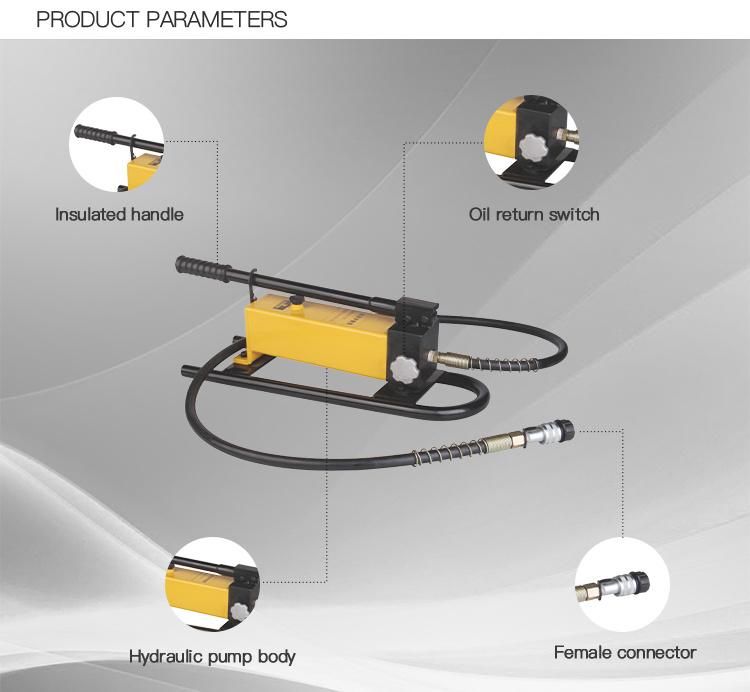

1. Pump is designed in two stage of high and low speed for quick oil output. Even if lack of electric power, It could still be operated conviniently. It is the same as the electric pump in any working pressure and fucntion.
2. Manual operation style, oil pipe fitted with quick coupling could be odered in any length. It could be fitted with pressure meter.
3. Pressure could be stopped in middle. Inner designed over pressure safety unit protect hydraulic valve.
4. Oil pipe coupling with PT3/8 thread.
high pressure 700kg/cm 2
high pressure 2.3cc
1. Pump is designed in two stage of high and low speed for quick oil output. Even if lack of electric power, It could still be operated conviniently. It is the same as the electric pump in any working pressure and fucntion.
2. Manual operation style, oil pipe fitted with quick coupling could be odered in any length. It could be fitted with pressure meter.
3. Pressure could be stopped in middle. Inner designed over pressure safety unit protect hydraulic valve.
4. Oil pipe coupling with PT3/8 thread.
