Heavy Duty Electric Torque Wrench Set for Bolt M20 M22 M24

Shandong Hanpu Machinery Industrial Co., Ltd.
  • Type：Torque Wrench
  • Power：Power Source
  • Impact Rate：0
  • Torque：900nm
  • Brand：Hanpu
  • Power Supply Type：Charging Power

Base Info

  • Model NO.：TN-9B
  • Power Supply Voltage：230V
  • Battery Voltage：0
  • Unloaded Speed：9.5 Rpm
  • Power Source：Electricity
  • Protect：Double Insulation
  • Transport Package：Carton and Plastic Tool Cabinet
  • Specification：400-900Nm torque range
  • Trademark：HANPU
  • Origin：China
  • HS Code：8467299000

Description

Basic Info.

Model NO. TN-9B Power Supply Voltage 230V Battery Voltage 0 Unloaded Speed 9.5 Rpm Power Source Electricity Protect Double Insulation Transport Package Carton and Plastic Tool Cabinet Specification 400-900Nm torque range Trademark HANPU Origin China HS Code 8467299000

Product Description


Heavy Duty Electric Torque Wrench Set for Bolt M20 M22 M24
Model and Technical details:


Model:TN-9B

Frequency:50-60Hz

Voltage:230V 115V

Max Current:7A 14A

Max Power Consumption:1650W

Torque Range : 400-900N.m

Rotation Speed : 9.5rpm

Weight (Main Body) : 5.3KG

Protect Class : Double Insulation

Adaptable Bolts Diameter : M20 (3/4") M22(7/8")M24(1")

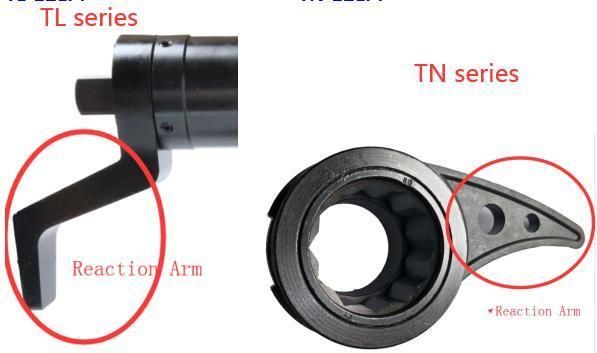

* Compared with TL series Torque Wrench, TN series are only the reaction arm part difference. As the follow picture show:
Heavy Duty Electric Torque Wrench Set for Bolt M20 M22 M24
*TL type suits better when distance among bolts are long. Like: Large sale equipment assemble work, Pipeline project, etc.

*TN type reaction arm center distance is short. As picture show, the reaction arm is also part of the outer socket. This type socket can only buy from HANPU.
  TN type suits better to dense bolts. Like: High-level steel structure building project, Huge steel bridge project,etc.



Welcome contact for any other details !
