• Model NO.：SQ50E
• Switch：on,off Heavy Duty Switch, Foot Switch and
• Spindle Speed：38 Rpm.
• Front Chuck：Hammer Type with Replaceable Rocker a
• Pump：Self-Priming Constant Flow, Gerotor Pump.
• Dies：1,2-3,4 and 1-2 Inch HSS Dies

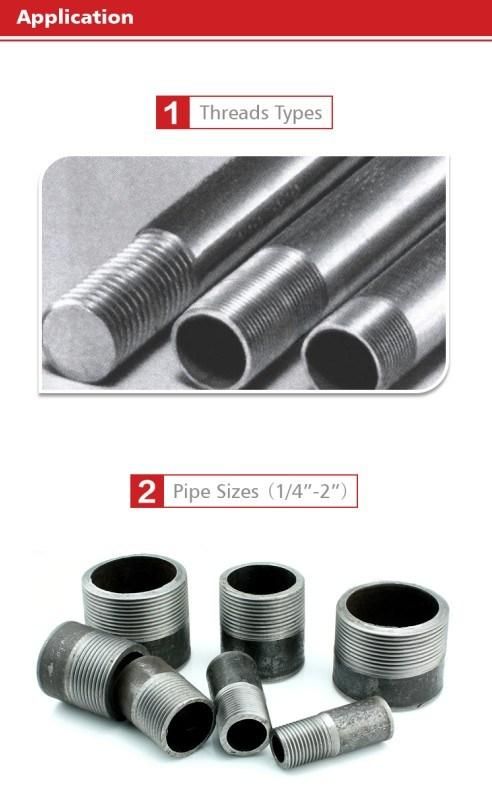

• Threader：BSPT or NPT or Metric
• Transport Package：Plywood Case
• Specification：80*56*47 cm
• Trademark：OEM or ODM
• Origin：Hangzhou China
• HS Code：8459700000
• Production Capacity：1000PCS , Year

Features

1. Light weight, portable design.

2. Self-Contained Oil System with adjust-able flow control.3. Approved by CE standards.



Specifications

• Motor: 1500W universal, 50/60Hz
• Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch are optional
• Spindle Speed: 38 RPM.
• Front Chuck: Hammer type with replaceable rocker action jaw inserts.
• Rear Centering Device: Cam action.
• Oiling System: Through die head, with integral oil reservoir.
• Pump: Self-priming constant flow, gerotor pump.
•

Standard Equipment

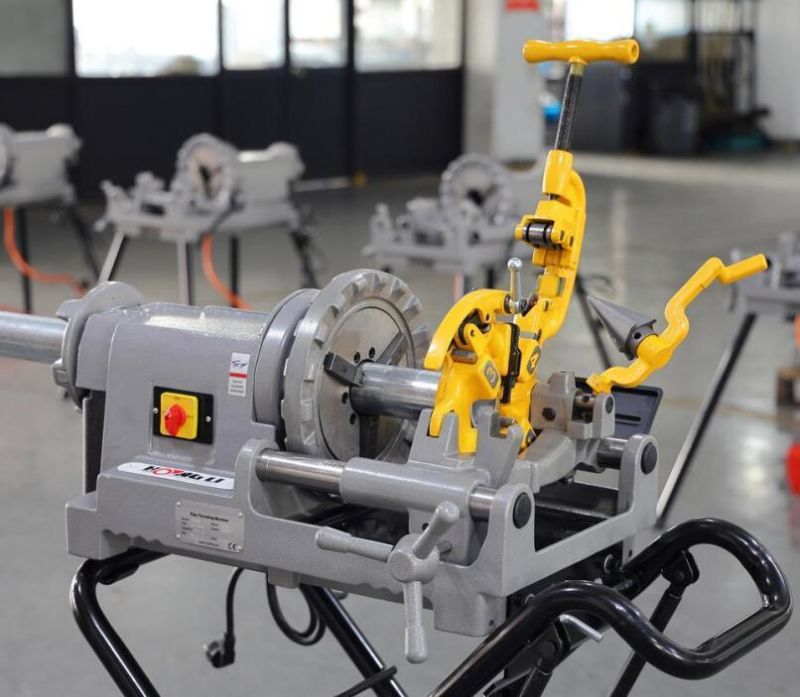

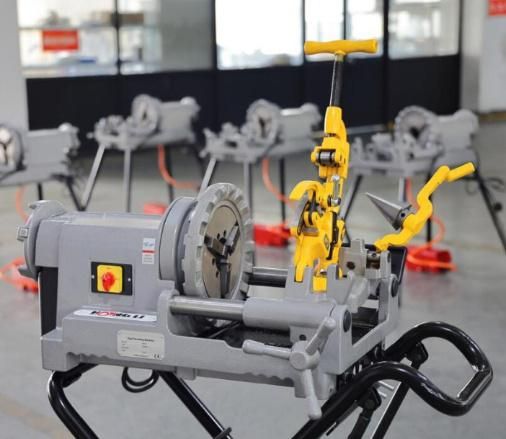

• Model SQ50E Threading Machine.

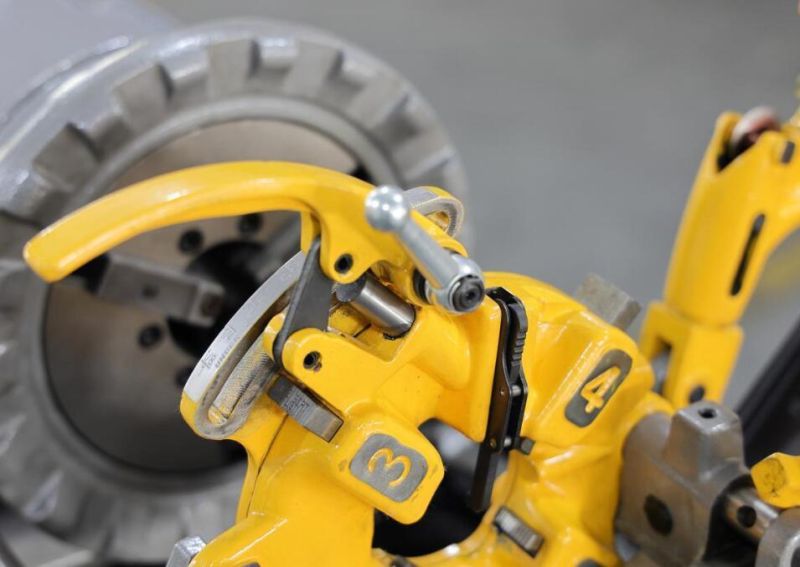

• Self-open die head.
• ½"-¾" universal HSS dies set.
• 1"-2" universal HSS dies set.
• Cutter: Capacity: 1/8"-2"(3 mm-50 mm) pipe
• Reamer: Positive-locking, 5-flute cone, right hand 1/8"-2"(3 mm-50 mm).



Accessories



Catalog No.Model No.Description  Die head, Self-open, ½"-2", 1/4"-3/8" dies for option  Reamer  Cutter  Nipple Chuck for option  Foot Pedal Switch (optional)

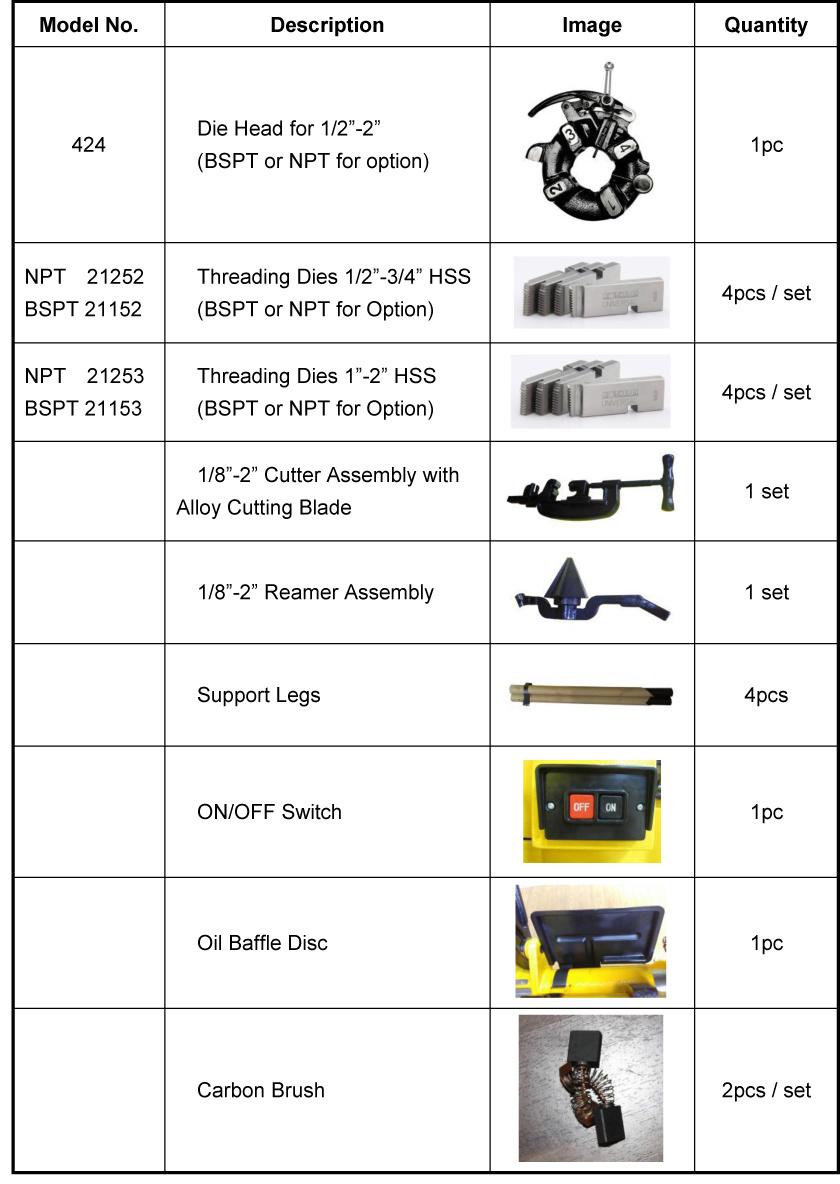

Standard Spares for SQ50E Compact Pipe Threading Machine

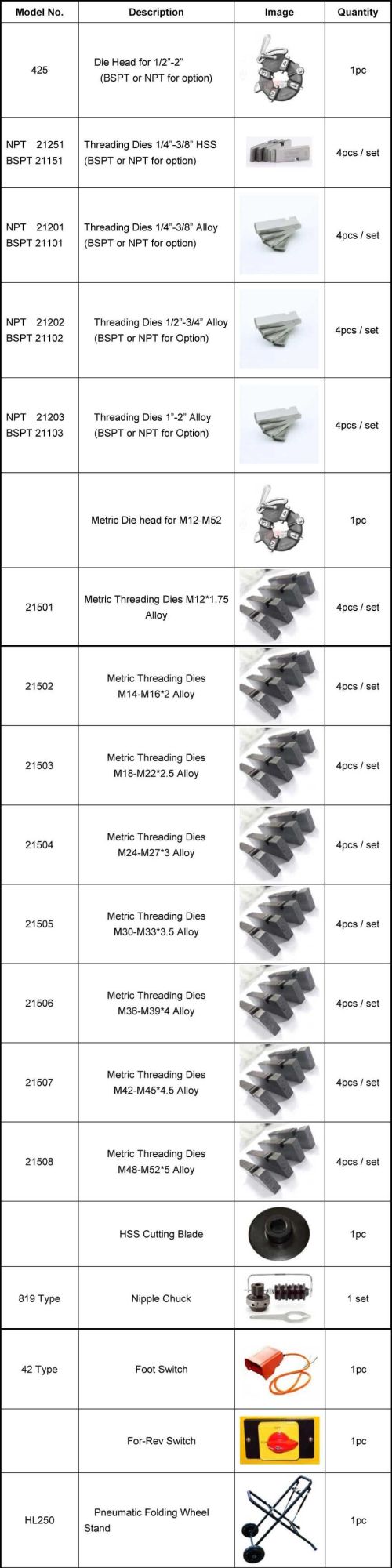

Optional Spares for the Compact Pipe Threading Machine

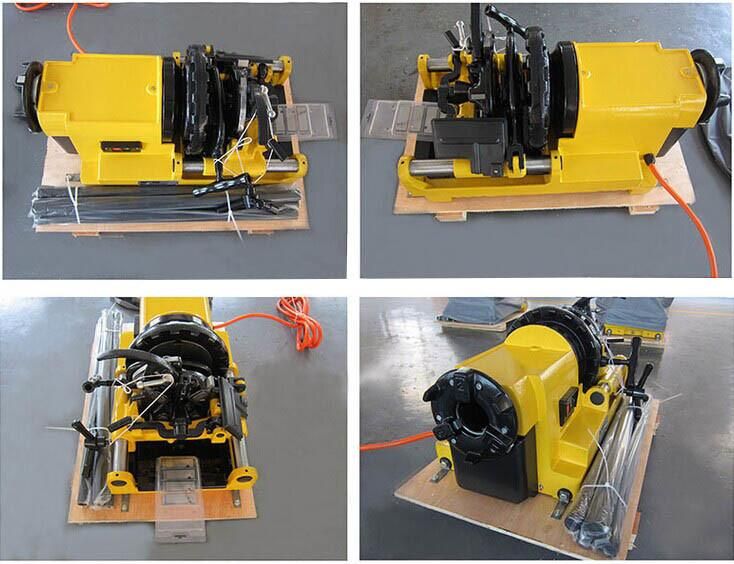

Packing

Model No.G.W.N.W.Packing SizeSQ50E90 kg75 kg80*56*47 cm



HS:8459700000
