3.    High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4.    Insulation test at 500V, >50MΩ
5.    Application: apply to automotive industry, power tools, household appliances, and other motors

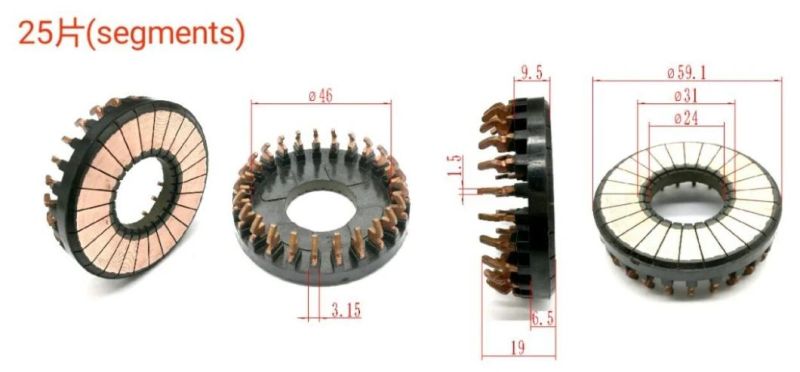

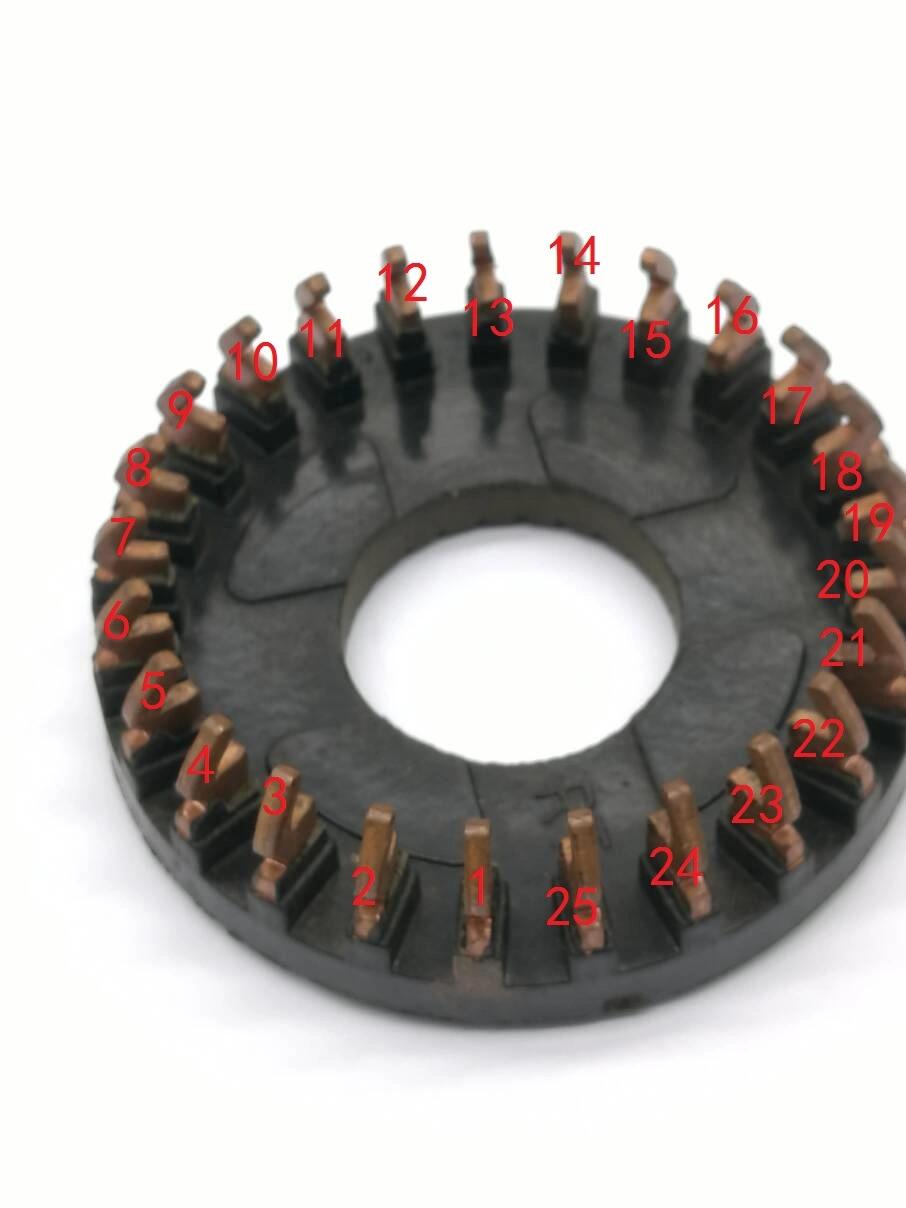

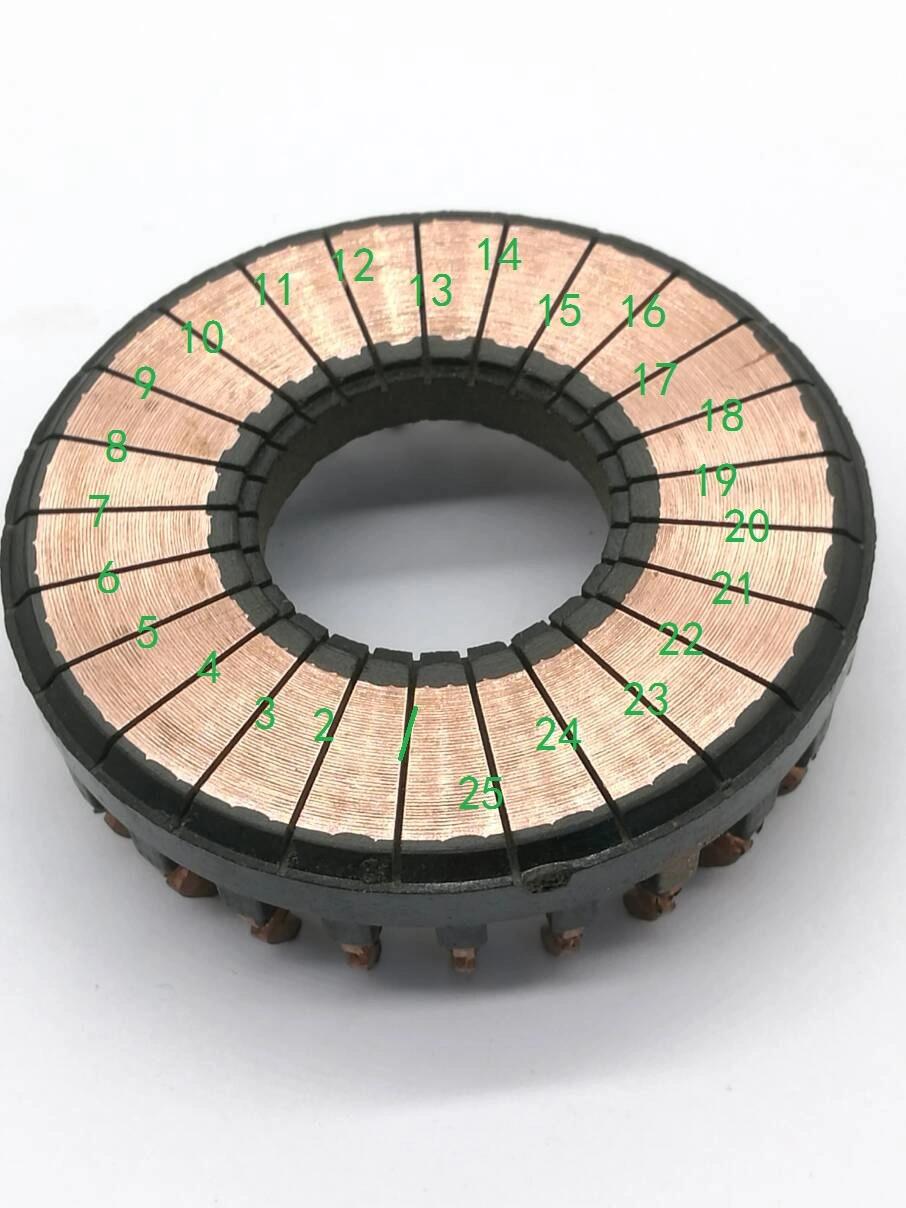

6.    Commutator type: hook type, riser type, shell type or planar type
7.    Copper material: sliver copper or electrolytic copper or customized
8.    Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.

Technical parameter:
Commutator Component: Copper/Mica/ Molding compound
Copper material: 0.03% or 0.08% sliver copper or customized
Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
Application: apply to automotive industry, power tools, household appliances, and other motors
Commutator type: hook type, riser type, shell type or planar type
Package: Suitable for land and sea transportation

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.


LECTSTYLE produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
