• Type：Commutator
• Materials：0.03% or 0.08% Sliver Copper,Bakelite Cn6551
• Spec：Customized

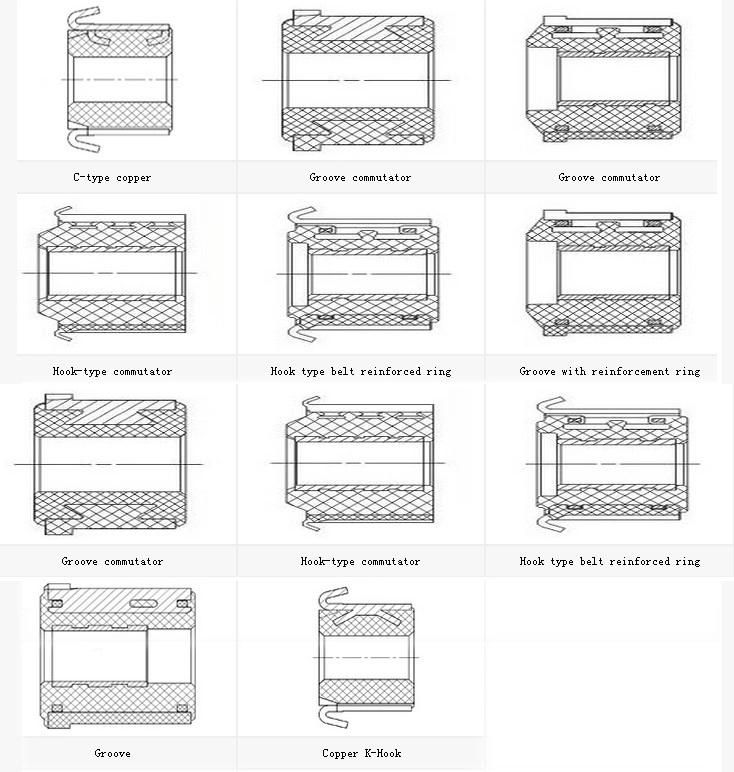

• Structure：Segmented, Hook, Groove Commutator
• Usage：Automobile Industry Electric Tools Motorcycles
• MOQ：1000
• Packing：Paper Cartons on Pallets, Customized
• Service& Warranty：Best Service for All Customers, with 6 Months′ War
• Place of Origin：China (Mainland)
• Brand Name：Lectstyle
• Transport Package：Standard Export Wooden Case
• Specification：CE, ROHS, SGS
• Trademark：LECSTYLE
• Origin：China
• HS Code：85030010
• Production Capacity：50000000 PCS,Year

Materials0.03% or 0.08% sliver copper/bakelite CN6551SizeCustomizedStructureSegmented/ Hook/ Groove commutatorUsageMotor spare partsMOQ1000pcsSample Time15-30 daysDelivery Time30 daysPackingPaper cartons on pallets/ CustomizedBrandLX series commutatorProduction Capacity1000000pcs/monthService& WarrantyBest service for all customers, with 6 months' warranty



Technical Specifications:

1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4±0.1, width 0.5± 0.05 ) should be tolerated.

2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl3. Spin Test: Under 180±2 ºC , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003.4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.
Welcome to LECTSTYLE Commutator

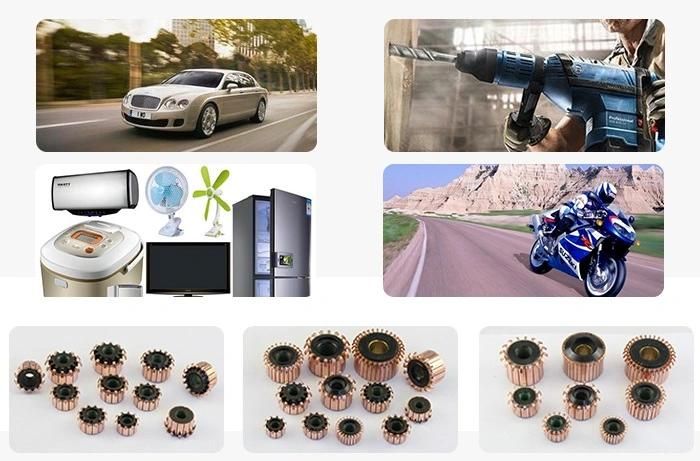

Showcase of   DC Motor Commutator

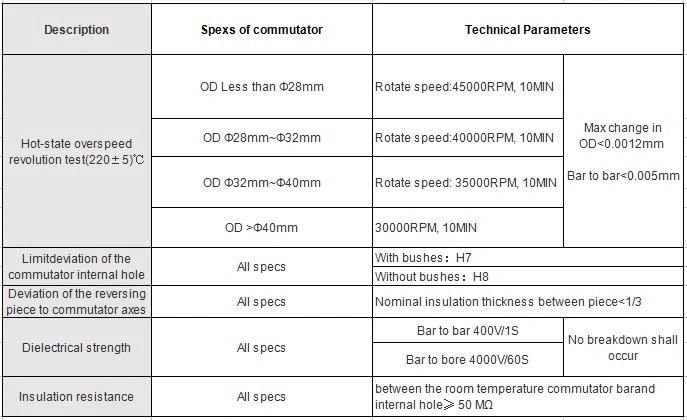

Technical Parameters of   DC Motor Commutator

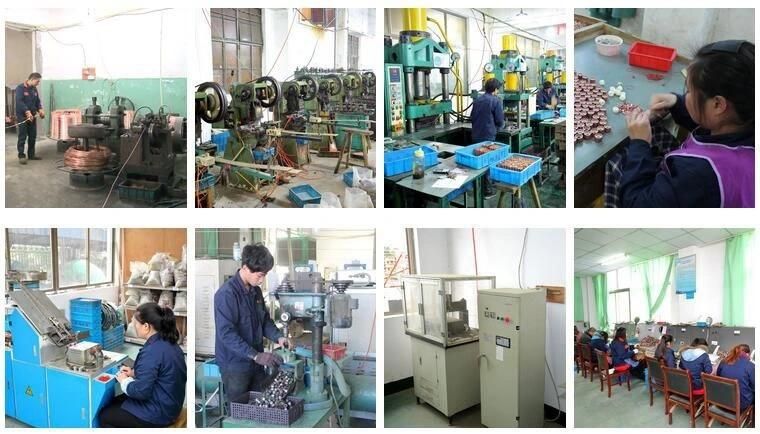

Process of DC Motor Commutator
Package of DC Motor Commutator

We manufacture various of motor (commutators).The commutator are widly used for electric tools, starter motors.

We are a chinese factory specialized in motor commutators for more than 10 years,and have ISO9001:2000 Approved.



We can make any kind of commutators according to your drawing or samples.



1. The alternator part(commutator) for the car industry

Used in the electromotors for the car equipment:

Windscreen wipers fans window lifts

The central locking the ABS braking systems

And for other extra equipment.



2. Commutators for power tools

Used in the electromotors for:

Grinding machines Drilling machines

Hammers circular saws jigsaws

Electrical planers

And for other electrical tools



3. Commutators for household machines

Used in the electromotors for:

Vacuum cleaners

Washing machines

Air conditioning

And for other household appliances
