• Model NO.：TL-35G
• Power Source：Electricity
• Max Power Consumption：2800W
• Weinght (Main Body)：12kg
• Adaptable Bolts Dia：1-1,4" 1-3,8" 1-1,2"(M30 M33 M36)
• Transport Package：Box
• Trademark：hanpu
• Origin：Shandong China

Basic Info.

Model NO. TL-35G Power Source Electricity Max Power Consumption 2800W Weinght (Main Body) 12kg Adaptable Bolts Dia 1-1/4" 1-3/8" 1-1/2"(M30 M33 M36) Transport Package Box Trademark hanpu Origin Shandong China

Product Description

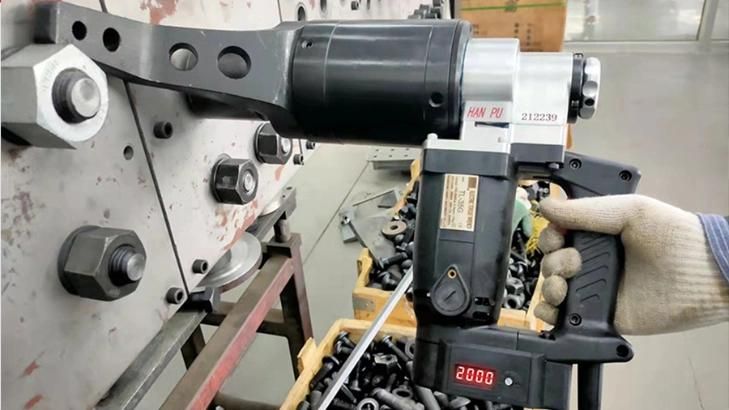

There are many kinds of wrenches in construction and this wrench TL-35 belongs to one kind of Electric Torque Wrench. Its power source is electricity. So we also call it "Electric powerful torque wrench". It mainly used to fasten and loose large hexagon bolts. It has a super large torque value and a very low rotation speed. It has a displayer showing the torque value.

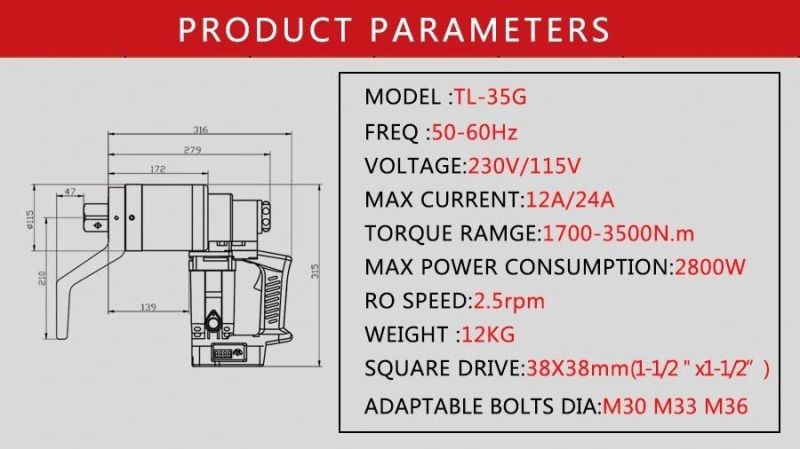

Model : TL-35G
Frequency : 50-60HZ
Voltage : 230V / 115V AC
Max Current : 12A/24A
Max Power Consumption : 2800W
Torque Range : 1700-3500N.M
Rotation Speed : 2.5rpm
Weight (Main Body) : 12.0KG
AQUARE DRIVE:38MMX38MM(1-1/2"X1-1/2")
Protect Class : Double Insulation
Applicable Bolt : S-10T (M30,M33,M36) ; A325 (1-1/4'',1-3/8'',1-1/2'') ; A490 (1-1/4'',1-3/8'')

1. It can output a super large torque value of 1700-3500N.M ;
2. Its rotation speed is very low so that its lifetime is very long ;
3. It has a displayer which can show the real-time torque value. And we can certainly preset the torque value when working if needed ;
4. This wrench is adopt the principle of reaction force. It has a L-shape reaction arm. When working , the operator have to find a support point to prevent the reaction arm turn around.

      5. The torque of this wrench has two directions of R and L, which can tighten and loosen the bolts respectively.
      6. The accuracy of the repeated torque value of this wrench can be controlled within ± 3%.

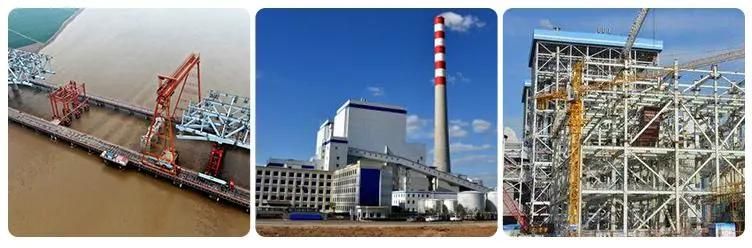

Electric torque control wrench is widely used in many industries:

1. lIn the construction of bridges. The large hexagon bolts connected to the steel structure generally have certain requirements for torque, and it is very suitable to use this wrench to fix the type;
2. lIn the construction and installation of power plants, bolts can be easily tightened.


*About Packing : Adopting the high quality plastic cases with damping sponge and bubble inside to pack wrenches and the external package is high quality cartons.The toolbox is coated with heat-shrinkable film which is made of PVC plastic, it can protect the toolbox from wear and tear, moisture and rain during transportation.

*About Delivery : Hanpu company has a complete inventory system.  All models and spare parts currently sold are available from stock throughout the year. Generally , the delivery time is 7~15 days.
*About Shipment : We can ship out the goods by Air, by Sea, by Rail and by Express. LCL shipment and FCL shipment.

*About Maintenance : This wrench requires a thorough repair and maintenance every 3 months from the first use or after tightening the bolts 20,000 times; The warranty period is 6 months after delivery.
*After Sale : All spare parts of all sold models of Hanpu company are guaranteed supply for 7 years on the markets to ensure the continuity of after-sales service.

FAQ:

Q: What's the MOQ ?
A: One set per model ;
Q:What's the delivery time?
A: Generally in 7~15days ;
Q: What's the payment terms?
A: T/T 30% deposit and the balance paid before loading ;
Q: Are you factory or trading company?
A: We're factory and can do exporting ourselves.

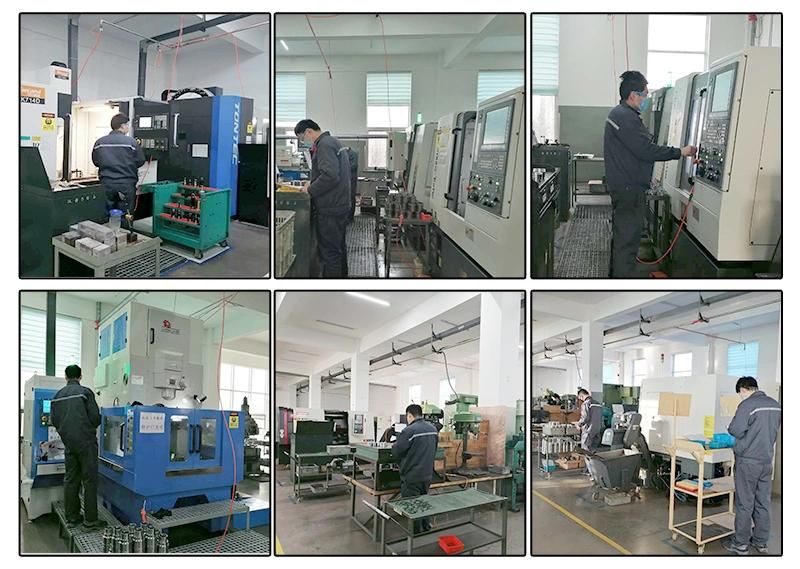

Shandong Hanpu Machinery Industrial Co., Ltd. is located in Qihe Economic Development Zone, Dezhou City. After more than 20 years of innovation and development, the company now has a 62-acres industrial park and a 30,000-square-meter production R & D workshop, introducing a large number of f high-end processing equipment made in Switzerland, Germany, and Japan. Hanpu company has become a huge domestic electric wrench production base.
Welcome to visit our factory and discuss orders !
