• Model NO.：HT300
• Transport Package：Wooden Case
• Specification：HT300
• Trademark：GREAT WALL
• Origin：China
• HS Code：8467210000

Basic Info.

Model NO. HT300 Transport Package Wooden Case Specification HT300 Trademark GREAT WALL Origin China HS Code 8467210000

Product Description

Introduction :


This machine is designed to do hot tapping on the pipeline under pressure for the branch pipeline connection .
It is suit for Ductile Iron Pipe, Carbon Steel Pipe and Plastic Pipe .
And it is widely applied in water supply, natural gas supply,  oil and chemical industry .


Feature :

1. removable explosion proof motor
2. light weight, portable, labor-saving
3.  the machine in good sealing  with the gasket of interface between the main spindle and driving spindle
4.  our hot tapping machine equiped explosion proof motor for gas lines

Range of Hot Tapping Size :  2'' to 64''

Range of Working Pressure : PN10, PN16, PN25

Technical Parameter :


Model	Range of Hot Tapping Size	Feed Mode	Feed Volume	Working Stroke	Spindle Speed	Motor Power	Motor Voltage	Tapping Time	Pressure Flange
	mm/inch		mm/r	mm	RPM	Kw	V	min
HT50	DN25-DN50   3/4''-2''	Manual	1.5	170/240	/	/	/	10-20	PN10/16
HT100	DN50-DN100 2''-4''	Electric /Manual	0.07-0.2	300	53	0.75	220	15-30	PN10/16/25
HT200	DN100-DN200 4''-8''	Electric /Manual	0.07-0.2	400	40	1.5	220	15-30	PN10/16/25
HT300	DN100-DN300 4''-12''	Electric /Manual	0.07-0.2	540	40	1.5	220/380	15-30	PN10/16/25
HT400	DN250-DN400 10''-16''	Electric /Manual	0.07-0.15	600	30	1.5	380	15-40	PN10/16/25
HT600	DN500-DN600 20''-24''	Electric /Manual	0.05-0.1	800	25	4	380	30-60	PN10/16/25
HT800	DN700-DN800 28''-32''	Electric /Manual	0.05-0.1	1000	20	4	380	40-80	PN10/16/25
HT1400	DN500-DN1400 20''-56''	Electric /Manual	0.15-4	1250-1600		7.5/11	380	120-180	PN10/16

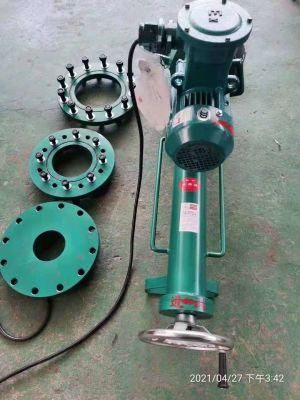

Product Display :

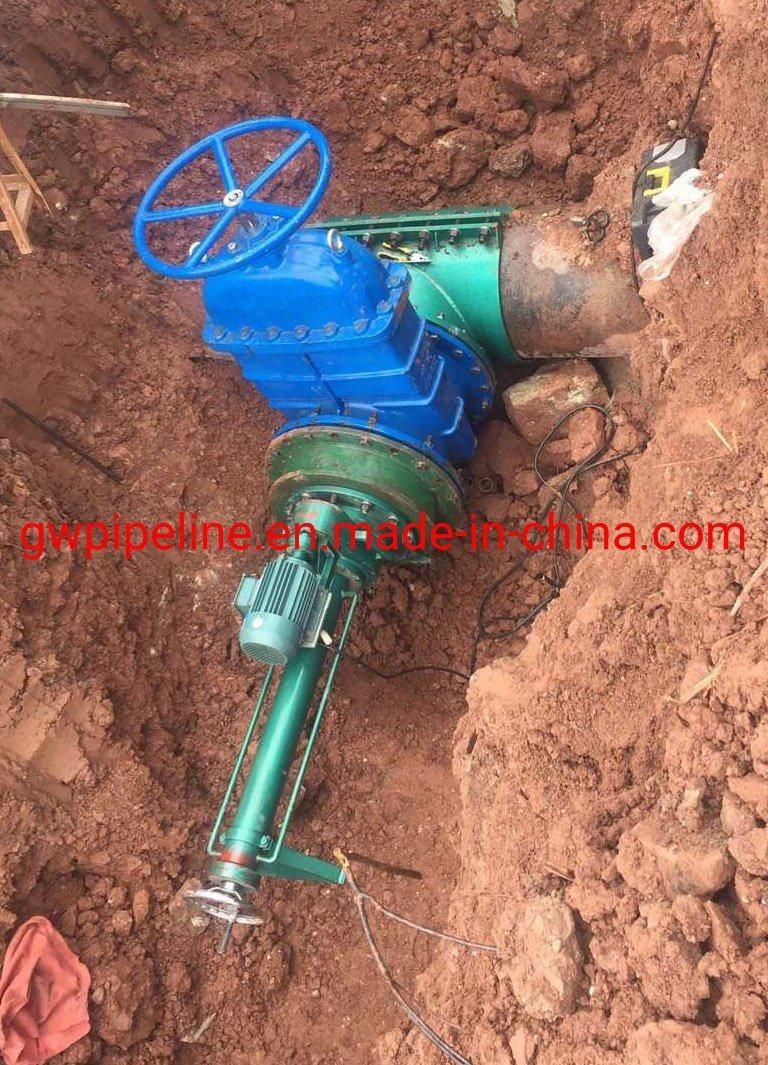

Hot Tapping Project Site :
