• Model NO.：KSEW
• Power Supply Voltage：230V
• Battery Voltage：Power Source
• Unloaded Speed：1.3-20rpm
• Power Source：Electricity
• OEM Service：Can Put Customers′ Brand
• Square Drive：3,4′′, 1′′, 1-1 , 2"
• Accuracy：+-5%
• Characteristic：Straight Type, Electric Torque
• Transport Package：ABS Material Tool Box
• Specification：Aluminum-Titanium
• Trademark：KASHON
• Origin：China
• Production Capacity：300 Units Per Month

Basic Info.

Model NO. KSEW Power Supply Voltage 230V Battery Voltage Power Source Unloaded Speed 1.3-20rpm Power Source Electricity OEM Service Can Put Customers′ Brand Square Drive 3/4′′, 1′′, 1-1 / 2" Accuracy +-5% Characteristic Straight Type, Electric Torque Transport Package ABS Material Tool Box Specification Aluminum-Titanium Trademark KASHON Origin China Production Capacity 300 Units Per Month

Product Description

Angle type precision control digital torque display electric torque wrench

Features:
High output and repeat accuracy: ± 5% and ±3%.
Preset torque and automatic shutoff when reaching the setted torque.

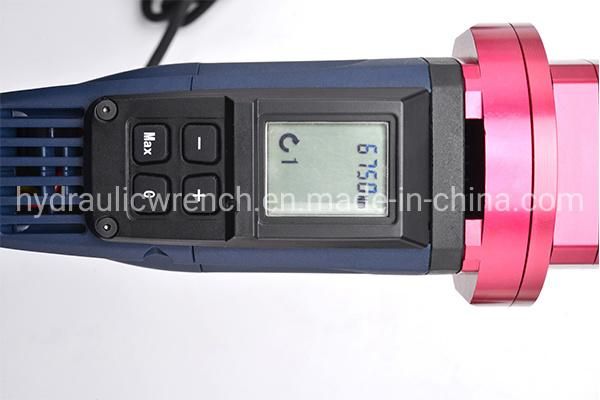

Single-chip intelligent torque control system with LCD display.
With  manual 2-speed gearbox, high/low speed can be shifted freely
Very suitable for continuous operation in production assembly and maintenance.
Free connection of power handle and drive unit, could be rotated 360°.
Higher efficiency whether tightening or loosenning bolts and nuts than hydraulic torque wrench.
Portable and durable design, low noise, with overload protection.
After-sales service: 1 year guarantee period,  life-long maintenance..
Specifications:

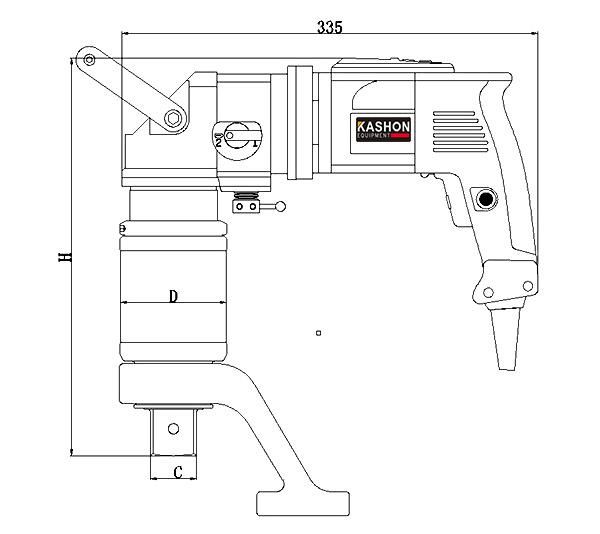

Model	Torque Range(Nm)	Square drive C	Outside Diameter D(mm)	Length L(mm)	Idle Speed (rpm)	Weight (kg)
KSEW-08A	100-800	3/4"	88	429	20	7.8
KSEW-12A	200-1200	1"	88	433	18	8.0
KSEW-26A	400-2600	1"	88	485	7	9.8
KSEW -38A	500-3800	1-1/2"	88	490	5	10.5
KSEW -60A	1000-6000	1-1/2"	129	525	3.5	17.3
KSEW -80A	1200-8000	1-1/2"	129	558	1.9	19.2
KSEW -100A	1800-10000	1-1/2"	129	558	1.6	19.4
KSEW-120A	2000-12000	1-1/2"	129	570	1.3	19.5

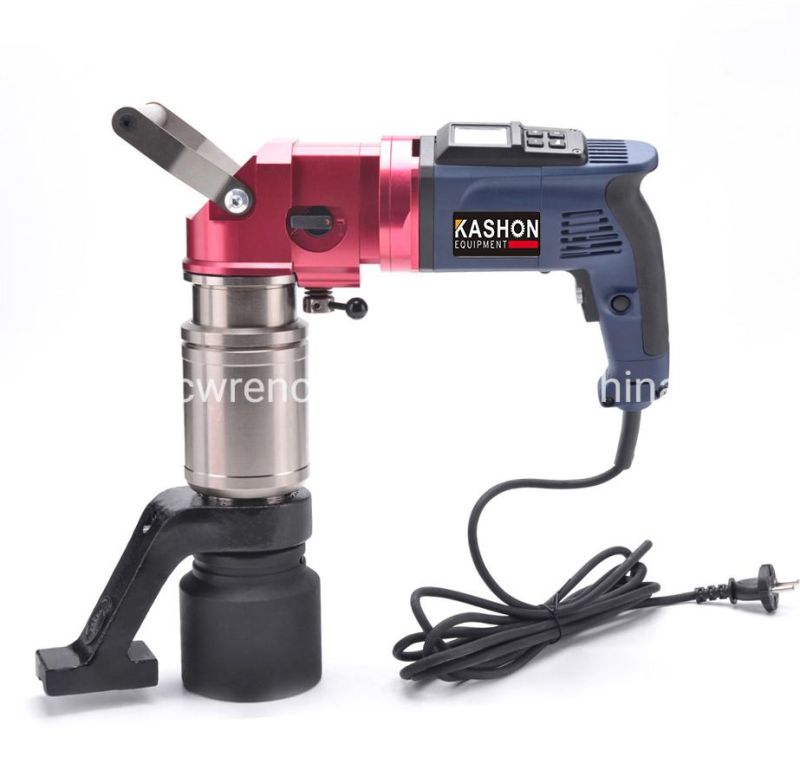

Photos:
