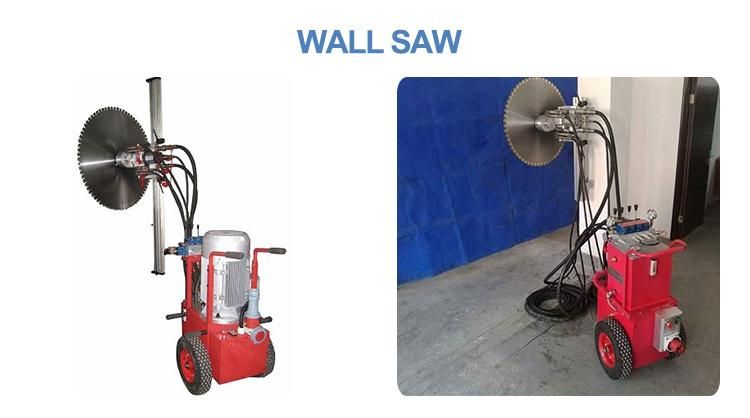

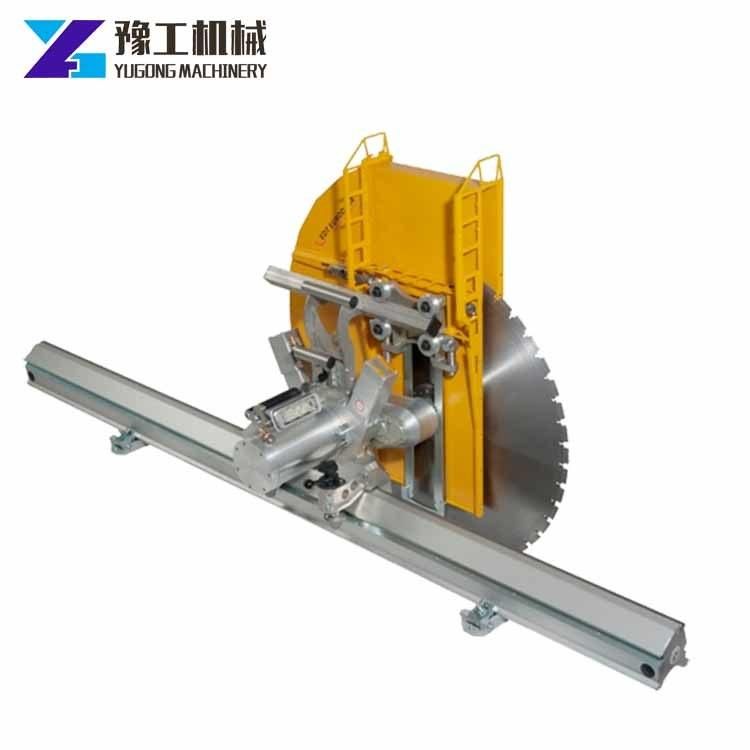

Hydraulic Concrete Wall Saw Cutting Machine
Henan Yugong Machinery Co., Ltd.- Certification:ISO, CE
- Application:Asphalt Pavement, Concrete, Brick
- Blade Diameter:800-1200mm
- Maximum Cutting Depth:50mm
- No Load Speed:4000rpm
- Rated Power:3000w
Base Info
- Model NO.:YG700TM
- Rated Voltage:380V
- Max. Power:30kw
- Motor Cooling Method:Water Cooling
- Cutting Depth:50mm
- Cutting Efficiency:3-6m,H
- Max. Operating Pressure:210bar,20MPa
- Oil Flow Rate:40-100L,Min
- Weight:140kg
- Size:500*520*1100mm
- Transport Package:Wooden Case
- Specification:500*520*1100mm
- Trademark:YUGONG
- Origin:China
- Production Capacity:7000 Sets,Month
Description
Basic Info.
Model NO. YG700TM Rated Voltage 380V Max. Power 30kw Motor Cooling Method Water Cooling Cutting Depth 50mm Cutting Efficiency 3-6m/H Max. Operating Pressure 210bar/20MPa Oil Flow Rate 40-100L/Min Weight 140kg Size 500*520*1100mm Transport Package Wooden Case Specification 500*520*1100mm Trademark YUGONG Origin China Production Capacity 7000 Sets/MonthProduct Description
Hydraulic concrete Wall Saw Cutting MachineConcrete wall saw cutting machine is mainly used for building or old building renovation, reinforcement, change the design, you can cut the door, window or elevator hole and other large area wall cutting. The structure of non-destructive, one-time molding, in addition to the traditional master can avoid the construction of the damage to the structure of the building.
Concrete wall saw cutting machine Technical Data
Model | YG600TM | YG700TM |
Max. power | 25Kw | 30Kw |
Motor cooling method | Air cooling | Water cooling |
Blade diameter | 800/1000/1200mm | 800/1000/1200mm |
Cutting depth | 40mm | 50mm |
Cutting efficiency | 3-6m/h | 3-6m/h |
Rated voltage | 380V 50Hz | 380/420V 50Hz/60Hz |
Pressure stage | 3 | 3 |
Max. Operating pressure | 200bar/20Mpa | 210bar/20Mpa |
Oil flow rate | 30-80L/Min | 40-100L/Min |
Dimension | 600*650*1050mm | 500*520*1100mm |
Weight | 220kg | 140kg |
