• Model NO.：4,3C-AH (R)
• HS Code：8413502090
• Production Capacity：1500 Set,Sets Per Year

Basic Info.

Model NO. 4/3C-AH (R) HS Code 8413502090 Production Capacity 1500 Set/Sets Per Year

Product Description

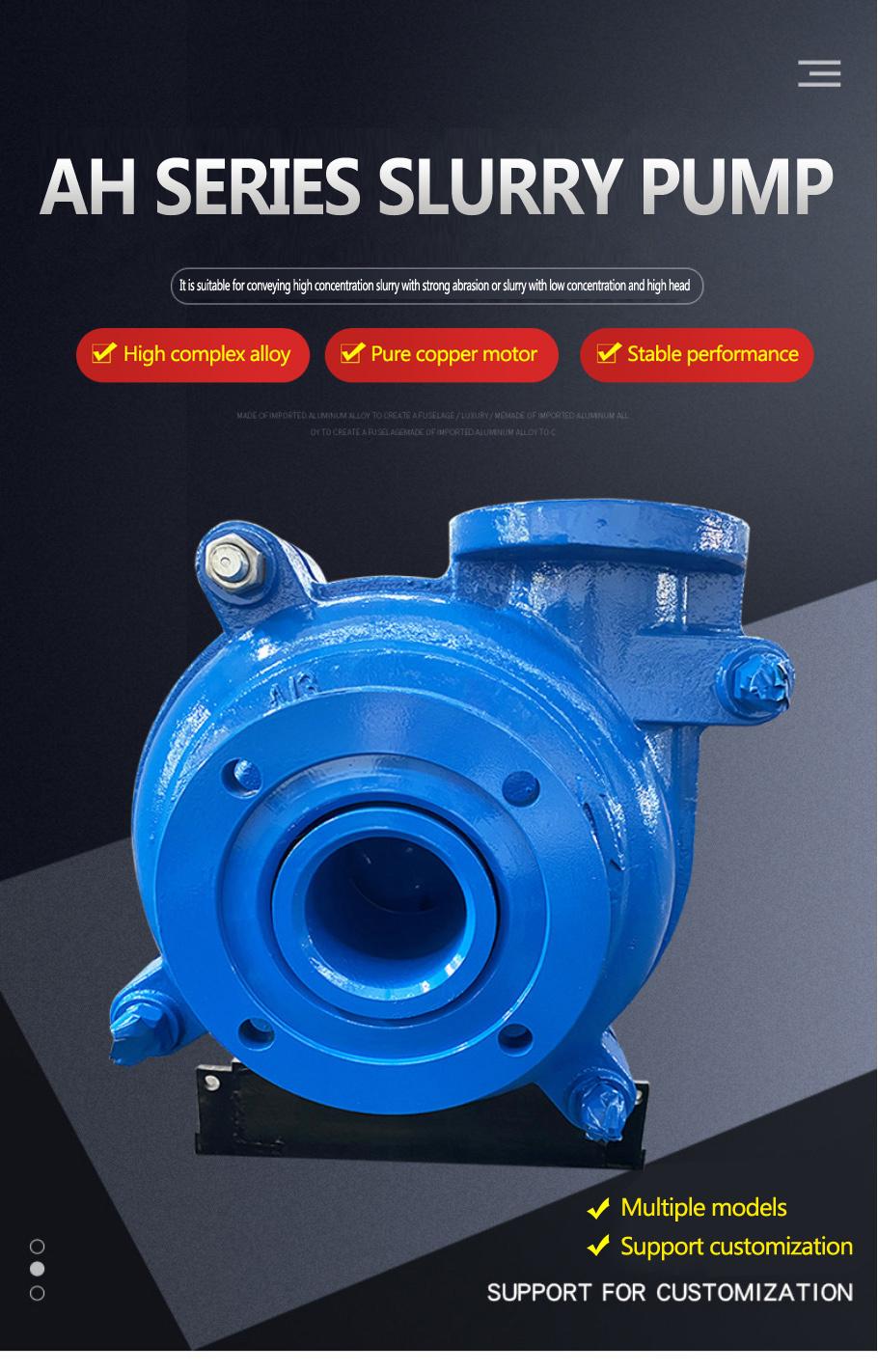

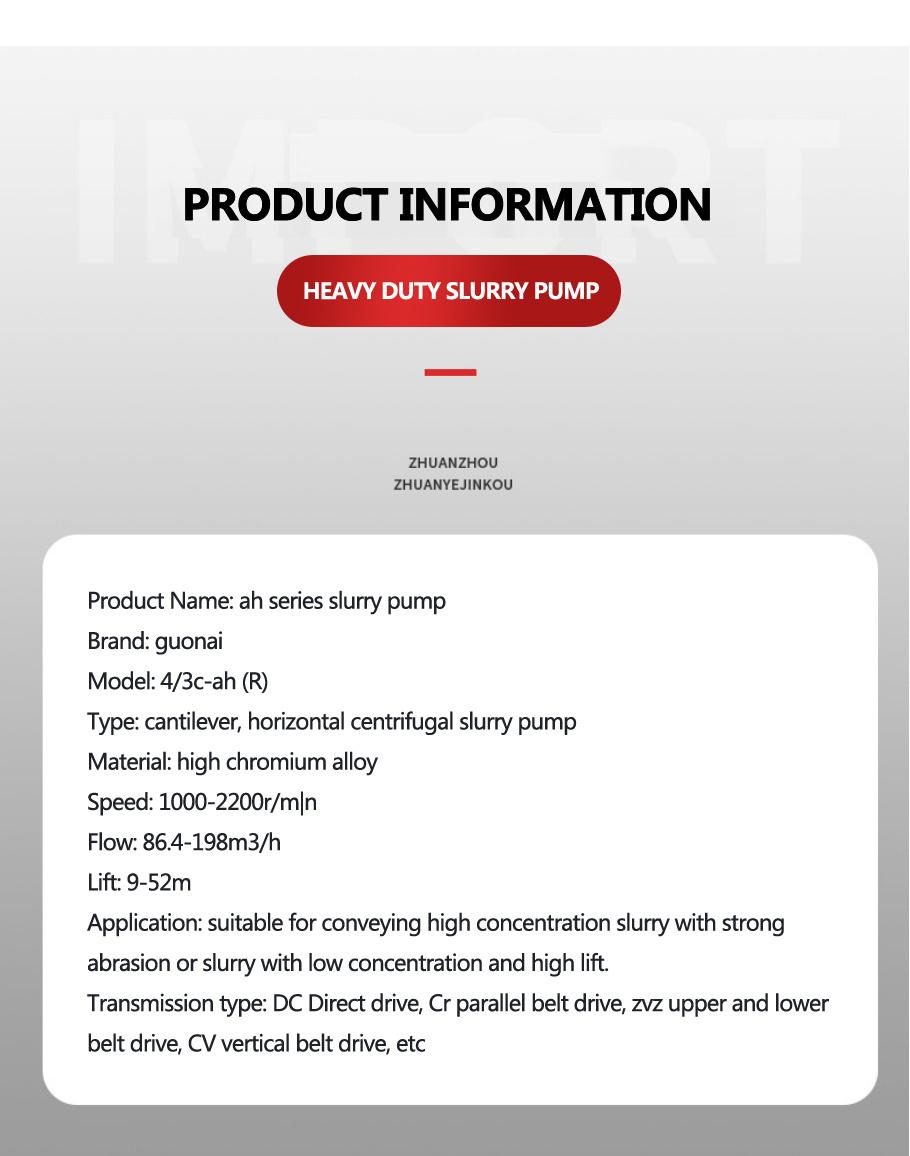

AH series slurry pump

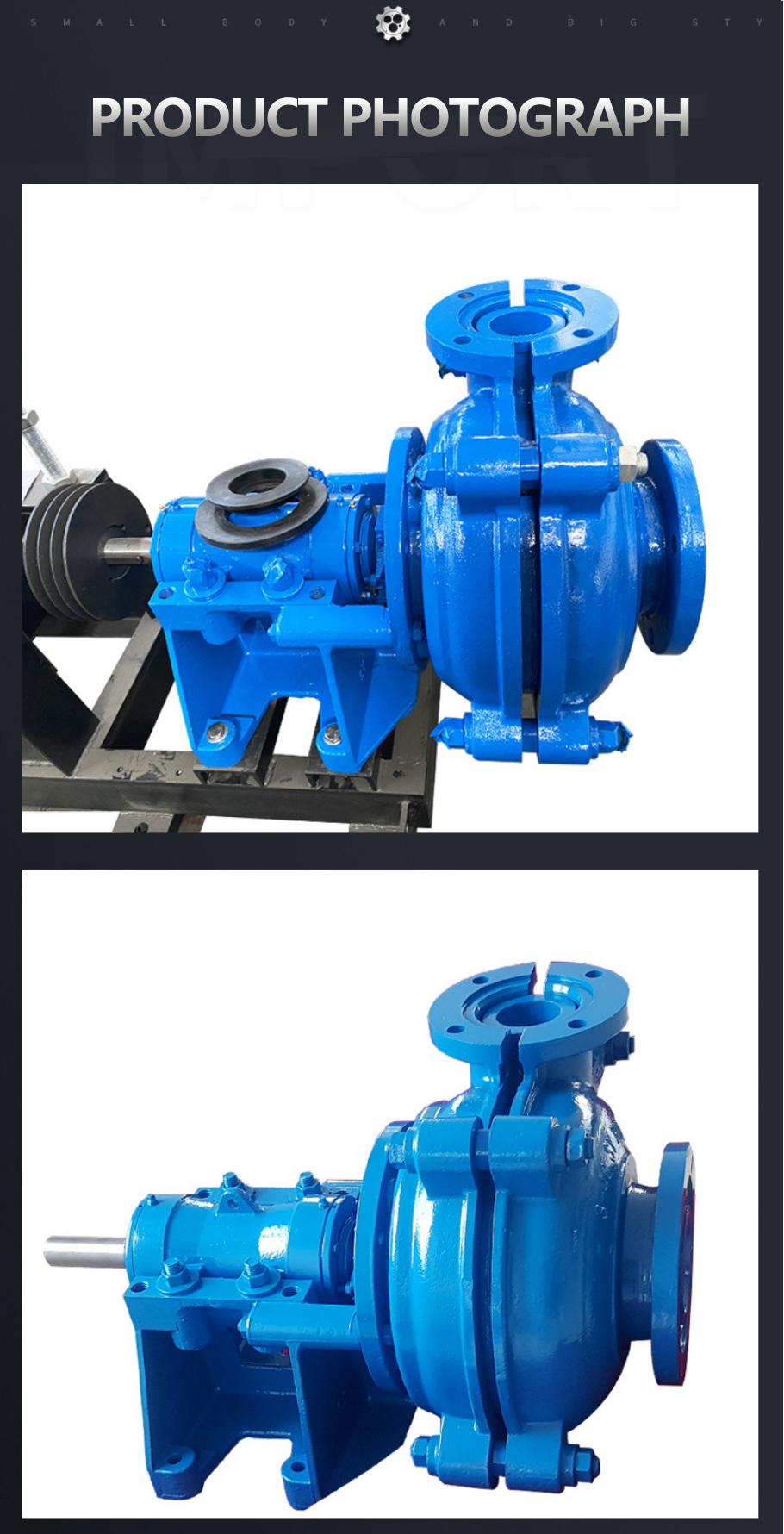

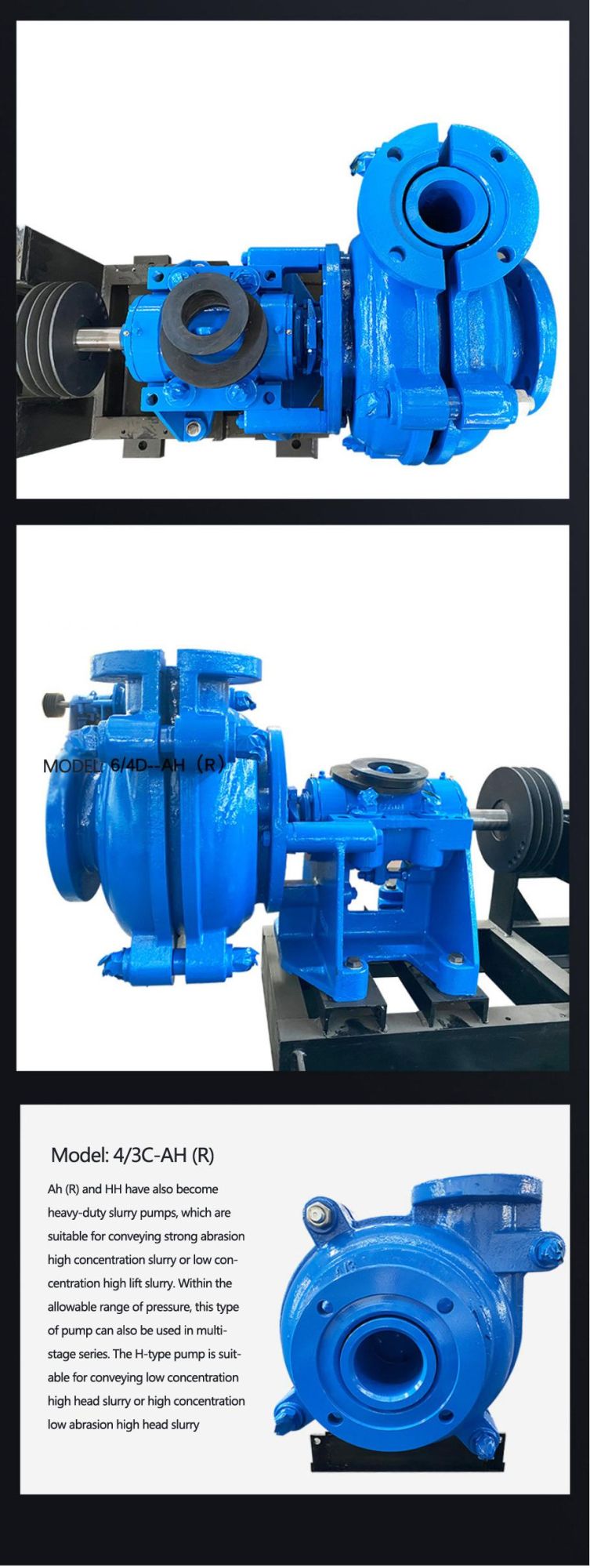

Model: 4/3C-AH (R)

Brand: Guonai

Material: high chromium alloy

Application: suitable for conveying high concentration slurry with strong abrasion or slurry with low concentration and high lift

Layout: Horizontal

Transmission type: DC Direct drive, Cr parallel belt drive, zvz upper and lower belt drive, CV vertical belt drive, etc.

Flow: 324-720m 3/ H lift: 7-49m speed: 400-1000r / min

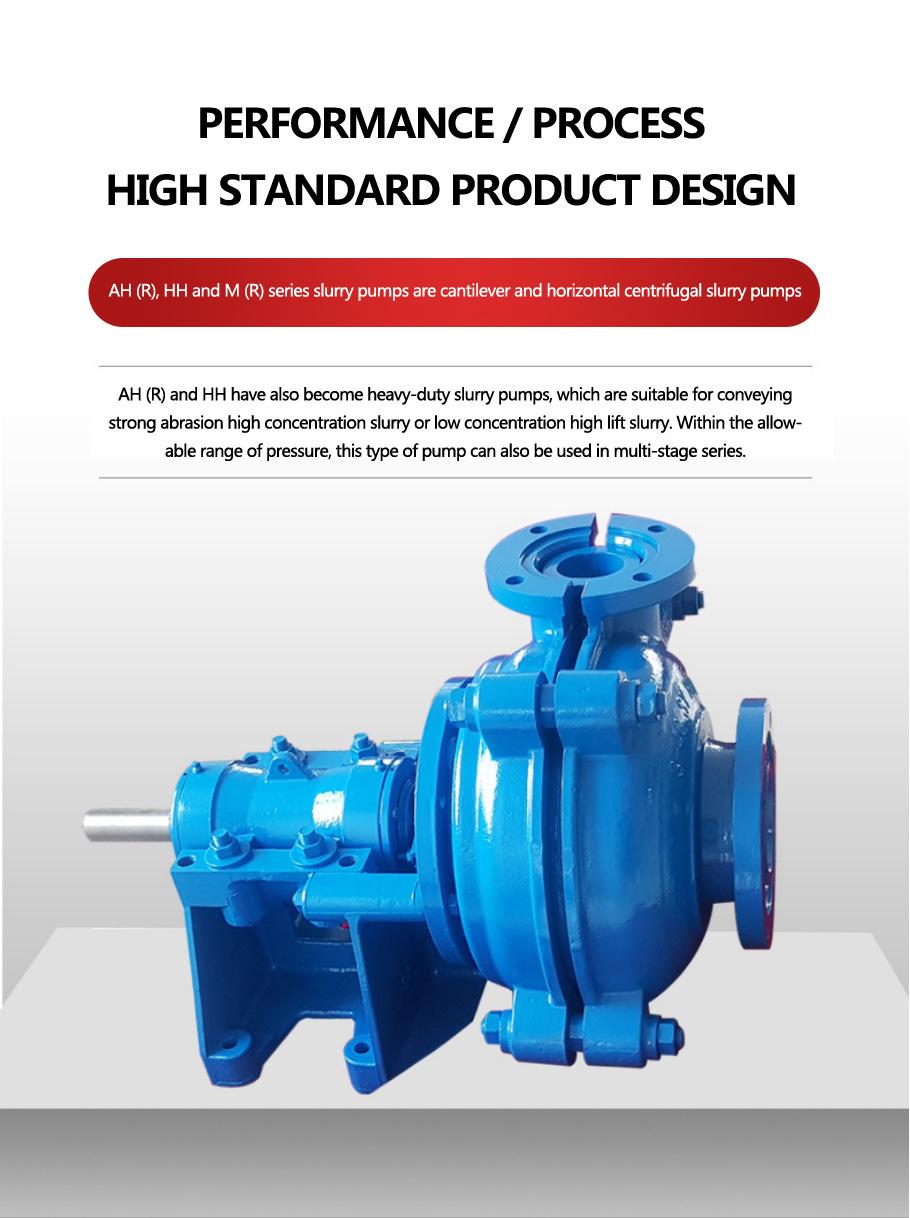

Ah (R), HH and m (R) series slurry pumps are cantilever and horizontal centrifugal slurry pumps. It is suitable for conveying abrasive or corrosive slurry in metallurgical, mining, coal, electric power, building materials and other industrial departments.
Ah (R) and HH have also become heavy-duty slurry pumps, which are suitable for conveying strong abrasion high concentration slurry or low concentration high lift slurry. Within the allowable range of pressure, this type of pump can also be used in multi-stage series. HH pump is suitable for conveying low concentration high head slurry or high concentration low abrasion high head slurry.

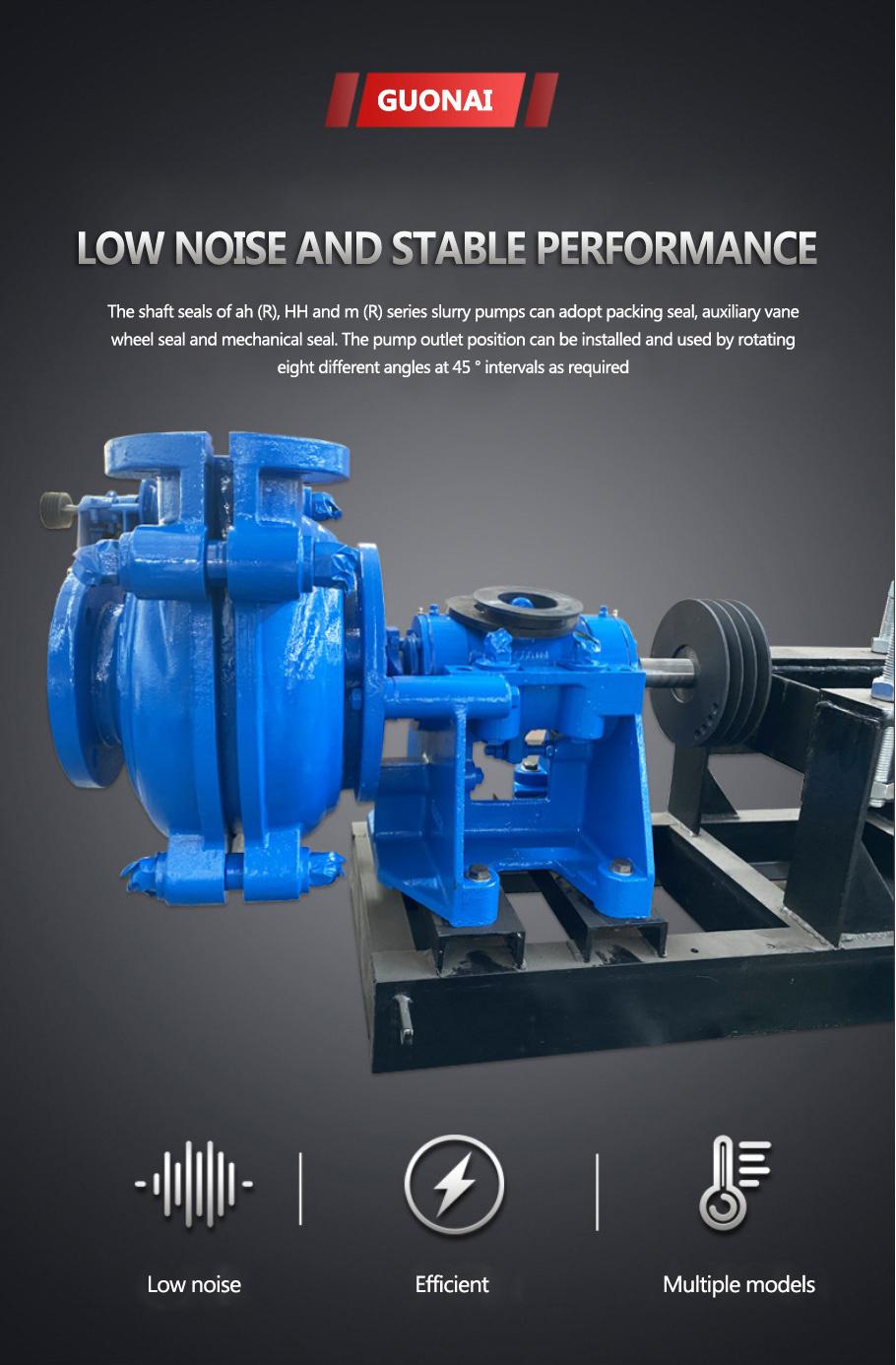

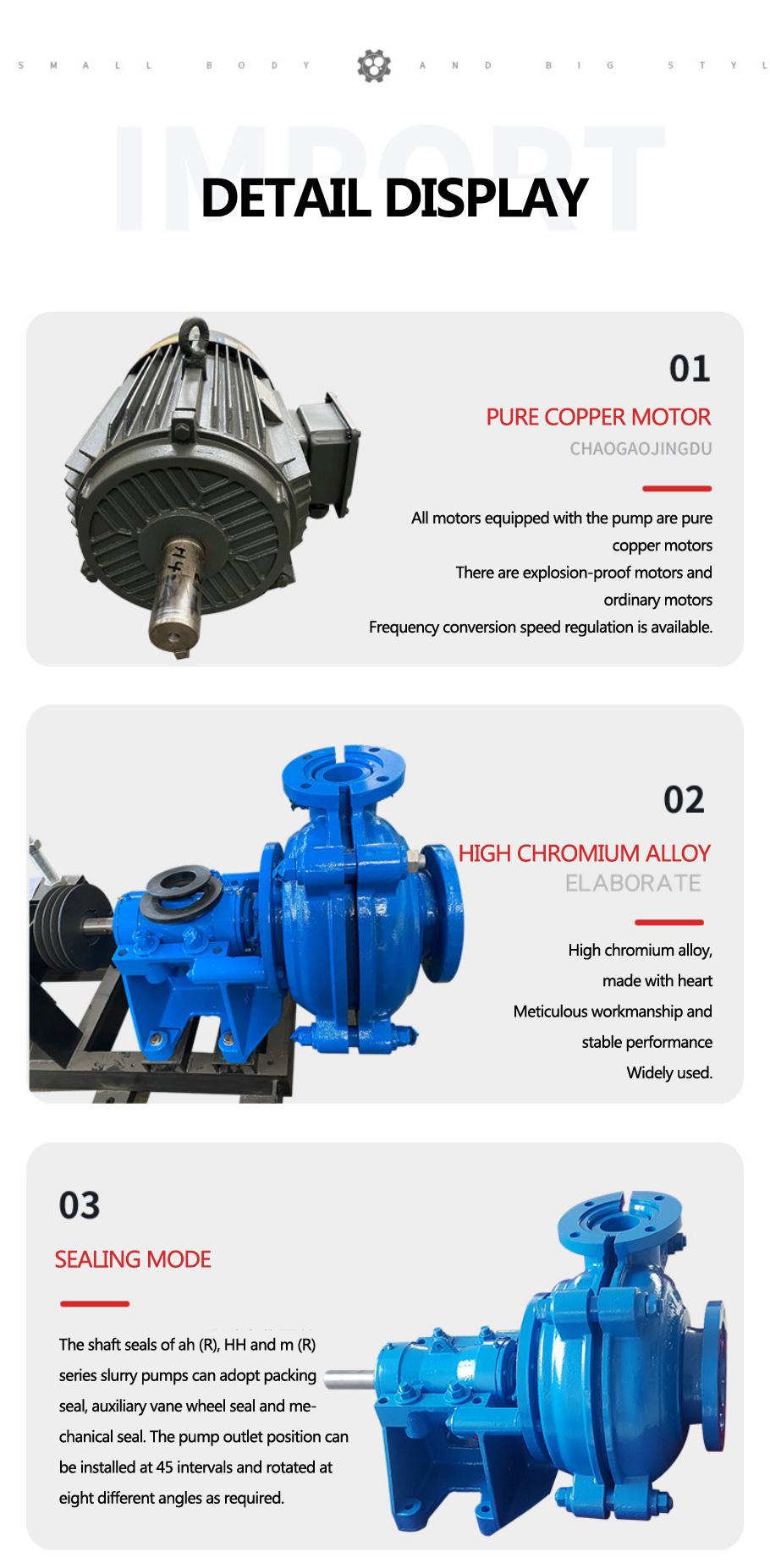

The shaft seals of ah (R), HH and m (R) series slurry pumps can adopt packing seal, auxiliary vane wheel seal and mechanical seal. The pump outlet position can be installed and used by rotating eight different angles at 45 ° intervals as required.

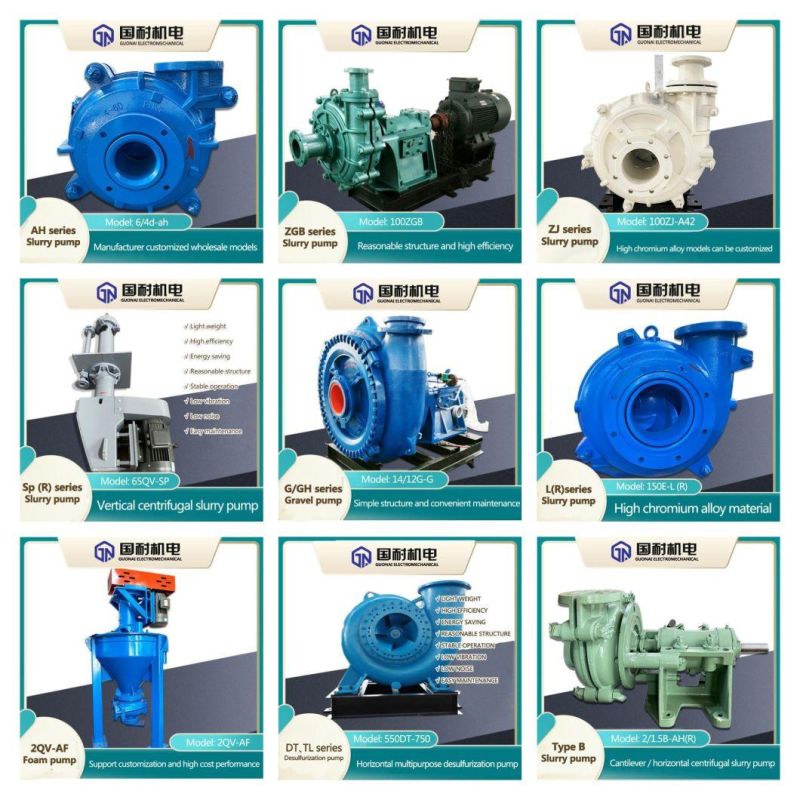

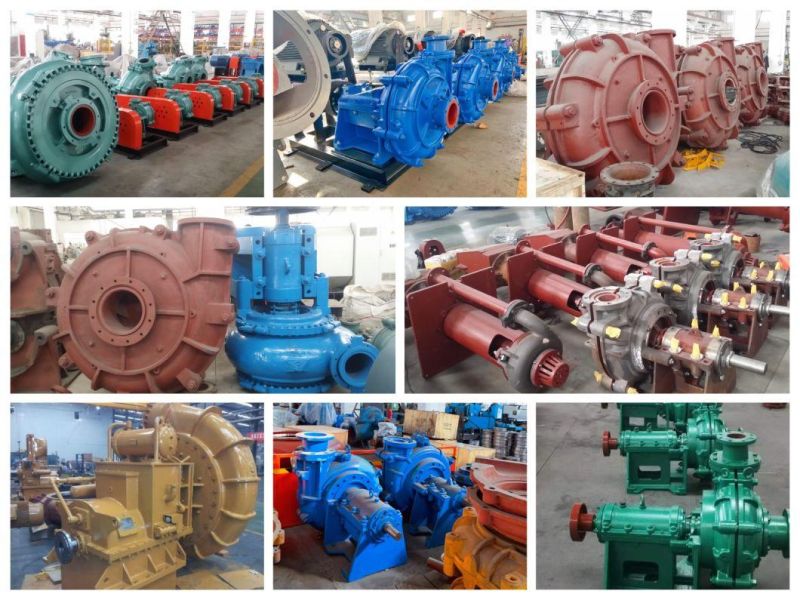

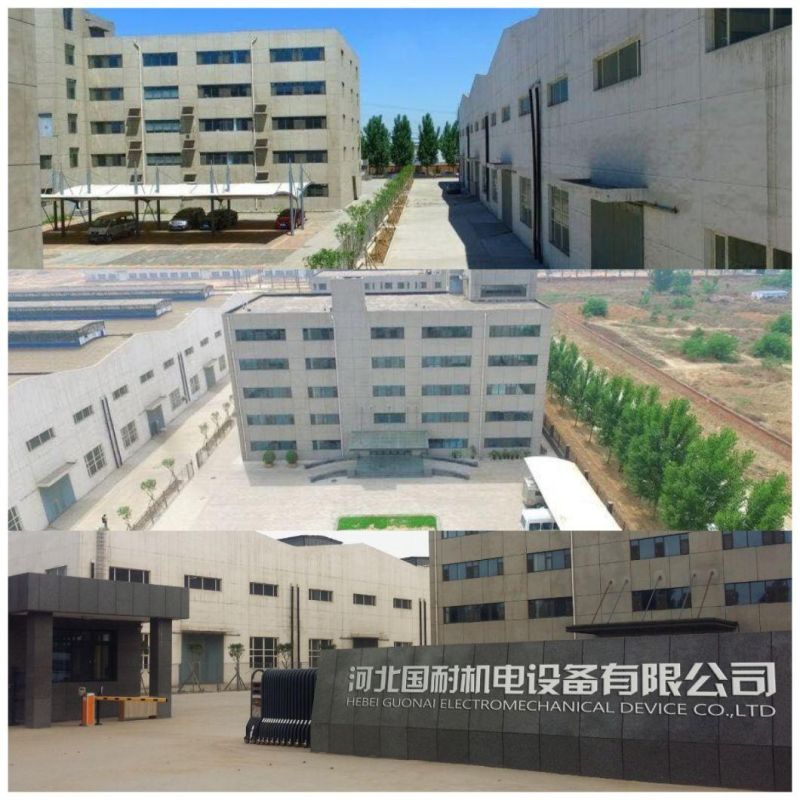

Hebei Guonai Electromechanical Device Co., Ltd. has mature experiences for many years on research & manufacture and application of slurry pump.Meanwhile based on technology intruduction,the perfect product series has been developed which covers full rage for application.Among them,series AH, ZJ,  ZGB, GH,SP series, etc. has wider usage especially.Through the apply in the industry such as mentallurgy,mine,electric factory and chemical industry etc,it has been proved that these products have advantages of reasonable construction,reliable operation and long service life etc which are welcome in consumers.
