• Model NO.：tn-3b
• Adaptable Bolts Dia：1,2"5,8"(M12 M16)
• Transport Package：Box
• Specification：4.4kg
• Trademark：HANPU
• Origin：Shandong China

Basic Info.

Model NO. tn-3b Adaptable Bolts Dia 1/2"5/8"(M12 M16) Transport Package Box Specification 4.4kg Trademark HANPU Origin Shandong China

Product Description

Product description

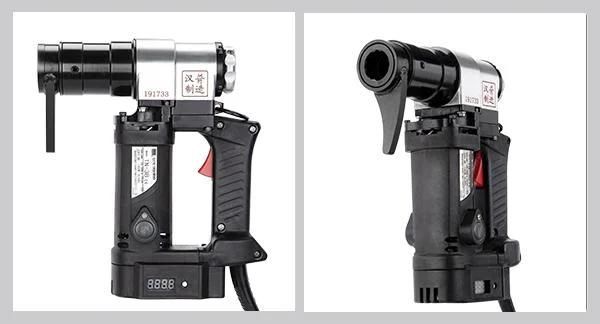

Hanpu electric torque wrench TN-3B is a lightweight electric torque wrench, which can be applied in many industries. The torque value can be set in advance when the electric torque wrench works. When the spanner reaches the set torque value, the spanner stops automatically, so it is also called "torque control spanner". Mainly used for fastening and loosening large hex bolts, torque range :100-300N. M Can fasten M12, M16, high strength bolts.




 Product parameters

Model : TN-3B
Frequency : 50-60Hz
Voltage : 230V / 115V AC
Max Current : 6A/12A
Max Power Consumption : 1300W
Torque Range : 100-300N.M
Rotation Speed : 24rpm
Weight (Main Body) :4.4KG
Protect Class : Double Insulation
Applicable Bolt : S-10T (M12,M16 ) ; A325 (1/2" 5/8'') ; A490(1/2")

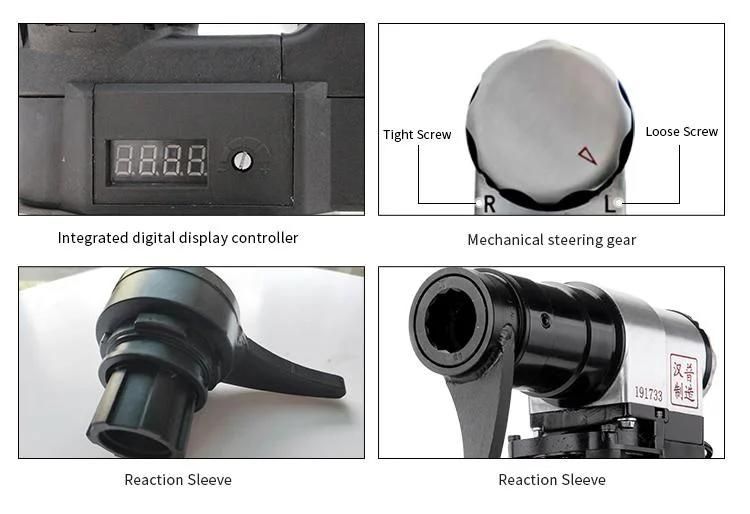

Product details




instructions

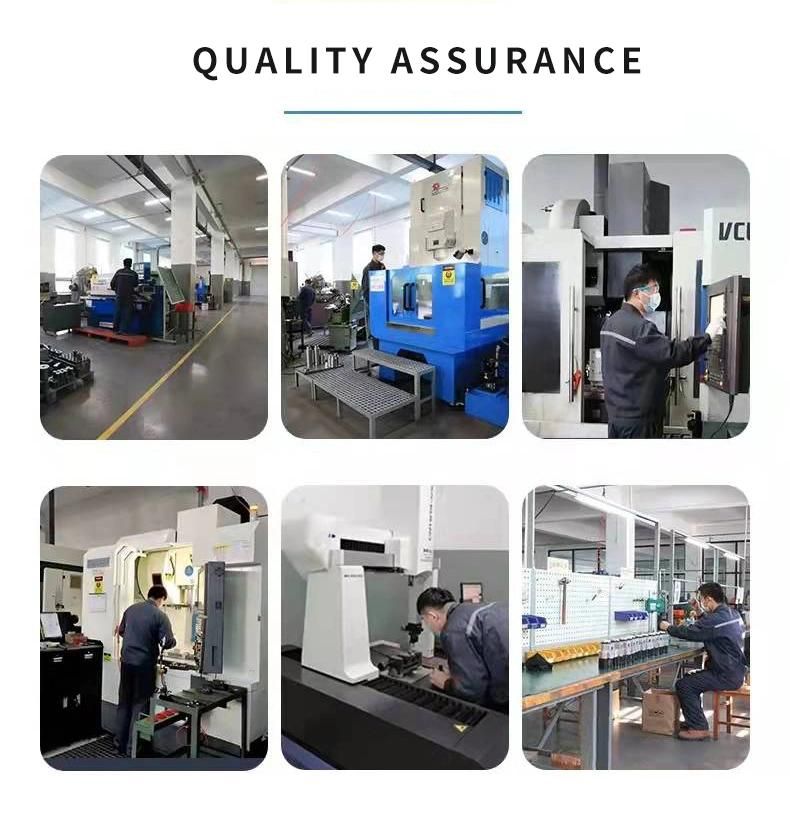

1. Almost all spare parts are manufacturered by ourselves, we could control each step quality; we have stricktly quality controll and inspection systerm.

2. All our production equipement are imported from Germany, Swiss & Japan. High quality equipemtn could keep our products quality.

3. We adopts German motor, powerful and quality stable.

4. The company has a dedicated after-sales customer service that is available to you 24 hours a day.
